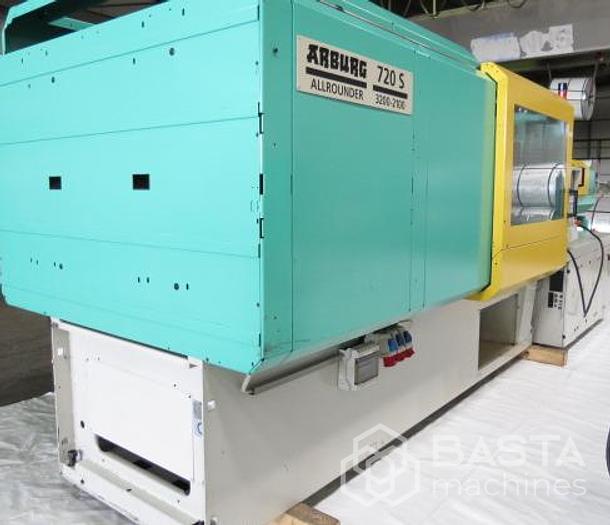

2005 Arburg 720 S 3200-2100

Specifications

ManufacturerArburg
Model720 S 3200-2100
Year2005
ConditionShowroom
Stock Number00180
Clamping force320 ton
Oppening path700 mm
Platten size1040 x 1040 mm
Screw diameter70 mm
Injection volume1078 cm3
Distance between tie bars720 x 720 mm

Description

Producer: Arburg

Model: 720 S 3200-2100


Clamping unit 720S

Clamping force: 320 ton

Opening path: 700 mm

Mould installation height min: 300 mm


Distance between tie bars: 720 x 720 mm

Platten size: 1040 x 1040 mm


Injection unit 2100

Screw diameter: 70 mm (also option 60 or 80mm)

Injection volume: 1078 cm3

Shot weight: 984 g/PS (723 or 1407 g/PS)



Year of refurbish: 2022 (mnfg year 2005)


Weight: 17.700 kg
