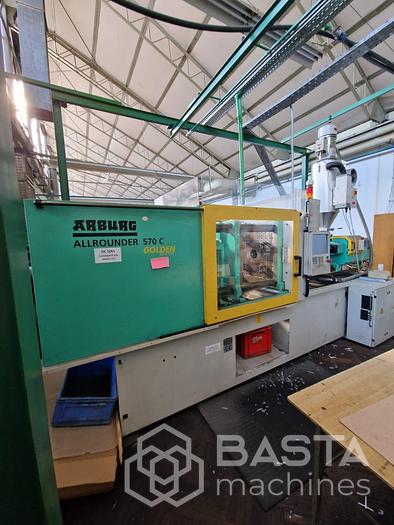

2006 Arburg 570 C 2000-800

Clamping unit:

Clamping force: 200 ton

Opening force/stroke - max./min.: 520/650Mould height, fixed/variable - min./max.: 300/--

Platen daylight fixed/variable - max.min.: 950/--

Distance between tie bars (W x H): 570 x 570 mm

Mould mounting platens (W x H): 795 x 795 mm

Weight of movable mould half - max.: 1500 kg

Ejector force/stroke - max. kN/mm: 66/225

Dry cycle time EUROMAP 2 MIN. S- MM: 2,6-399

Injection unit:

Screw diameter: 55 mm

Shot weight PS : 434 g

Stroke volume: 474 cm3

Injection pressure: 1650 bar

Working hours: 1200

1 x core puller
