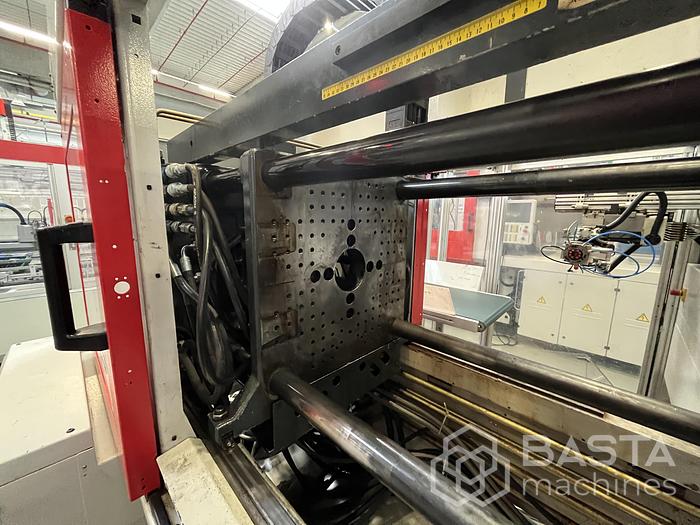

2006 Arburg 420 C 1000 - 350 / 60 Allrounder Centex + Multilift robot

Sold

Specifications

ManufacturerArburg
Model420 C 1000 - 350 / 60 Allrounder Centex
Year2006
ConditionShowroom
Stock Number00234

Description

Producer: Arburg

Model: 420 C 1000 - 350 / 60 Allrounder Centex 2K injection units


Clamping unit

Clamping force: 100 ton

Distance between tie bars HxV: 420 x 420 mm

Platten size: 570x570 mm


Injection unit 1:

Screw diameter: 35mm

Injection volume: 139 cm3

Injection pressure: 2500 bar


Injection unit 2:

Screw diameter: 22 mm

Injection volume: 30 cm3

Injection pressure: 2340 bar


Robot ARBURG Multilift H mit B achse(XYZ, BC)


3 core pulls

12 mould hotrunner zones

CLF card reader


Machine hours: 67115



Machine worked until last moment in production.
