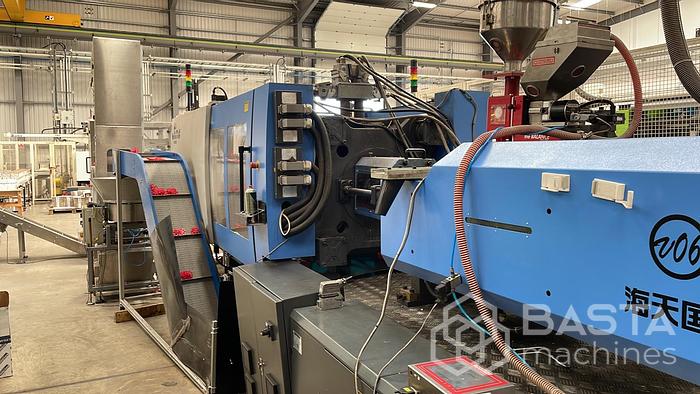

Haitian HTF280W (2007)

Screw Diameter : 60 mm

Calculated Injection Volume : 735 cm3

Injection Capacity (PS) : 669 g/PS

/Injection Velocity: 321 g/s

(Plasticization Capacity : 33.7g/s

Injection Pressure: 184 MPa

Injection Stroke: 260 mm

Screw Speed: 0-270

Heating Input Power: 24.1KW

Clamping Force: 280 ton

/Space Between Tie-Bars (HxV) : 630x630 mm

Die-Height Available (Max.) : 630 mm

(Die-Height Available (Min.) : 230 mm

Mold Opening Stroke : 590 mm

Open Daylight : 1220 mm

Ejector Stroke : 150 mm

Ejector Force : 62 kN

Ejector Number: 13 PC

Pump Motor Power : 37KW

/Oil tank Capacity : 705

Machine Dimension (LxWxH) : 6.63x1.83x2.08

Total Machine Weight (approx.) : 11

Minimal Mold Dimension (LxW) : 440x440 mm

Hours: low
