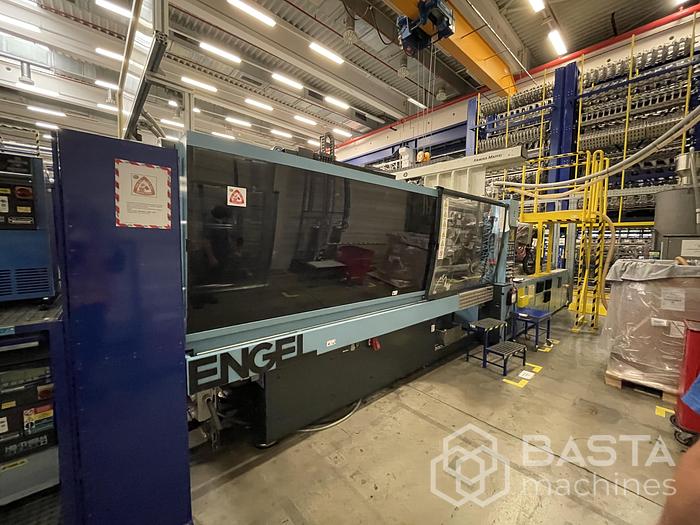

Engel CL 1350/350 (350 ton machine) - robot Wittmann W733-0398

Specifications

ManufacturerEngel
ModelCL 1350/350
Year2003
ConditionShowroom
Stock Number00095
Clamping force350 ton

Description

Brand: Engel

Controll: CC100


Clamping force: 350 ton

Distance between tie bars: 735x735 mm

Plates dimensions: 1080x1080 mm

Opening max.: 1560 mm

Max mould heigh: 250-860 mm


Injection unit

Screw dia: 55 mm

Injection volume: 617cm3

Screw ratio: L/D 20


core tractors: 1 circuit moving side

Hot channels: 8pcs

Cascades: 4 needles (4 circuits)

Euromap: E12 press, E67 robot, connected by E12 / E67 converter

Needle control: from the press control

Snail standard - standard

Material sprayed and the number of hours the press has: PC-ABS, PC. 70853mH


Wittmann W733-0398 , 2007, X900, Y1800, Z3000, C-pneu



Machine has new engine and hoses in 2020 since then only 20000 hours
