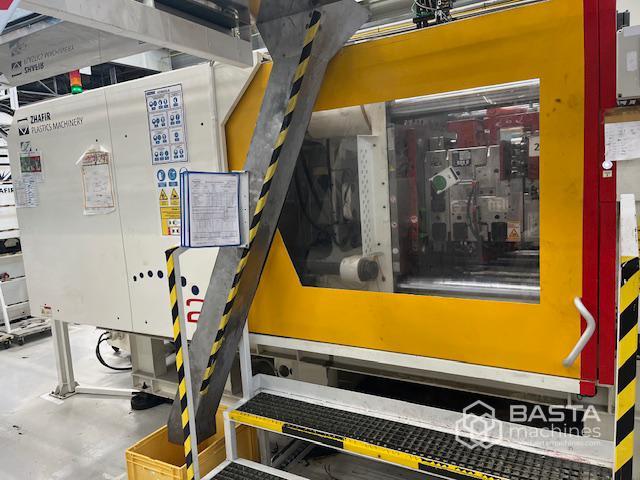

ZHAFIR VE360II VENUS (2013) 360 tons full electric + Magnetic platens

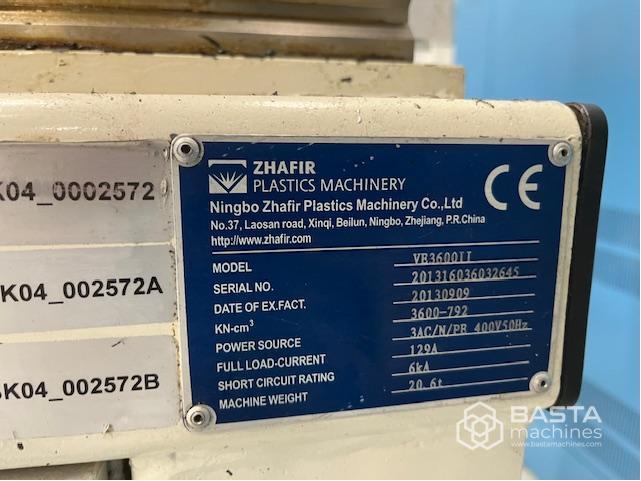

🧩 Zhafir Venus II VE3600/1700

Type: fully electric injection moulding machine

Clamping force: 3600 kN

Screw diameter (A/B/C): 60 / 65 / 70 mm (60 mm on the machine)

Screw L/D ratio: 21.6 / 20 / 18.6

Injection volume: 792 / 929 / 1078 cm³

Injection capacity (PS): 720 / 845 / 980 g

Injection speed: 160 mm/s

Injection pressure: 210 / 180 / 155 MPa

Holding pressure: 187 / 160 / 138 MPa

Screw speed: 250 rpm

Nozzle touch force: 54 kN (5.5 t)

Nozzle diameter: 50 mm

Heating power: 32 kW

Clamping Unit

1. Toggle stroke: 700 mm
2. Tie bar distance (H×V): 820 × 820 mm
3. Minimum mould size: 540 × 540 mm
4. Mould height: 250 – 860 mm
5. Ejector stroke: 160 mm
6. Ejector force: 58.8 kN (6.0 t)

Other Data

1. Hopper capacity: 50 L
2. Machine dimensions (L×W×H): 8.01 × 2.1 × 2.5 m
3. Machine weight: 20.6 t
