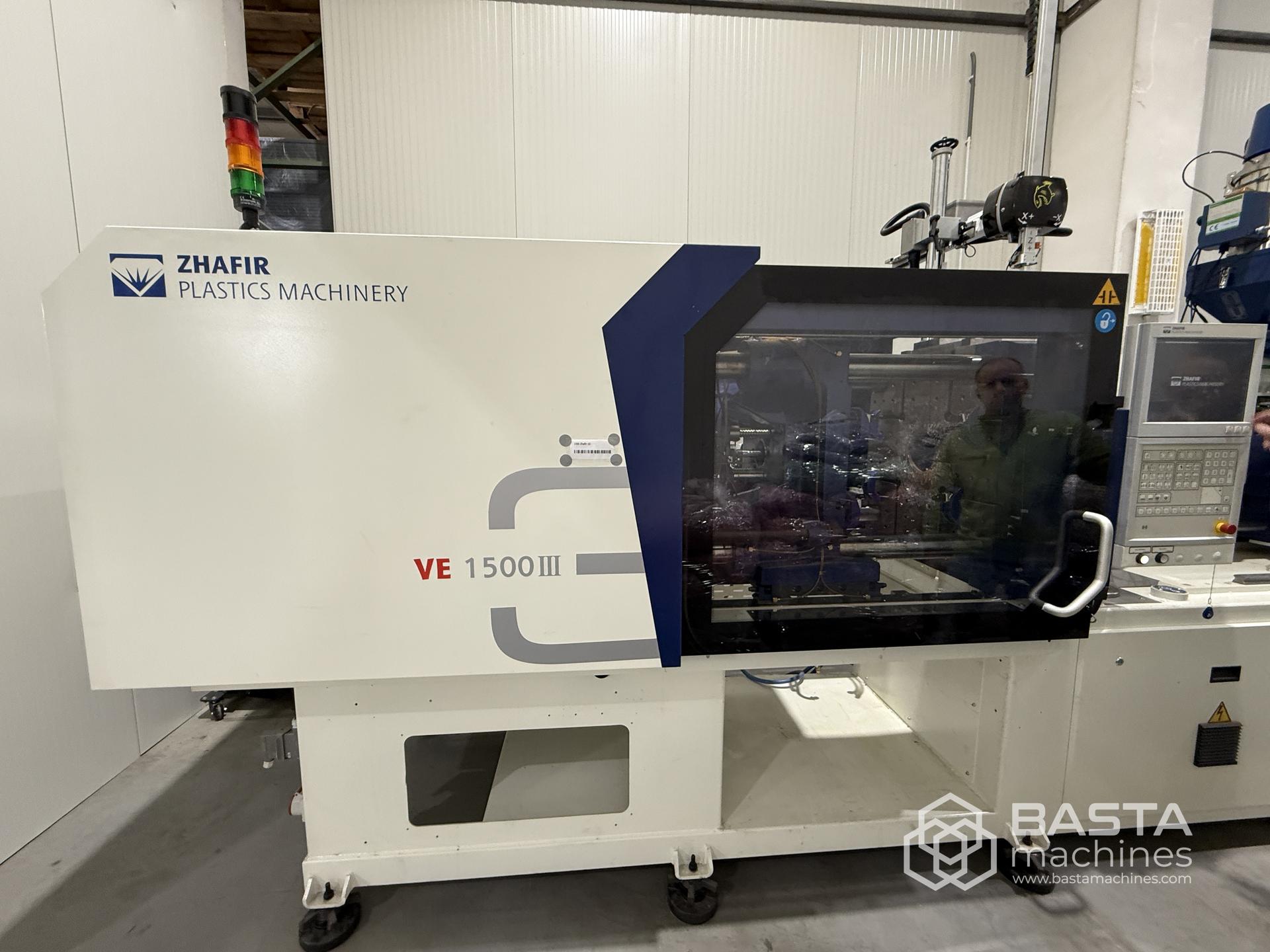

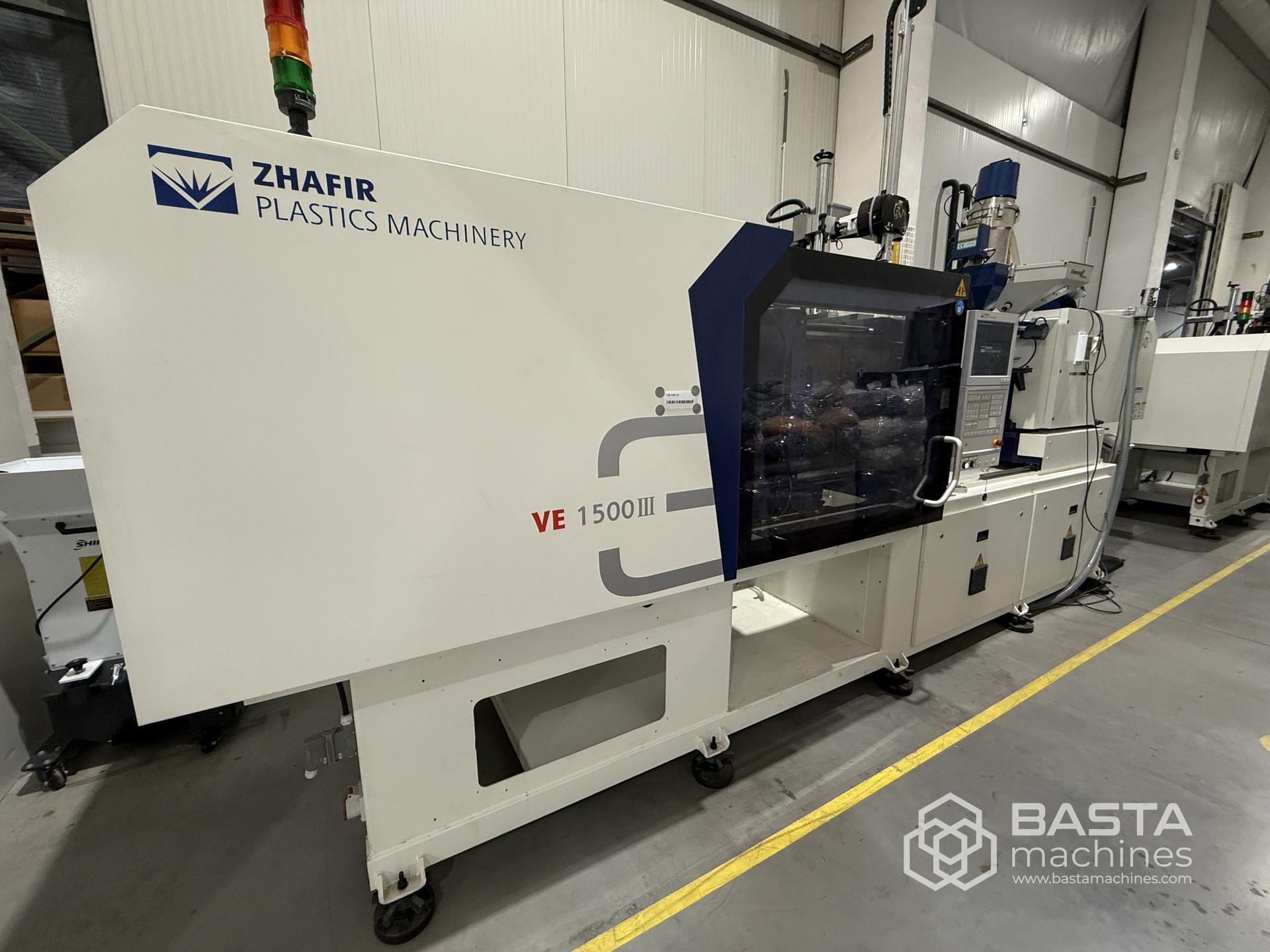

ZHAFIR VE1500III

Main Technical Specifications:

Clamping force: 1500 kN

Opening stroke: 420 mm

Minimum mold height: 180 mm

Maximum mold height: 520 mm

Daylight between platens: 940 mm

Tie bar spacing: 520 x 520 mm

Ejector stroke: 120 mm

Clamping platen size: 770 x 770 mm

Screw diameter: 40 mm

L/D ratio: 21 mm/mm

Shot volume: 213 ccm

Shot weight (PS): 194 g

Injection rate: 219 g/s

Max. injection pressure: 2000 bar

Total installed power: 27 kW

Machine dimensions (L × W × H): 5.8 × 1.5 × 2.2 m

Machine weight: 7000 kg
