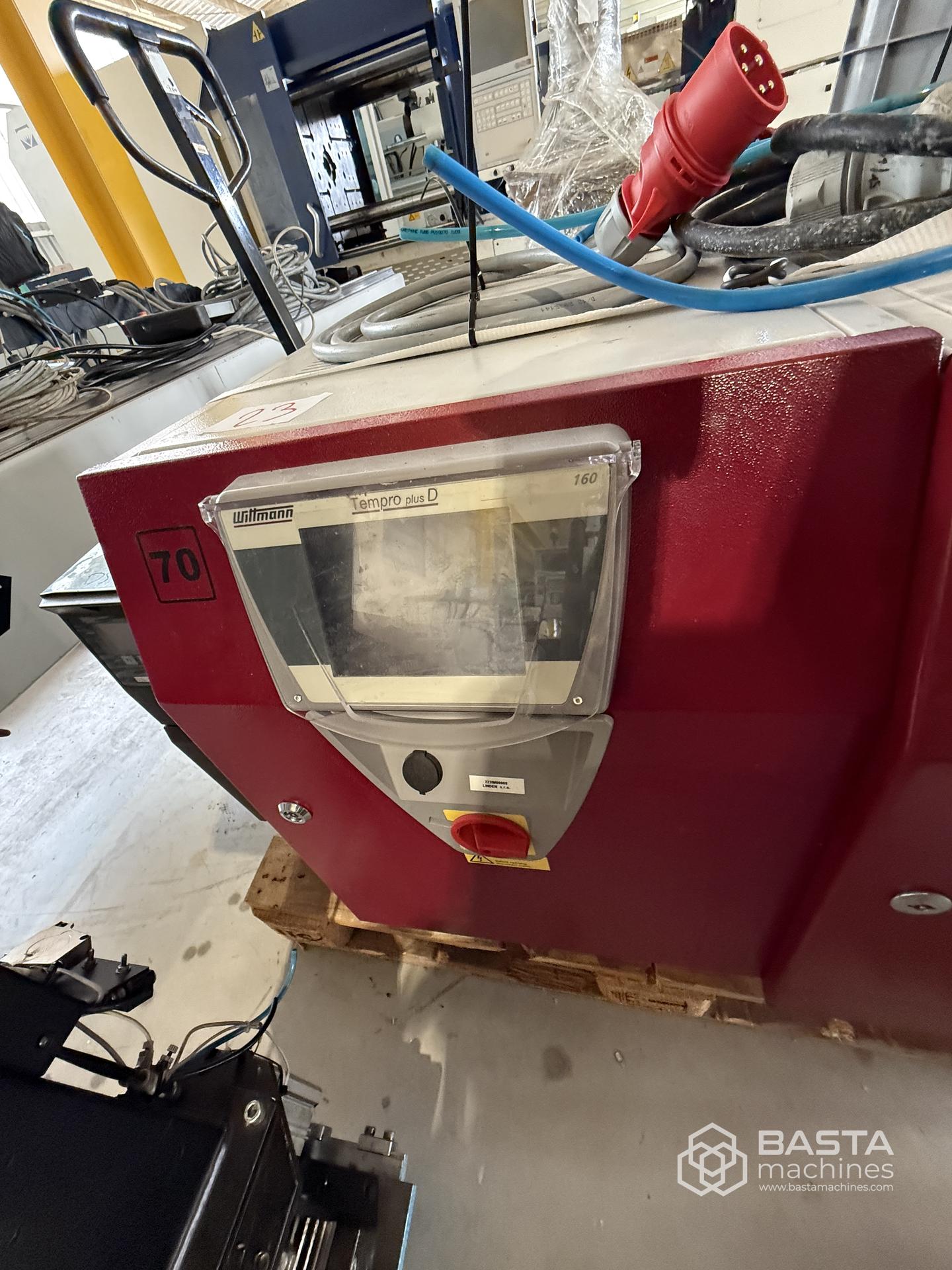

Wittmann TP-PLUS-D-2:M160 (2023)

Wittmann TP-PLUS-D-2:M160 (2023)

Model: Wittmann Tempro TP-PLUS-D-2:M160

Type: Dual-zone pressurized water temperature control unit

Max temperature: 160 °C

Heating power: approx. 9 kW per zone (option 12–16 kW)

Pump: Magnetically coupled, 40–60 l/min, up to 4.5–6 bar

Medium: Water (pressurized)

Cooling: Plate heat exchanger, cooling water connection G 3/8″

Mould connections: G 3/4″

Voltage: 3 × 400 V / 50 Hz

Control accuracy: ±0.2 °C

Zones: 2 completely independent circuits

Standard features: Automatic filling, pressure monitoring, leak-free pump, SSR heating, pump rotation control, mold purge

Dimensions: approx. 880 × 550 × 1000 mm

Weight: approx. 100–120 kg
