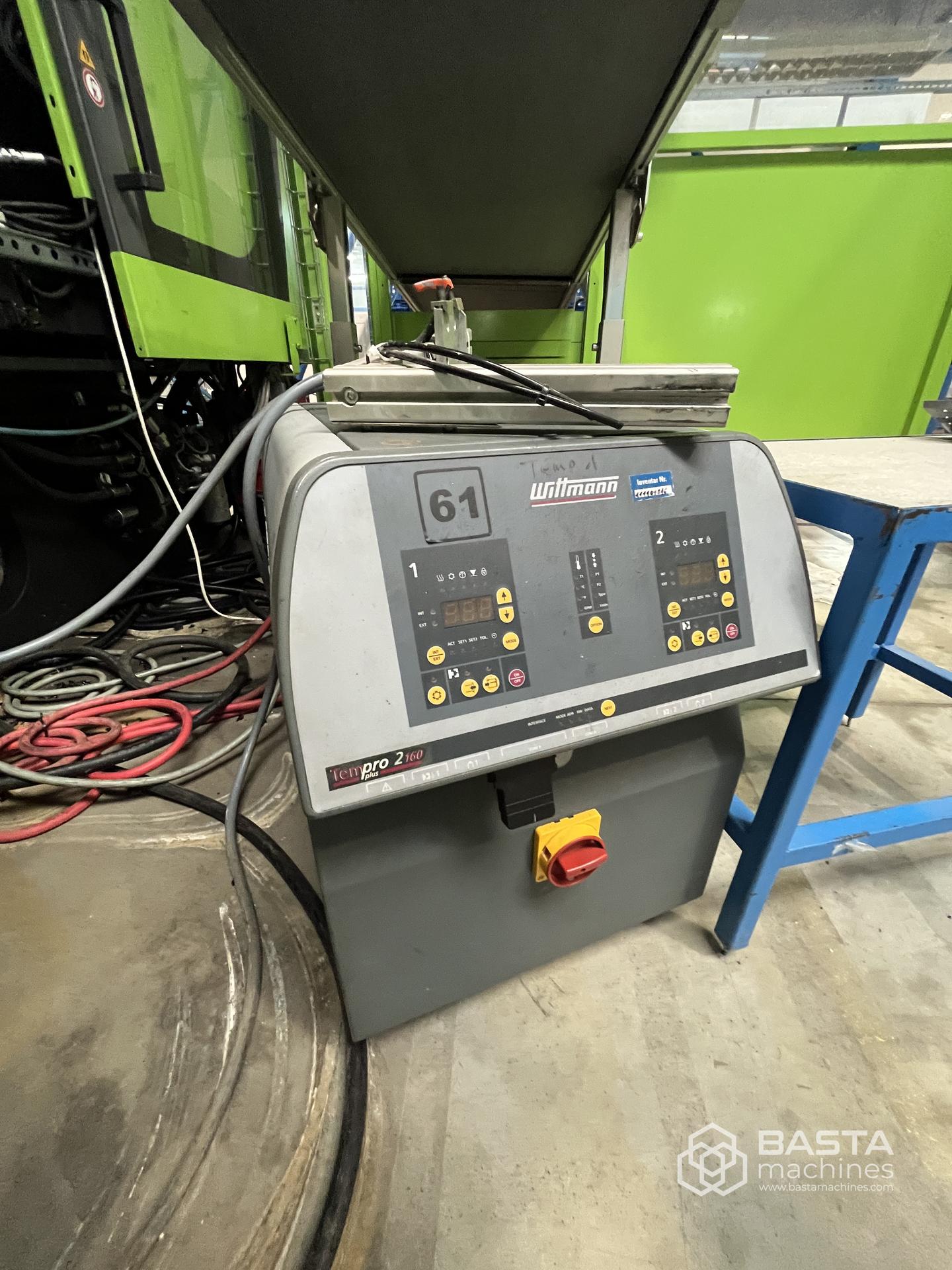

Wittmann TP PLUS 2 160 (2007)

Model: Wittmann TP PLUS 2 160 (year 2007)

Type: Pressurised circulating-water mold tempering unit, dual zone (2 zones)

Controller: Microprocessor temperature control with ±0.2 °C accuracy

Heating capacity (typical): ~9 kW standard (option up to ~12 or 16 kW)

Pump (standard): ~0.5 kW magnetically-coupled pump, max ~4.5 bar, ~40 l/min

Pump (enhanced): ~1.0 kW, max ~6 bar, up to ~60 l/min

Mold water connection: G 3/4″

Cooling water connection: G 3/8″

Power supply: 3 × 380-415 V / 50 Hz
