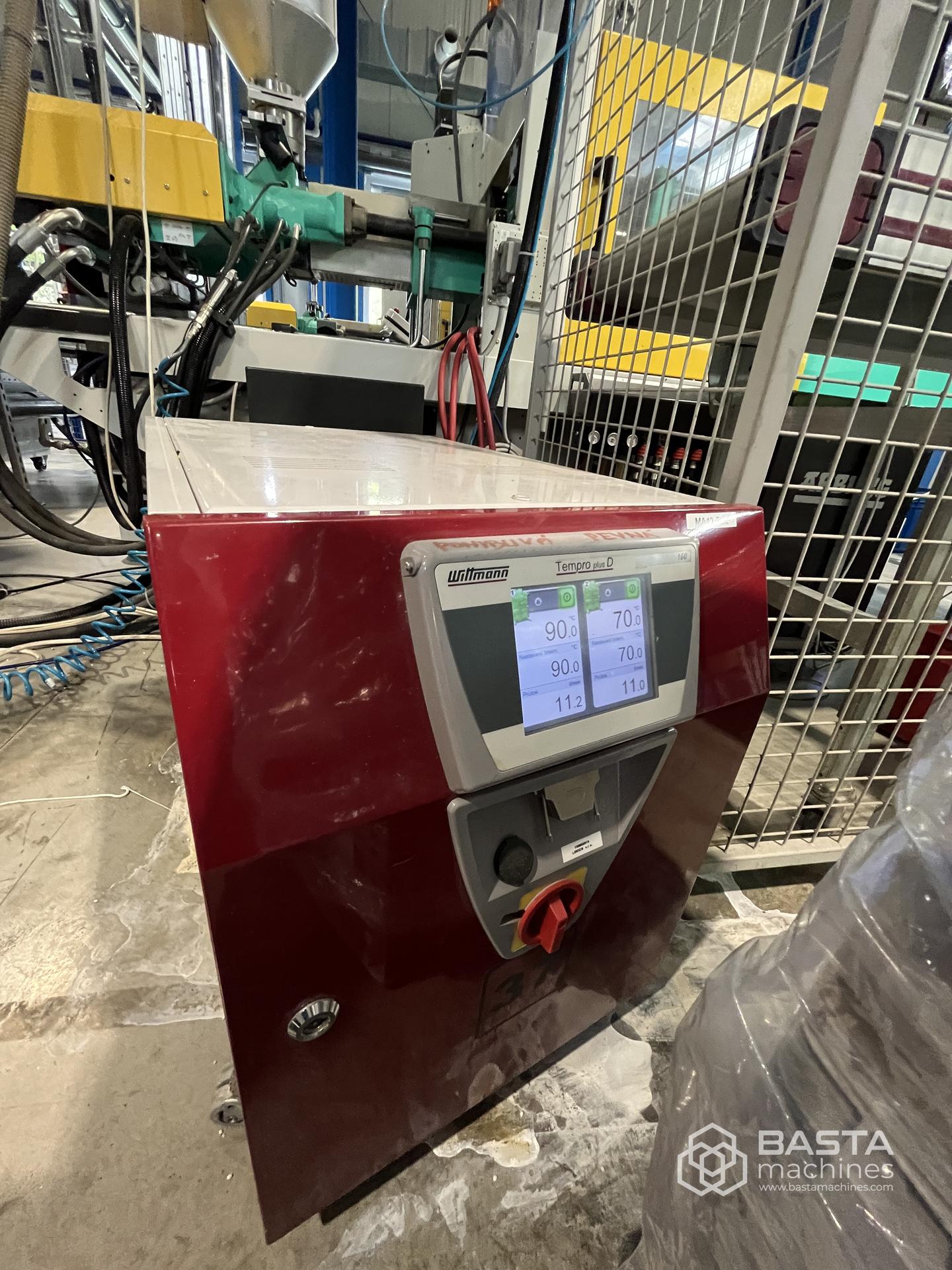

Wittmann Tempro plus D 160 (2014)

Model: Wittmann Tempro TP+D-S-2:160

Type: Dual-zone pressurized water temperature control unit

Max temperature: 160 °C

Heating power: approx. 9 kW per zone (up to 12–16 kW optional)

Pump: Magnetically coupled, 40–60 l/min, up to 4.5–6 bar

Medium: Water (pressurized system)

Cooling: Plate heat exchanger, cooling water G 3/8″

Mould connections: G 3/4″

Voltage: 3 × 400 V / 50 Hz

Control accuracy: ±0.2 °C

Zones: 2 independent circuits

Features: Automatic filling, pressure monitoring, leak-free pump, mold purging, SSR heater control

Options included: SO-C safety package + S-PLUS D 160 performance upgrade

Dimensions: approx. 880 × 550 × 1000 mm

Weight: approx. 95–120 kg
