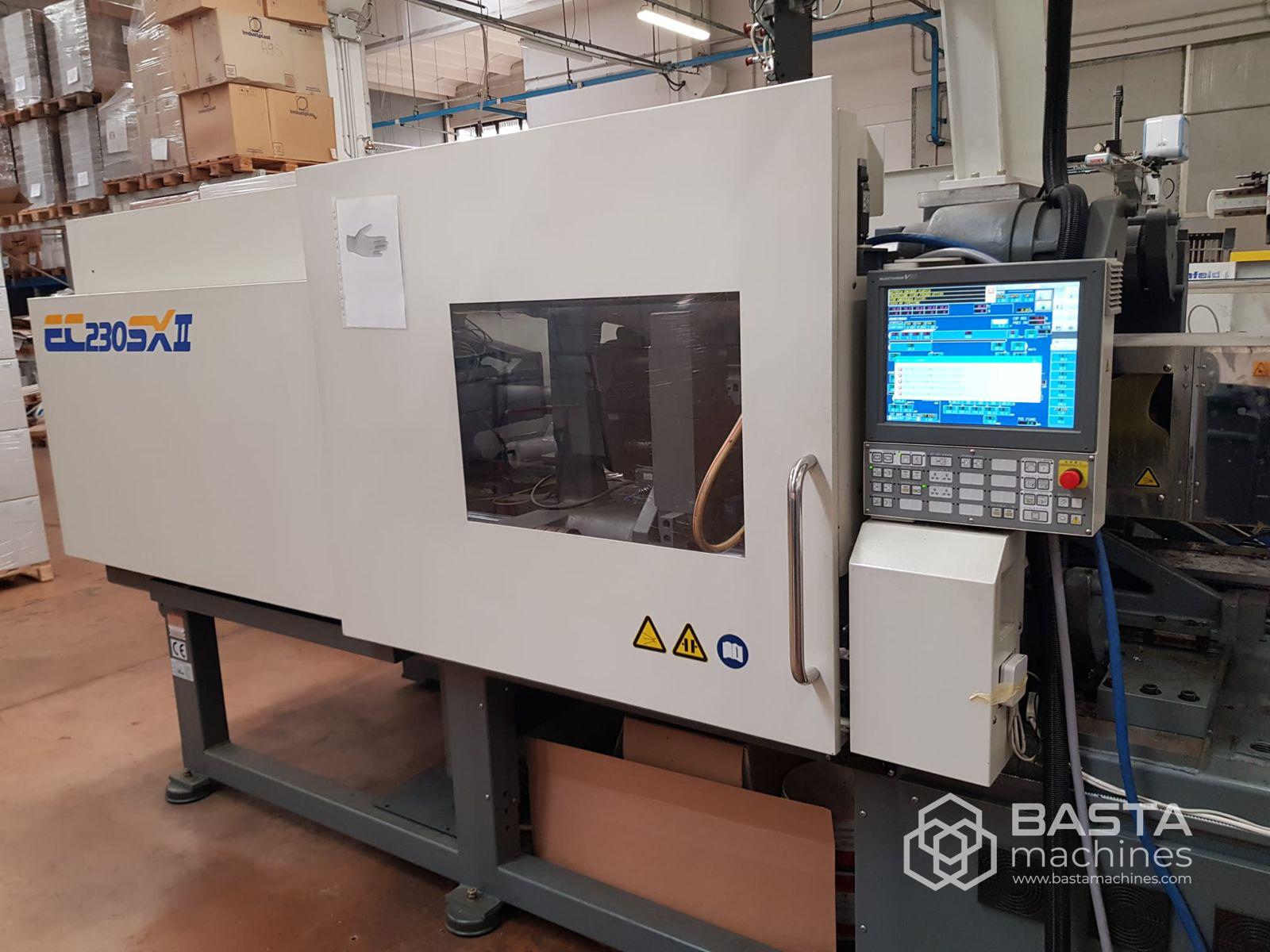

TOSHIBA EC230SXII (Shibaura machine)

Toshiba EC230SXII – 230 ton

Injection unit i8 – Screw 50 mm

CLAMPING UNIT

Clamping force: 2250 kN (230 t)

Tie bar spacing (H×V): 610 × 560 mm

Platen size (H×V): 880 × 830 mm

Moving platen stroke: 550 mm

Max daylight: 1230 mm

Mold height min–max: 250–680 mm

Ejector force: 49 kN (5.0 t)

Ejector stroke: 130 mm

INJECTION UNIT – 50 mm

Screw diameter: 50 mm

Shot volume: 392 cm³

Shot weight PS: 361 g

Shot weight PE: 286 g

Max injection pressure: 200 MPa

Max holding pressure: 200 MPa

INJECTION SPEED / RATE

STD speed: 250 mm/s

STD rate: 490 cm³/s

HIGH DUTY speed: 160 mm/s

HIGH DUTY rate: 314 cm³/s

HIGH SPEED speed: 350 mm/s

HIGH SPEED rate: 687 cm³/s

PLASTICIZING

Plasticizing capacity PS: 160 kg/h

Screw speed: 255 rpm

Screw torque: 1421 Nm

Nozzle contact force: 29.4 kN (3.0 t)

ELECTRICAL

Main breaker STD: 125 A

Main breaker HIGH DUTY: 125 A

Main breaker HIGH SPEED: 175 A

Transformer: 75 kVA

Heater capacity: 15.2–16 kW

DIMENSIONS & WEIGHT

Length: 6.4 m

Width: 1.7 m

Height: 2.0 m

Weight: 9.9 t
