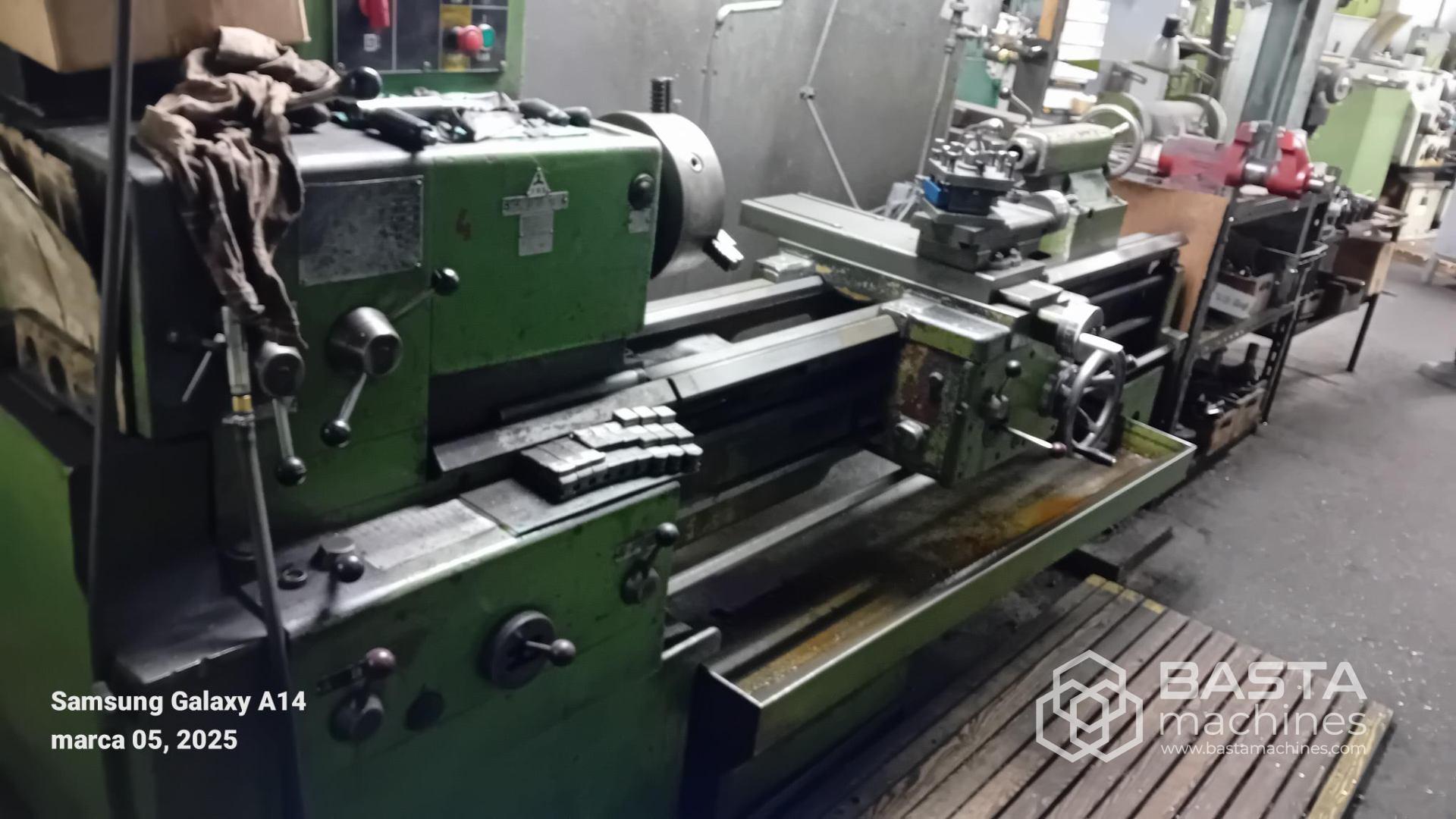

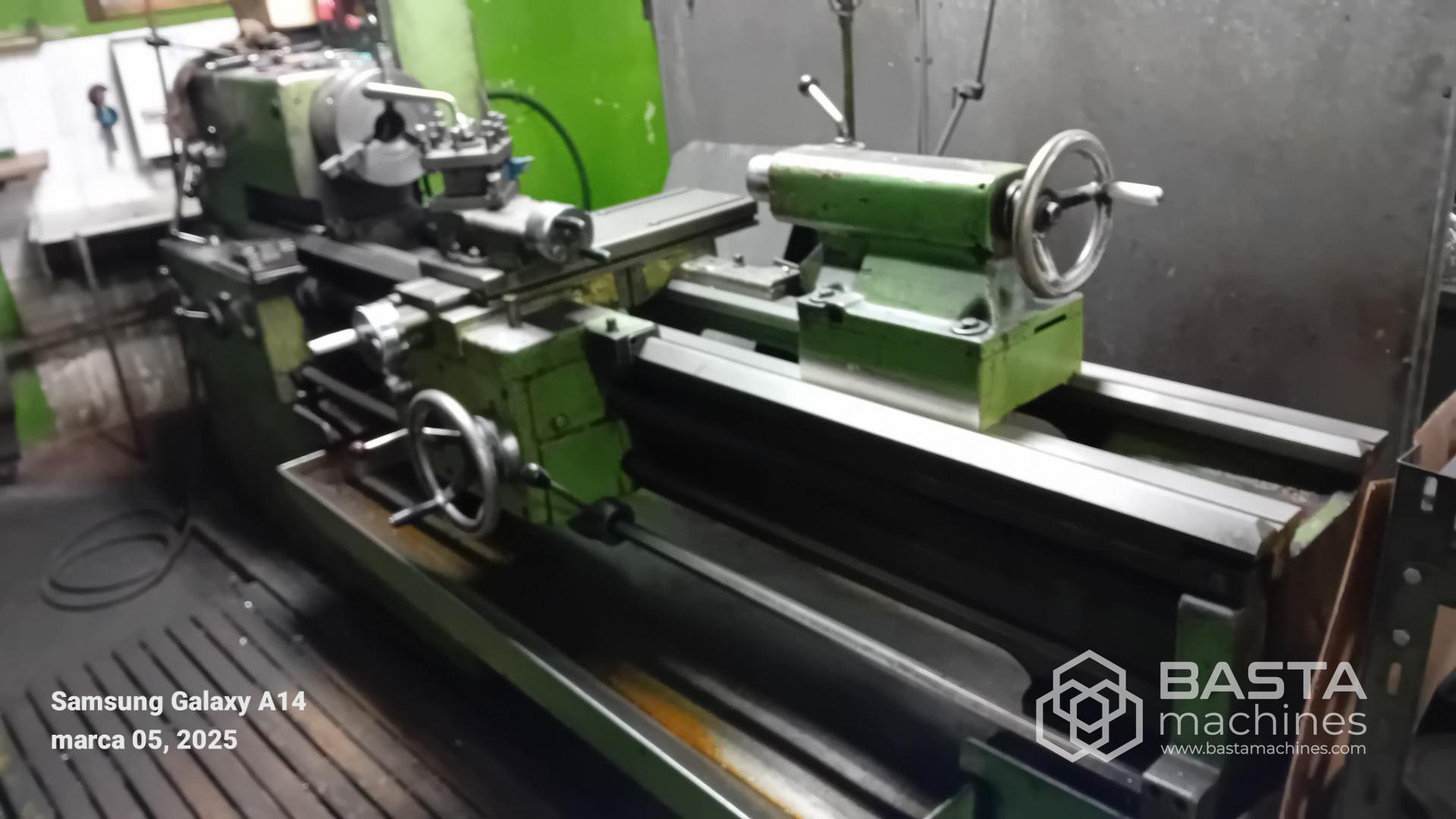

TOS SN 50 B (1988)

TOS SN 50 B (1988)

Manufacturer: TOS

Model: SN 50 B

Year of manufacture: 1988

Type: Universal centre lathe

Swing over bed: 500 mm

Swing over cross slide: 270 mm

Swing in gap: 700 mm

Distance between centres: 1500 mm

Bed width: 300 mm

Spindle bore: 52 mm

Spindle speed range: 22 – 2000 rpm

Spindle nose: Camlock D1-6

Spindle motor power: 7.5 kW

Longitudinal feed range: 0.04 – 2.24 mm/rev

Cross feed range: 0.02 – 1.12 mm/rev

Metric threads: 0.5 – 224 mm

Inch threads: 56 – 0.25 TPI

Module threads: 0.25 – 112 mm

DP threads: 112 – 0.25 DP

Tailstock quill diameter: 75 mm

Tailstock quill travel: 160 mm

Tailstock taper: Morse 5

Machine length: approx. 2800 mm

Machine width: approx. 1100 mm

Machine height: approx. 1300 mm

Machine weight: approx. 2000 kg
