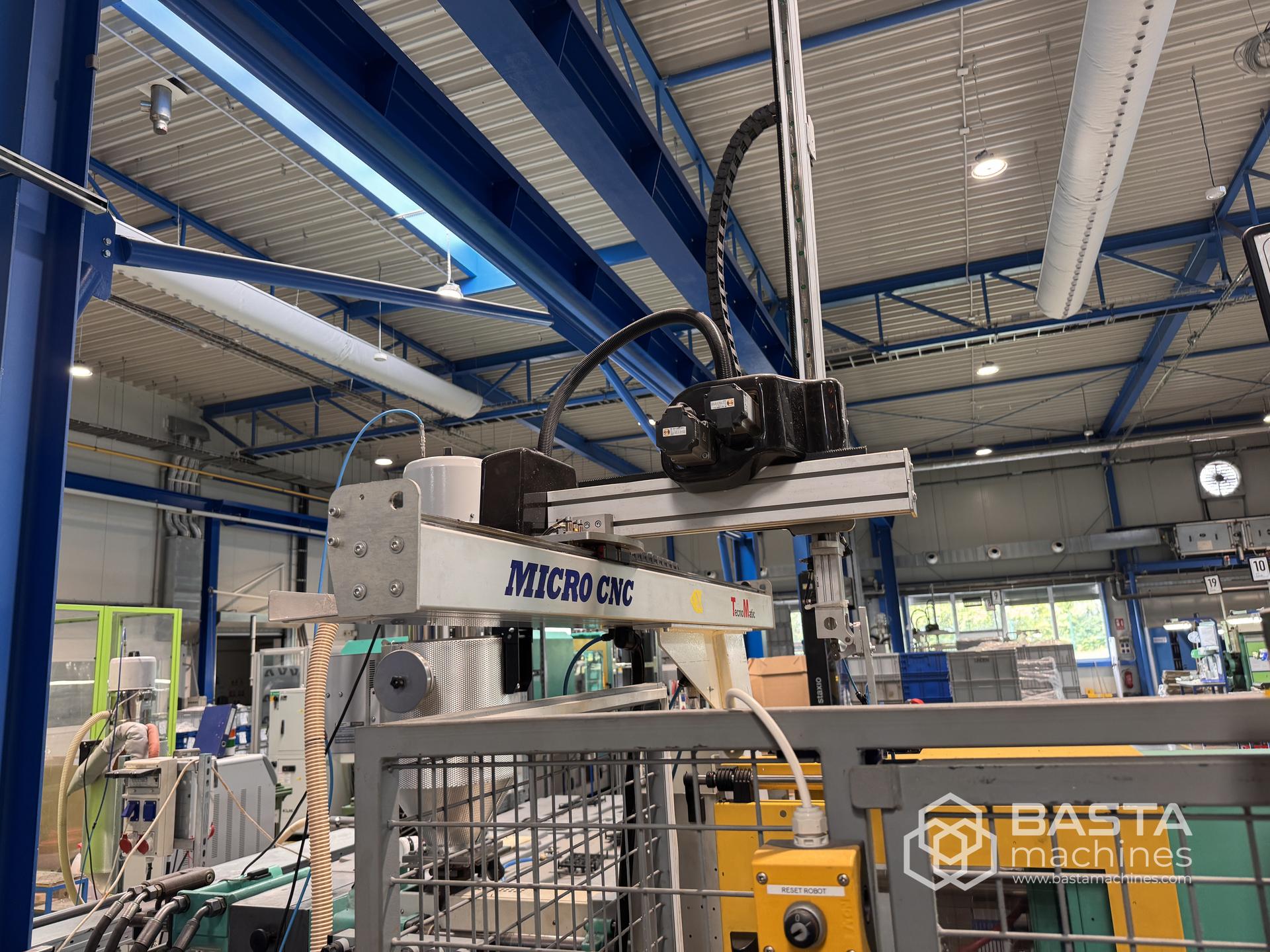

TECNOMATIC Micro (2014)

Number of axis: 3

Type - Cartesian

Number of axes - 3-axis

Function - handling, injection

Other characteristics - self-learning

Payload - Max.: 3 kg

Repeatability - 0.1 mm

The MICRO CNC robot respond in a flexible and economic way to the most demands in the small injection moulding machines. The Free Guided Programming (FGP) capability, that all TecnoMatic robots have, makes it possible to realise extremely flexible work cycles with no limitations to program complexity or length; all the various operations are very simple. Brushless servomotors on the three axes; Movements of the axes by precision prismatic runners and bearings mounted skates; Epicyclical type reducer gears; Interpolated axes motion; Two vacuum circuits and two gripper circuits as standard; Piece presence control by digital vacuum switches.
