SEPRO Success 33 S3 TRANS (2013) Linear robot 15 kg payload

Manufacturer: SEPRO ROBOTIQUE

Model: SR SUCCESS 33 S3 TRANS

Serial number: P19983

Use: Parts handling robot for injection moulding machines 250-400 ton

1. Robot type: Cartesian (3-axis servo + pneumatic rotation)
2. Robot weight: 471 kg
3. Payload: 15 kg

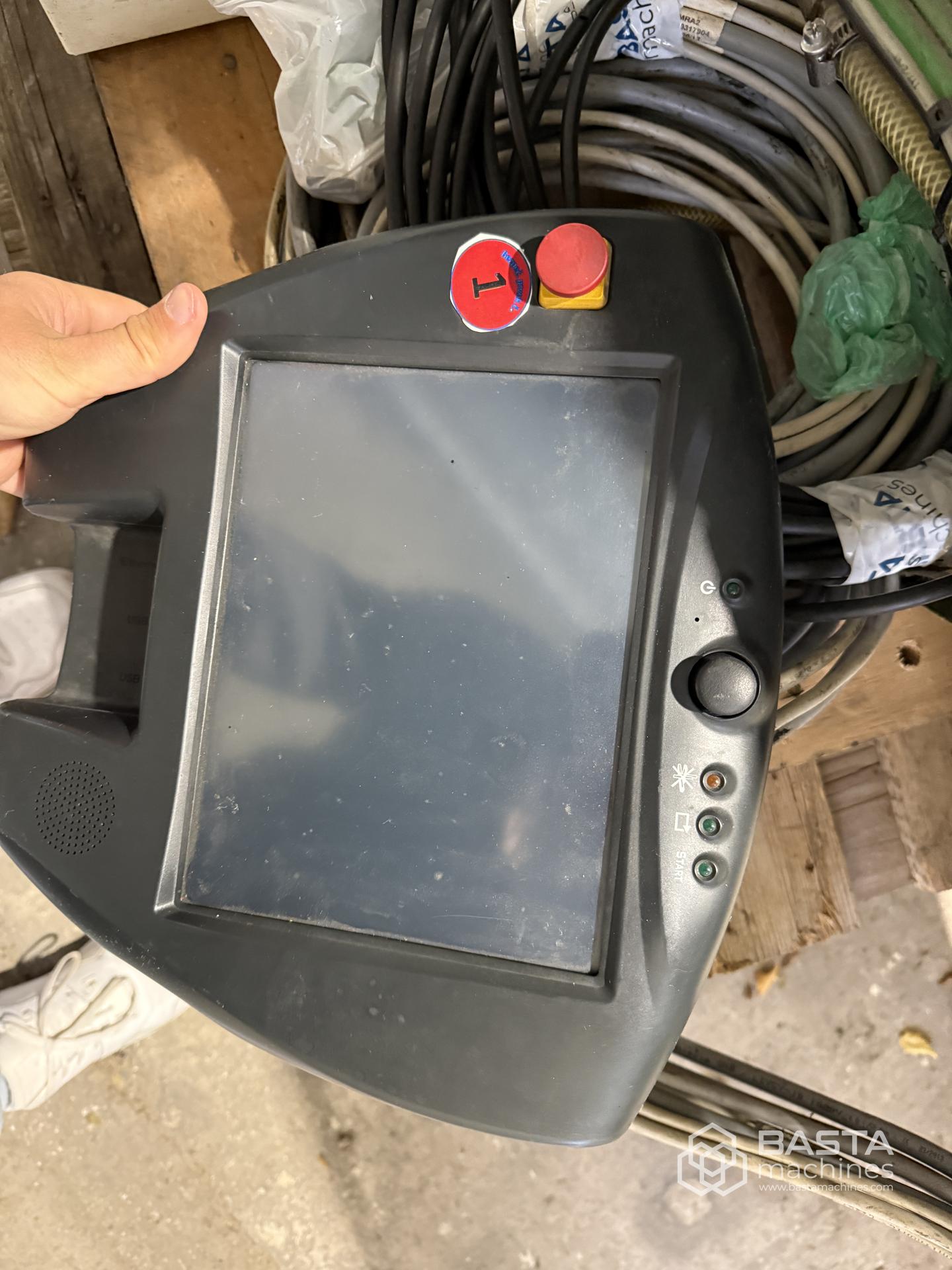

4. Controller: Touch2
5. X-axis (beam travel):Stroke: 2500 mm
6. Y-axis (crosswise / take-out): Stroke: 900 mm
7. Z-axis (vertical): Stroke: 1600 mm
8. R1 (main wrist rotation): pneumatic, 0–90°
9. R2 (secondary rotation): pneumatic, 0–90° or 0–180°
10. Intermediate stop on R2: adjustable at 0–90° or 0–180°
11. Compliance: flexible along Y and Z axes

1. Gripper control: 2 bistable pressure circuits
2. Analog vacuum and pressure control: 2 channels
3. Gripper positioning: fixed and adjustable manually

Complete datasheet is available for this robot
