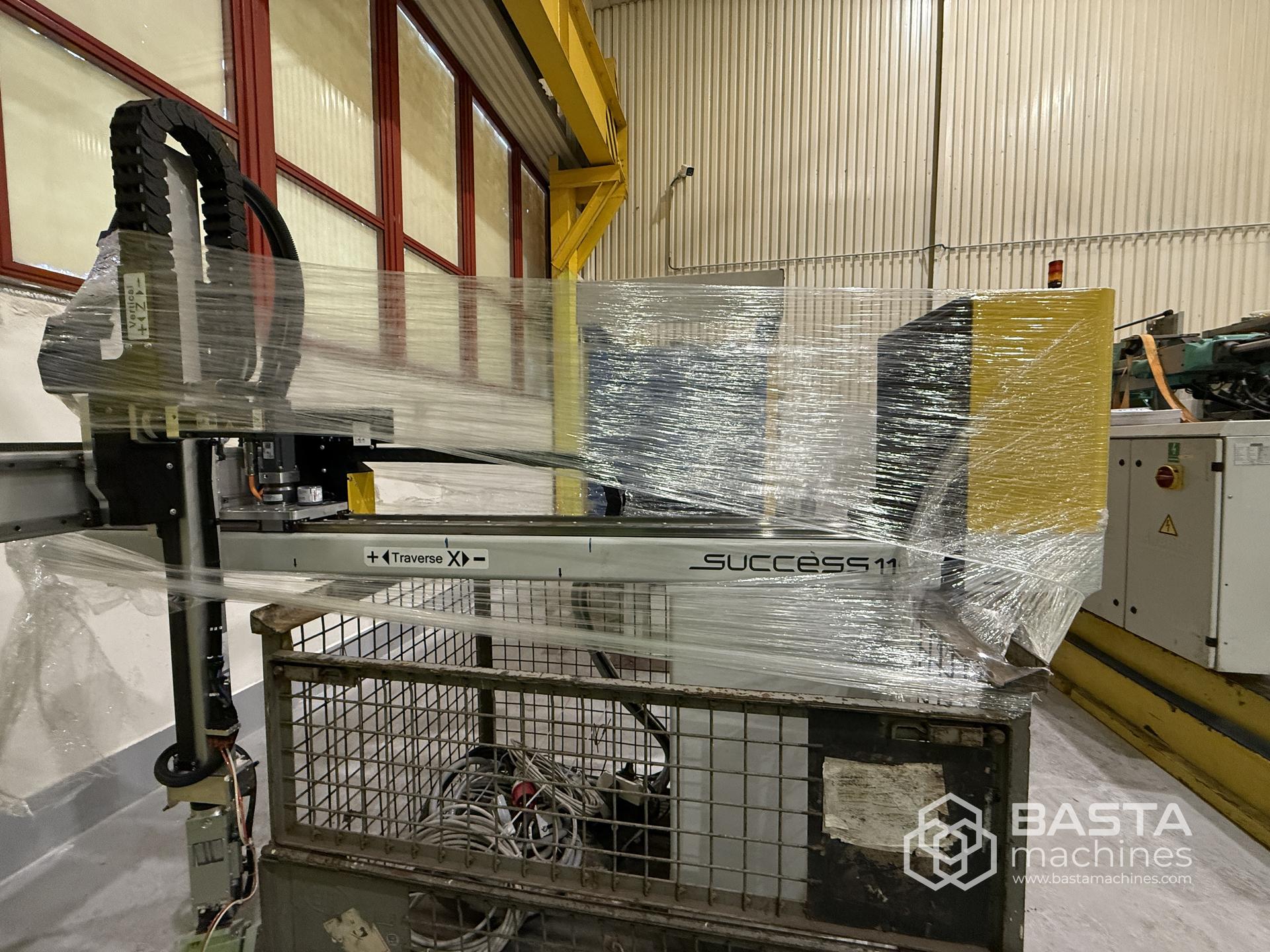

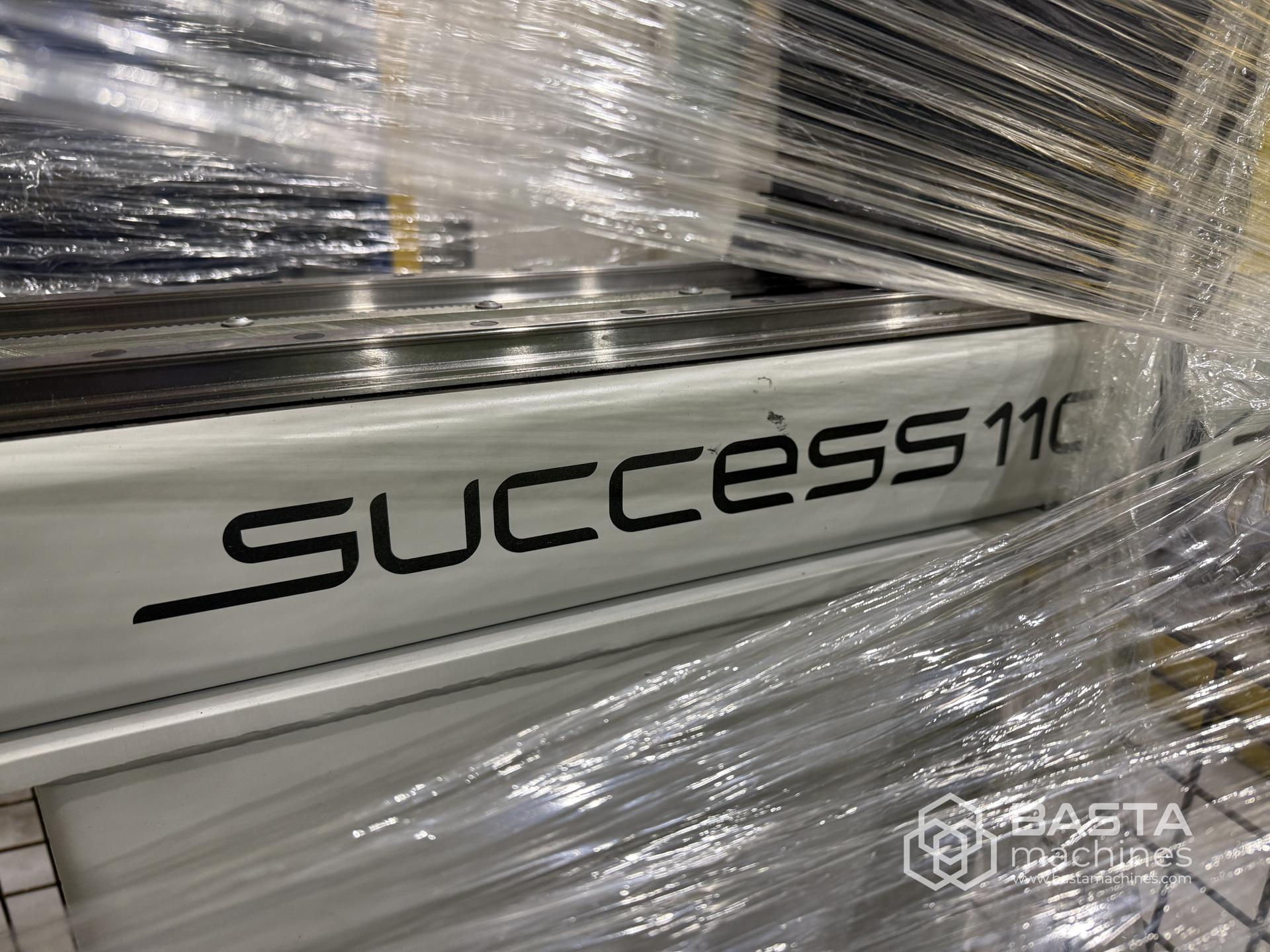

SEPRO Success 11C (2023) Linear cartesian robot , 1500mm

SEPRO Success 11C (2023) Linear cartesian robot , 1500mm

Number of axis: 3

X = 1500 mm

Y= 500 mm

Z= 1000 mm

Payload: 5 kg

Euromap 67

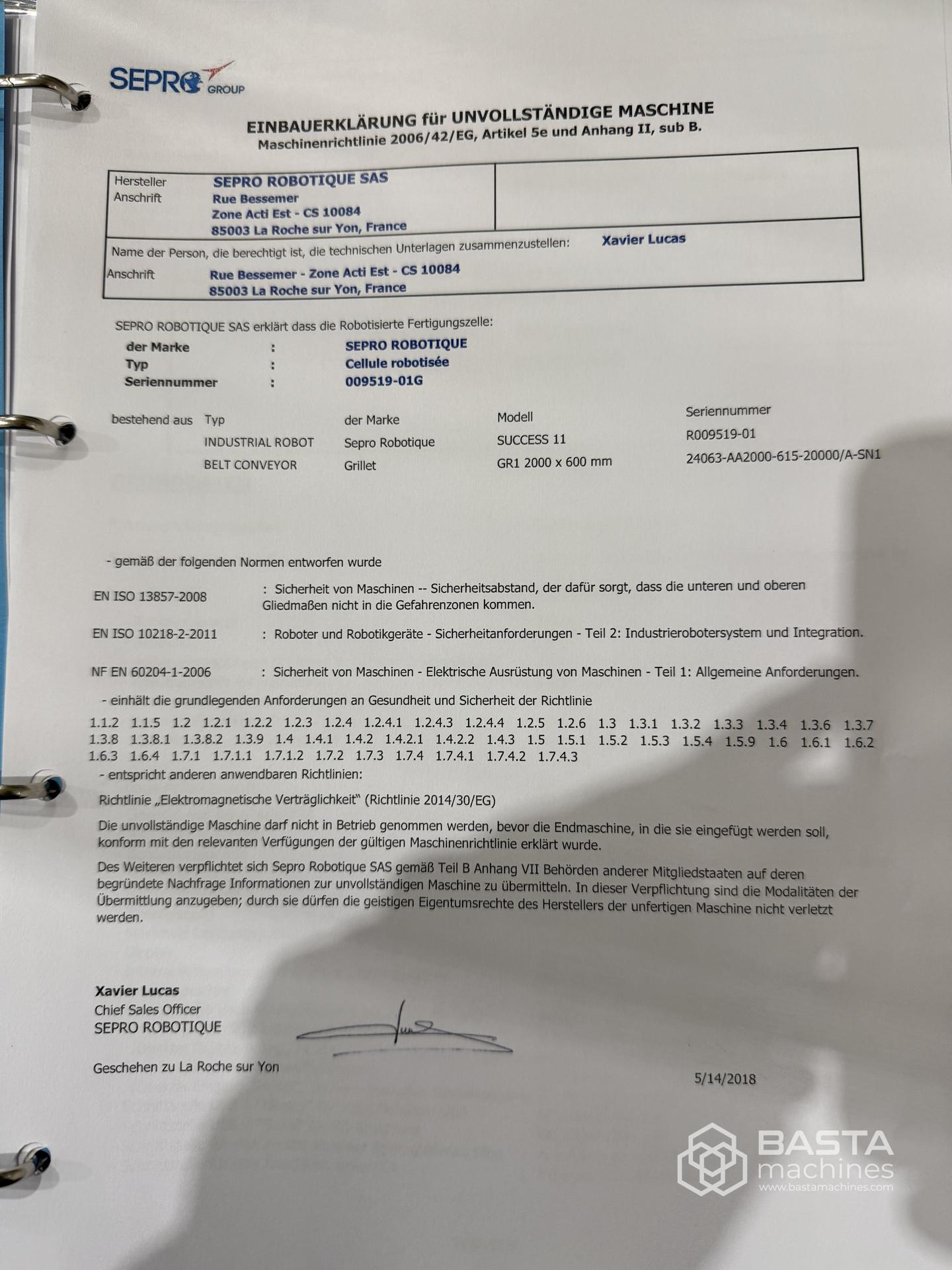

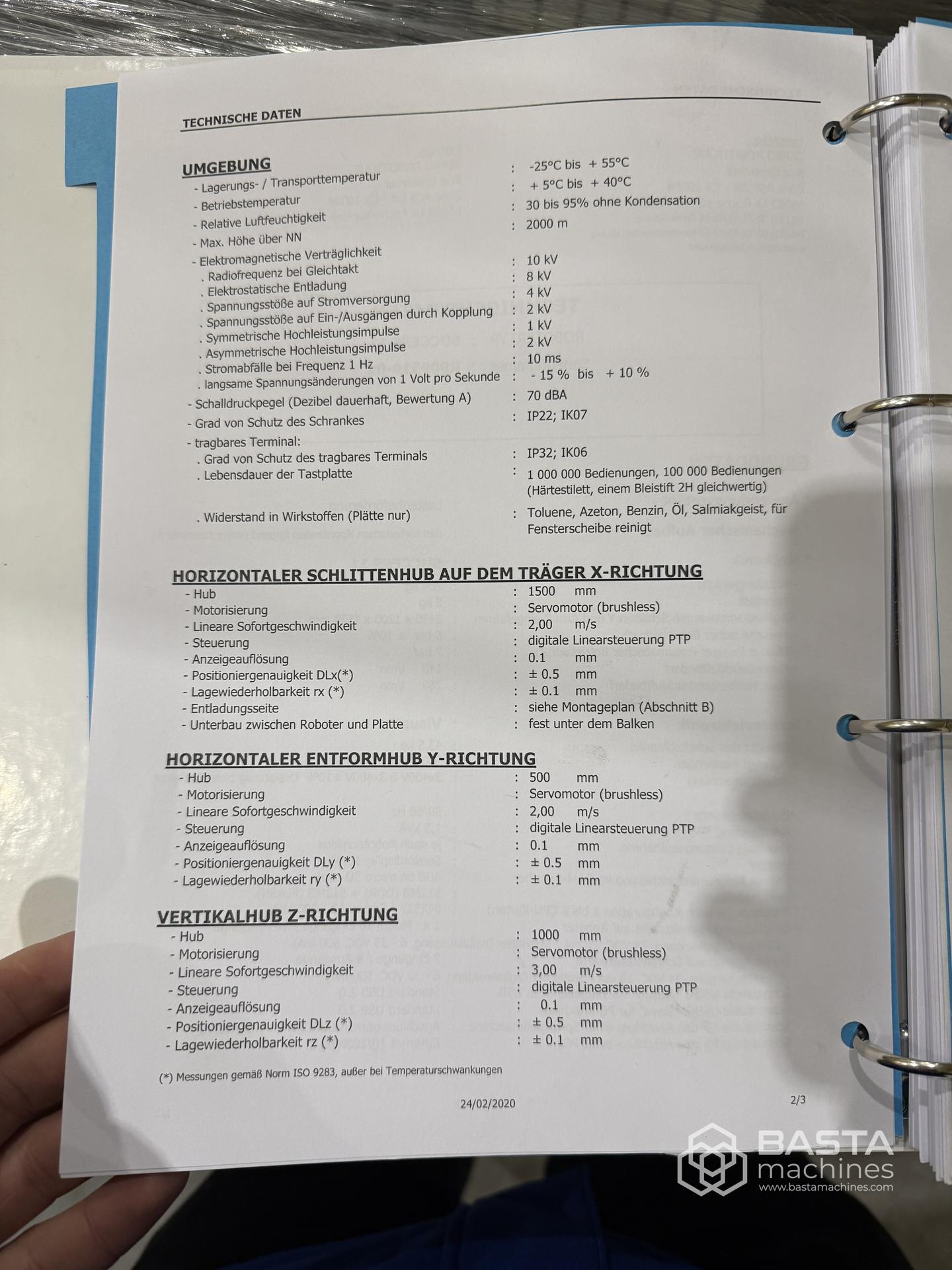

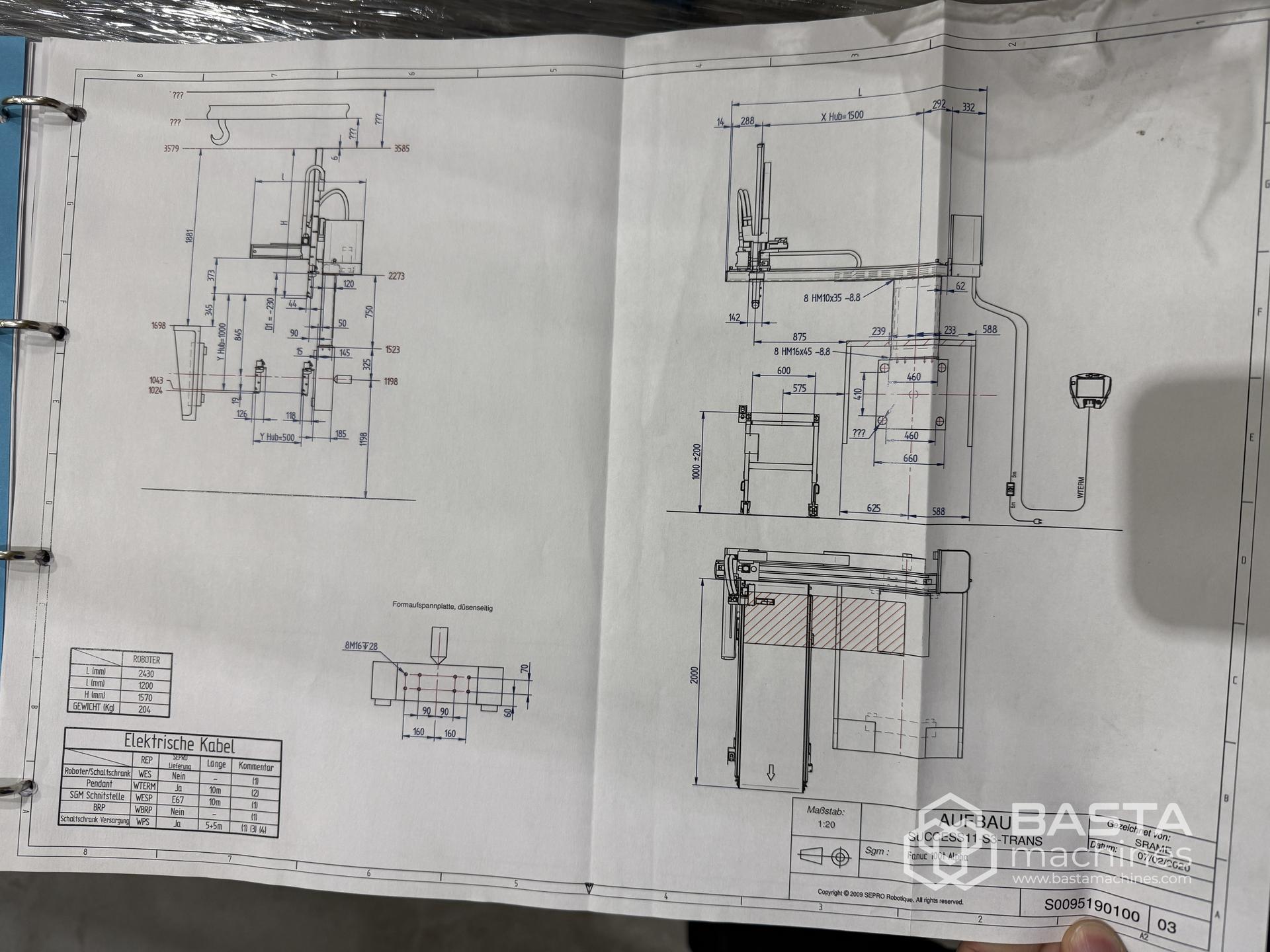

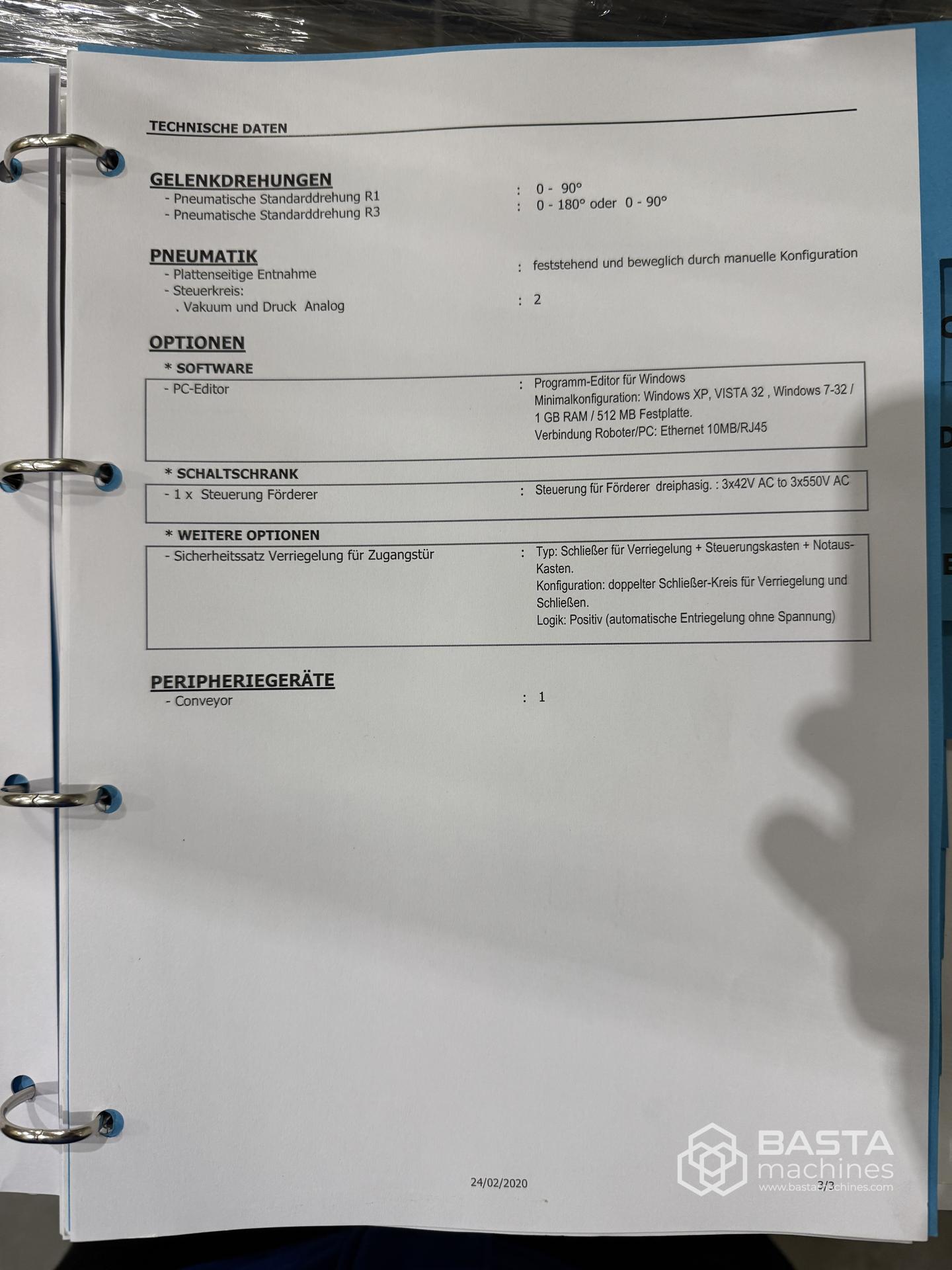

More information in photos of this robot, complete manuals available.

Robot type: Success 11

Serial number: R009519-01

1. Payload: 5 kg
2. Robot weight: 204 kg
3. Robot dimensions: 2430 × 1200 × 1570 mm
4. Max. pneumatic pressure: 7 bar
5. Air consumption: 140 l/min (normal), 260 l/min (peak)

X-axis (horizontal stroke):

1. Stroke: 1500 mm
2. Speed: 2.0 m/s
3. Repeatability: ±0.1 mm

Y-axis (horizontal take-out):

1. Stroke: 500 mm
2. Speed: 2.0 m/s
3. Repeatability: ±0.1 mm

Z-axis (vertical):

1. Stroke: 1000 mm
2. Speed: 3.0 m/s
3. Repeatability: ±0.1 mm

1. R1 pneumatic rotation: 0–90°
2. R3 pneumatic rotation: 0–180° or 0–90°

1. Weight: 43.5 kg
2. Dimensions: 550 × 400 × 295 mm
3. Power supply: 3×400–480 V ±10%
4. CPU: i.MX537 / Cortex A8 @ 800 MHz
5. Memory: 512 MB DDR + 512 MB Flash
6. SD card: 4 GB
7. I/O:
8. Robot: 16 inputs / 16 outputs
9. Cabinet: 7 inputs / 8 outputs
10. USB ports: 1× Master USB, 1× Slave USB
11. Ethernet 10/100

1. 2 pneumatic circuits
2. Vacuum and pressure functions available

1. Operating temperature: +5 to +40 °C
2. Storage temperature: –25 to +55 °C
3. Humidity: 30–95% (non-condensing)
4. Protection rating: IP22 / IK07

1. PC Editor (Windows XP to Windows 7)
2. Conveyor control (3×42V AC to 3×550V AC)
3. Safety kit for access door
4. 1× conveyor
