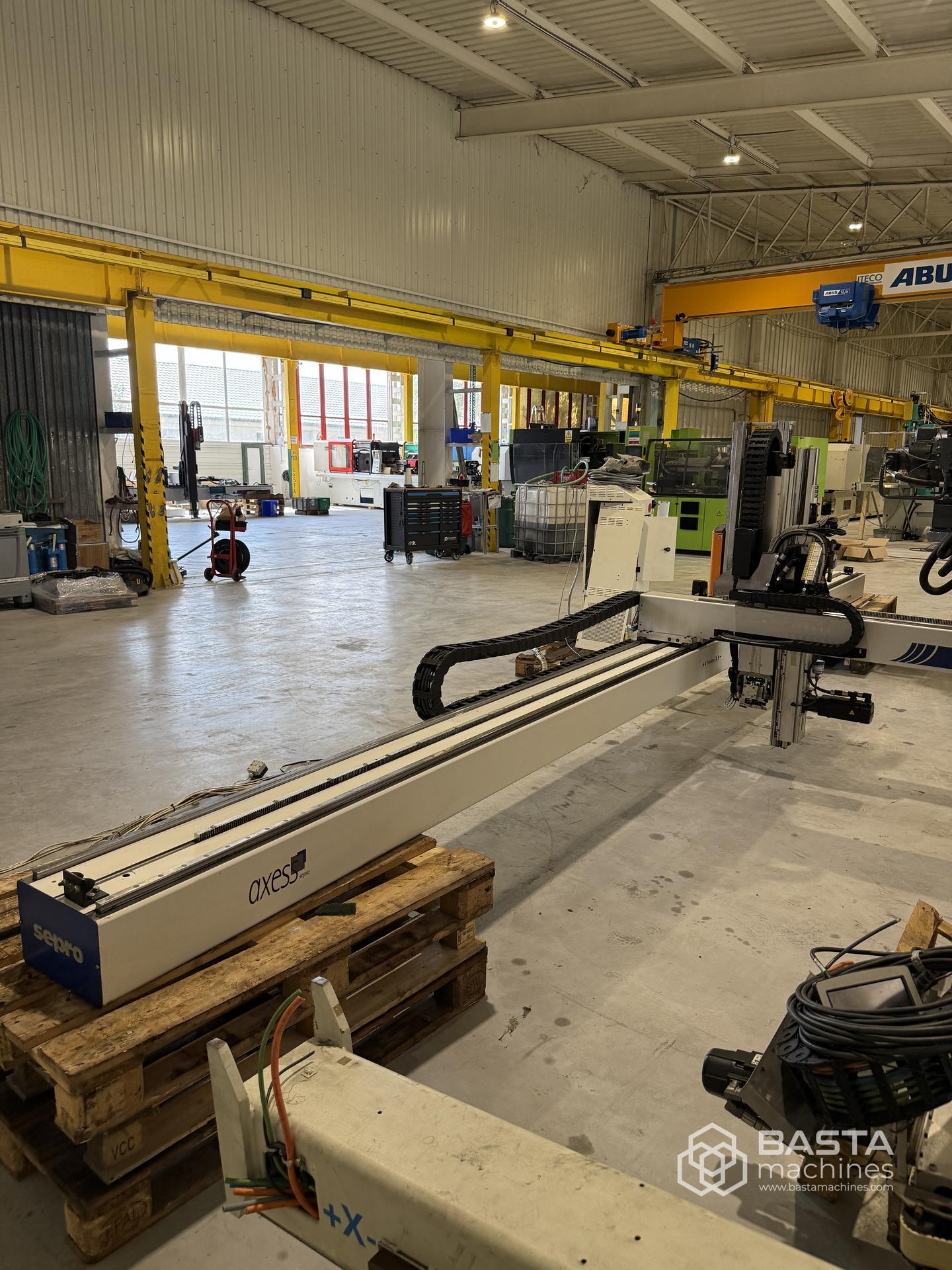

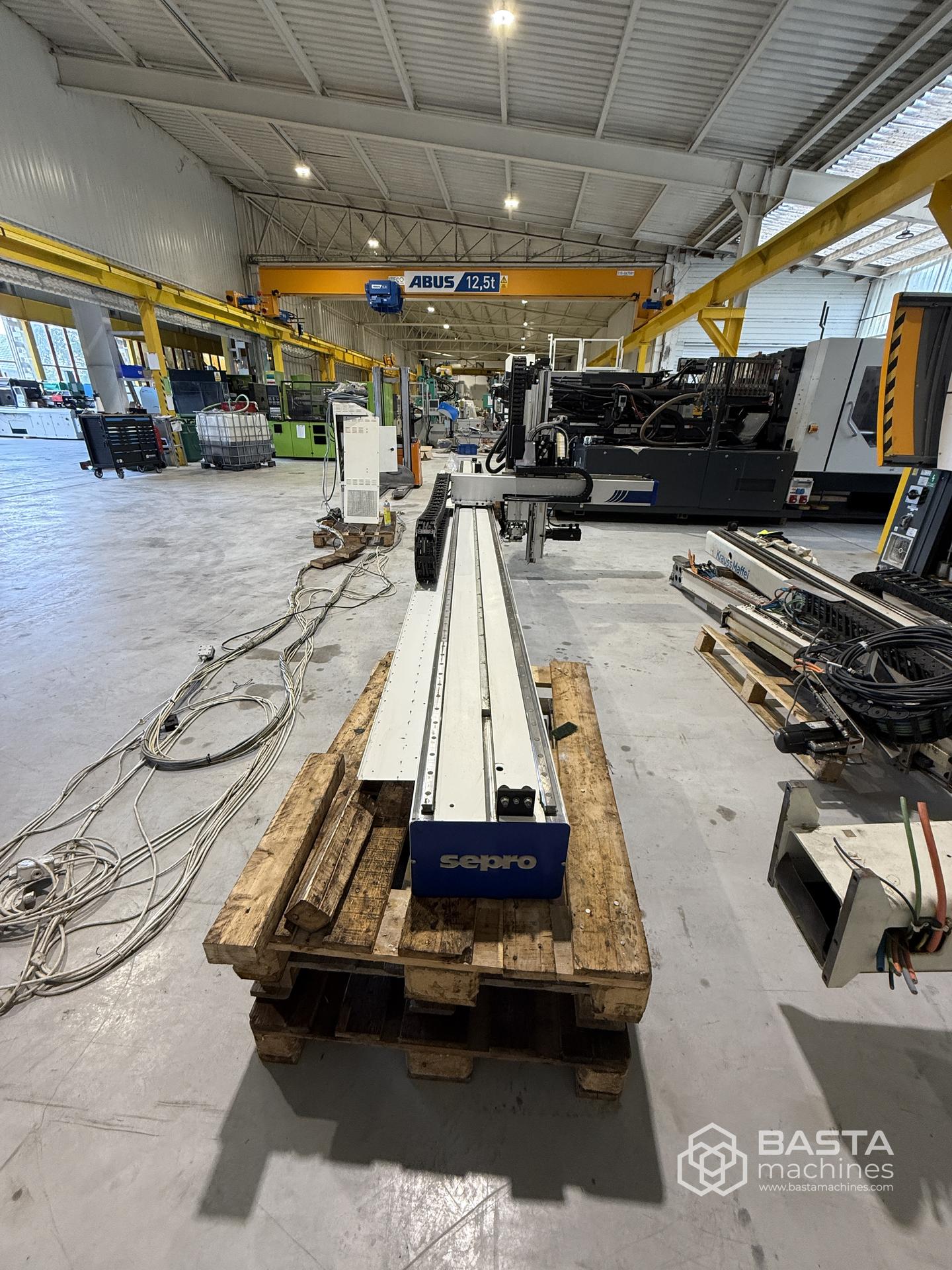

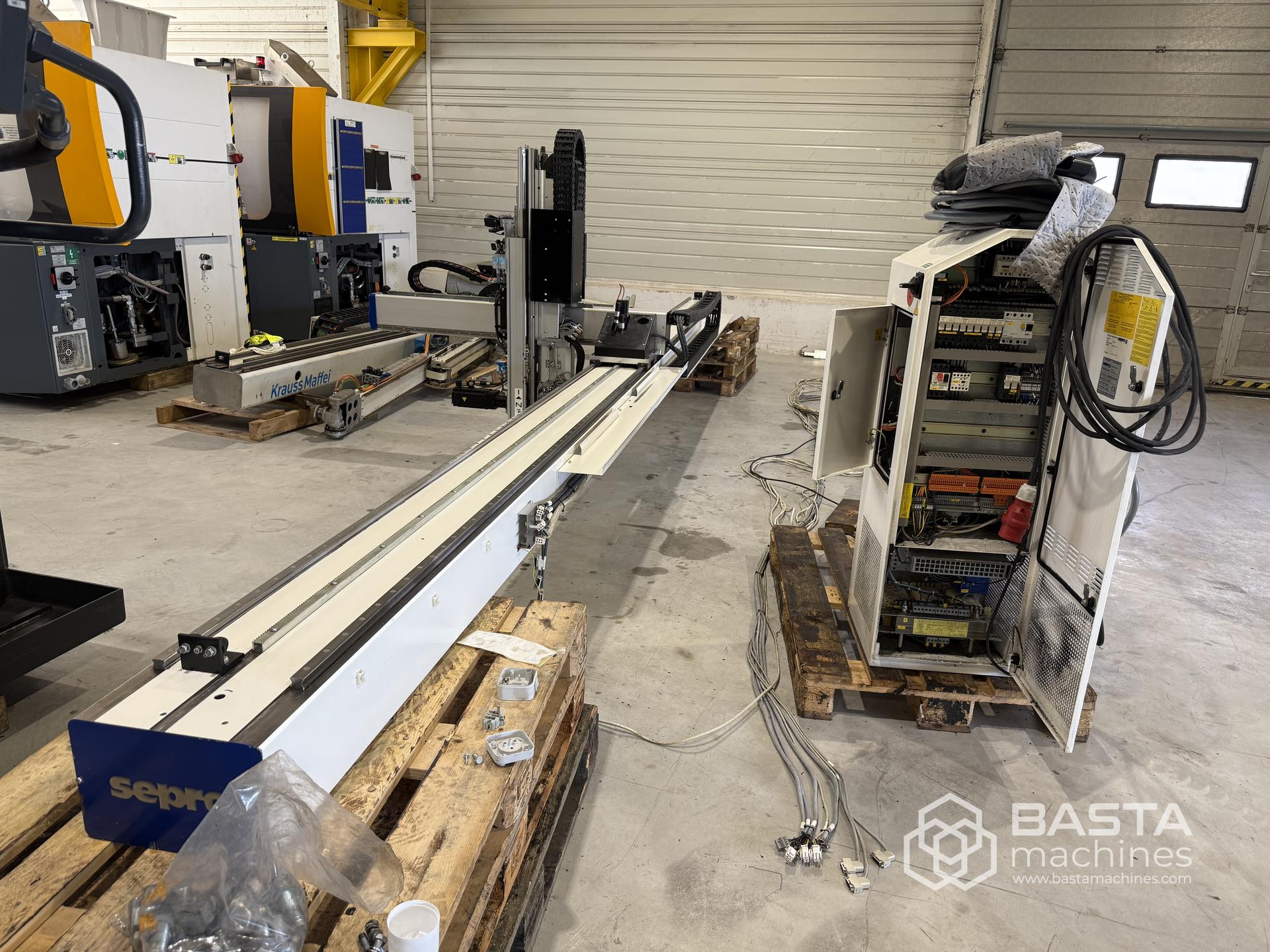

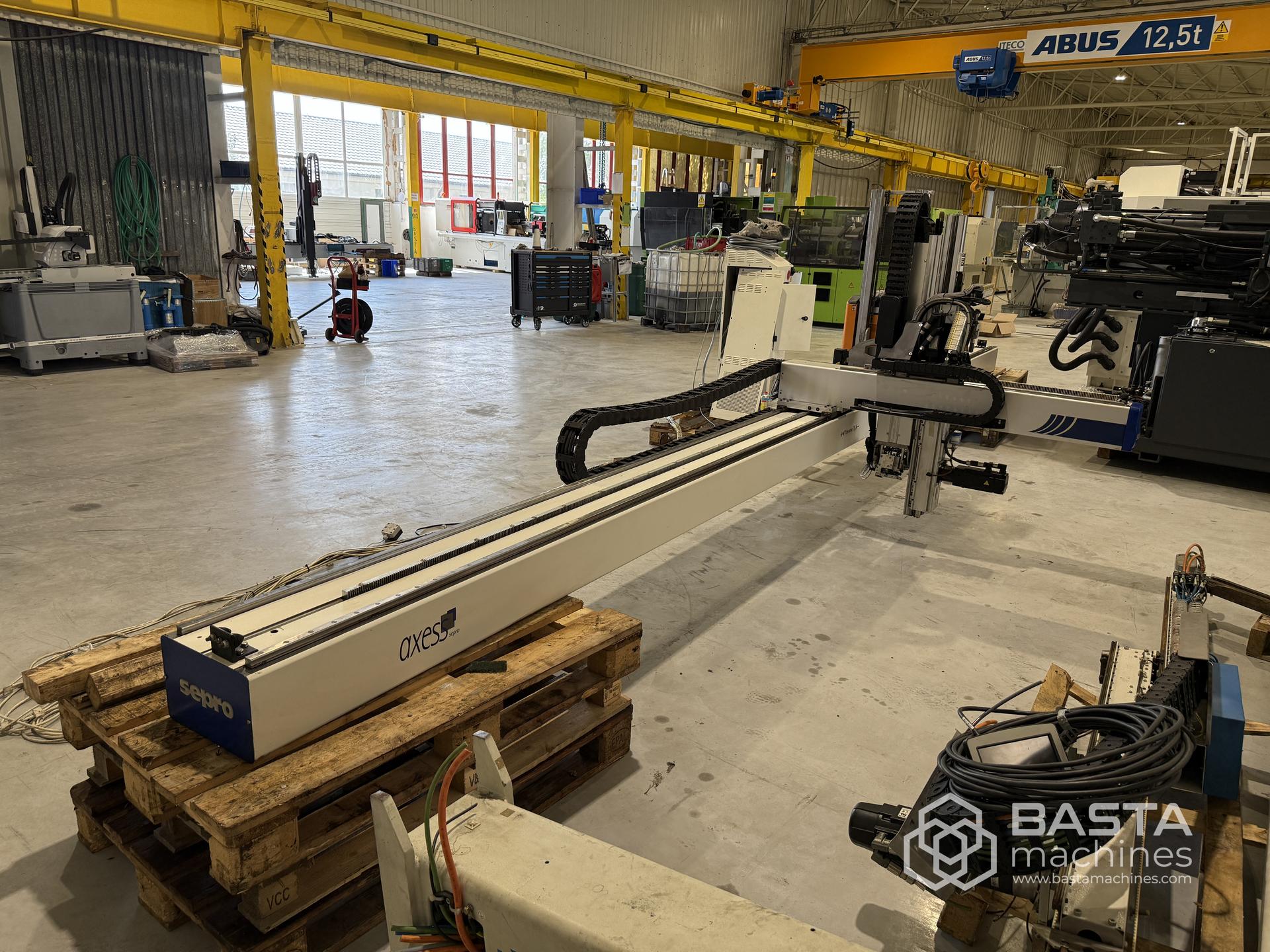

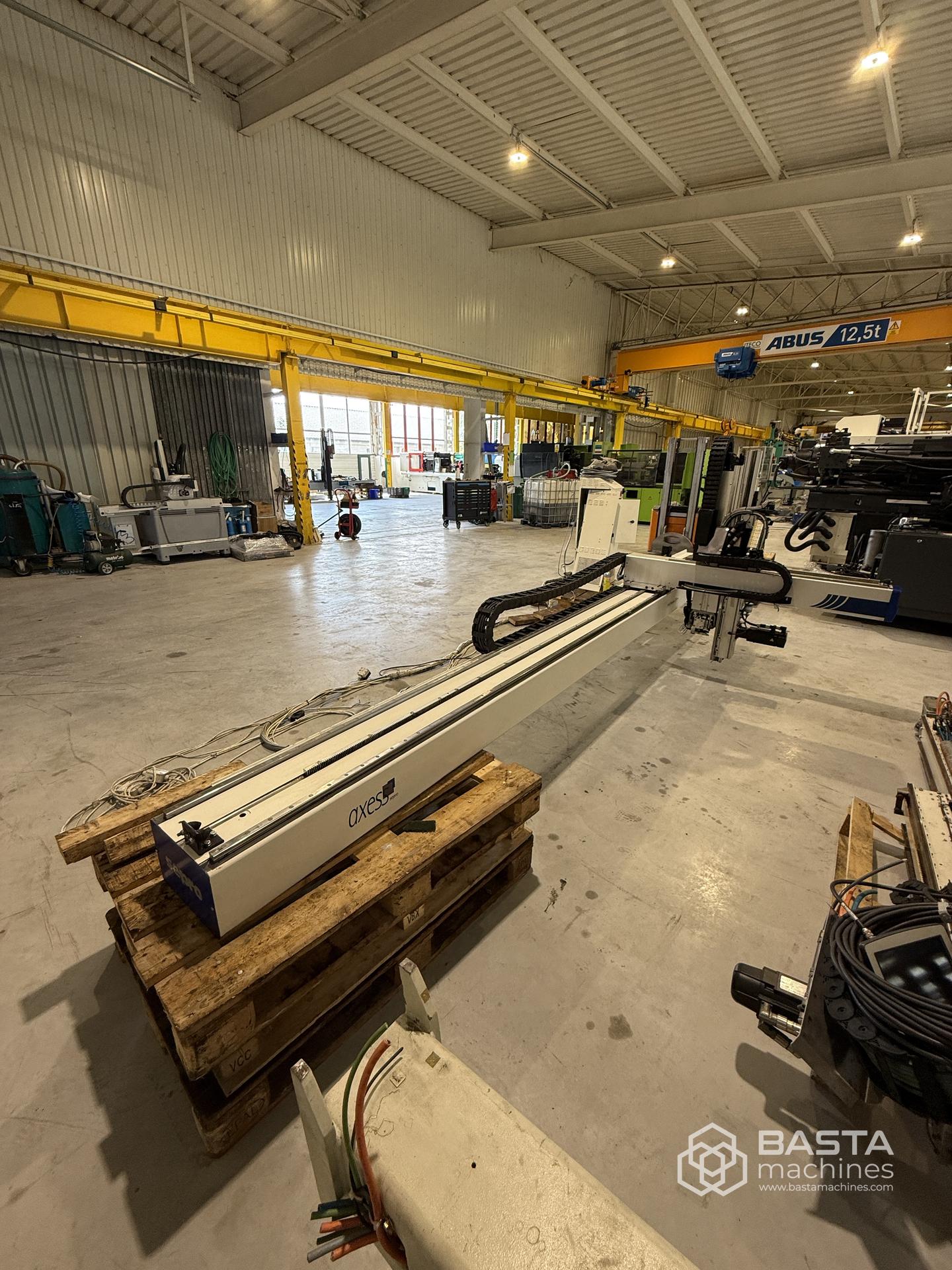

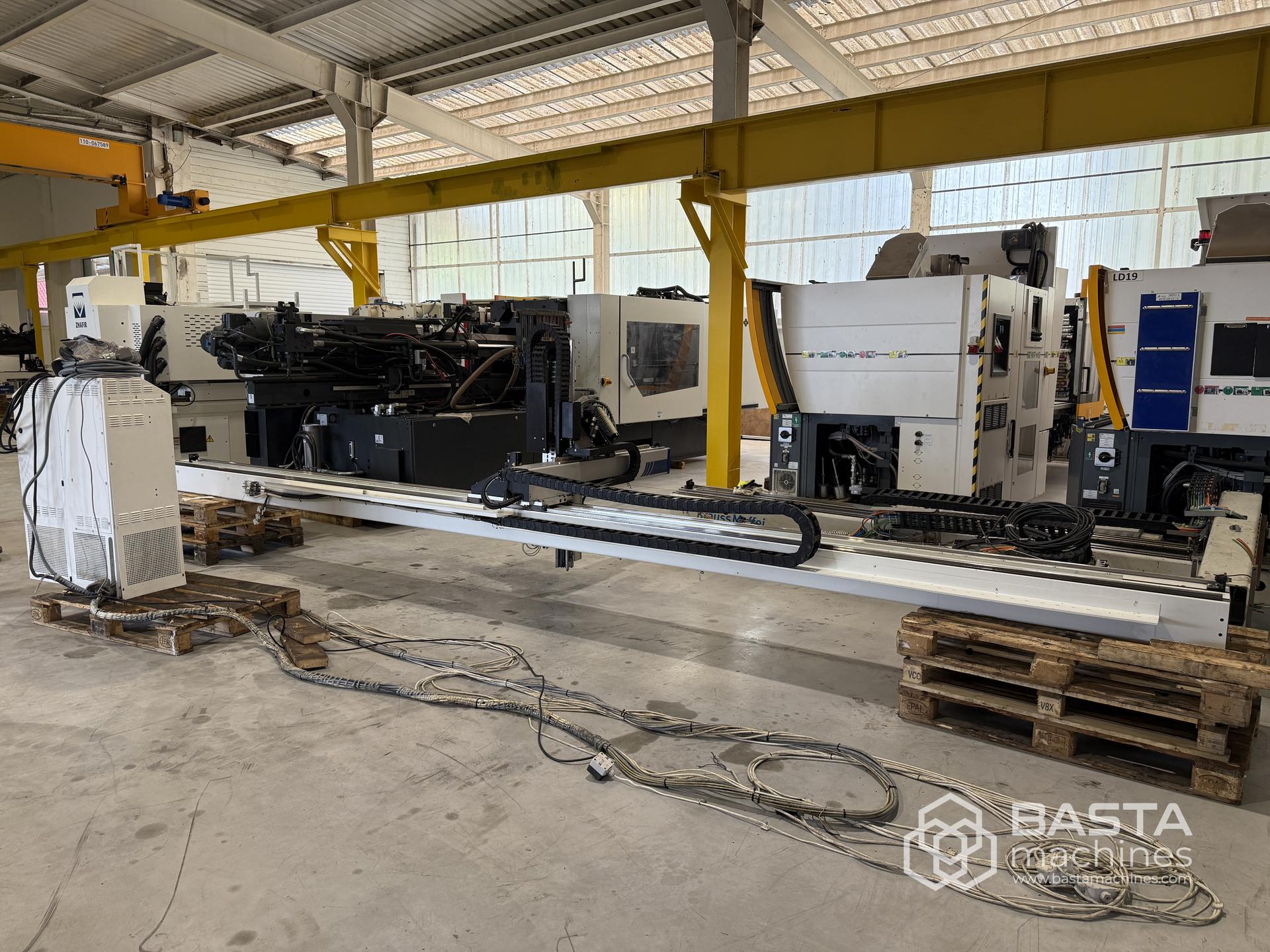

SEPRO AXESS33 S3 AXIAL (2011)

SEPRO AXESS 33 S3 – Technical Specification

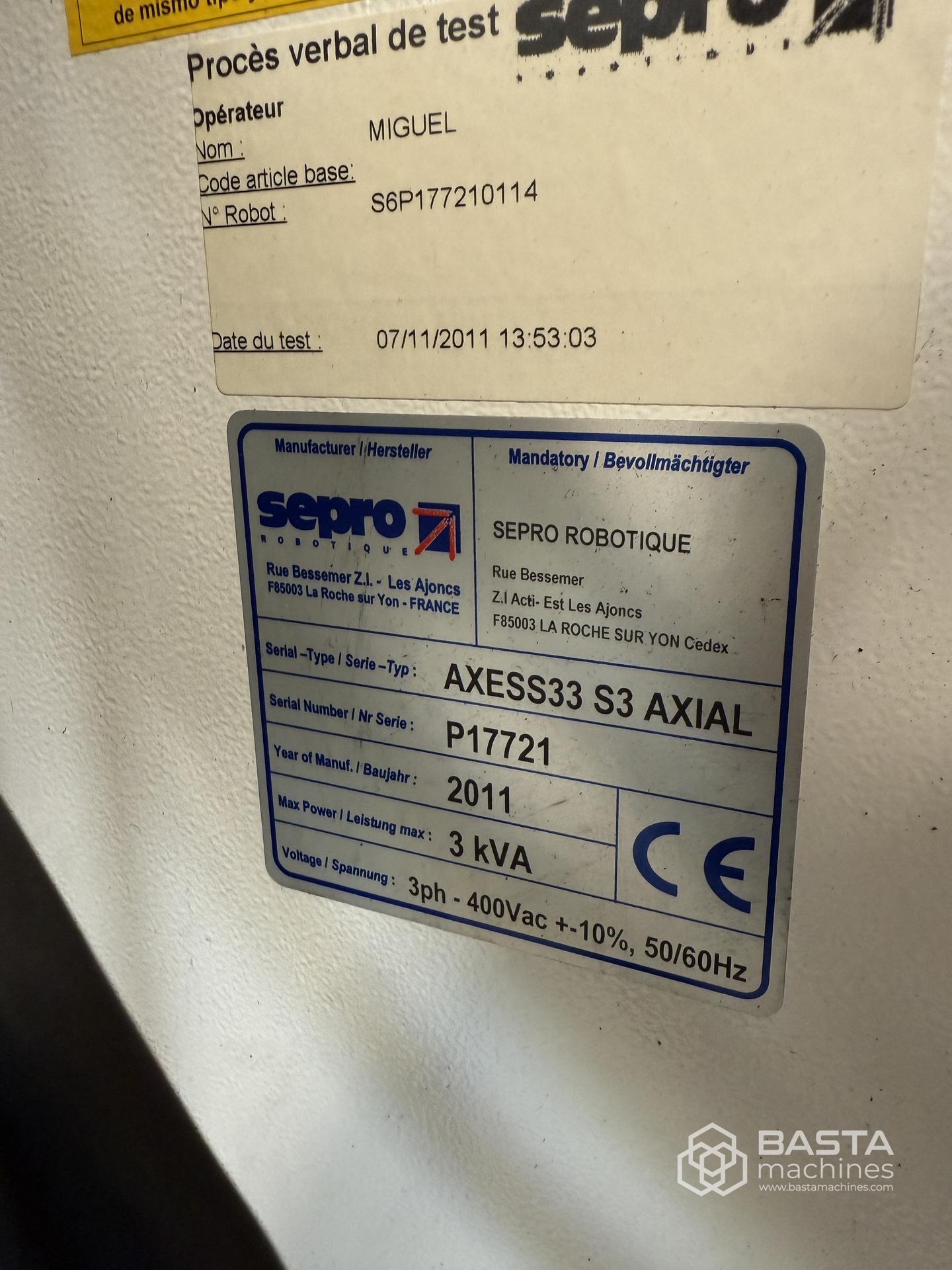

Manufacturer: SEPRO ROBOTIQUE

Model: SR AXESS 33 S3

Serial number: P17721

Controller: Touch2

Type: Cartesian servo robot for injection moulding machines

Date: 04/05/2012

X =  4000 mm

Y = 650 mm

Z = 1800 mm

payload: 12 kg

1. Robot type: Cartesian, 3 servo axes + pneumatic wrist rotations
2. Robot weight: 570 kg
3. Rated load: 12 kg
4. Overall dimensions (Y carriage & Z arm retracted): 4910 × 1830 × 1550 mm
5. Working pneumatic pressure: 6 bar ±10%
6. Maximum pneumatic pressure: 7 bar
7. Average air consumption: 140 l/min
8. Peak air consumption: 1360 l/min

Environmental conditions

1. Storage / transport temperature: −25°C to +55°C
2. Operating temperature: +5°C to +40°C
3. Relative humidity: 30–95%, non-condensing
4. Max. altitude: 2000 m
5. Noise level: 70 dB(A)
6. Cabinet protection: IP22 / IK07
7. Pendant protection: IP32 / IK06
8. Touchscreen lifetime: 1,000,000 touches (finger) / 100,000 (stylus 2H)
9. Chemical resistance: toluene, acetone, gasoline, machine oil, ammonia, glass cleaner
