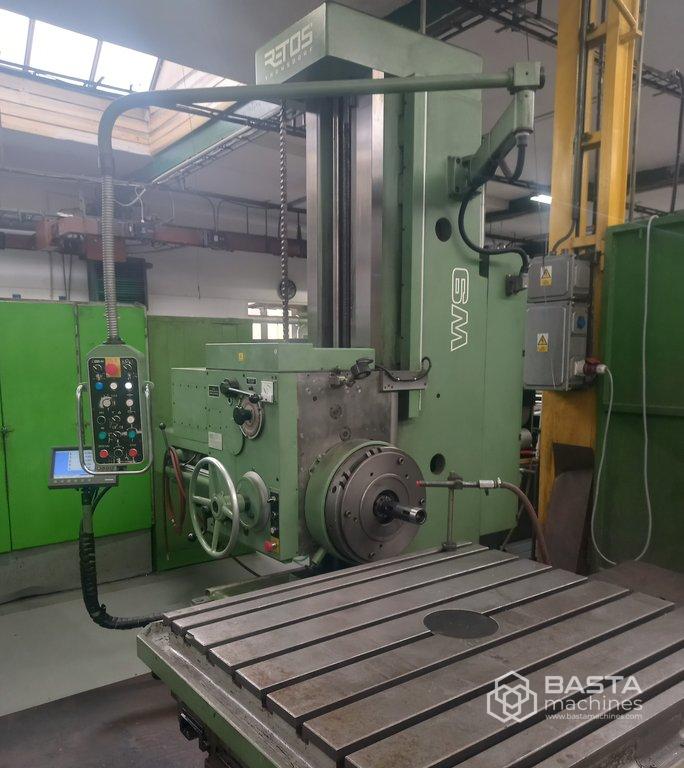

RETOS W 9 horizontal boring machine (general repair in year 2016)

- conventional table-top horizontal boring machine - type W9.08 - year of made 1974, general repair 2016 - hardly used since then - Excellent condition - digital measurement of linear axes and table rotation with position indication - working spindle diameter 90 mm - clamping cone ISO 40 - spindle speed 21 degrees 14 – 1400 rpm - power of the main engine 7.5 kW - X...transverse travel of the table 1250 mm - Z...longitudinal travel of the table 1250 mm - Y...vertical headstock travel 1120 mm - W...spindle extension 710 mm - table clamping surface 1000x1120 mm - table load capacity 3000kg - working feeds X,Y,Z,W,U 18 degrees 12.5 – 600 mm/min - working feeds X,Y,Z,W,U 18 degrees 0.016 – 0.8 mm/rev - face plate diameter 480 mm - U...extension of knife slide 170 mm - maximum diameter of face turning 710 mm - The machine is under power, the possibility of testing. - Loading agreement
