PLASTIC MACHINE

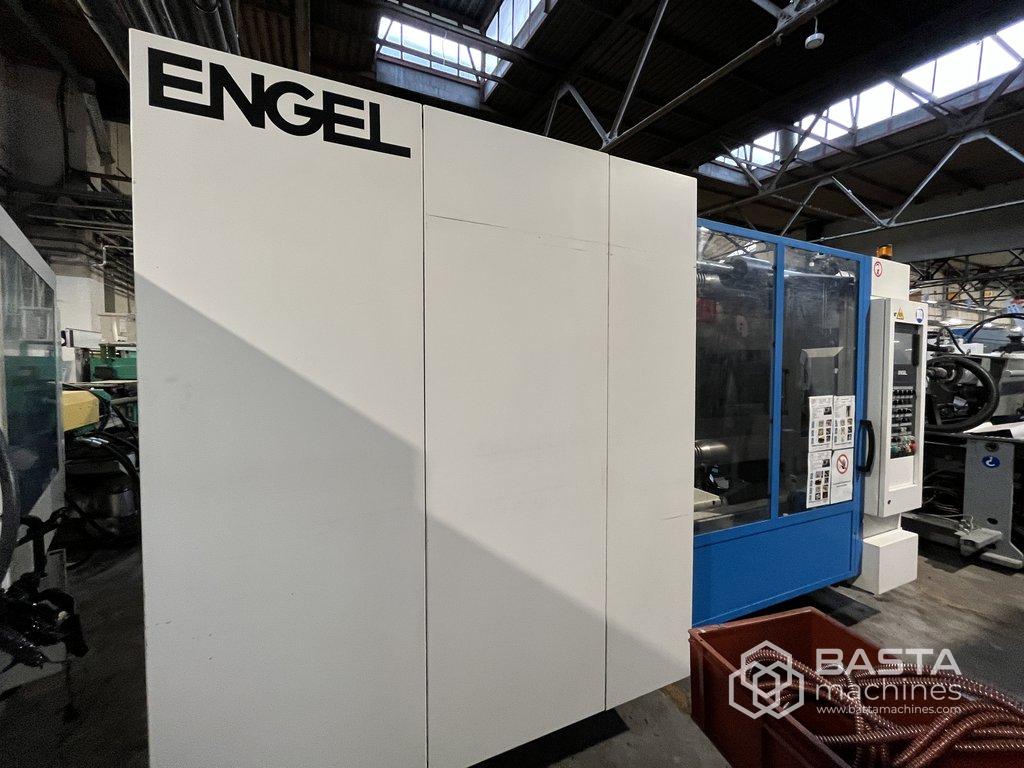

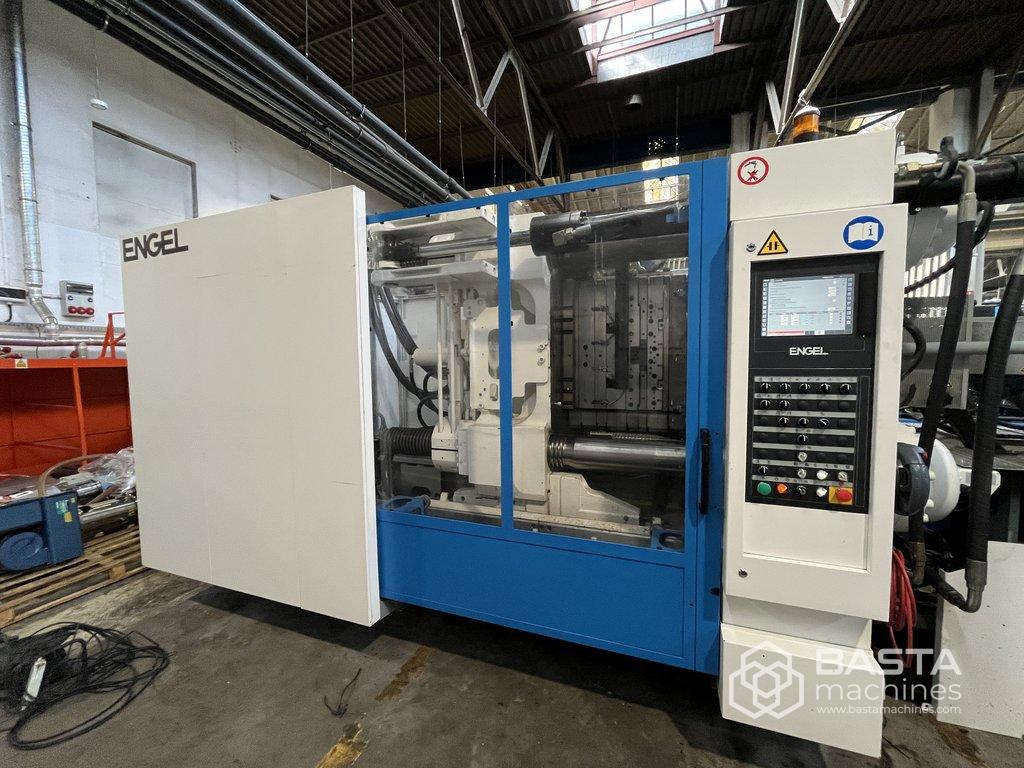

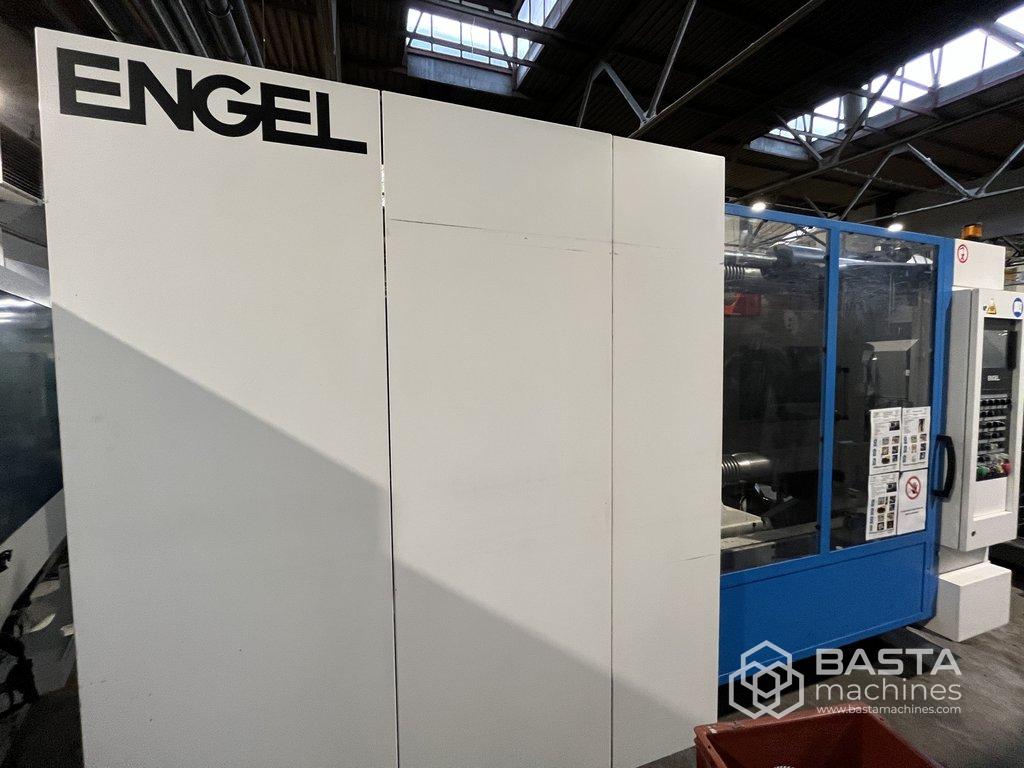

RESERVED Engel DUO 2550/650 (2007), Engel ERC robot
Sold
Overview
Condition
Good
Manufacturer
Engel
Model
DUO 2550/650
Year
2007
Stock number
00691
Description
Engel DUO 2550/650 year: 2007

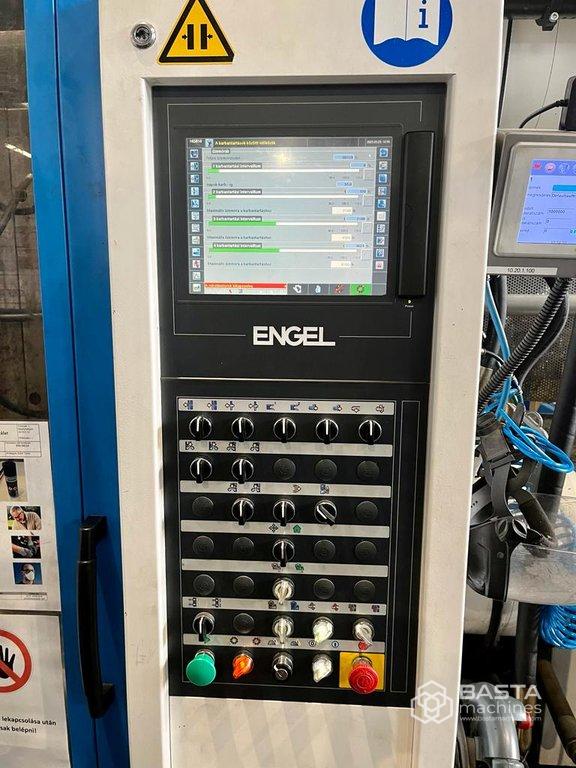

CC200 controll
Clamping/injection unit
Clamping force [kN] 6500
Dimensions of the mounting plate (hxh) [mm] 1465 x 1360
Distance between columns (hxh) [mm] 1025 x 930
min./max. mold height [mm] 450 / 950
Maximum opening width [mm] 1350
Injection unit
Screw diameter [mm] 70
Injection volume [cm3] 1193
Bullet weight [g] 1085
Dimensions and weight (approximate)
Net weight with control box [t] 33
Dimensions (L x W x H) [m] 8.3x2.5x2.33
