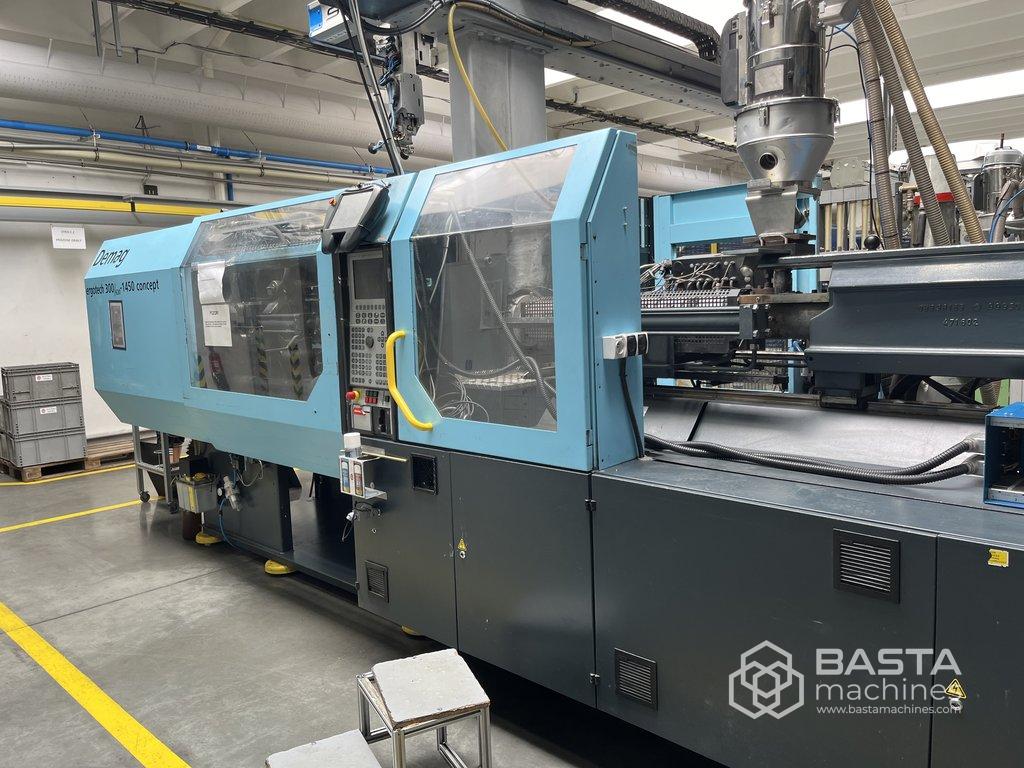

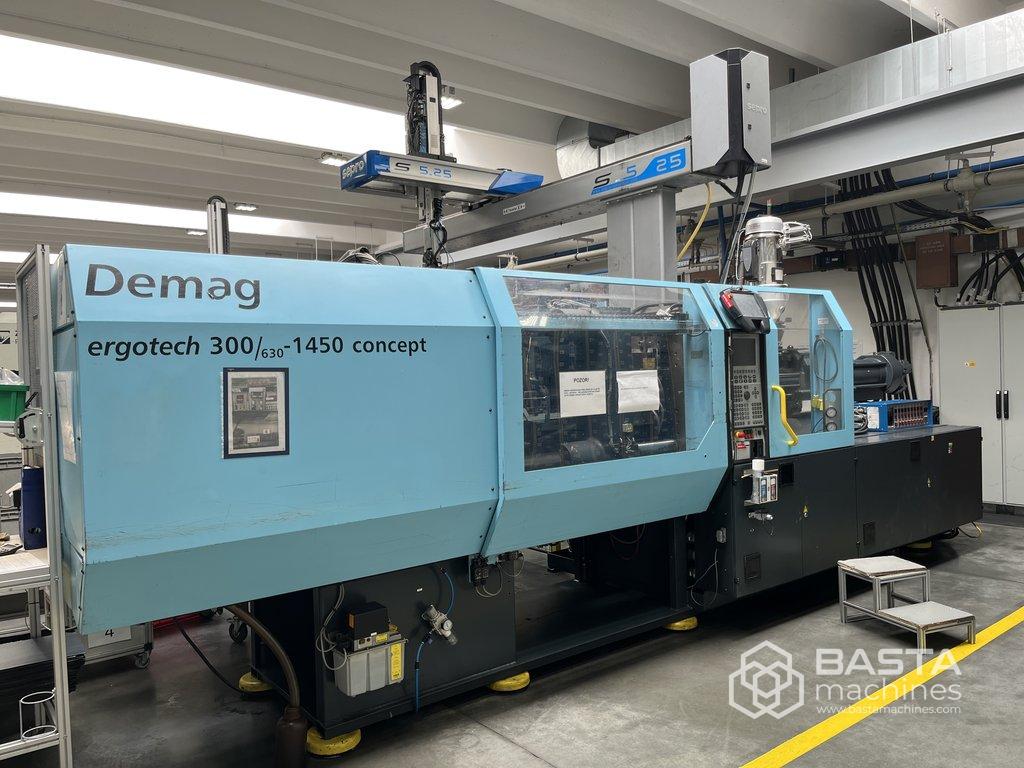

Reserved: Demag Ergotech concept 3000-1450 (2003)

Demag Ergotech concept 3000/630-1450 Clamping unit Clamping/injection matrix Clamping force [t] 300 Mounting plate dimensions (hxv) [mm] 950/950 Clearance between columns (hxv) [mm] 630x630 Min./max. mold height [mm] 330 Maximum mould height [mm] 710 Injection unit Screw diameter [mm] 60 Shot weight [g/PS] 690 Max pressure: 1905 Core pullers: 2 Air Valves: 1
