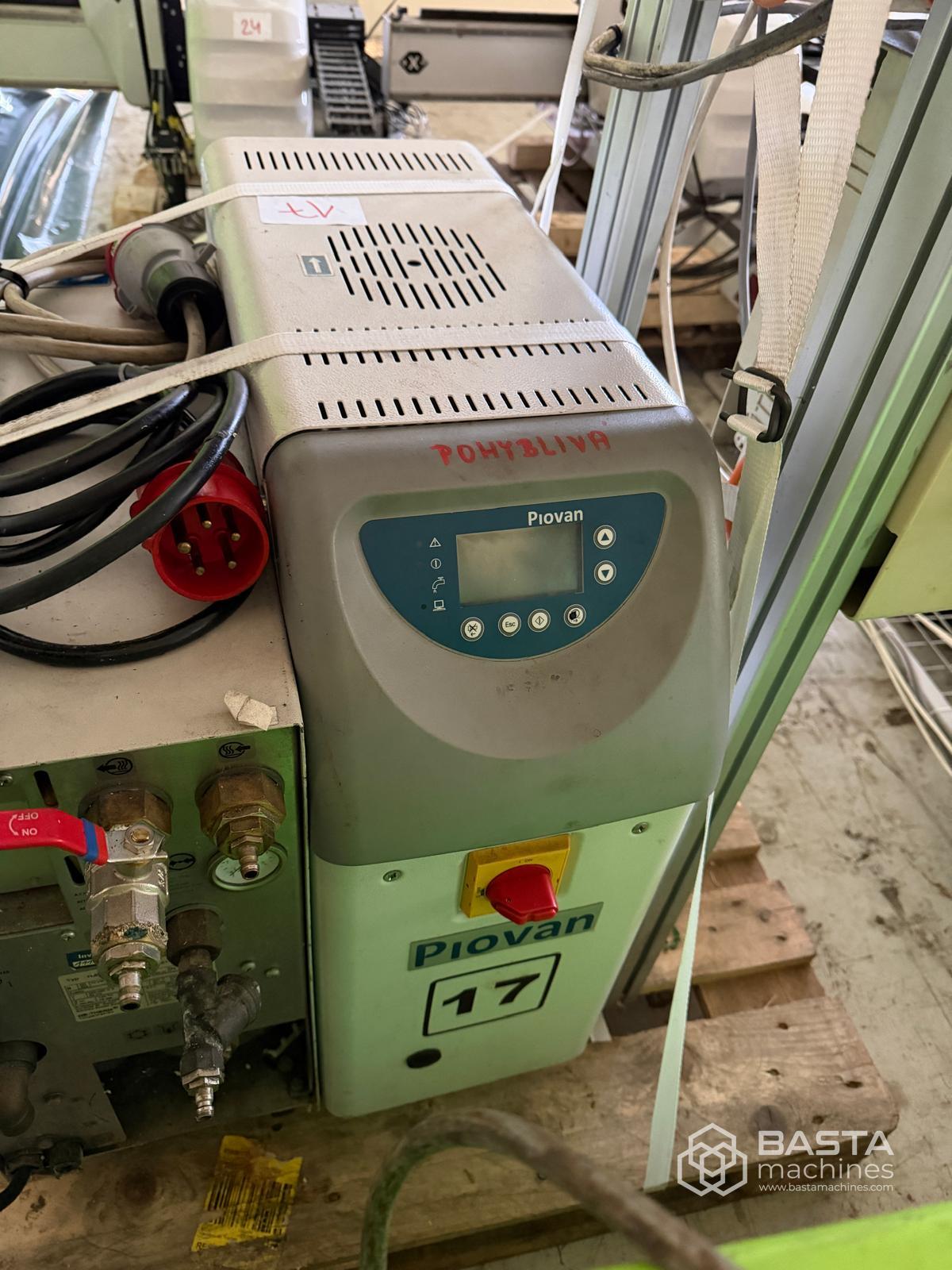

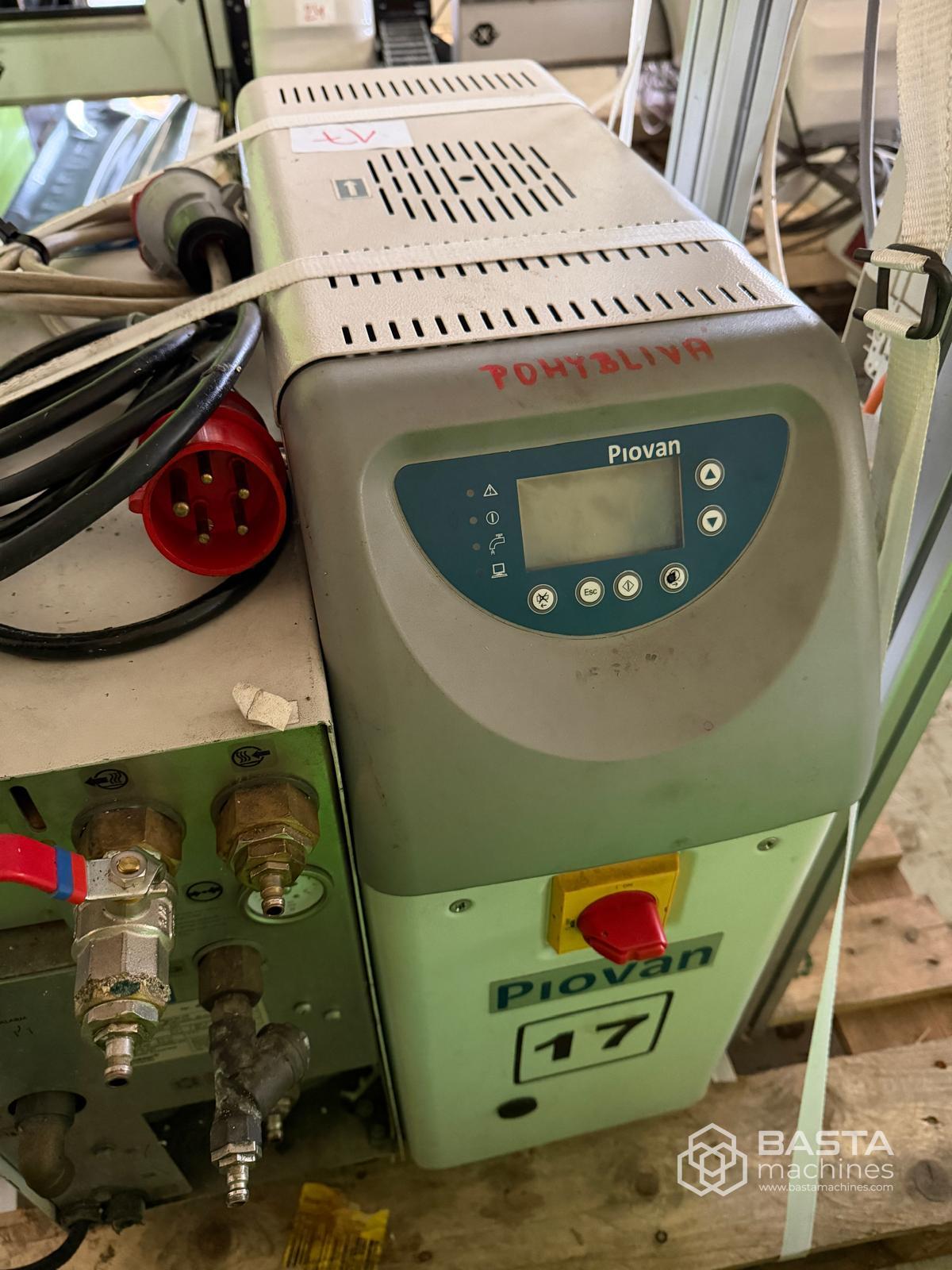

PIOVAN THW9 (2016)

Supply voltage / frequency: 230 V / 50 Hz or 400 V / 50 Hz (also 220/380/460 at 60 Hz)

Heating element power: 9 kW (also variants 6 kW, 11 kW, 12 kW in THW9/12 series)

Process fluid: water (non-pressurised)

Maximum process fluid temperature: 90 °C

Cooling fluid: water, utilisation with cooling-water input recommended max ~15 °C inlet, with capacity ~15 l/min.

Cooling power: THW9 lists ~21 kW cooling power under specified conditions.

Pump (electric): power ~0.75 kW; maximum capacity ~60 l/min; maximum head ~40 m (for THW9/12)

Ambient working temperature: 5-40 °C

Maximum storage/transport ambient: –25 to +55 °C

Sound pressure level: ~72 dB(A)
