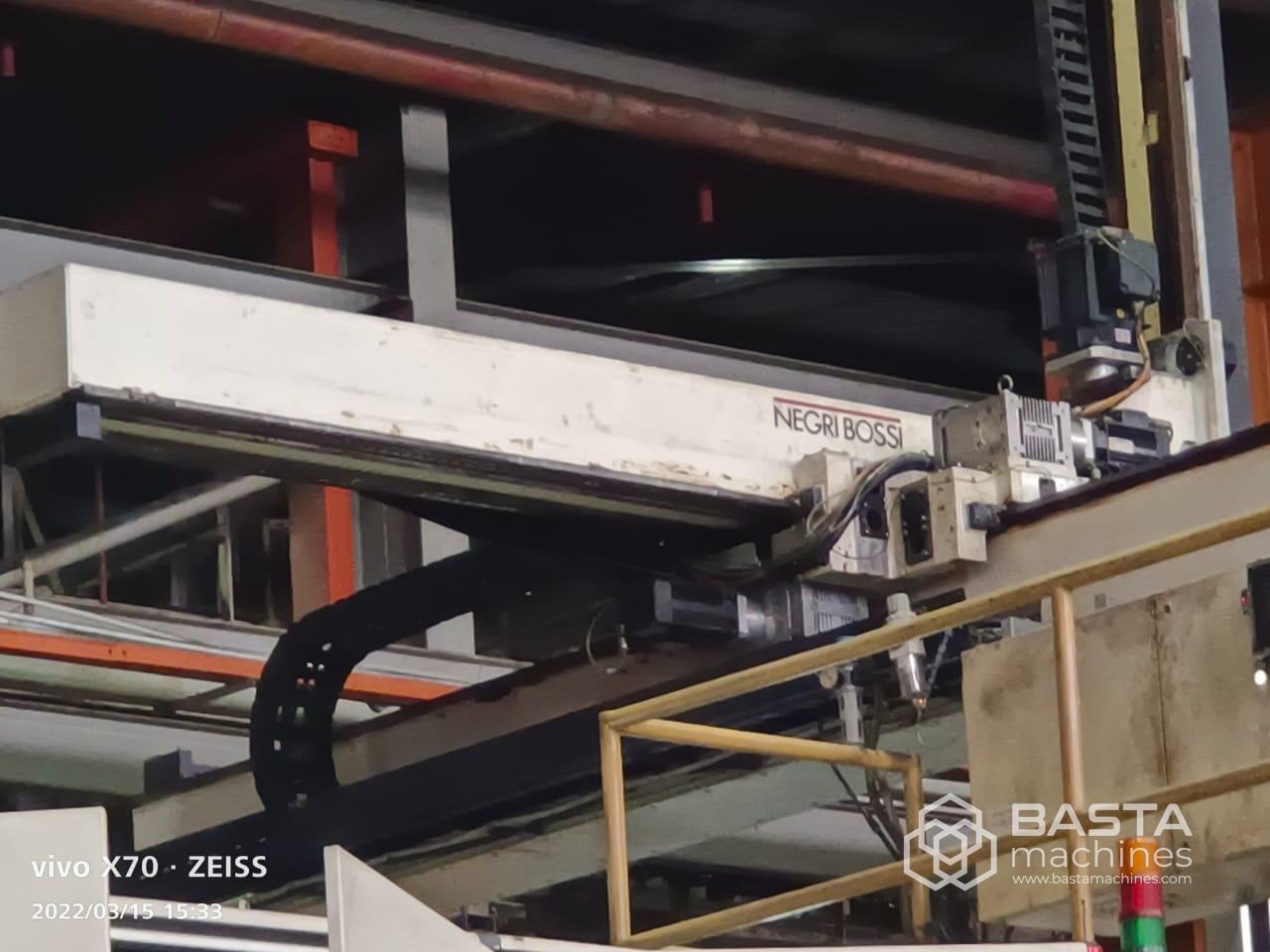

Negri Bossi VH2700 (2700 ton)

Negri Bossi VH2700 Screw dia: 150 mm Injection volume: 13254 cm3 Injection capacity: 12061 g (PS) Max. Pressure: 1670 bar Clamping force: 27000 kN Mould opening stroke min/max: 3000/2100 mm Mould heigh min/max: 1900/1000mm Distance between paltes: 4000mm Plate size HxV: 2000x1600 mm Tie bar diameter: 340 mm Total weight: 134 tons
