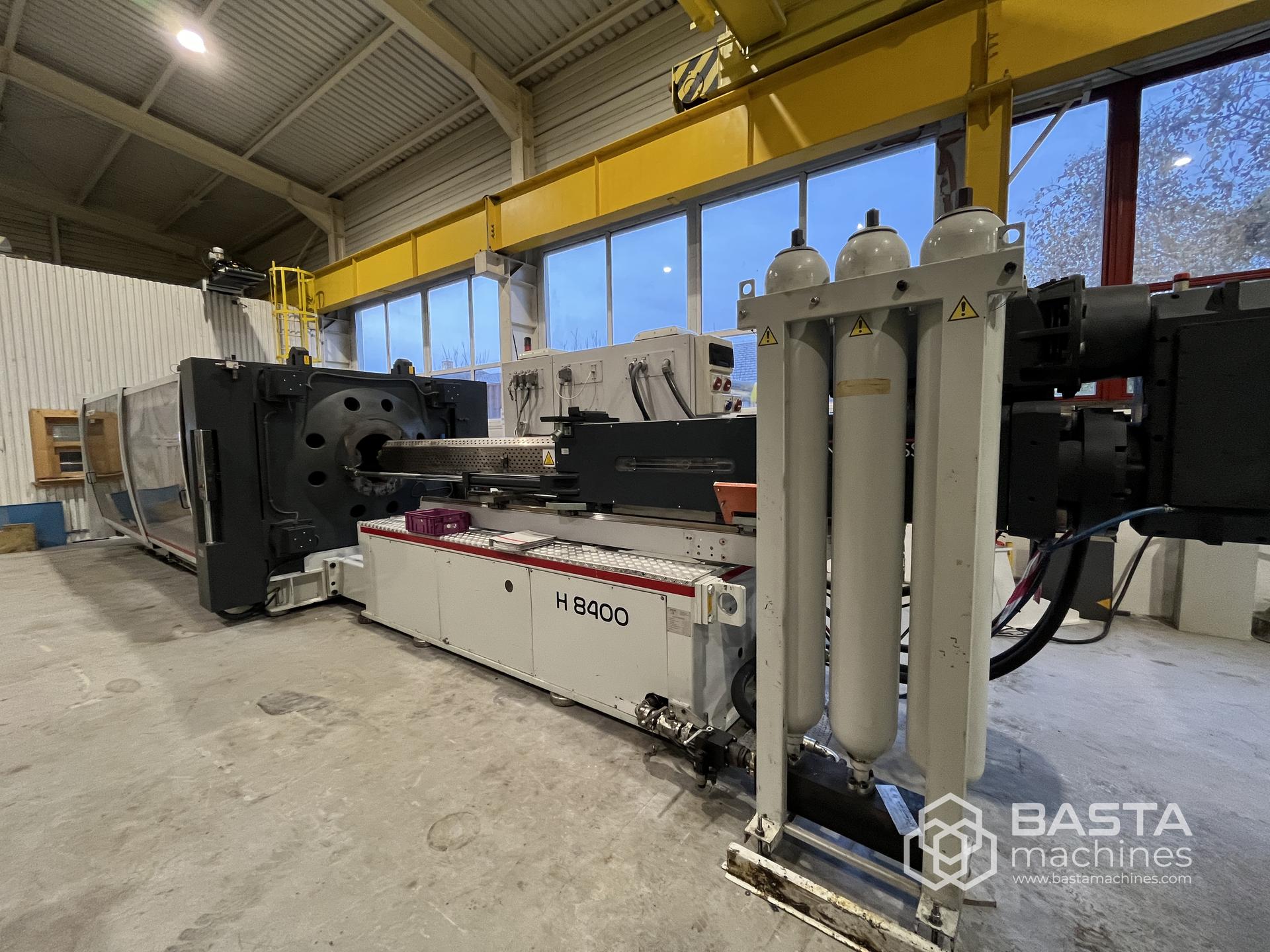

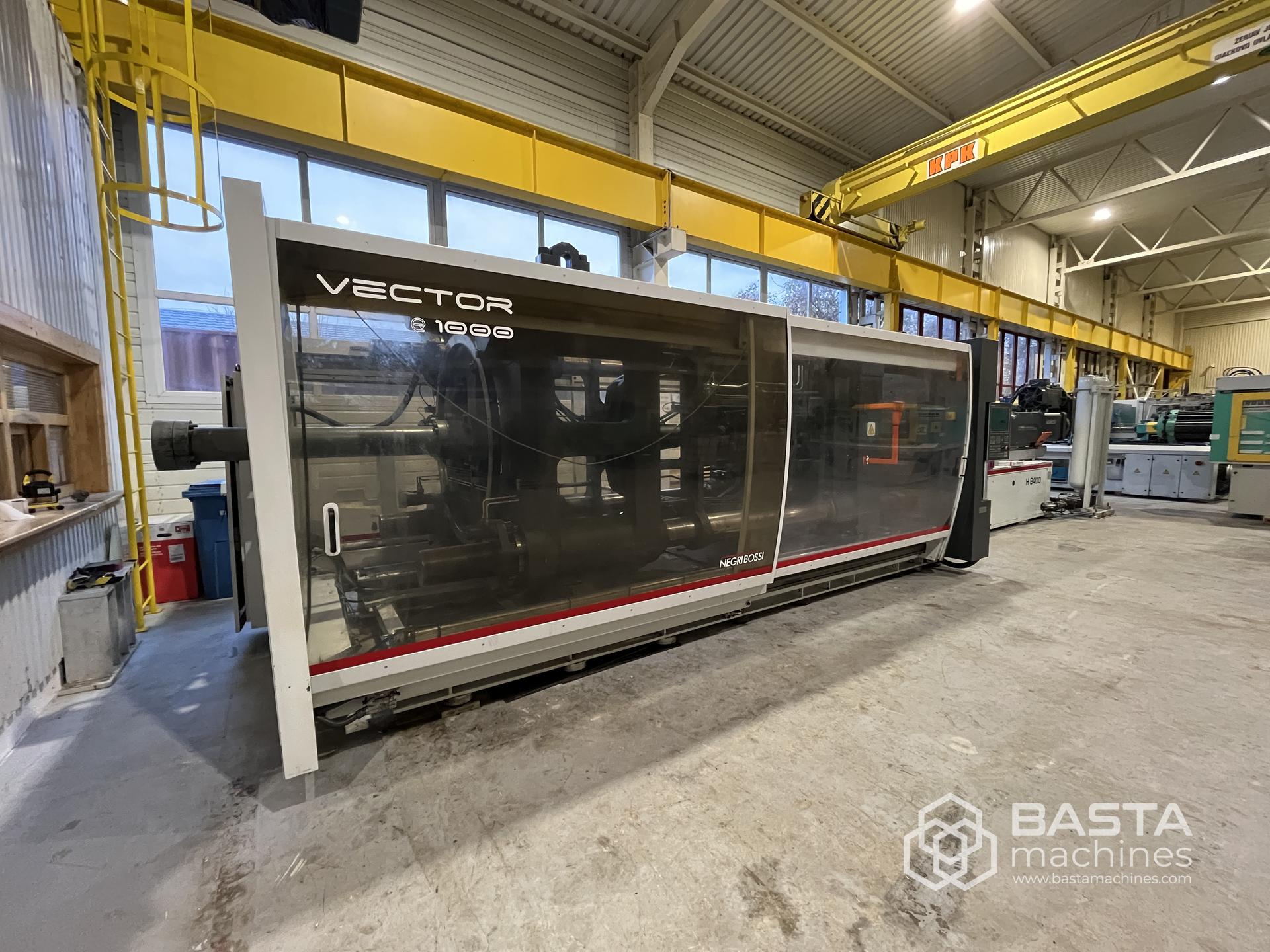

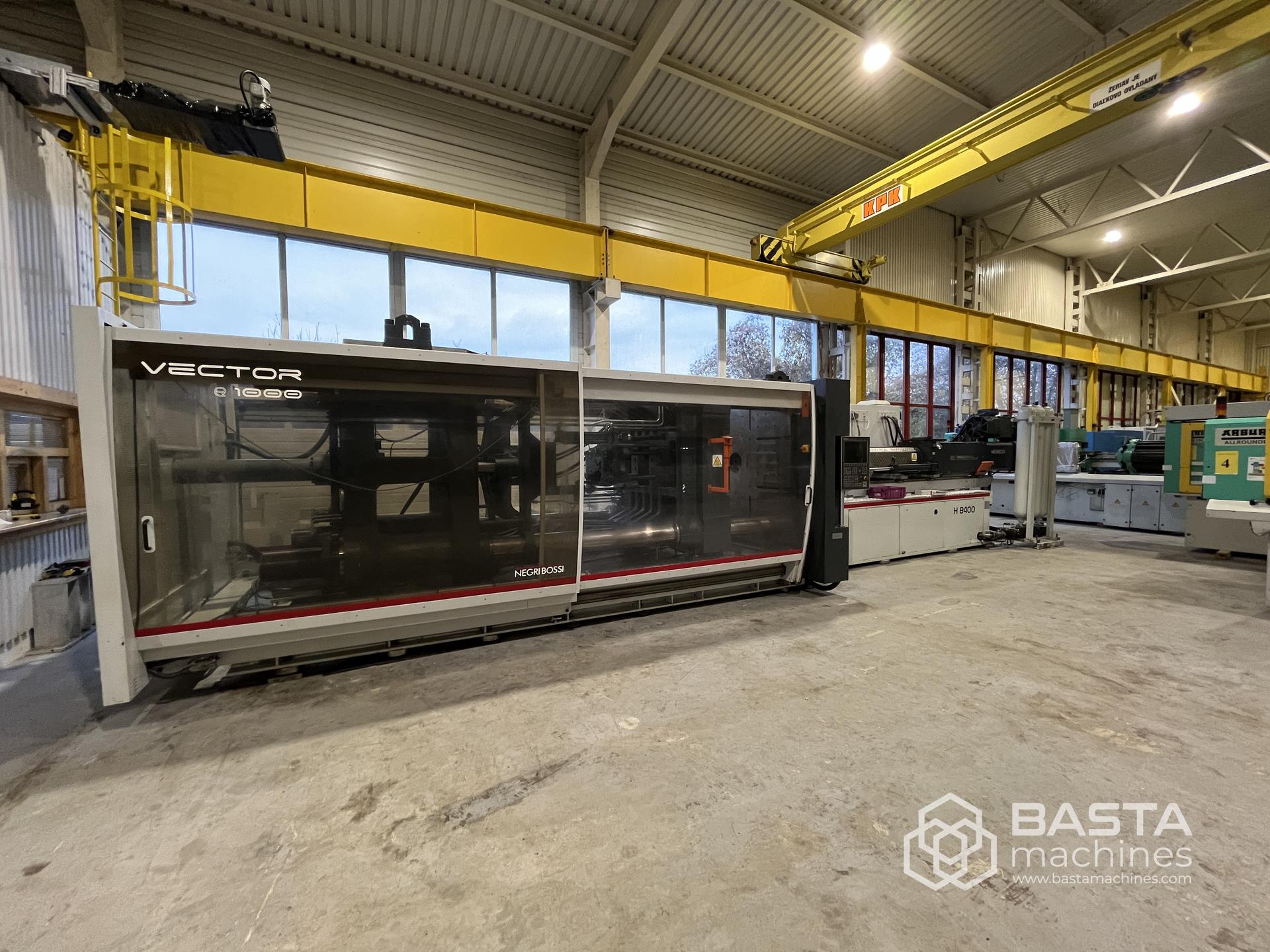

Negri Bossi eVECTOR 1000 (2015)
Overview
Description
Negri Bossi eVECTOR 1000(1000 tons)
Year: 2015

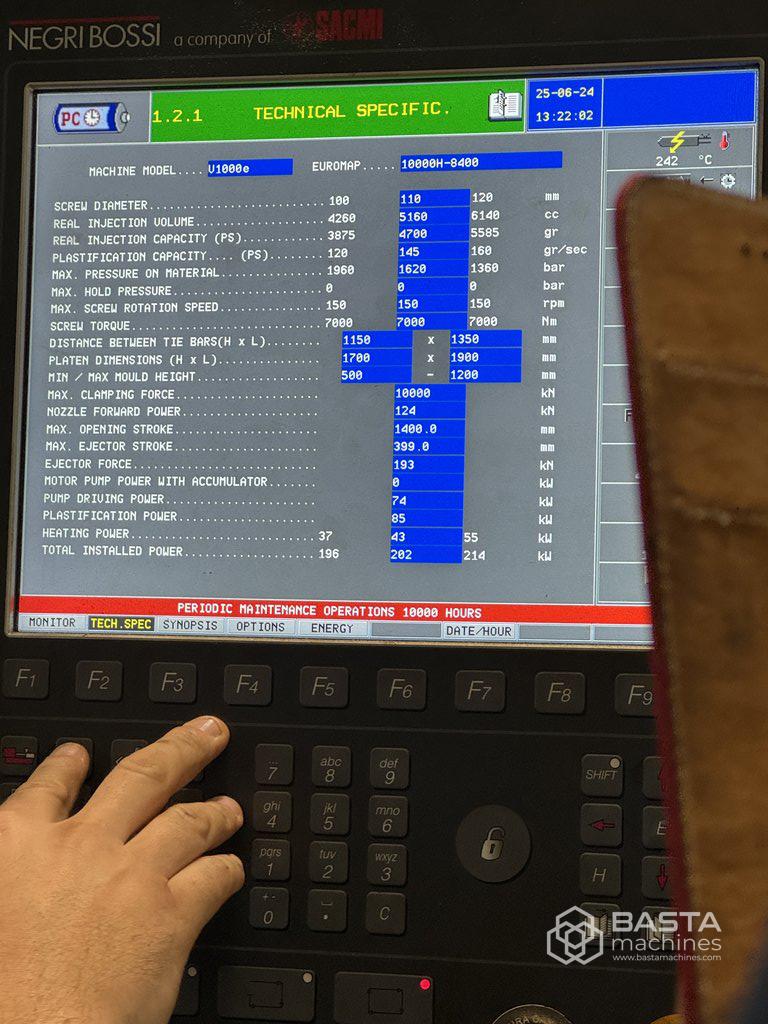

Clamping unit
Max clamping force: 10000 kN
Distance between tie bars: 1350x 1150 mm
Platen dimensions: 1700 x 1900 mm
Min / max mould height: 500-1200 mm
Nozzle forward power: 124 kN
Max. opening stroke: 1400 mm
Max . ejector stroke: 399 kN Ejector force: 193 kN
Pump diving power: 74 kW
Plastification power: 85 kW
Heating power: 43 kW
Total installed power: 202 kW
Injection Unit:
Screw diameter: 110 mm
Injection volume: 5160 cm3
Injection capacity: 4700 gr
Max. pressure on material: 1620 bar
Max. screw rotation speed: 7000 mm
Equipment:
Auger pr. 110mm barrier NegriBossi "MRS" - if not replaced
- Accumulators for injection
- 8x hot channel for the mold - heating the mold
- 16x cooling circuit
- 2x hydraulic core puller on a moving plate
- 5x pneumatic valve on the reaction plate
- 4x CFM column load sensor
- 2x pneumatic valve – sequential injection
- Euromap 67 full option
- 1x 230V socket + 3x 400V socket
Fully tested in our showroom by Negri Bossi technician.
