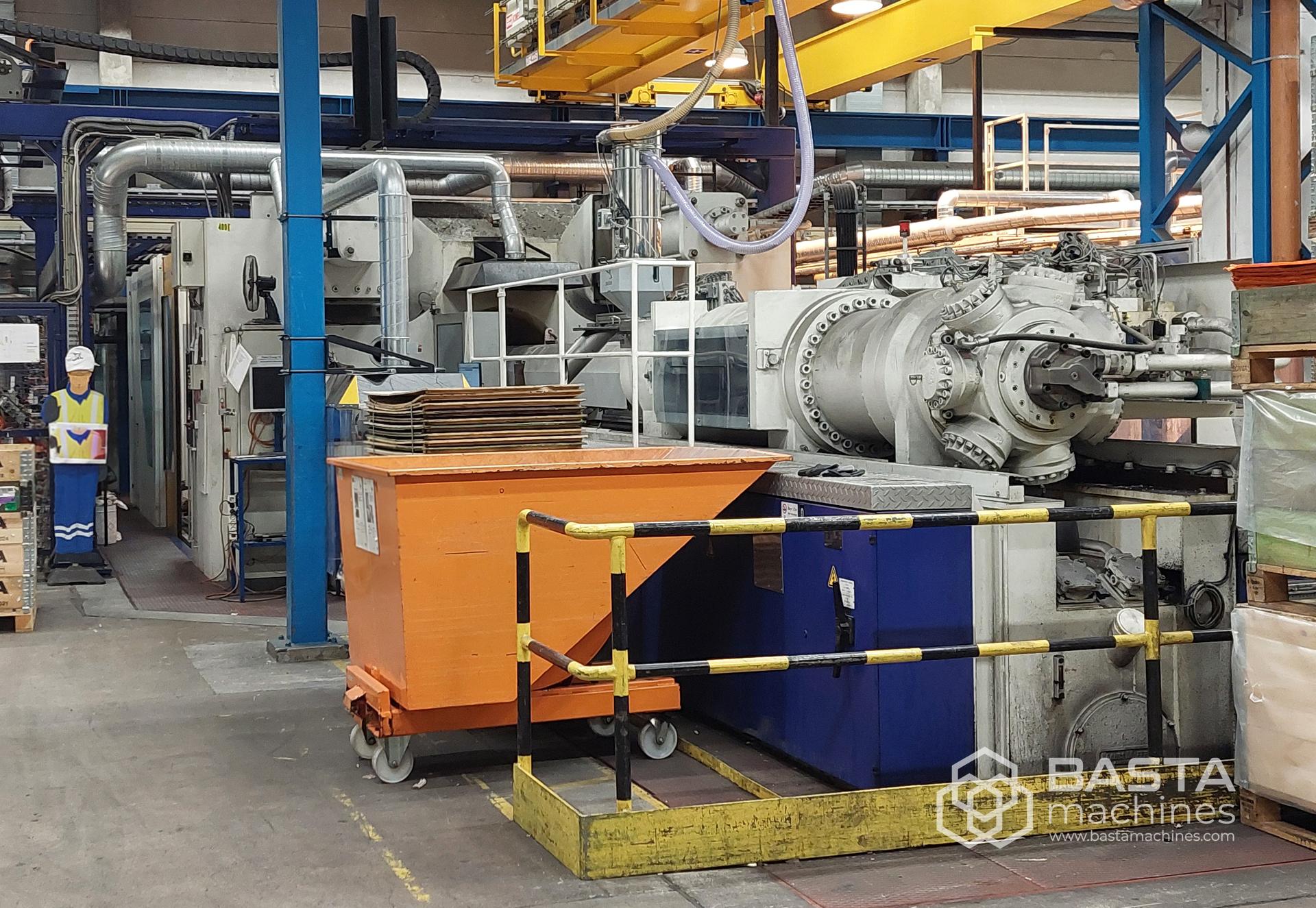

Krauss Maffei KM4000-2450MC (2003)

Clamping force: 4000 t

Screw diameter: 150 mm

Shot weight: 12061 g

Shot volume: 13254 cm3

Distance between tie bars V: 1800 mm

Distance between tie bars H: 2240 mm

Mould min-max: 1100-2000mm

Max daylight: 4000mm

Type: Horizontal

Drive: Hydraulic

The machine have

1. Nozzle shout off
2. 2 air valve moving plate
3. 1 air valve fix plate
4. 4 core moving plate
5. 2 core fix plate
6. 48 heater for mould
7. Euromap 67 for roboter
8. 20 mA inerface for thempering units
9. 12 hydraulic cascade
