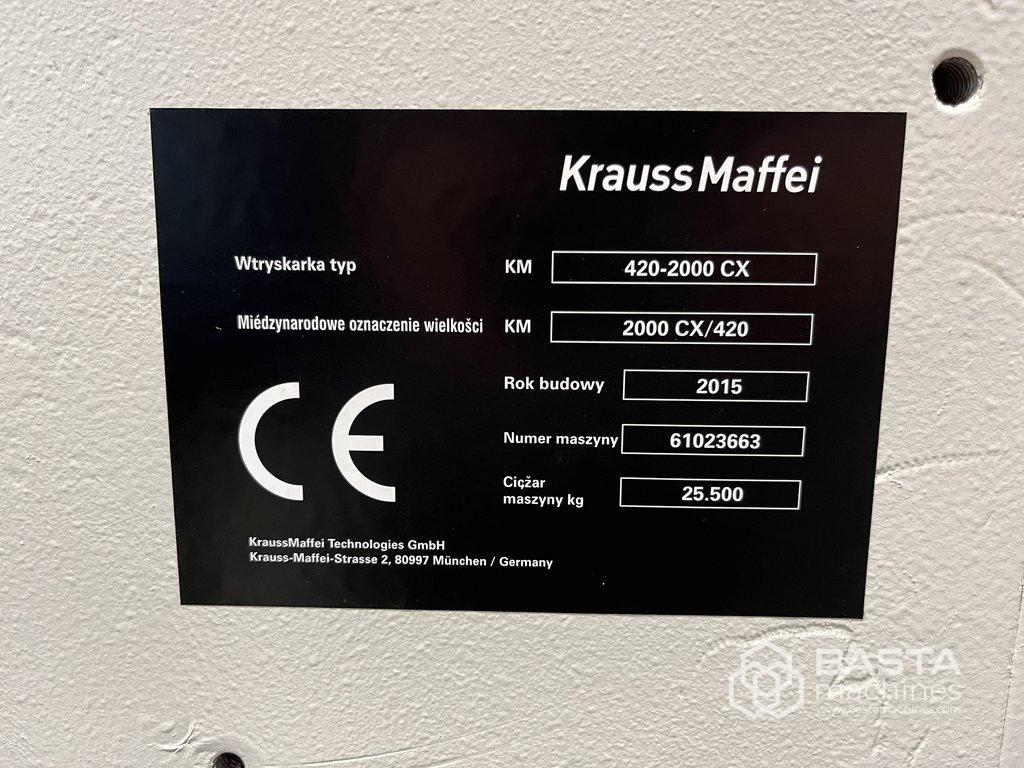

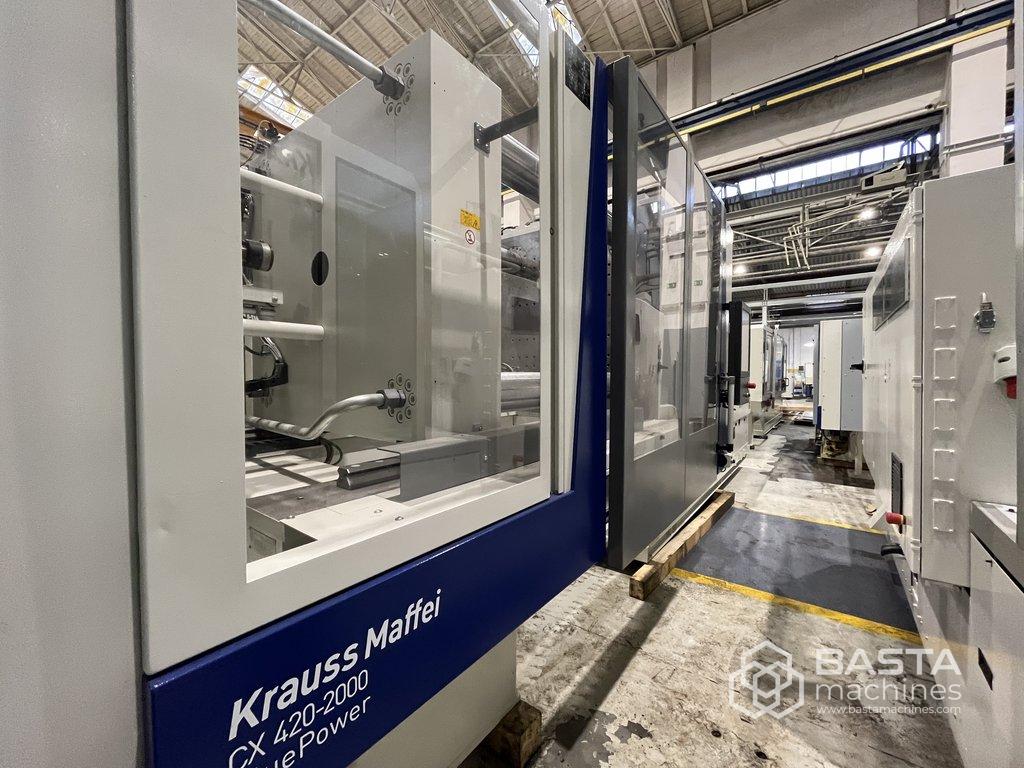

Krauss Maffei KM 420-2000 CX (2015) Blue Power

Clamping Unit

• Clamping force: 4200 kN

• Mounting plate dimensions (h × v): 1270 × 1230 mm

• Clearance between columns (h × v): 800 × 800 mm

• Min./max. mold height: 580 mm

• Maximum opening width: 1600 mm

Injection Unit

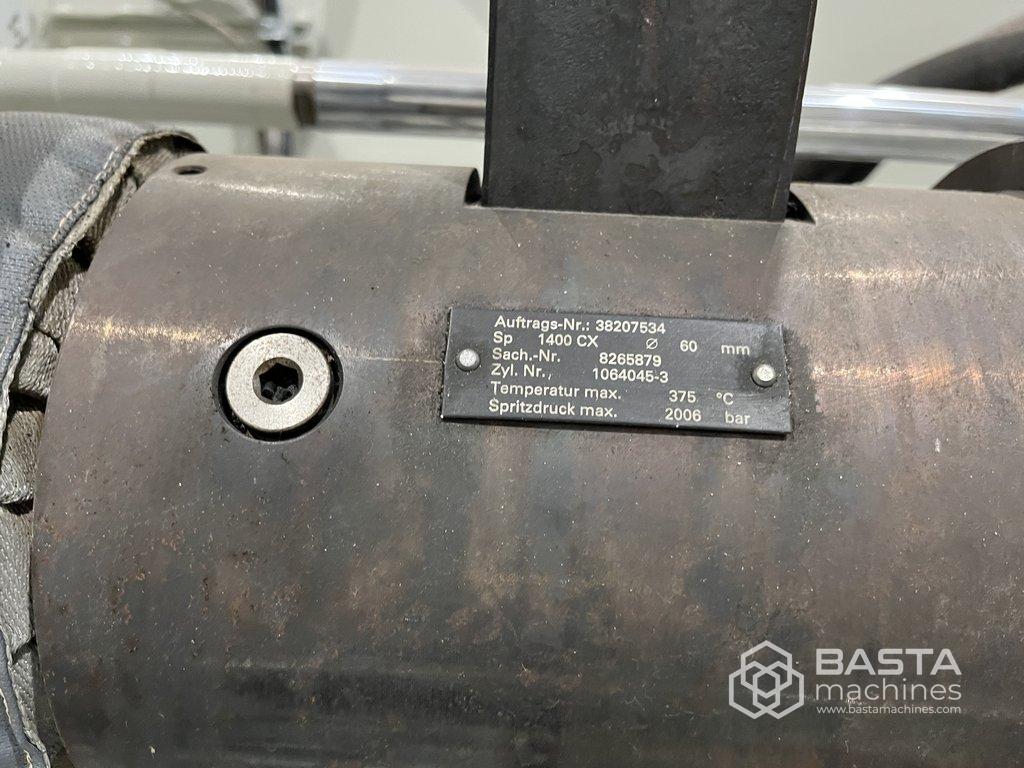

• Screw diameter: 60 mm

• Injection volume: 679 cm³

• Shot weight: 618 g

• Injection pressure: 2006 bar

Electro-Hydraulic Equipment

• Power rating of the pump motor: 45 kW

• Power rating of barrel heating: 22.4 kW

• Features:

• Accumulator

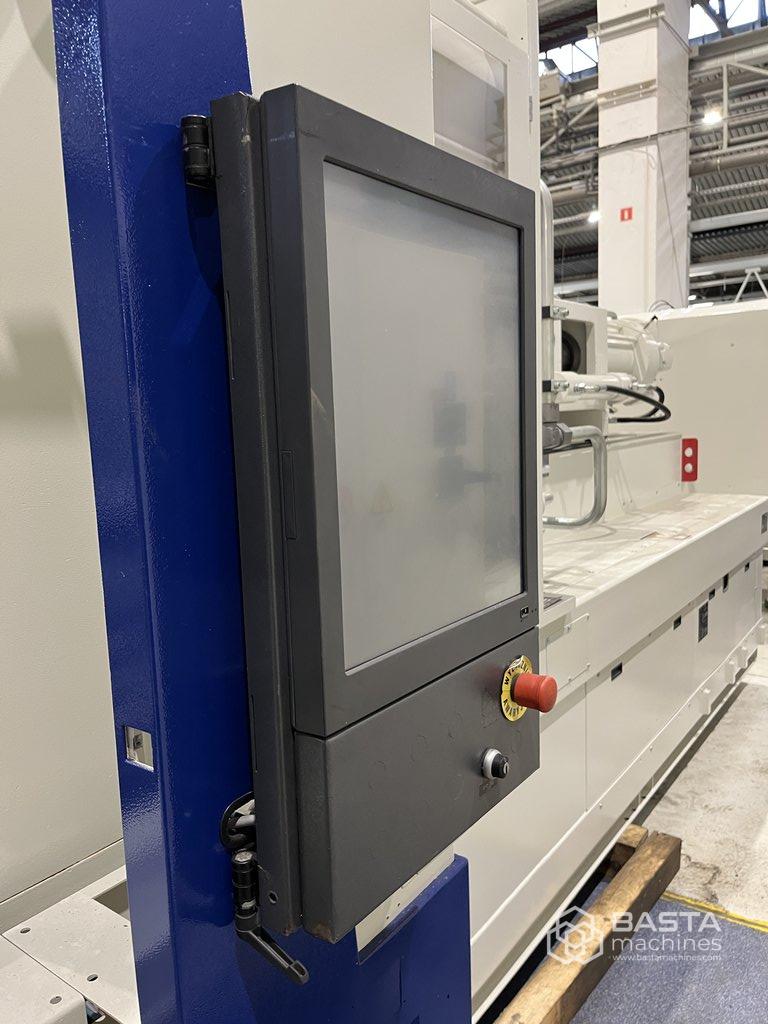

• MC6 control

• 2 + 2 cores

• 8 cascade valves for hot-channel

• Low hours in automatic cycle

Dimensions and Weight (Approximately)

• Net weight with control cabinet: 23.9 t

• Dimensions (L × W × H): 6.90 × 2.49 (dismantled to 2.44) × 2.38 m
