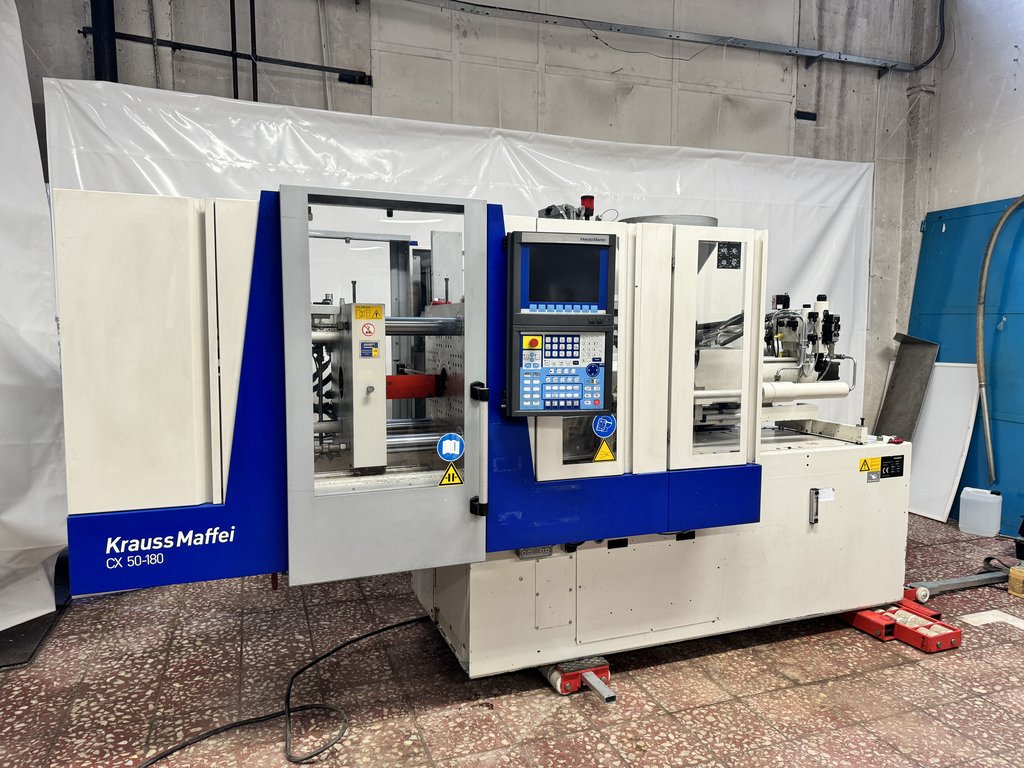

Krauss Maffei 50-180 CX (2010)

Clamping force: 50 tons Clamping platen (h x v): 600 x 600 mm Clear width (h x v): 370 x 370 mm Mold opening stroke max. : 400 mm Mold installation height min. : 200 mm Maximum daylight: 600 mm Ejector stroke: 100 mm Screw diameter: 30 mm Injection pressure: 2025 bar Shot volume: 85 cm3 Shot weight (PS): 77,4 g Equipment: 1x pneumatic valve 1x core puller
