Krauss Maffei 420-2000CX (2008) only 6000 hours
Reserved
Overview
Condition
Like new
Manufacturer
Krauss Maffei
Model
420-2000CX
Year
2008
Stock number
250015
Description
Krauss Maffei KM 420-2000 CX
Excellent condition LIKE NEW! Only 6000 hour in automatic cycle
Clamping/Injection Matrix
• Clamping force: 4200 kN
• Mounting plate dimensions (h × v): 1270 × 1230 mm
• Clearance between columns (h × v): 800 × 800 mm
• Min./max. mold height: 580 - 1020 mm
• Maximum opening width: 1600 mm
Injection Unit

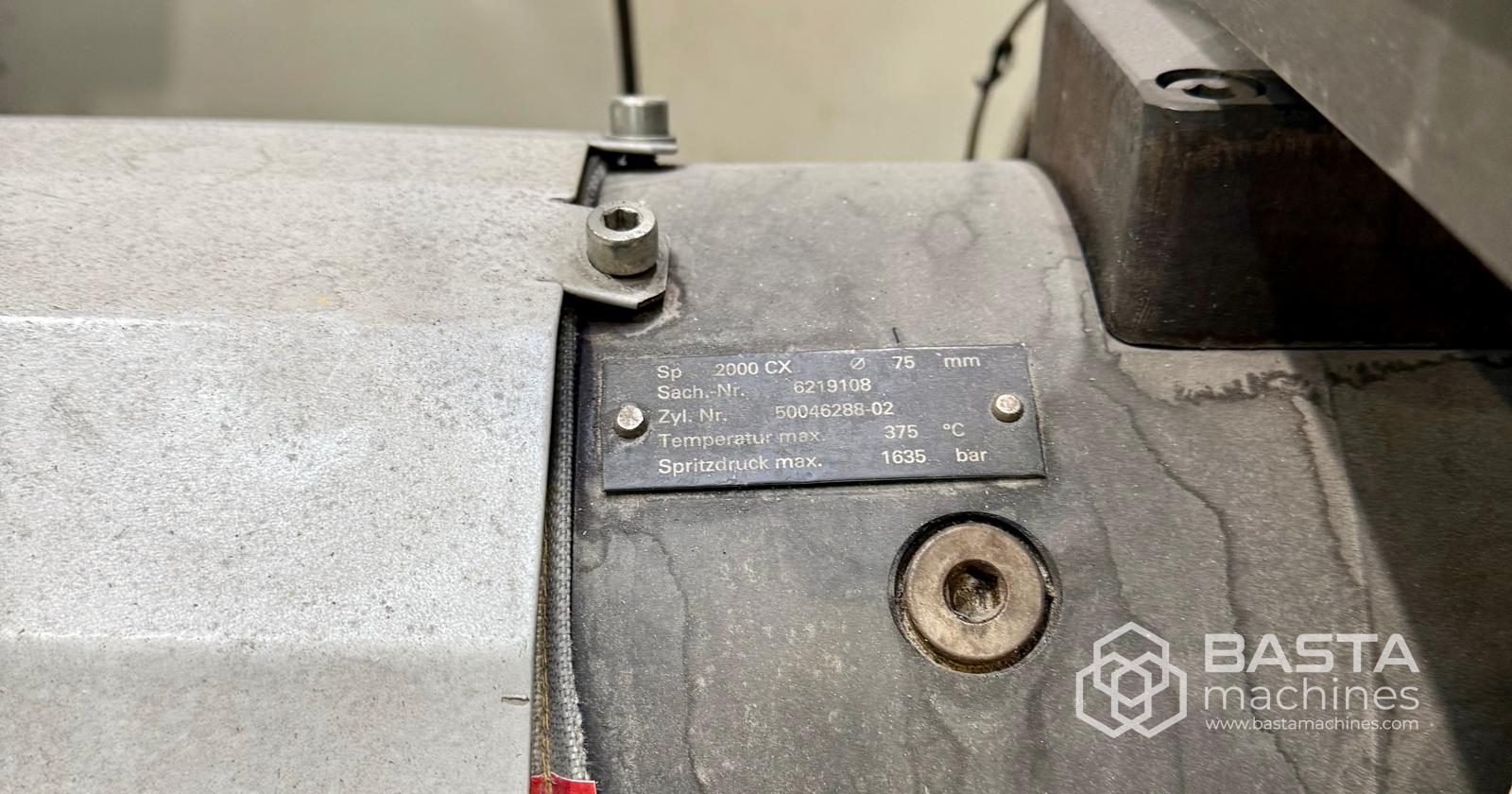

• Screw diameter: 75 mm
• Injection volume: 1237 cm³
• Shot weight: 1126 g
• Injection pressure: 1635 bar
Electro-Hydraulic Equipment
• Power rating of the pump motor: 75 kW
• Power rating of barrel heating: 29 kW
Dimensions and Weight (Approximately)
• Net weight with control cabinet: 24.8 t
• Dimensions (L × W × H): 6.90 × 2.49 × 2.38 m
Type: Horizontal
Drive: Hydraulic
