KM 850-12000 MX

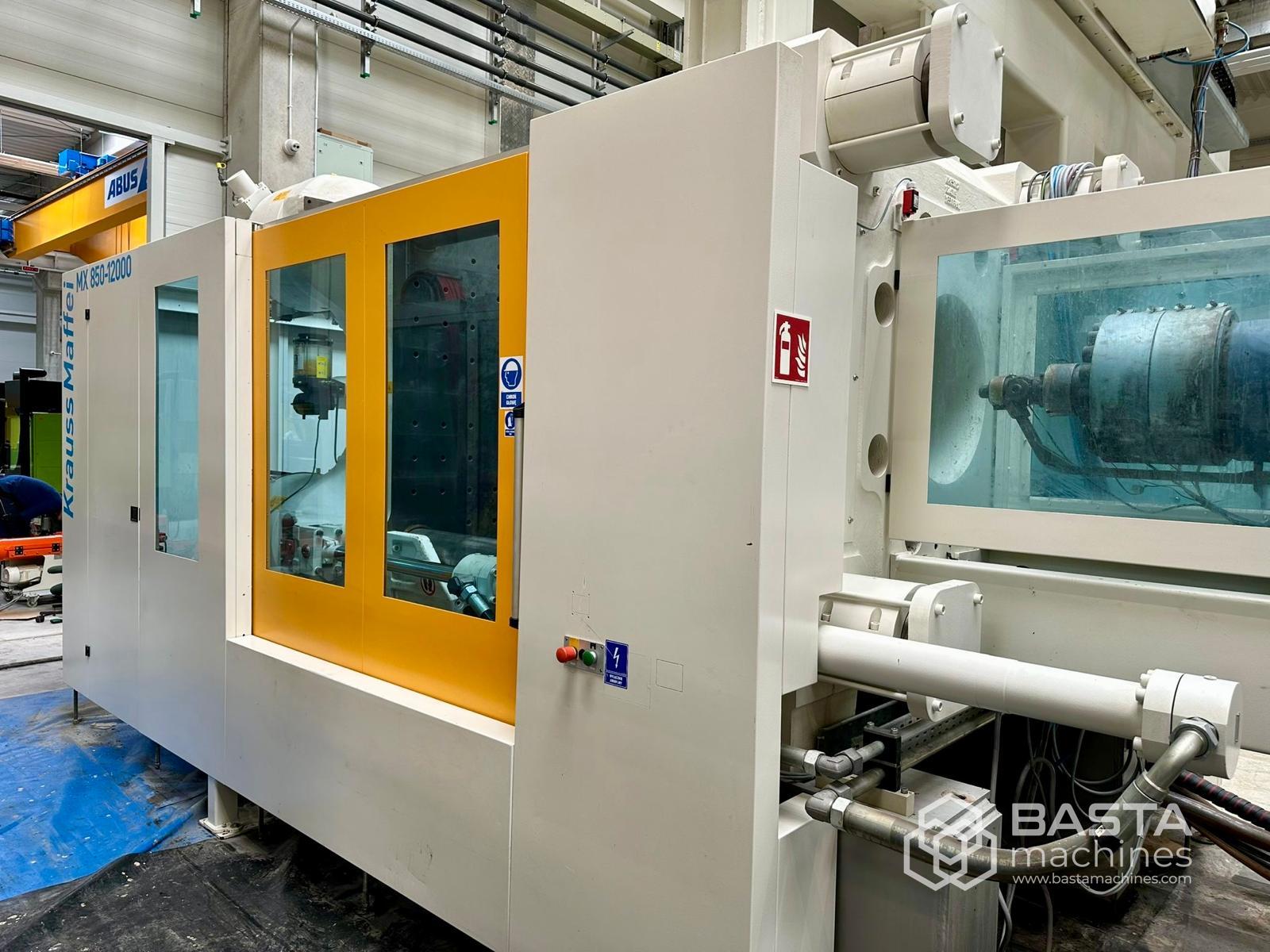

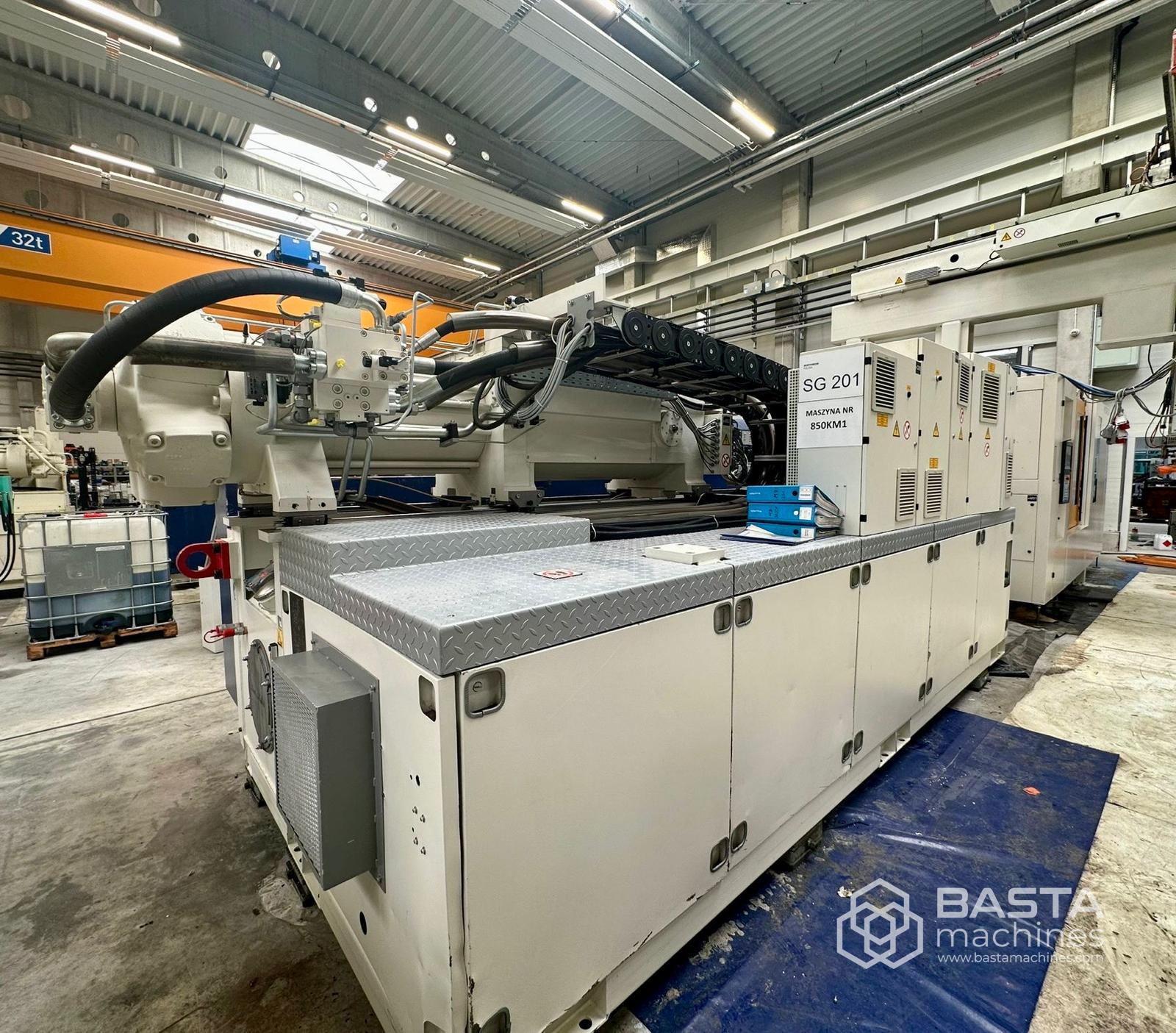

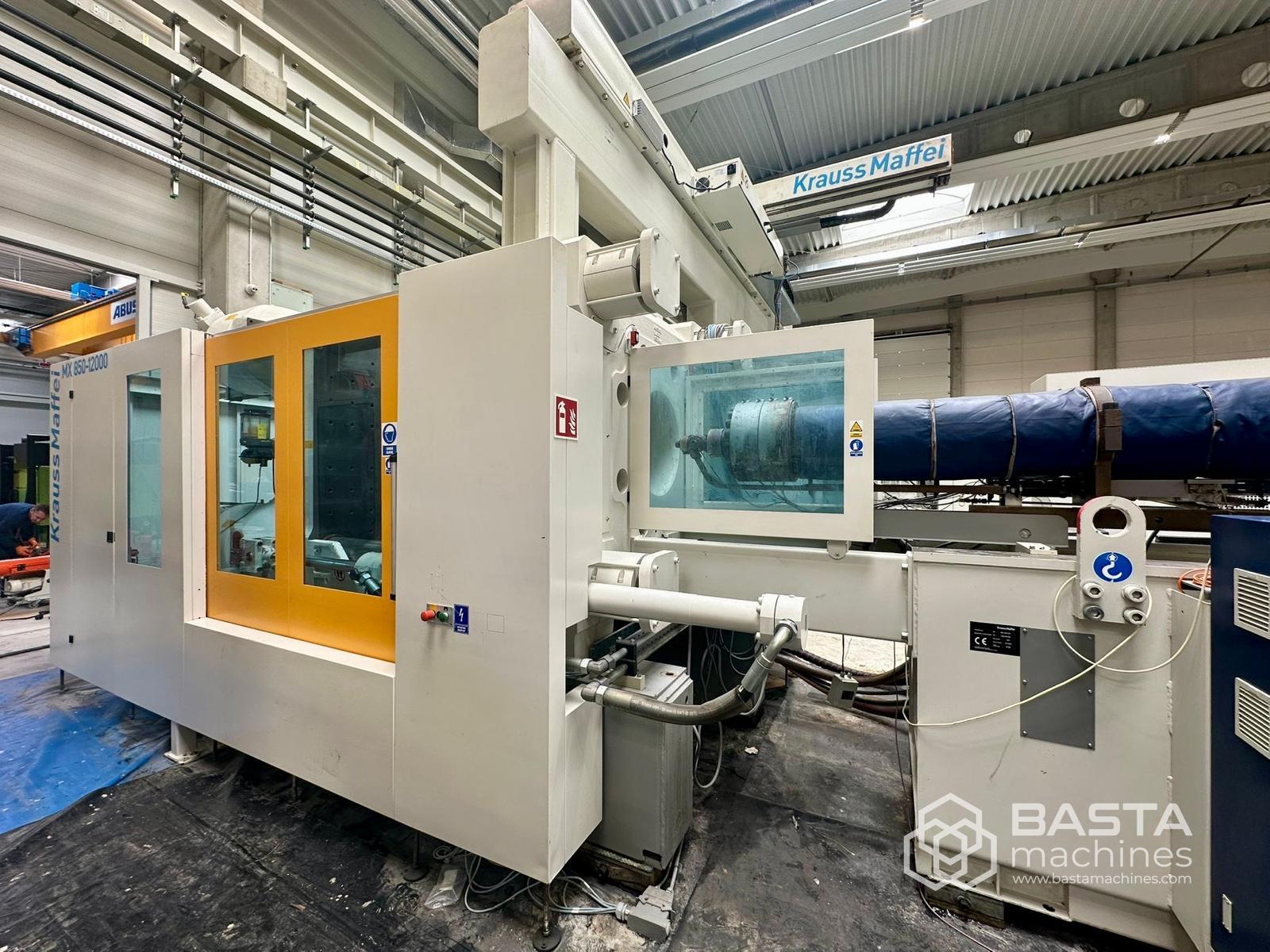

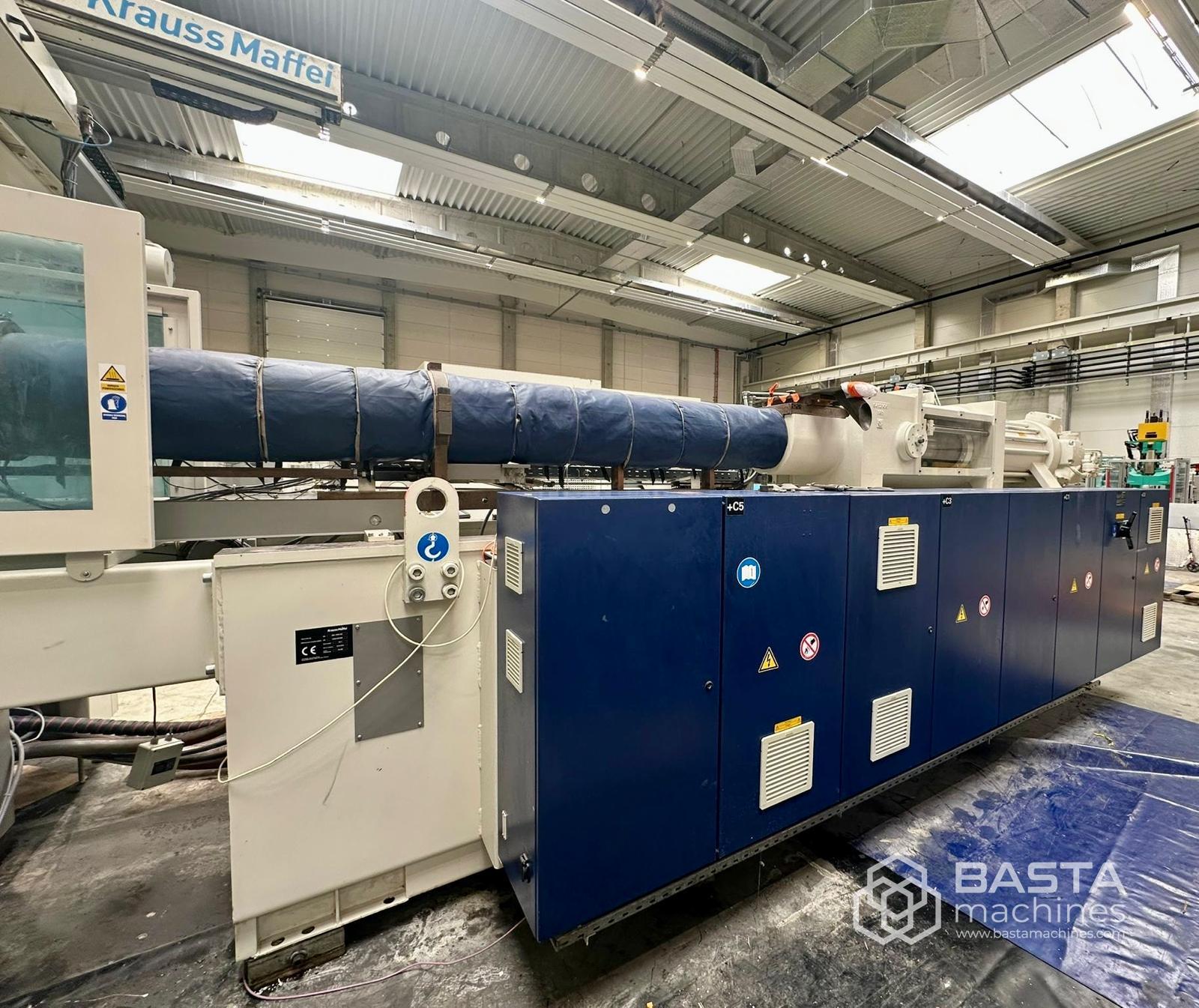

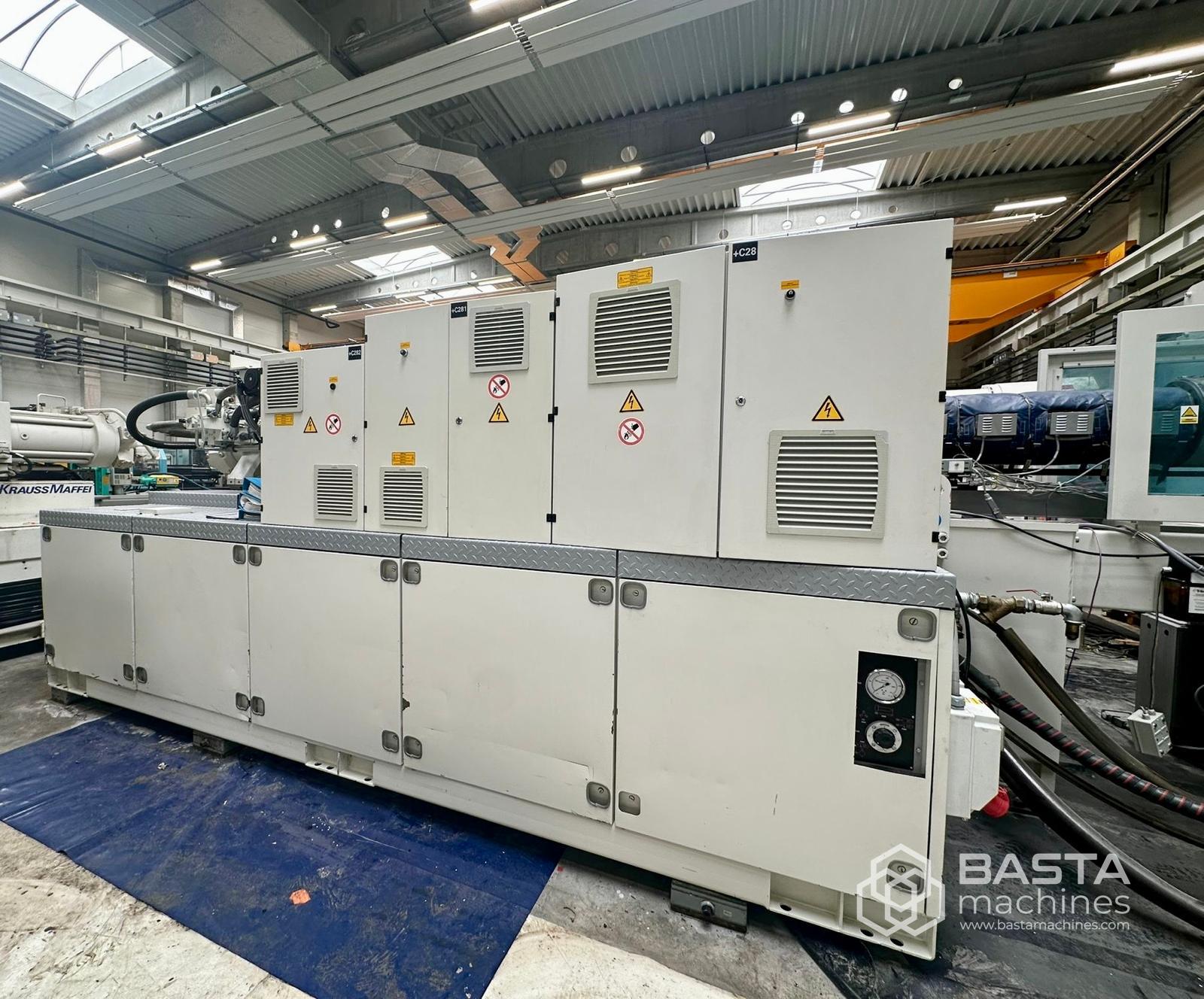

Injection Moulding Machine Krauss Maffei KM 850-12000 MX

Krauss Maffei LRX 500 Robot

Year of Manufacture: 2011

Machine Description:

Hydraulic-mechanical two-platen clamping system with 4 pressure pads and 4 locking units on the moving platen.

PV-controlled injection unit.

MC 5 control system with color monitor, integrated control panel, and USB data storage.

Plasticizing Unit:

Complete plasticizing system for thermoplastics with a 135 mm diameter screw, shut-off nozzle, and open nozzle.

Nozzle radius: 25 mm, nozzle opening: 9 mm

Technical Specifications:

Clamping Unit:

Clamping force: 8,500 kN

Mold opening force: 560 kN

Platen size (H x V): 1600 x 1600 mm

Tie bar spacing (H x V): 1140 x 1140 mm

Mold opening stroke: 1600 mm

Mold height (min–max): 500 – 1100 mm

Daylight opening: 2100 mm

Ejector stroke: 300 mm

Ejector force: 200 / 100 kN

Injection Unit:

Screw diameter: 135 mm

Injection pressure: 1389 bar

Injection volume: 8588 cm³

Shot weight (PS): 6098 g

Injection rate: 1414 cm³/s

Electro-Hydraulic Equipment:

Pump motor power: 132 kW

Dry cycle time (Euromap 6): 965 cycles/h

Oil tank capacity: 2440 l

Dimensions and Weight:

Net weight with control cabinet: 49 t

Footprint (L x W x H): 11.72 x 2.92 x 2.71 m
