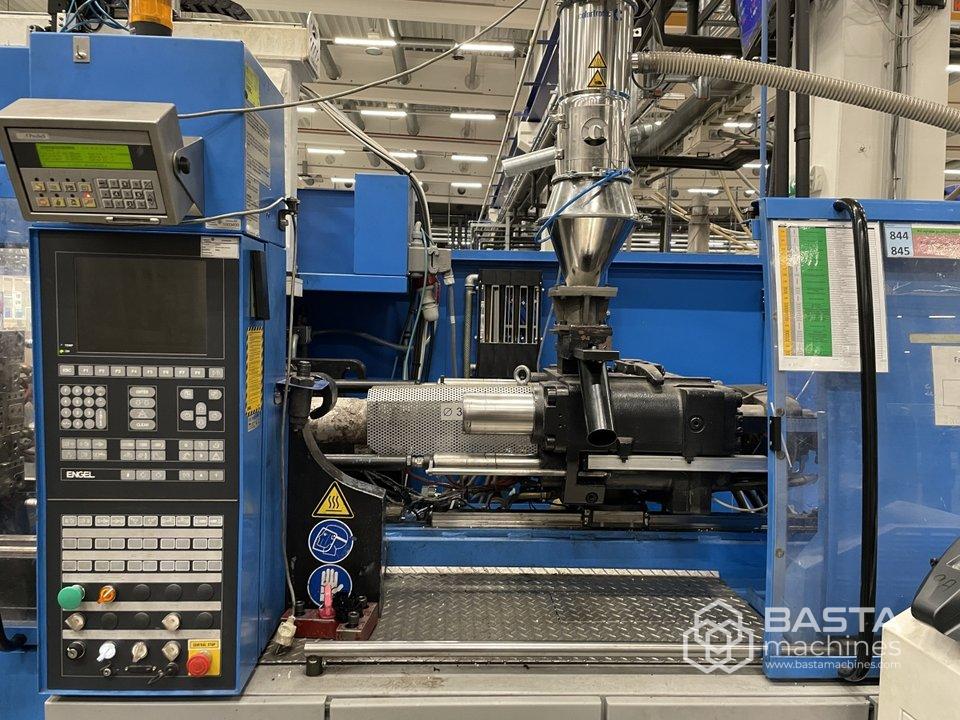

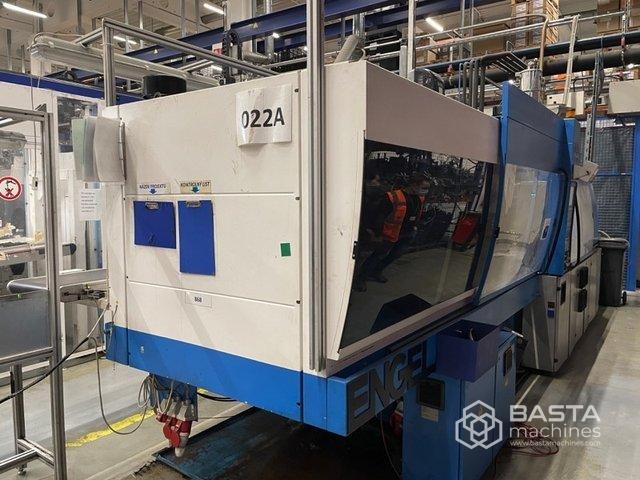

Injection molding machine Engel Victory 330/90 Tech - Tiebarless

Clamping unit Clamping force: 90 t Opening stroke: 500 mm Installation height min/max: 300 mm Mould platen size h x v: 740x 680 mm Injection unit Screw size: 35 mm Injection shot weight in PS: 134g Injection volume : 154 cm³ Injection pressure increased : 2180 bar Controll: CC100 Material: ABS, PP Hours: 48171 Size and weight Dimension HxWxD: 4.7 X 1.5 X 2.1 m Total weight : 7.300 Kg Tiebarless technology. Core pullers: 2
