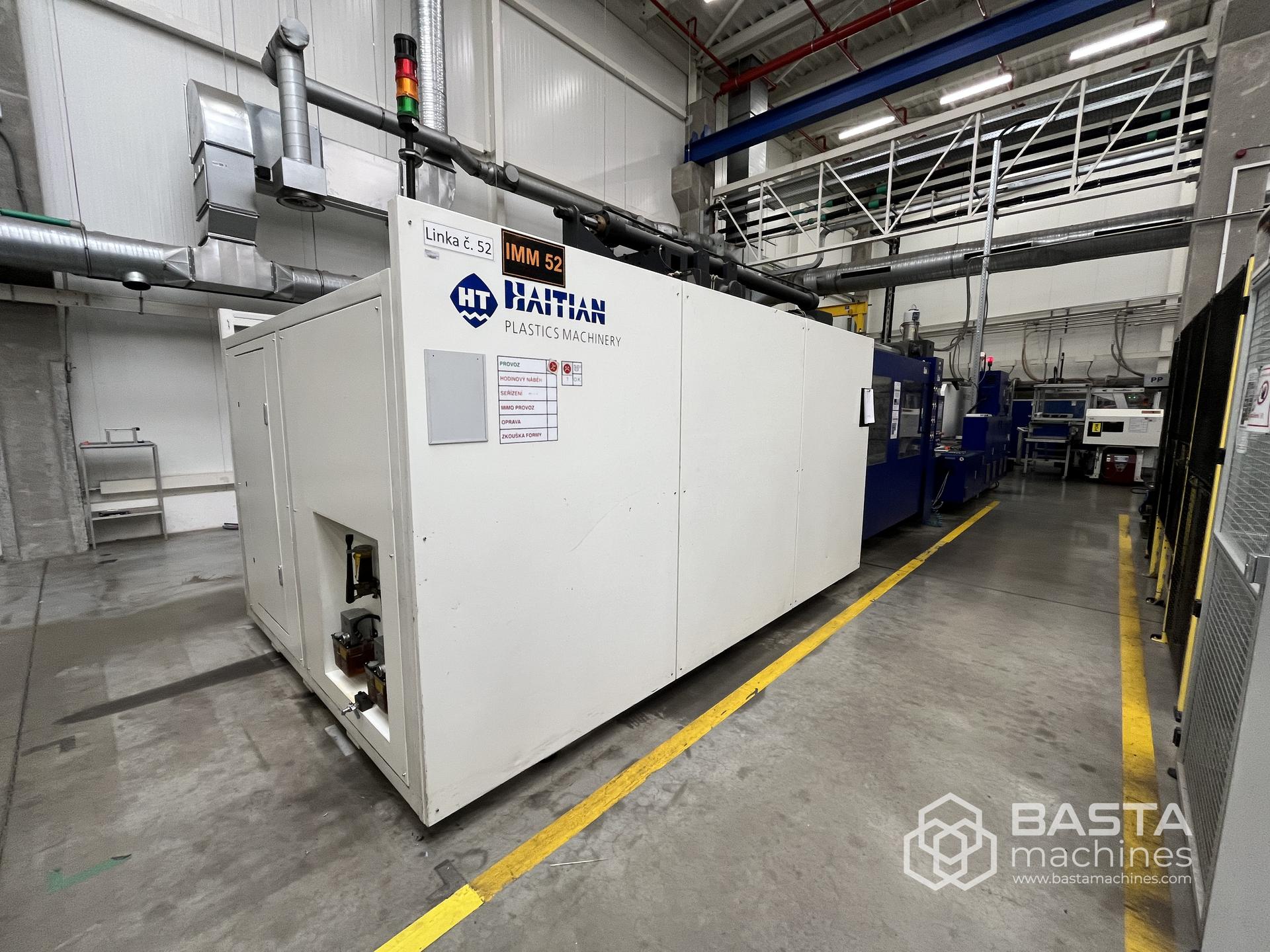

HAITIAN MARS II MA10000/6800 Universal ServoDrive (2016) only 17.000 hours

HAITIAN MARS II MA10000/6800 Universal ServoDrive (2016)

only 17.000 hours in automatic cycle!

Main Technical Parameters:

Clamping force: 10,000 kN

Opening stroke: 1220 mm

Minimum mould height: 500 mm

Maximum mould height: 1160 mm

Daylight between platens: 2380 mm

Distance between tie bars: 1160 x 1160 mm

Clamping platen size: 1650 x 1700 mm

Screw diameter: 90 mm

L/D ratio: 24.4 mm/mm

Shot volume: 2721 ccm

Shot weight (PE): 1986 g

Injection rate: 544 g/s

Max injection pressure: 2280 bar

Machine dimensions: 12.5 x 2.49 x 2.75 m

Machine weight: 50.000 kg

Equipment and Features:

423 – Proportional valve for injection (Rexroth)

S01 – 8x hydraulic core pullers (4x fixed platen, 4x moving platen) with servo motor

432 – 8x core relief

662E – 16x integrated hot runners

623 – Acoustic alarm

237C – Safety locking force sensor

430C – 8x pneumatic cascade control

Barrel and screw designed for processing 30% glass-filled materials

419A – Parallel movement: opening/ejector or opening/core

667 – 6x freely programmable inputs/outputs

Flow meter with 6 tubes + hoses + cable trays + valves + filters + nozzles + labor, all per Lamky specification (Stäubli quick couplings)

Total sockets: 4x230V/16A, 2x400V/16A, 4x400V/32A

Centering ring diameter (fixed and moving side): 250 mm

8x pressure gauges for core puller circuits

409A – 8x pneumatic valves (8 mm, 3/2), 4x fixed, 4x moving side

E65 – Interface for temperature controller (4 zones)

236 – Automatic ejector bar retraction (operator side)
