METAL MACHINE
HAAS VF1 (2014)
Overview
Condition
Good
Manufacturer
HAAS
Model
VF1
Year
2014
Stock number
250068
Description

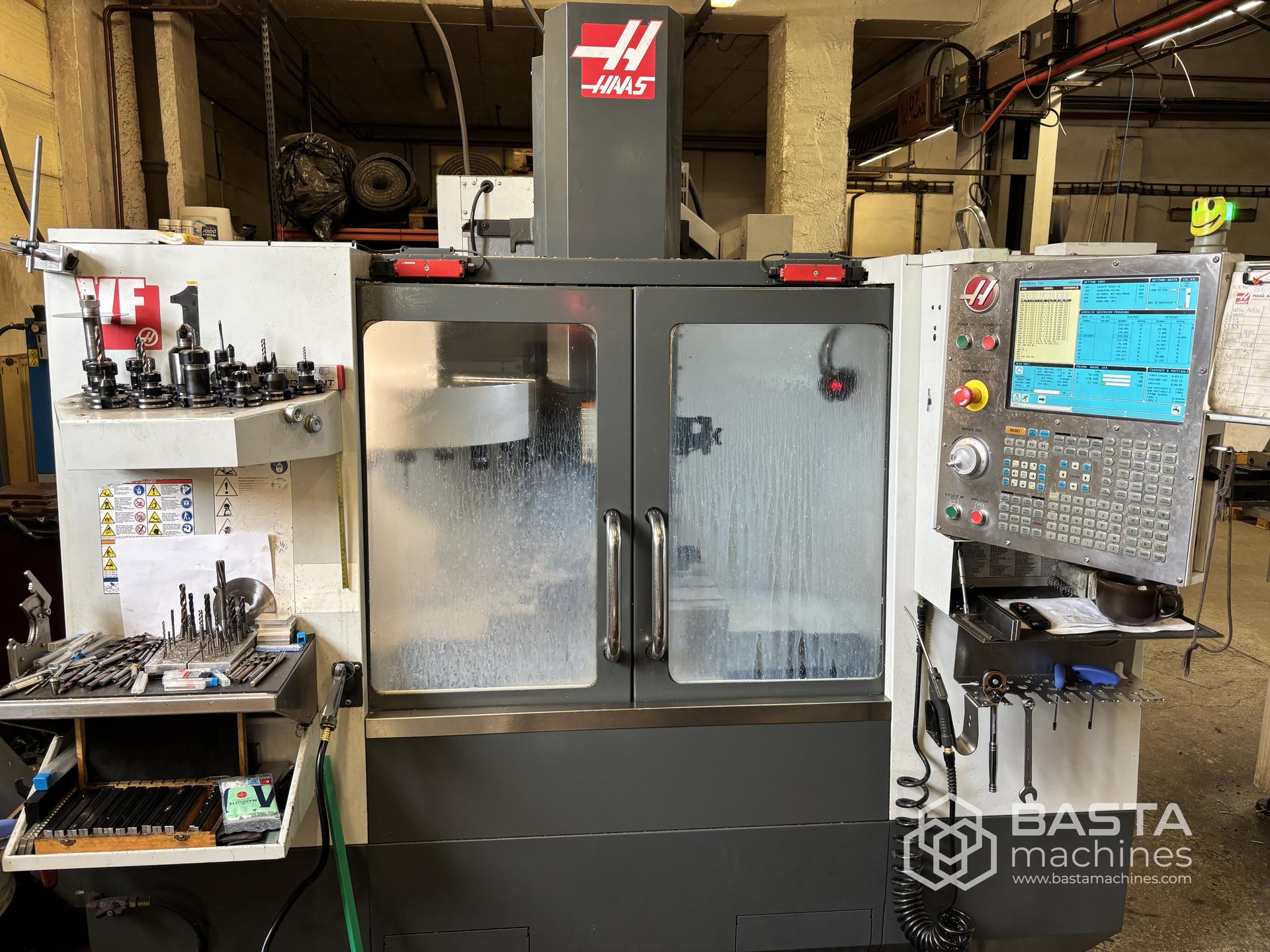

HAAS VF1 (2014)
• Manufacturer: HAAS
• Model: VF-1
• Year of Manufacture: 2014
• Machine Type: Vertical Machining Center
Technical Data:
• Travel (X / Y / Z): 508 x 406 x 508 mm (20” x 16” x 20”)
• Table Size: 660 x 356 mm (26” x 14”)
• Maximum Table Load: 1,360 kg (3,000 lbs)
• Spindle Speed: Up to 8,100 RPM (optional 10,000 or 15,000 RPM)
• Spindle Taper: 40 Taper
• Spindle Power: 22.4 kW (30 HP) Vector Drive
• Tool Changer Capacity: 20+1 (Carousel Type)
• Rapid Traverse Rates: 25.4 m/min (1,000 in/min)
• Cutting Feed Rate: 12.7 m/min (500 in/min)
• Automatic Tool Changer: Yes
• Coolant System: Standard Flood Coolant System
• Control System: Haas CNC Control
• Machine Weight: Approx. 3,630 kg (8,000 lbs)
