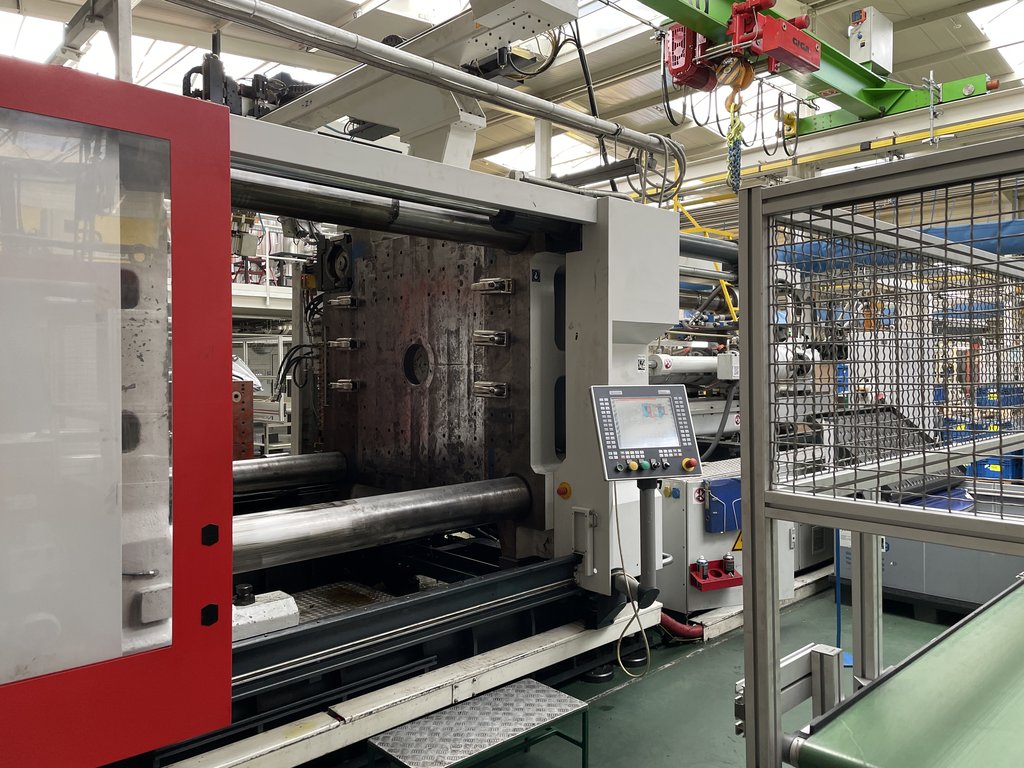

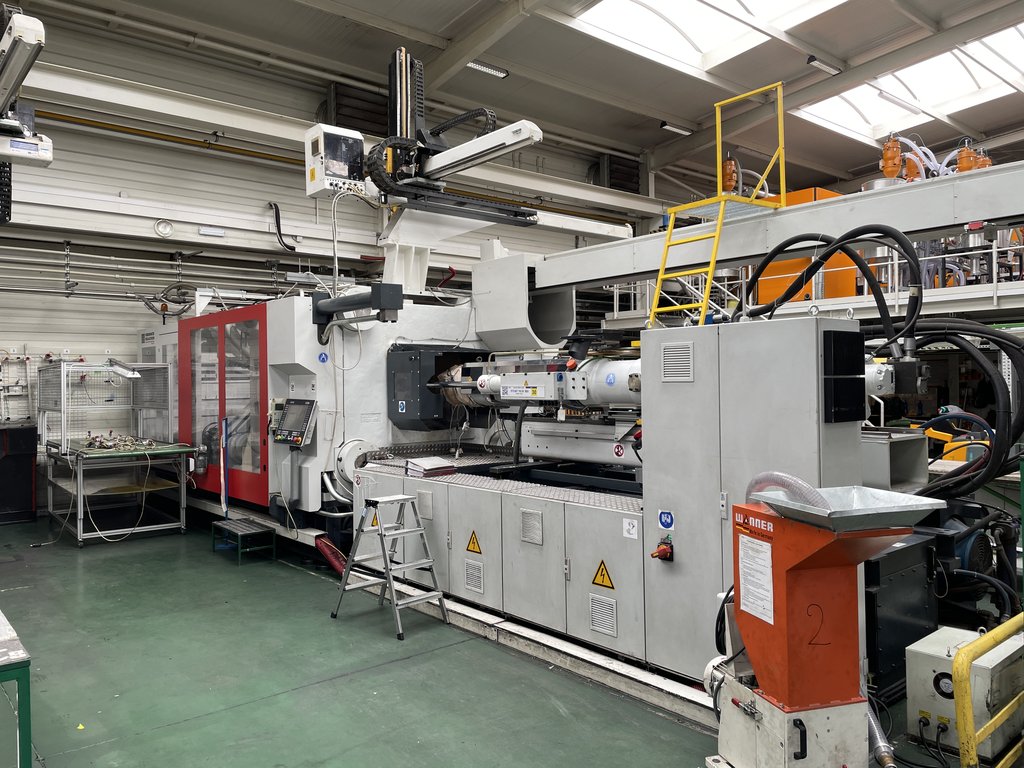

Ferromatik Milacron Maxima MM 1000-4880 (removable tie bar)

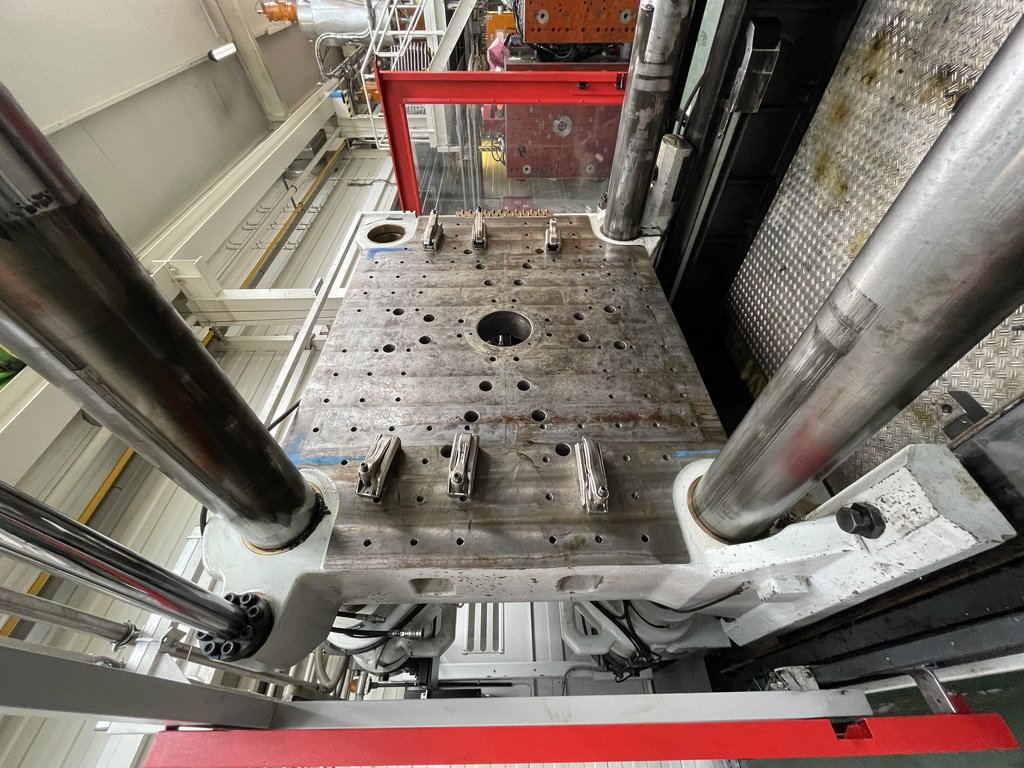

Clamping unit Clamping force: 1000 ton Opening force: 40 ton Mold opening path: 1900 mm Distance between tie bars H x V : 1550 x 1200 mm Plate size HxV : 2000x1605 mm Ejector force: 200 kN Ejector stroke: 300 mm Daylight between platens max 1.900 mm Injection unit Screw diameter: 90 mm Injection pressure: 2300 bar Injection volume: 2799 cm3 Shot weight: 2407 g Control MOSAIC Equipped with: Mosaic control Core pulls 2 + 2 NG10 Removable tie Bar - extra option Water circuids: 12+12 16 Hotrunner Apex Robot we have also other possible options for you with other screw diameters: 100 mm - 2895 g/PS , 110mm - 4800g/PS, 120mm- 6245g/PS If you wish to quote any of these options please let us know. Dimensions (long x wide x high) 11.800 x 3.300 x 2.600 mm Approx weights: clamp 45 ton + injection 12 ton Only PP material used
