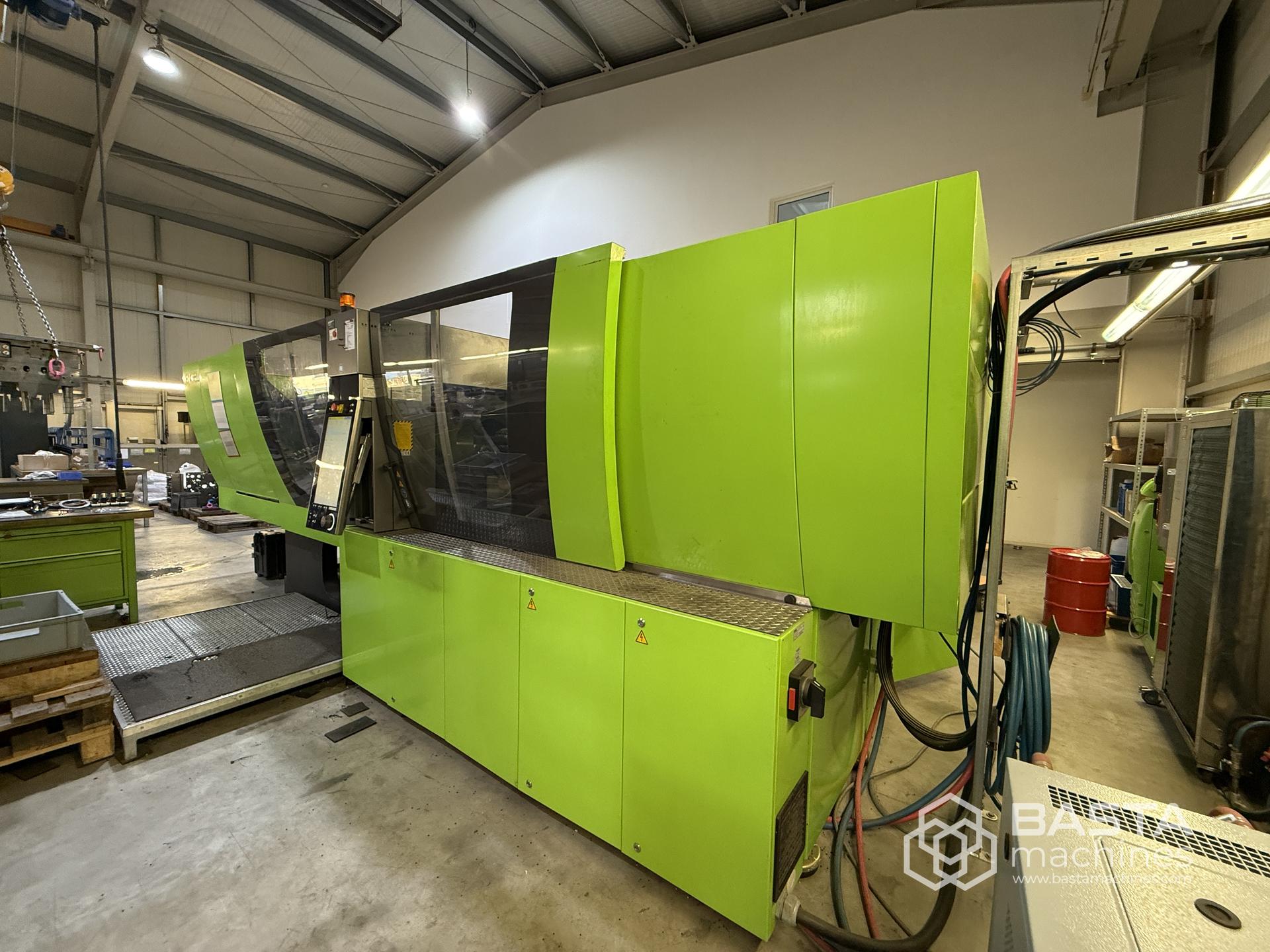

Engel victory 750/220 spex (2017)

ENGEL Victory 750/220 SPEX – Technical data

Machine designation: VICTORY 750/220 SPEX

Plasticizing 1:

1. Screw diameter (standard): 45 mm
2. Available screw diameters: 40 / 45 / 50 / 55 mm
3. Screw stroke: 200 mm
4. Max. injection capacity: 318 cm3
5. Screw speed: 230 min-1
6. Recovery rate (3-zone screw): 24.2 g/s
7. Recovery rate (barrier screw): 30.1 g/s


Injection 1:

1. Injection rate: 229.0 cm3/sec
2. Injection pressure (regenerative): 1760 bar
3. Injection pressure (max): 2360 bar

Nozzle 1:

1. Nozzle stroke: 350 mm
2. Nozzle contact pressure: 67.2 kN

Plasticizing Unit 1:

1. L/D ratio: 20.0
2. Heating zones incl. nozzle: 5
3. Heating wattage: 13.4 kWel


Clamping unit:

1. Clamping force: 2200 kN
2. Opening stroke + cylinder tolerance: 759 mm
3. Minimum mold height: 300 mm
4. Maximum distance between platen: 1050 mm
5. Platen size horizontal × vertical: 880 × 830 mm
6. Drop out chute width: 650 mm
7. Maximum mould weight moving platen: 1500 kg
8. Maximum mould weight stationary platen: 1500 kg
9. Maximum mould weight total: 3000 kg
10. Dry cycle stroke: 250 mm
11. Dry cycle time: 2.00 s

Ejector:

1. Ejector stroke: 180 mm
2. Ejector force: 80.0 kN

Drive unit:

1. Oil reservoir capacity – injection unit: 330 l
2. Oil reservoir capacity – clamping unit: 210 l

Oil filter / Oil cooler:

1. Cooling power standard (25 °C water inlet): 12.0 kW
2. Water consumption oil cooler 25 °C: 1.00 m3/h
3. Water consumption oil cooler 32 °C: 2.10 m3/h

Machine basics:

1. Weight total (without oil): 12.2 t
2. Total power: 72.0 kW

1. Hydraulic drive variant HV1 (standard)
2. Microcomputer CC300
3. 6-fold flow regulator, 0–10 l/min
