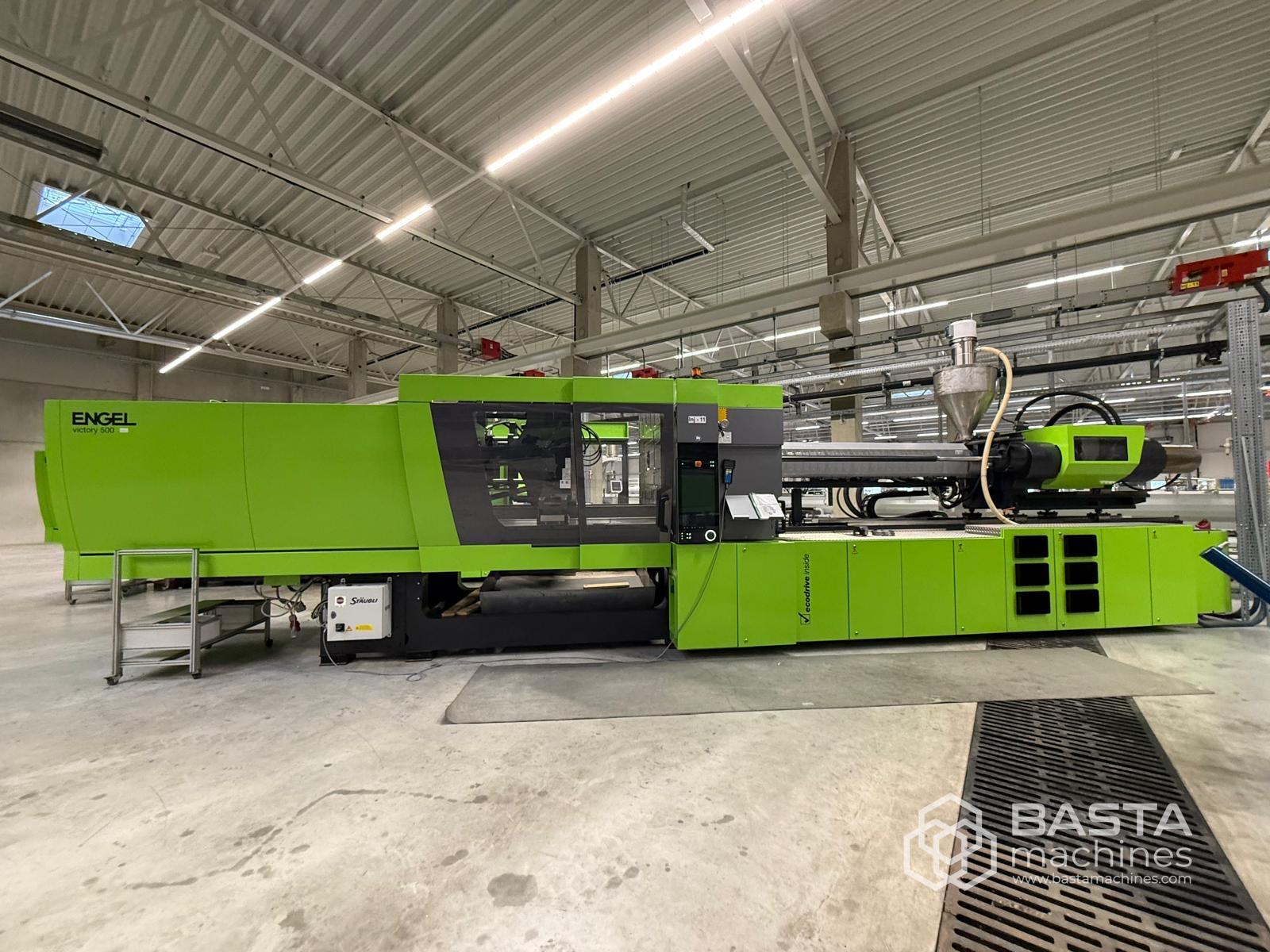

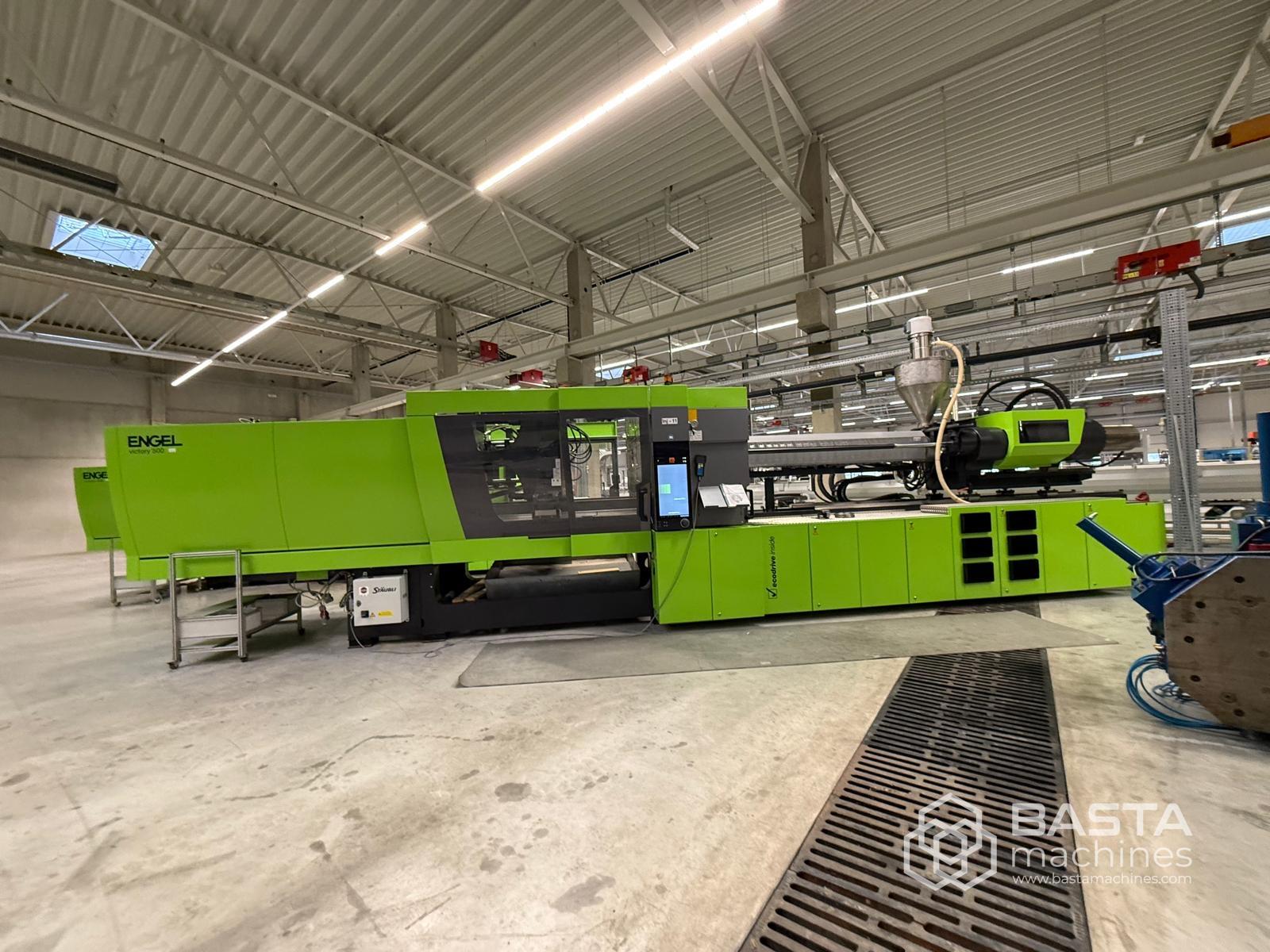

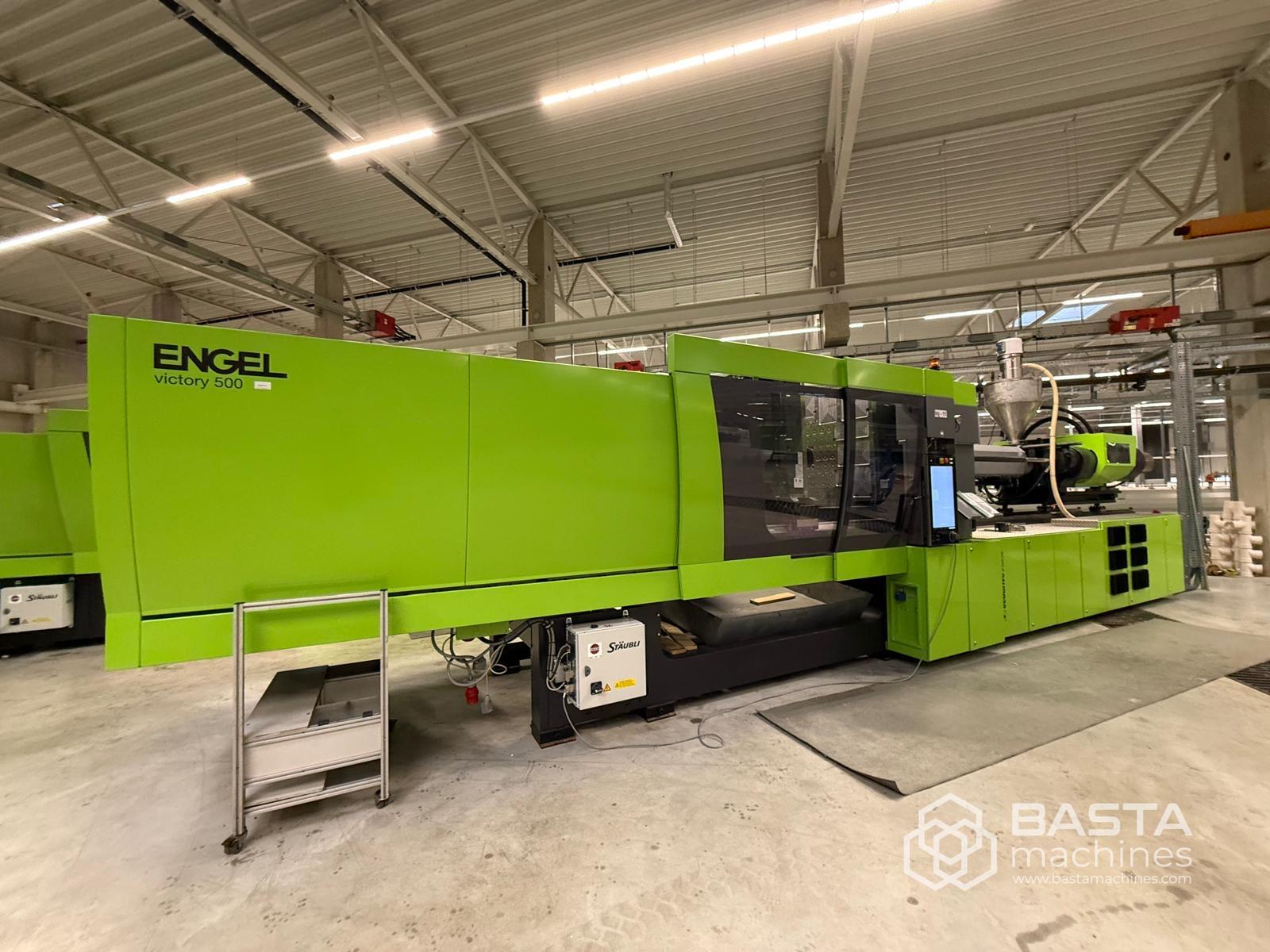

Engel victory 7050/500 tech (2017) Ecodrive

Machine: ENGEL VICTORY 500T / 7050 (Year 2017)

Year of manufacture: 2017

Control unit: CC300

Operating hours: 565 h

Availability: Immediate

Clamping Unit:

Clamping force: 500 tons

Opening stroke: 1100 mm

Distance between tie bars: 1500 × 1285 mm

Platen size: 1500 × 1285 mm

Minimum mould height: 500 mm

Maximum daylight (open distance): 1600 mm

Injection Unit:

Screw diameter: 120 mm

Screw length (L/D): 22 D

Injection volume: 5430 cm³

Maximum injection pressure: 1600 bar

General Data:

Motor power: 98 kW

Heating power: 30 kW

Clamping unit weight: 31 tons

Injection unit weight: 15 tons

Machine dimensions (L × W × H): 10.50 m × 2.30 m × 2.30 m

Options:

Core pullers: 3

Robot interface: No

Bi-metallic screw/barrel: Yes

Other equipment: STAUBLI magnetic platens, 24 hot runner heating zones

Note:

The machine has very low operating hours (565 h) and belongs to the modern ENGEL Victory tie-bar-less series, ideal for large moulds and high-precision production.
