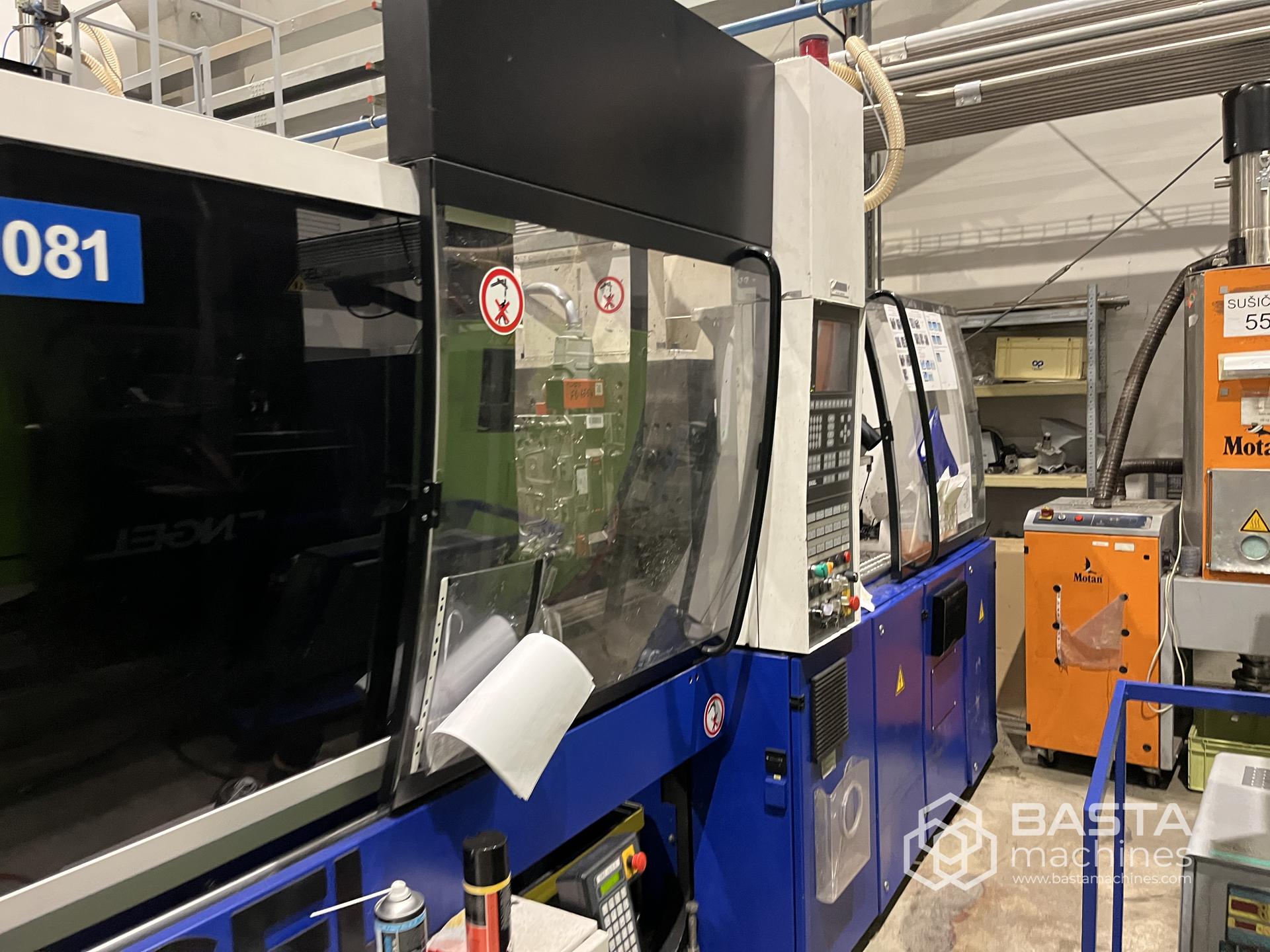

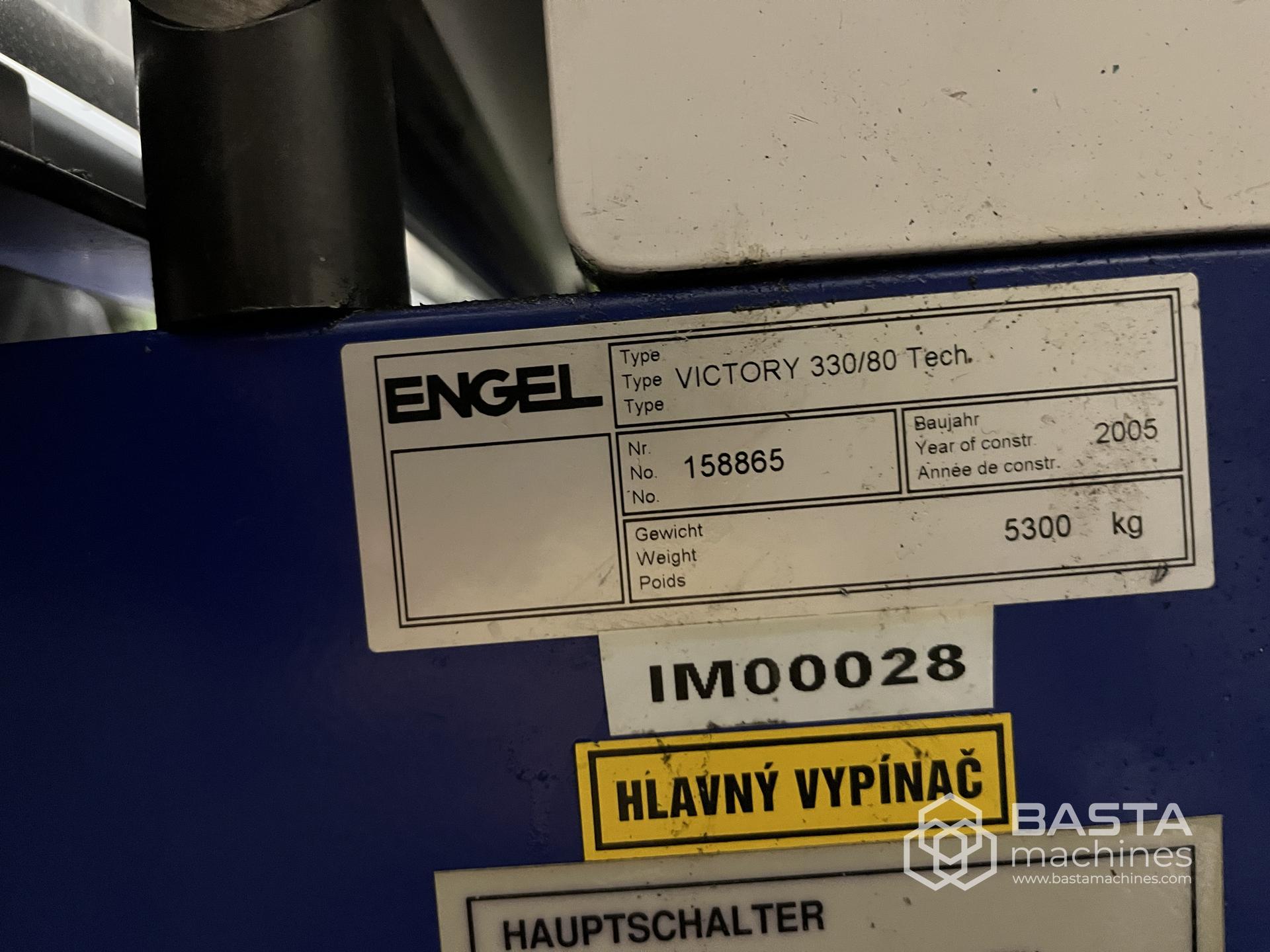

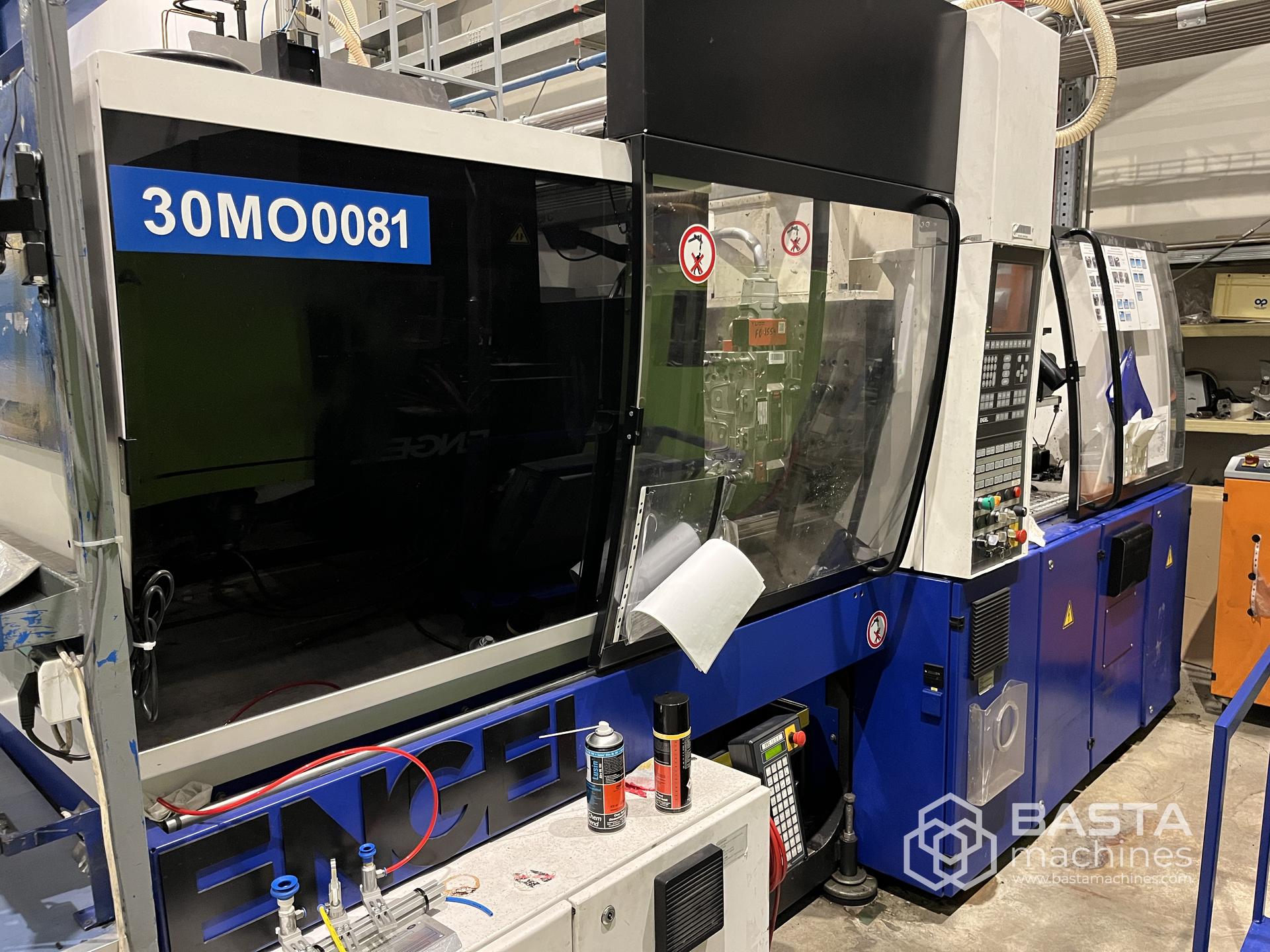

Engel VICTORY 330/80 TECH (2005)

Clamping force: 80 t

Screw dia: 35 mm

Type: Horizontal

Drive: Hydraulic

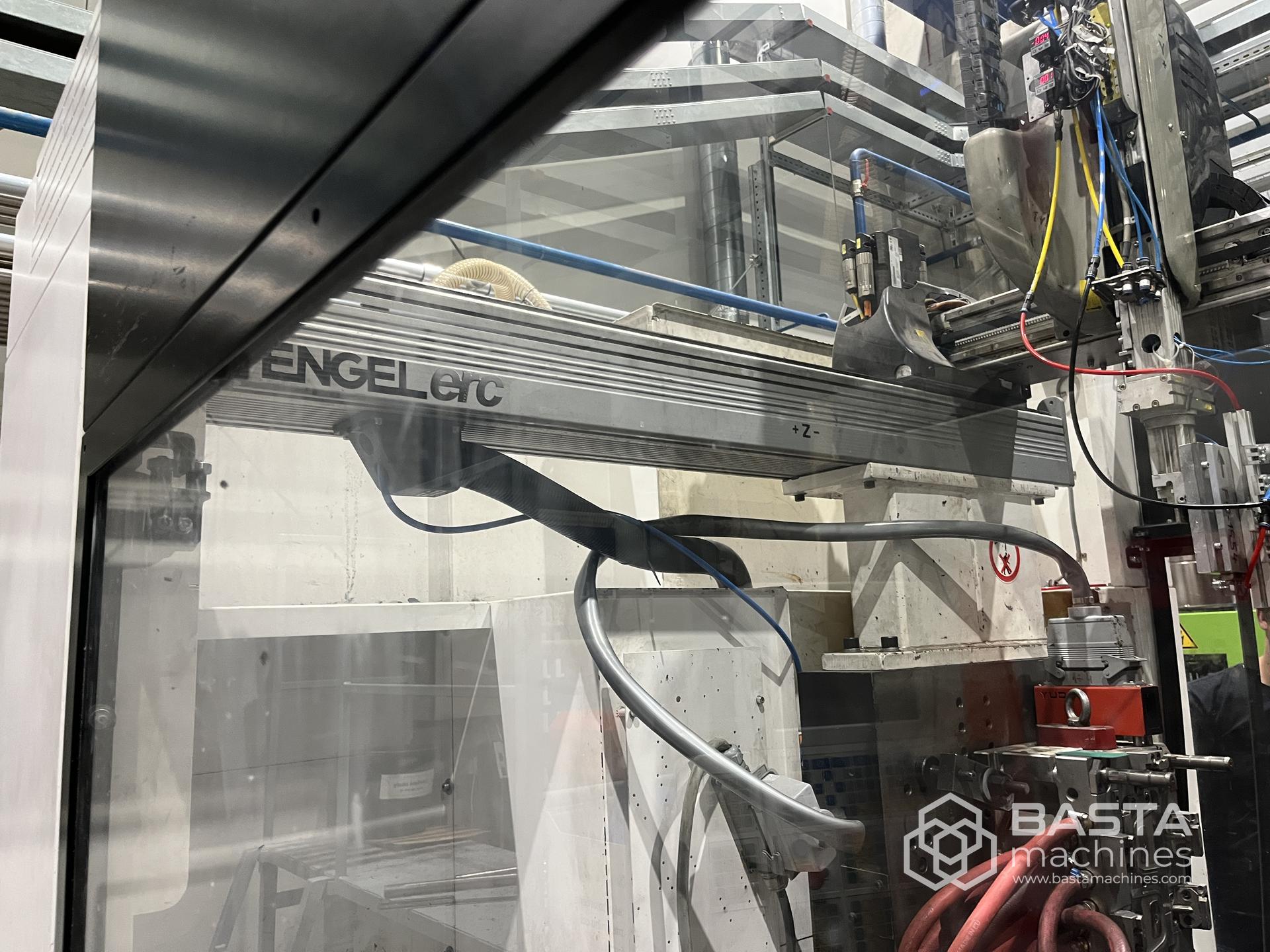

Engel ERC 13-2E linear robot

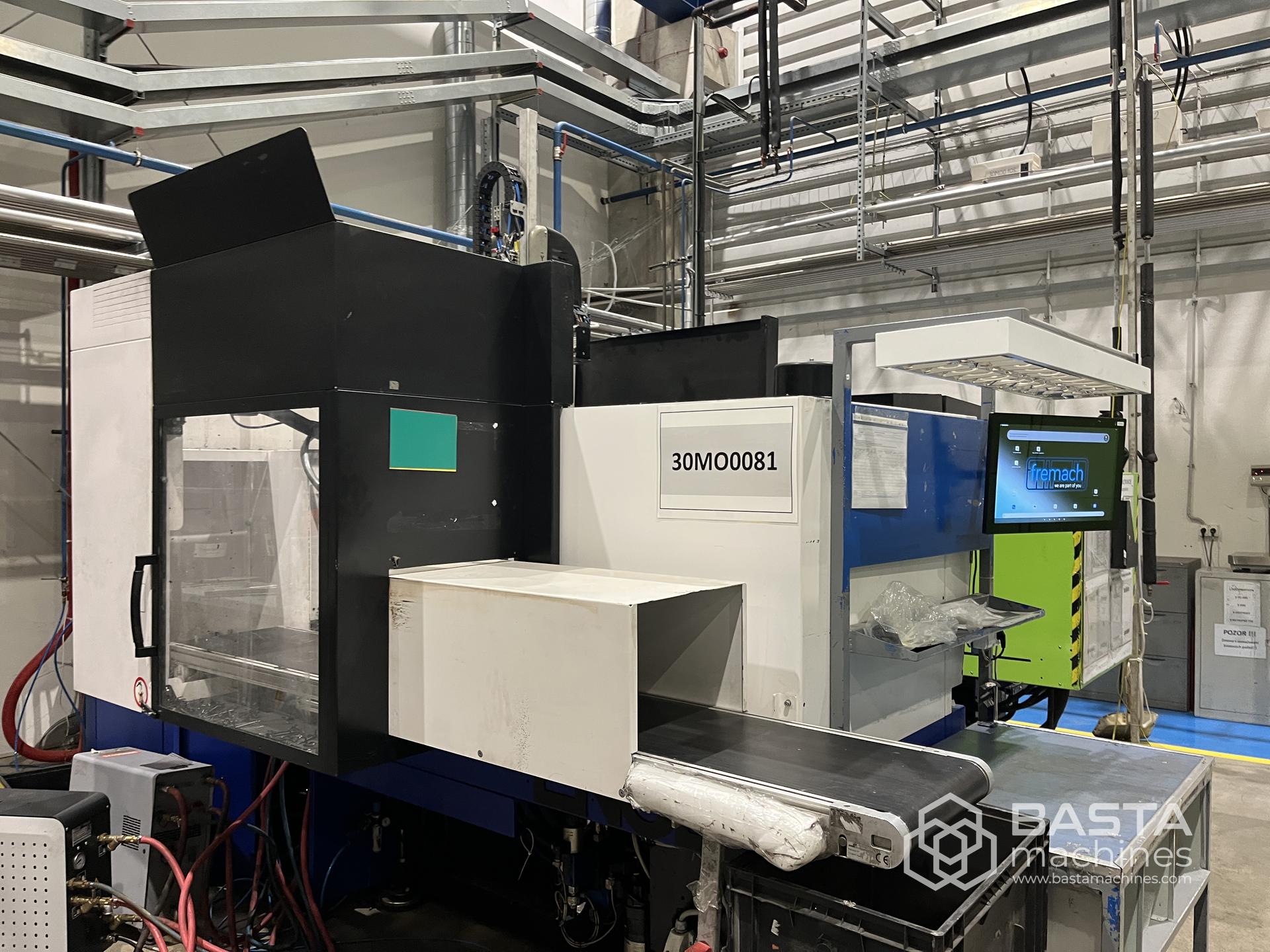

Conveyor belt

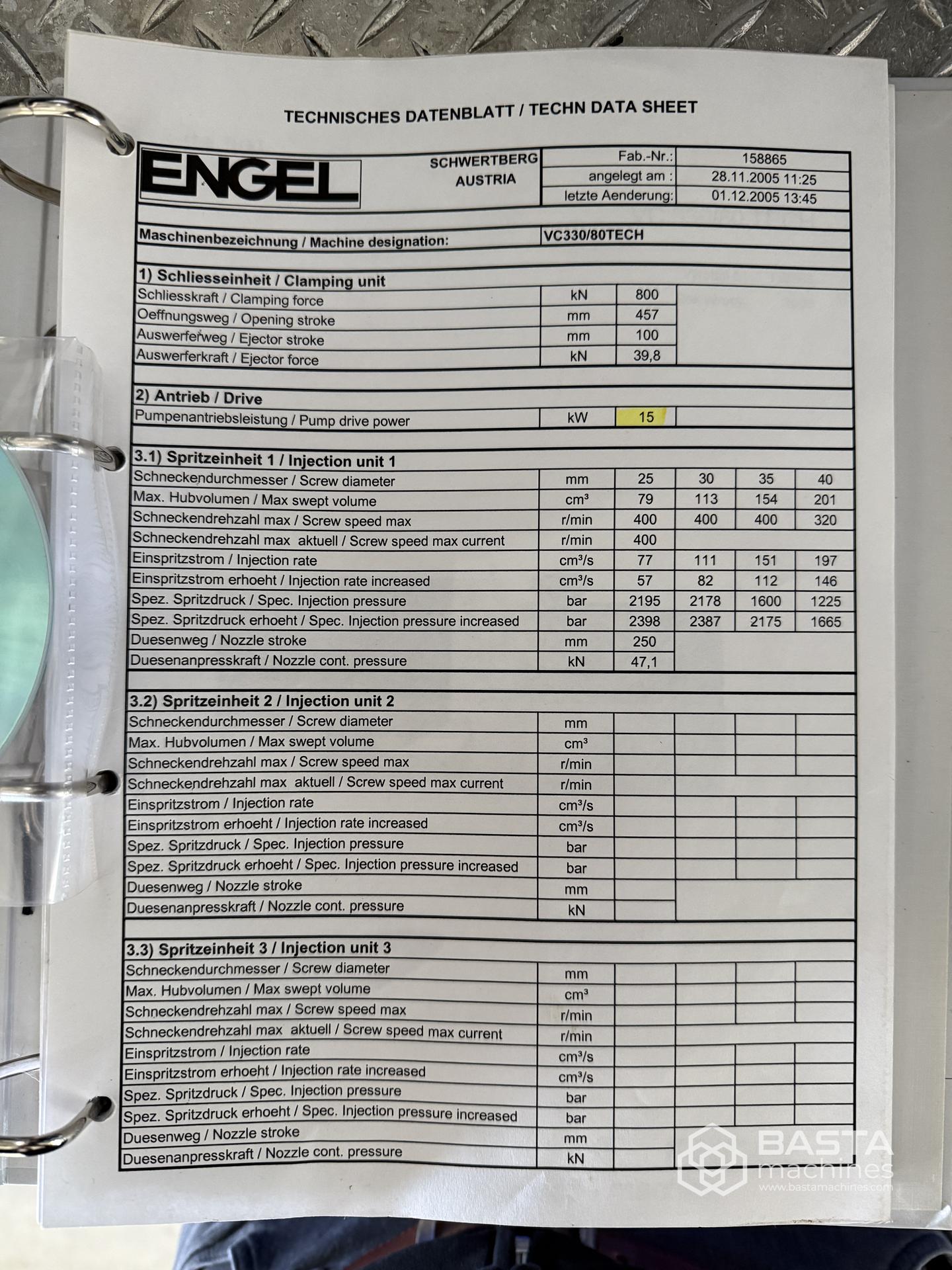

1. Clamping force: 800 kN
2. Opening stroke: 457 mm
3. Ejector stroke: 100 mm
4. Ejector force: 39.8 kN
5. Drive: 15kW
6. Platen size :

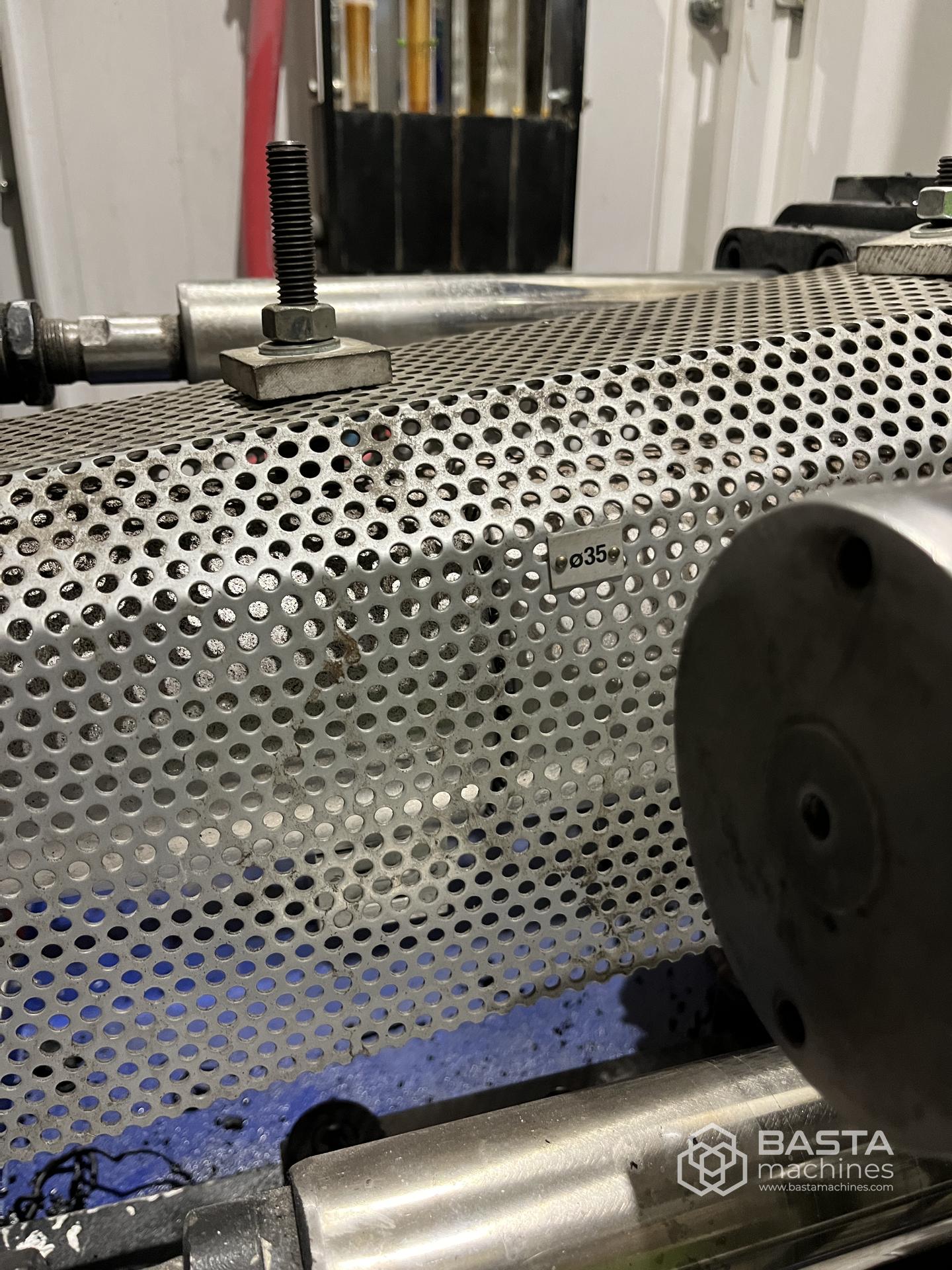

Injection Unit 1 (screw Ø 35 mm)

1. Screw diameter: 35 mm
2. Max. swept volume: 154 cm³
3. Screw speed max: 400 r/min
4. Screw speed actual / max current: 400 r/min
5. Injection rate: 111 cm³/s
6. Injection rate increased: 132 cm³/s
7. Specific injection pressure: 1307 bar
8. Specific injection pressure increased: 1590 bar
9. Nozzle stroke: 250 mm
10. Nozzle contact pressure: 47.1 kN
