Engel victory 330/180 tech (2015) VIPER40 robot, DUROPLAST

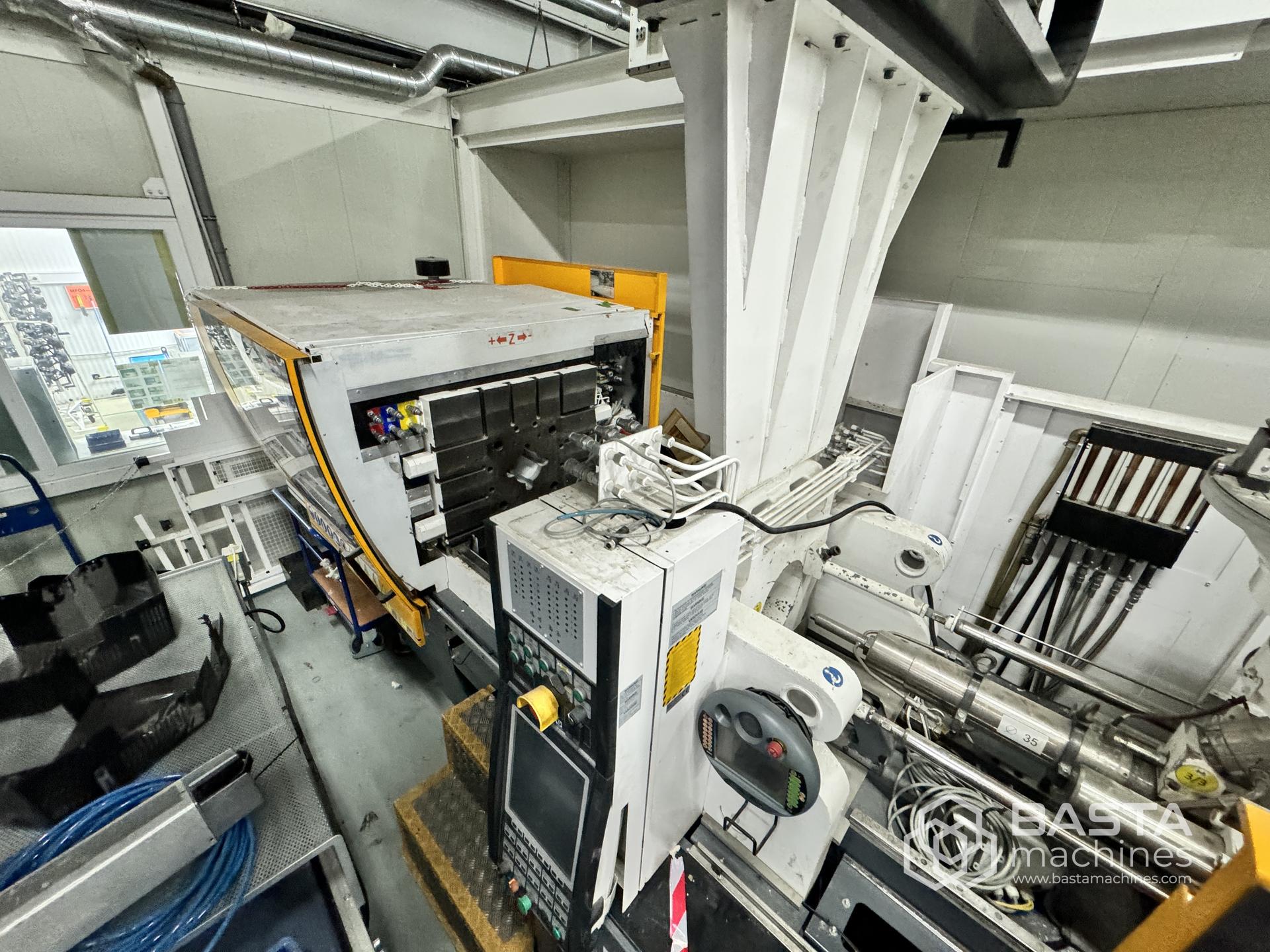

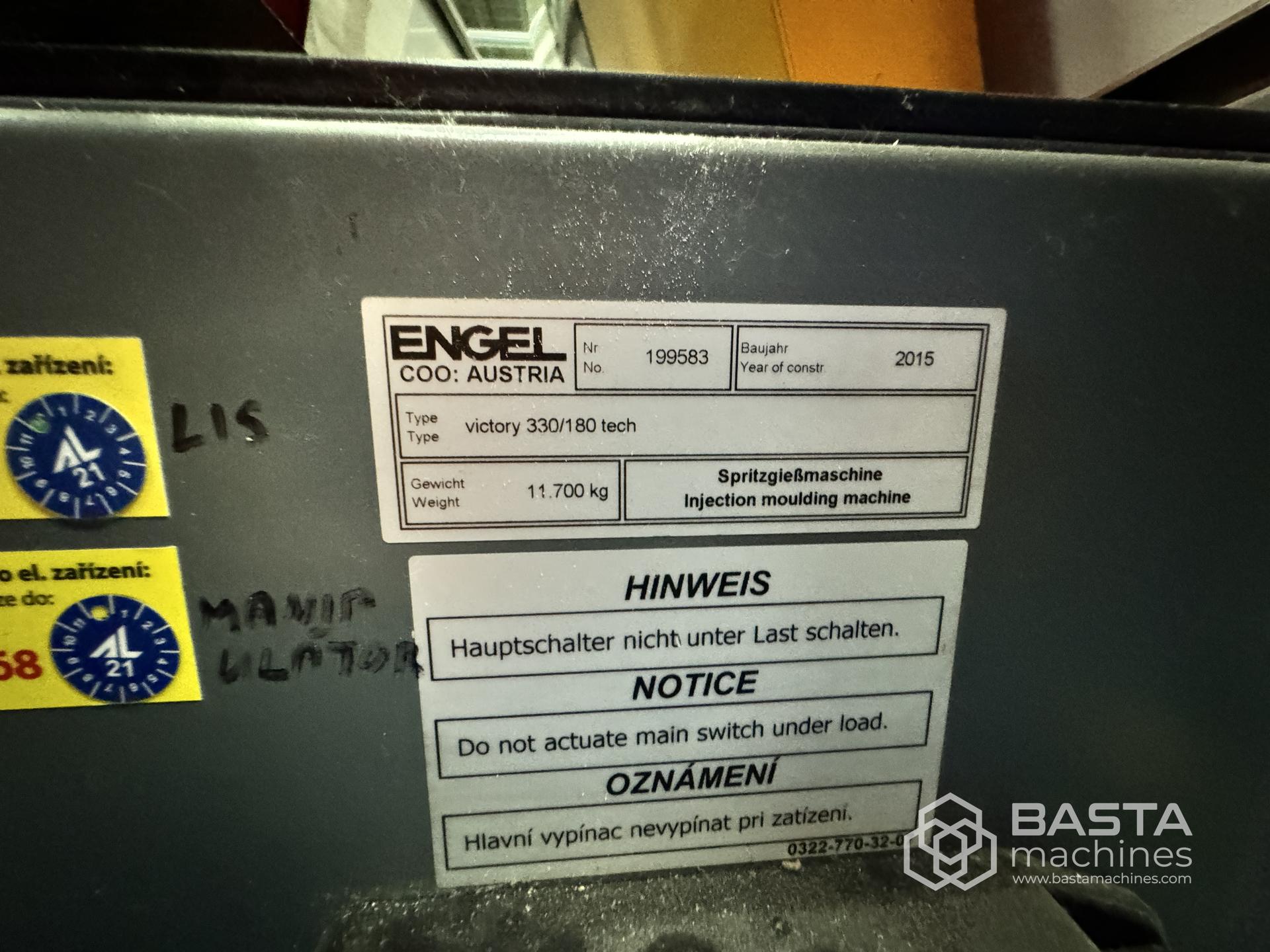

ENGEL victory 330/180 tech (Serial No. 199583)

Basic Parameters

1. Clamping force: 180 tons
2. Injection unit: Type 330
3. Material: Duroplast
4. Screw type: S8 – 35 mm, designed for BMC processing
5. Clamping system: Tie-bar-less (holmlos)

Technology

1. ENGEL ecodrive SHV2: Servo-driven hydraulic system with low energy consumption and minimal noise

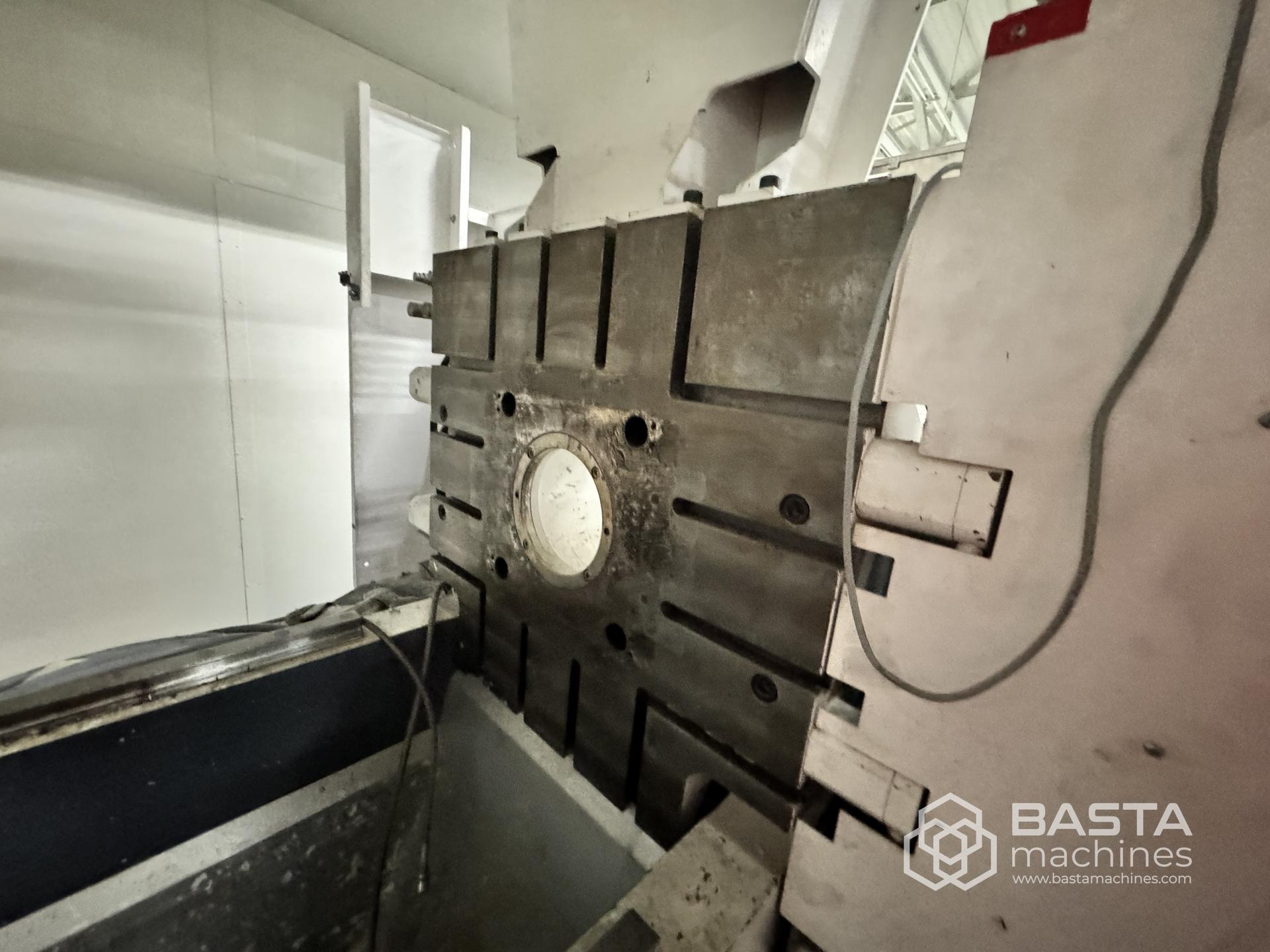

2. Fast mold change: Hydraulic quick mold clamping, 4-point, 300 × 300 mm
3. Core pulls: 3 hydraulic circuits with integrated volume measurement, graphical pressure/speed settings, and position monitoring (Euromap 13)
4. Duroplast package: Enhanced screw, check valve, open nozzle, abrasion- and corrosion-resistant materials, cylinder and nozzle heating prepared (not wired), requires feeder unit (e.g., rotofeeder)

Automation

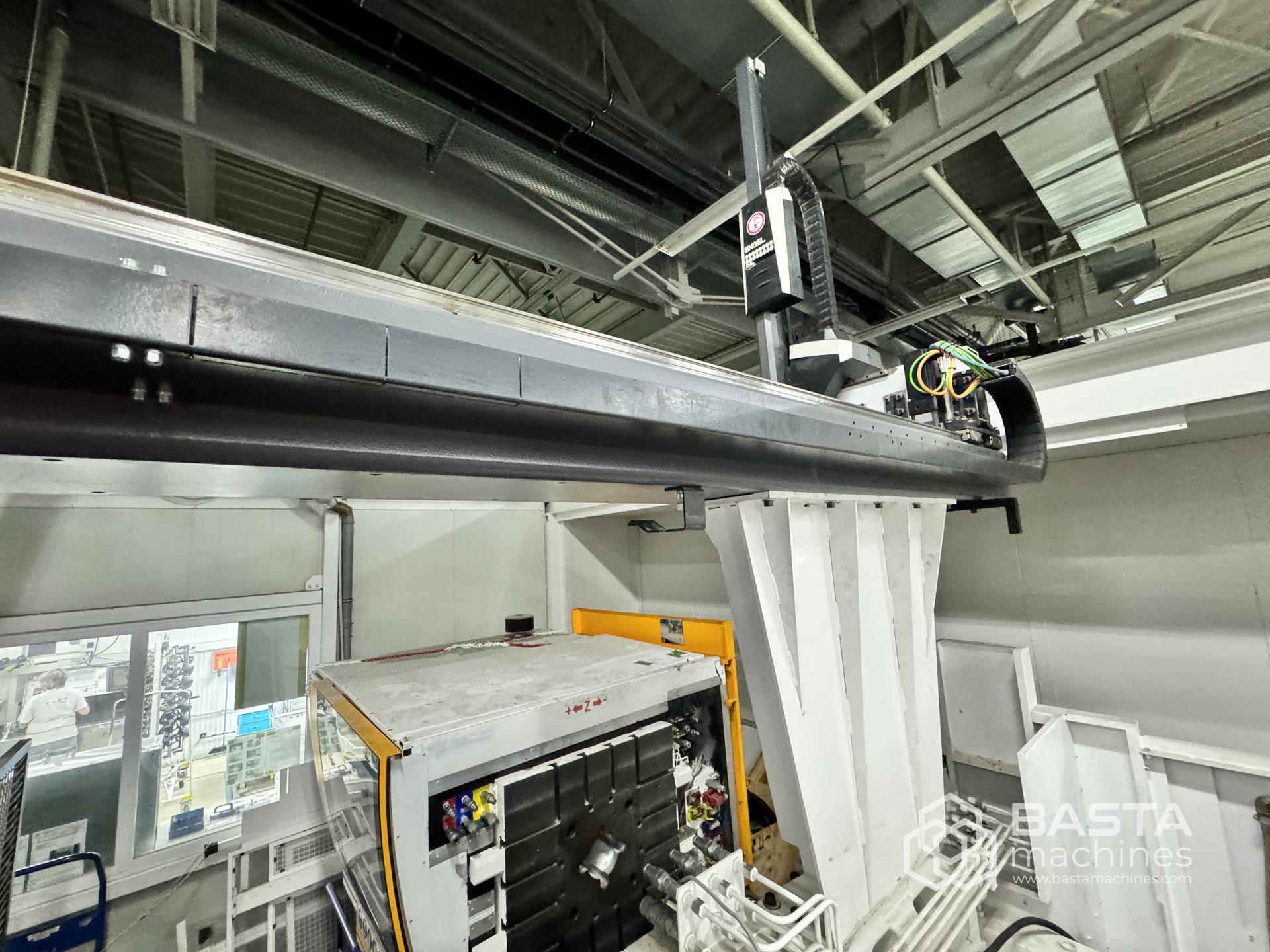

1. Robot: ENGEL Viper 40, integrated with RC200-A03 controller
2. Material feeder: ROTOFEEDER BMC50 with frequency converter and special software interface

Control System

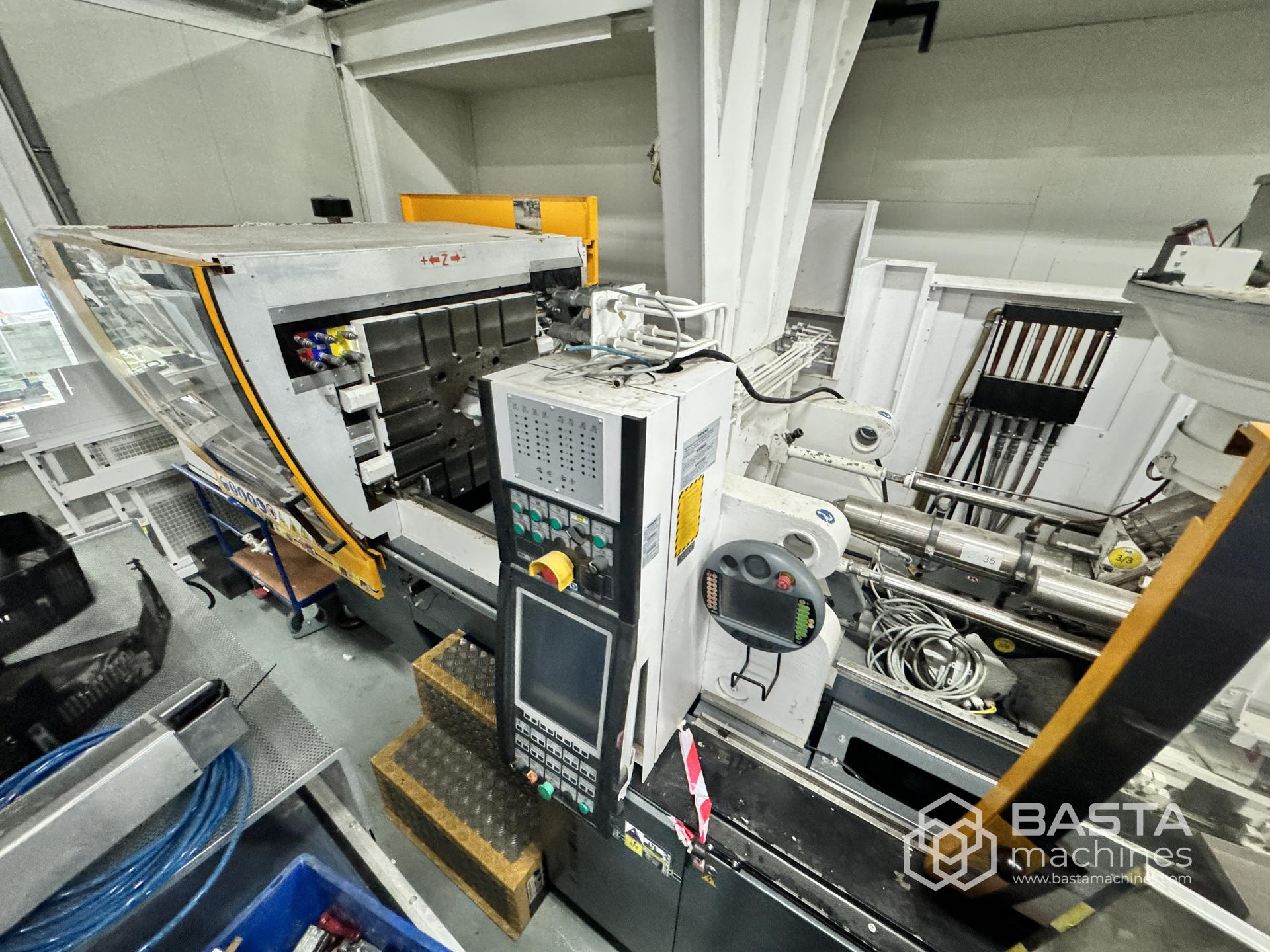

1. Control unit: CC200 microcomputer with 15” color TFT touchscreen
2. Software features:

1. VirtMould (machine simulation & training)
2. ecograph (energy consumption analysis)
3. Productivity graphics
4. Process graphics (PD-Graph I)
5. Minicam (process assistant)
6. Lot size counter
7. Alarm messaging via email
8. Week timer & USB data backup

1. Languages: Czech + English
2. Access control: Keycard system (3 cards included)

Additional Equipment

1. LED lighting in the hydraulic pump area
2. Safety covers, guarding, operator platform
3. Special BMC nozzle (divided, with cooling, bore 7 mm, immersion depth 115 mm)
4. Tool temperature control: 8 zones, max. 15 kW, Euromap 14 interface
5. Electrical & hydraulic interfaces placed at the rear of the machine for cleanliness and easy access
6. Additional plasticizing unit with 40 mm screw

Logistics & Operation

1. Delivery: One-piece (clamping + injection units connected)
2. Transport: By truck (LKW)

--------------------------------------------------------

Clamping force: 180 t

Screw diameter: 35 mm

Shot volume: 154 cm3

Type: Horizontal

Drive: Hydraulic

Controll CC200

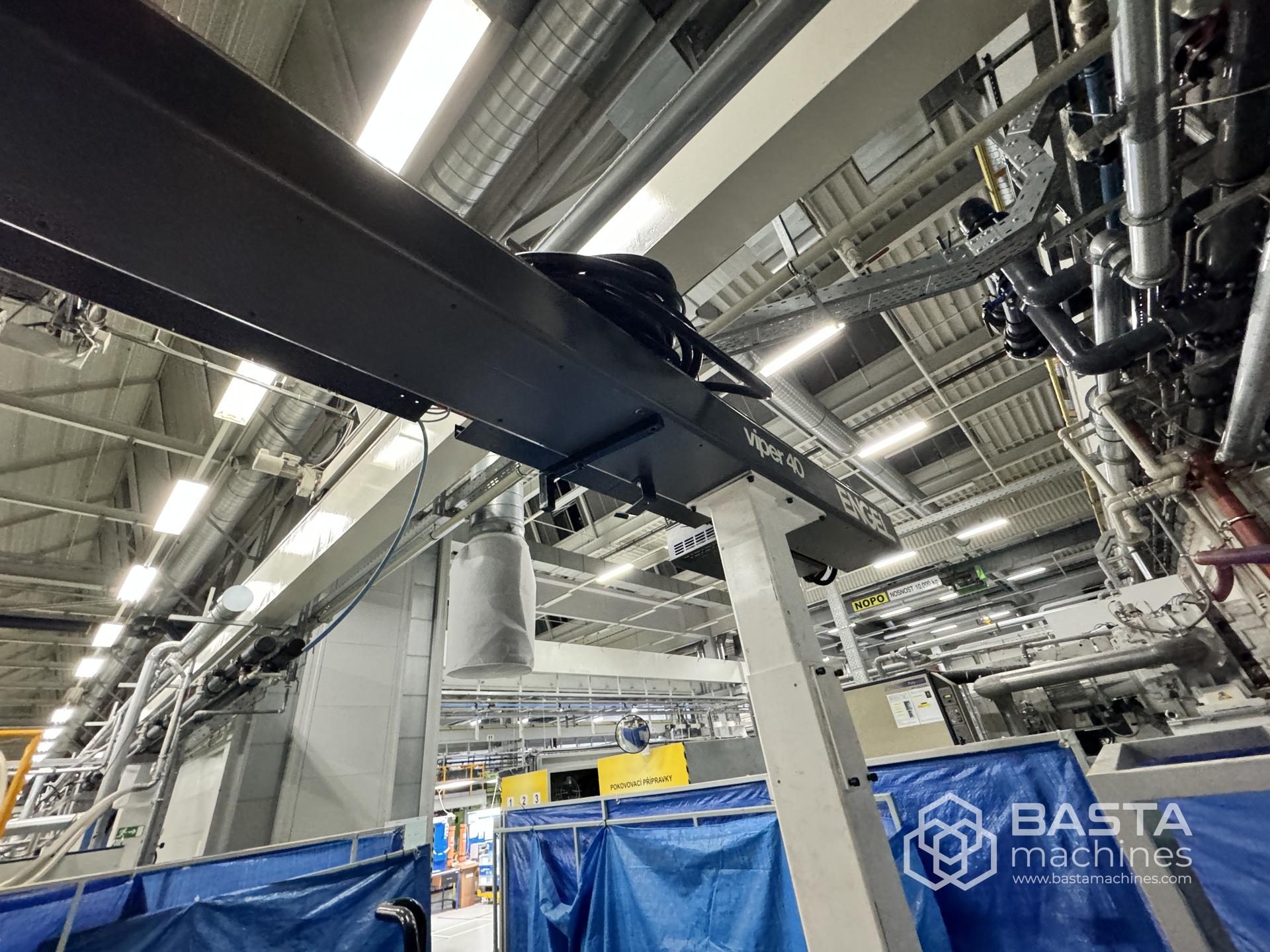

Engel Viper 40 Linear Robot

Engel Rotofeeder BMC50

Machine was using DUROPLAST MATERIAL

has proportional valves for the cap, injection, ejector,

3 x cores and controlled

2 hydraulic servo pumps

Approx 30.000 hours
