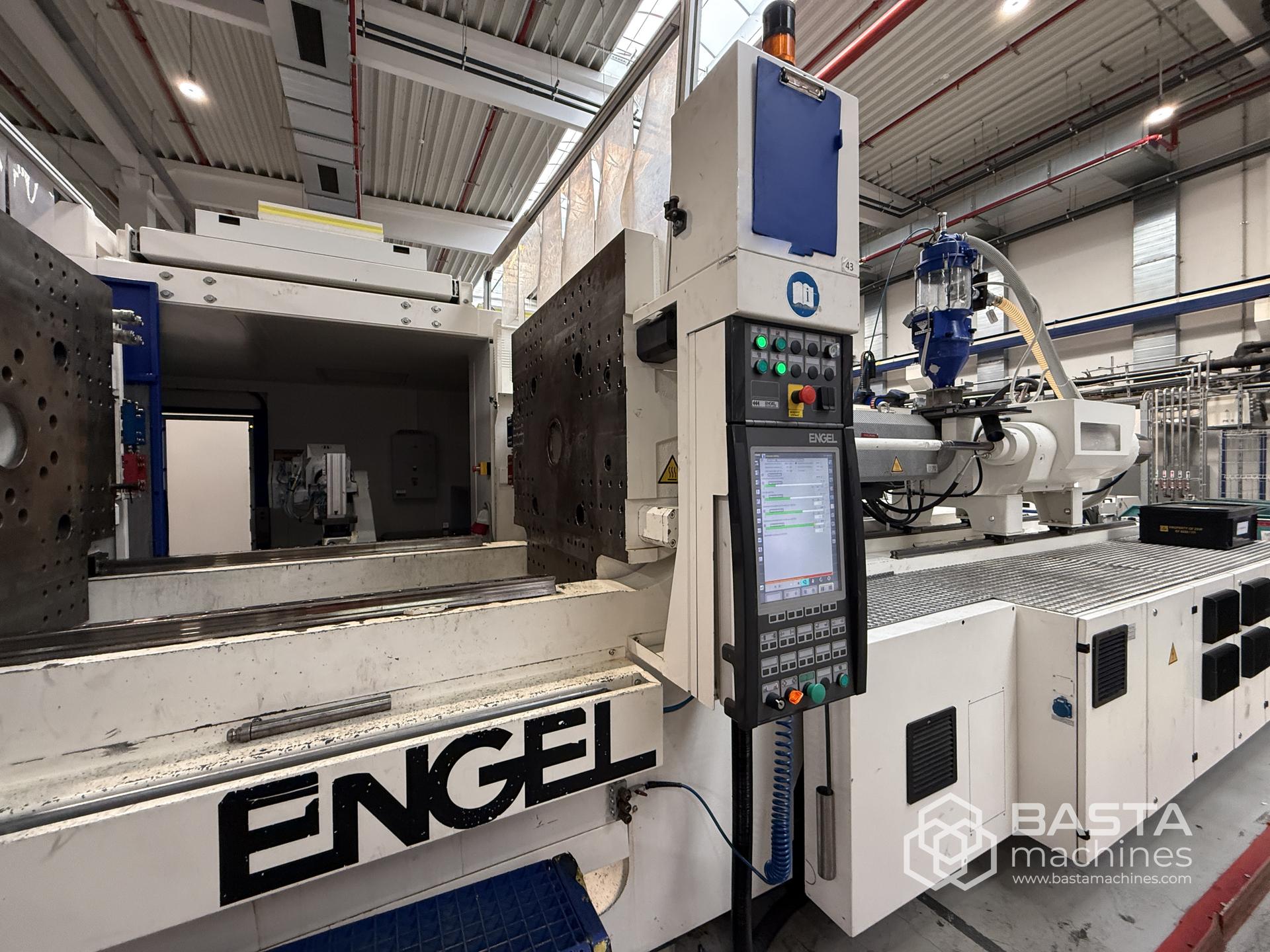

Engel VC 3550/400 Tech ecodrive (2013)

Control: CC200

Year: 2013

Clamping force: 400 t

Max daylight: 1450 mm

Mould height min max: 450-1000mm

Ejector stroke: 250 mm

Screw diameter: 70 mm (S8 screw G1)

Shot volume: 1501 cm3

Injection rate: 319cm3/sec

Specific injection pressure: 2252 bar

Max screw speed: 160 rpm

Type: Horizontal

Drive: Hydraulic

2 core pullers

16 mould heating zones

12 waterflow

Euromap 67

ECODRIVE

AIR VALVES
