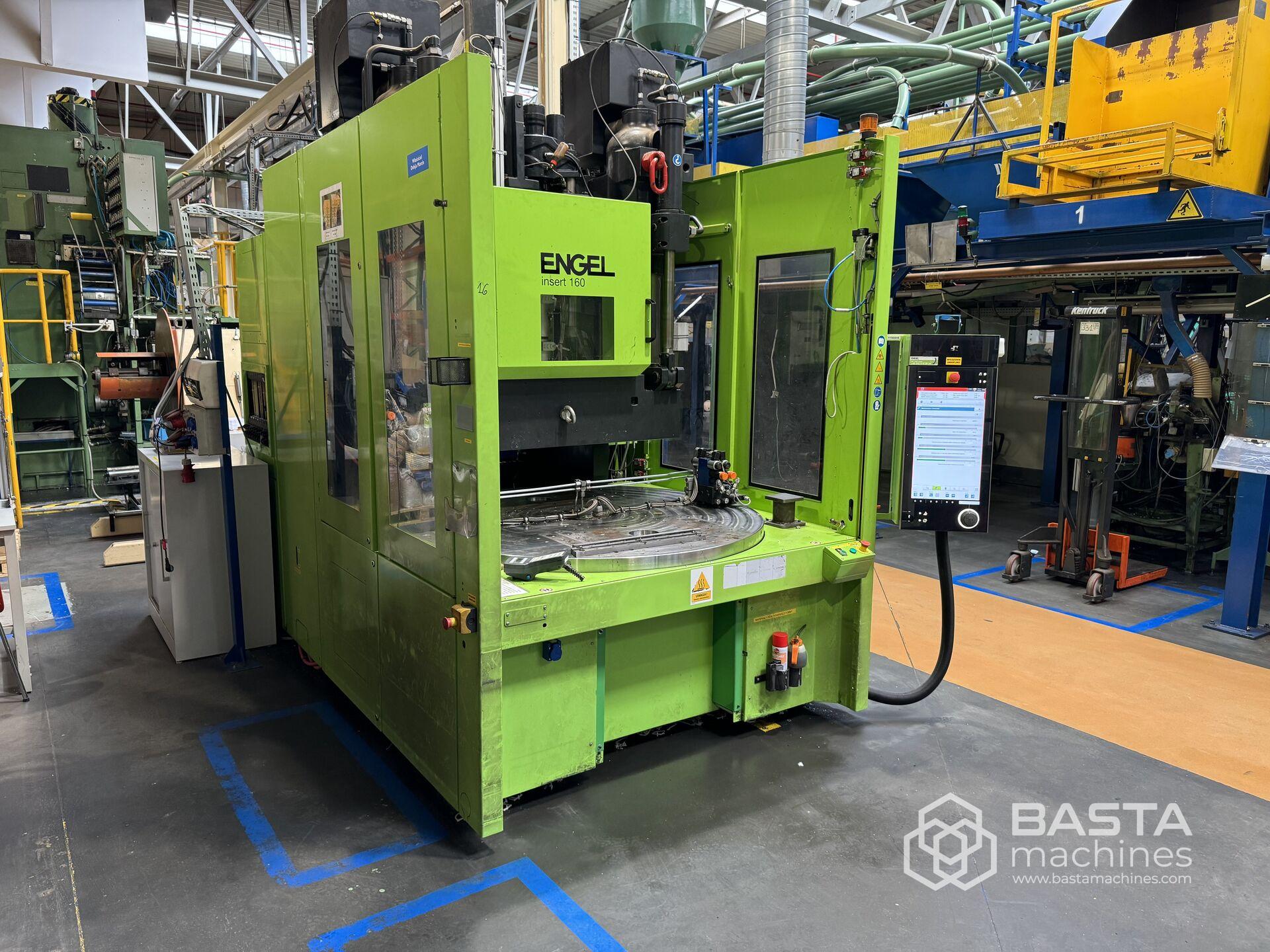

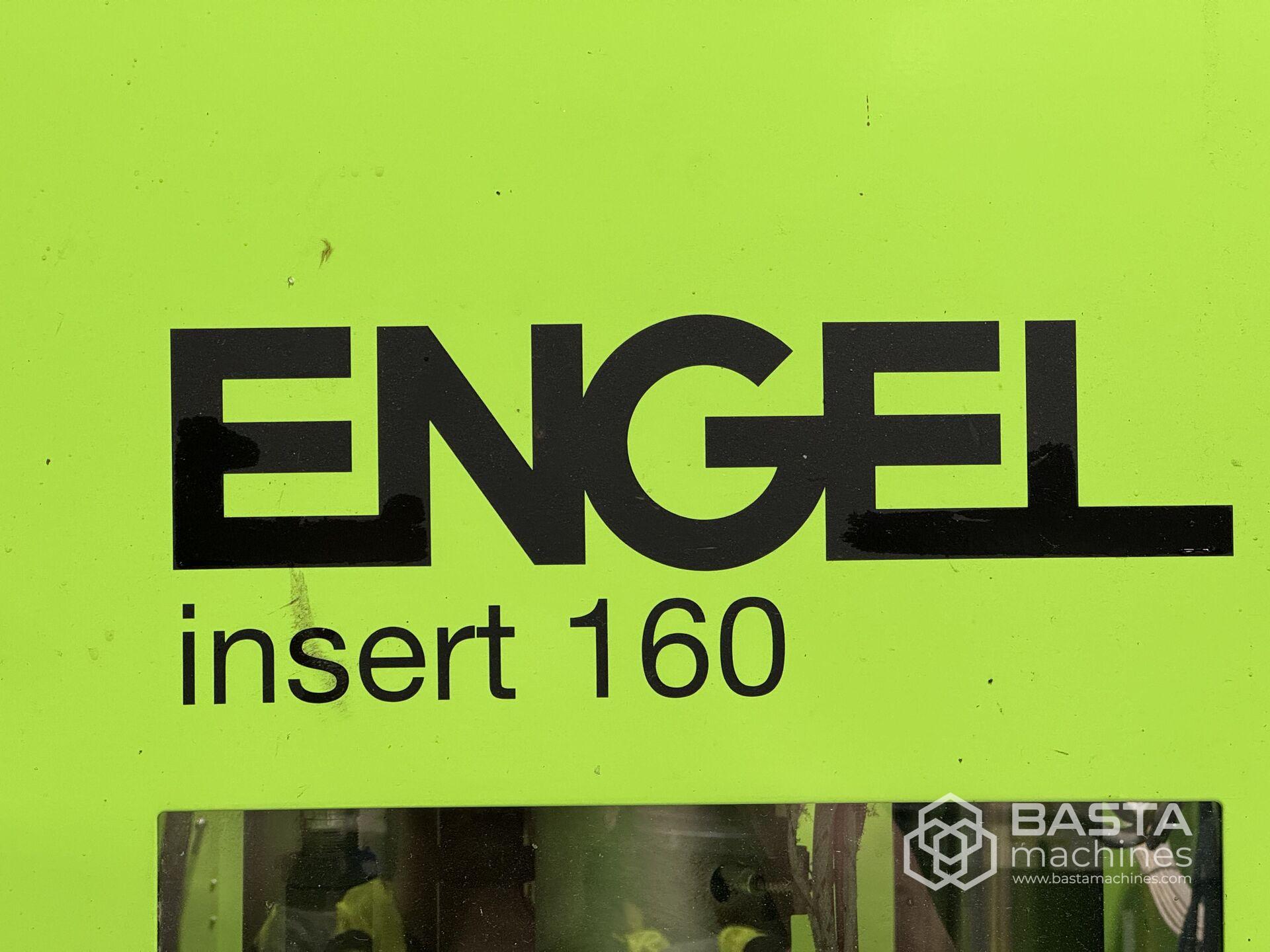

Engel insert 330V/160 rotary 1600mm table (2018) Vertical machine

Basic Technical Specifications:

• Type: Vertical injection molding machine

• Clamping force: 1600 kN (160 t)

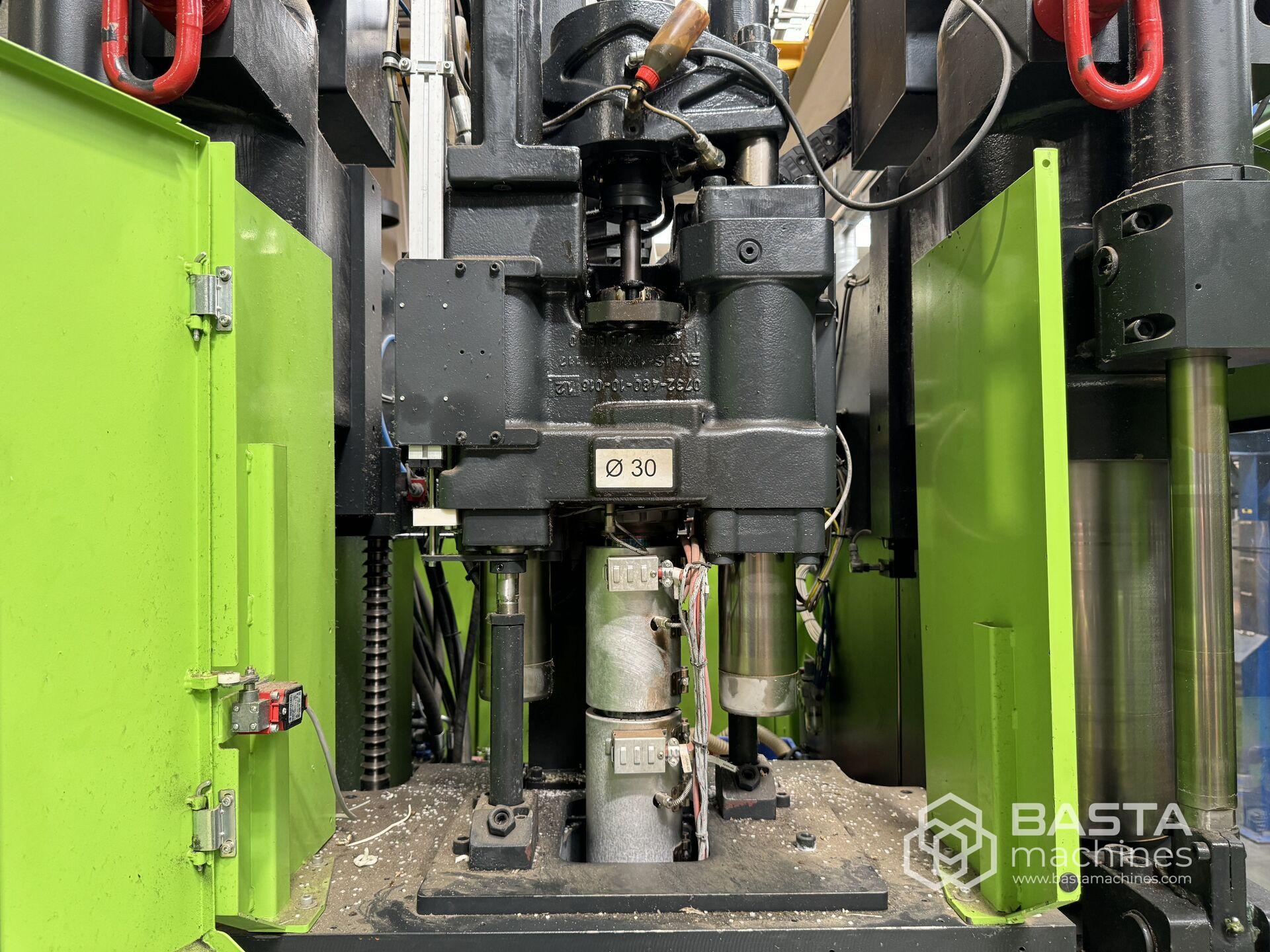

• Screw diameter: 30 mm

• Shot volume: 113 cm³

• Drive system: Hydraulic

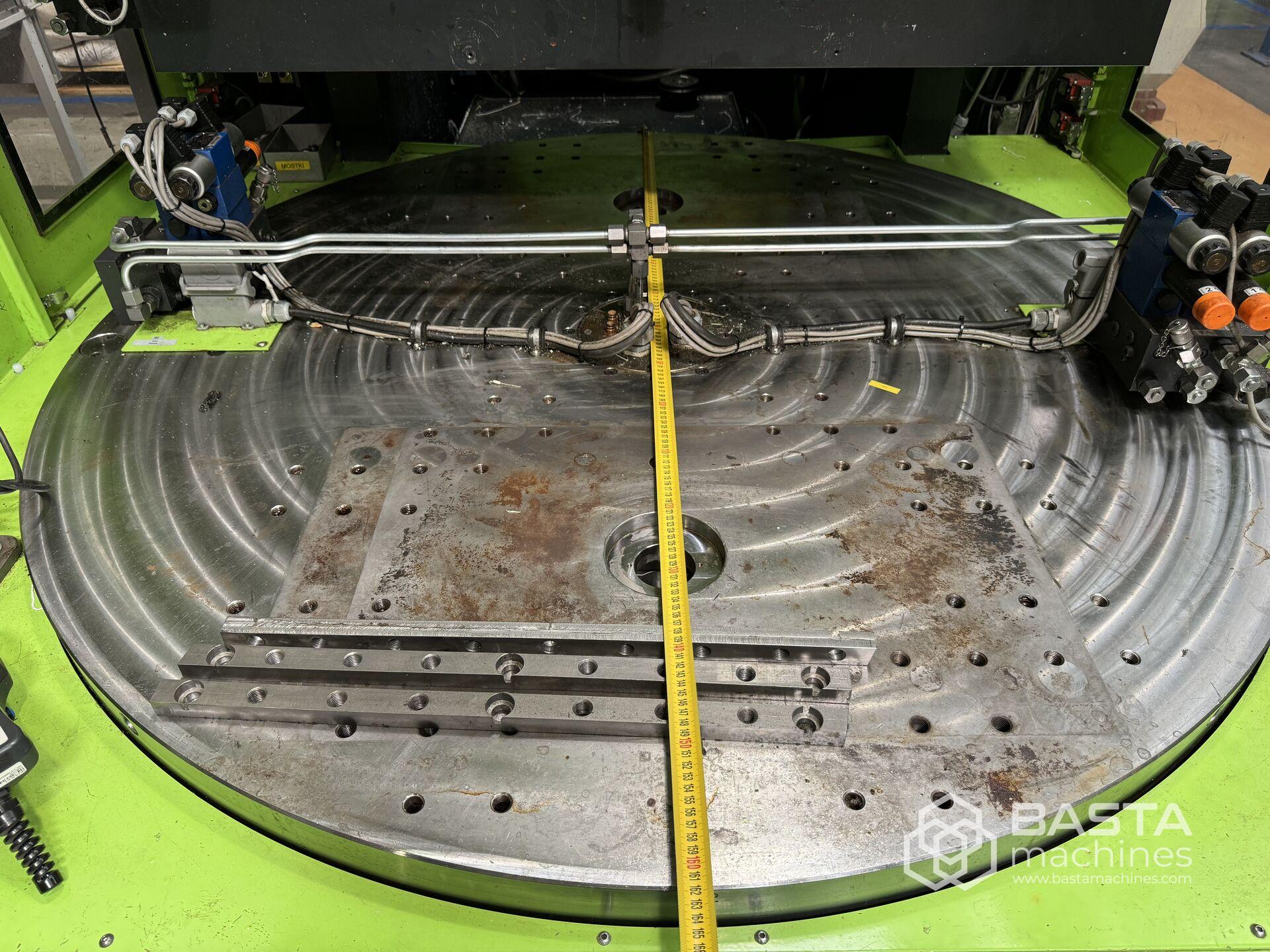

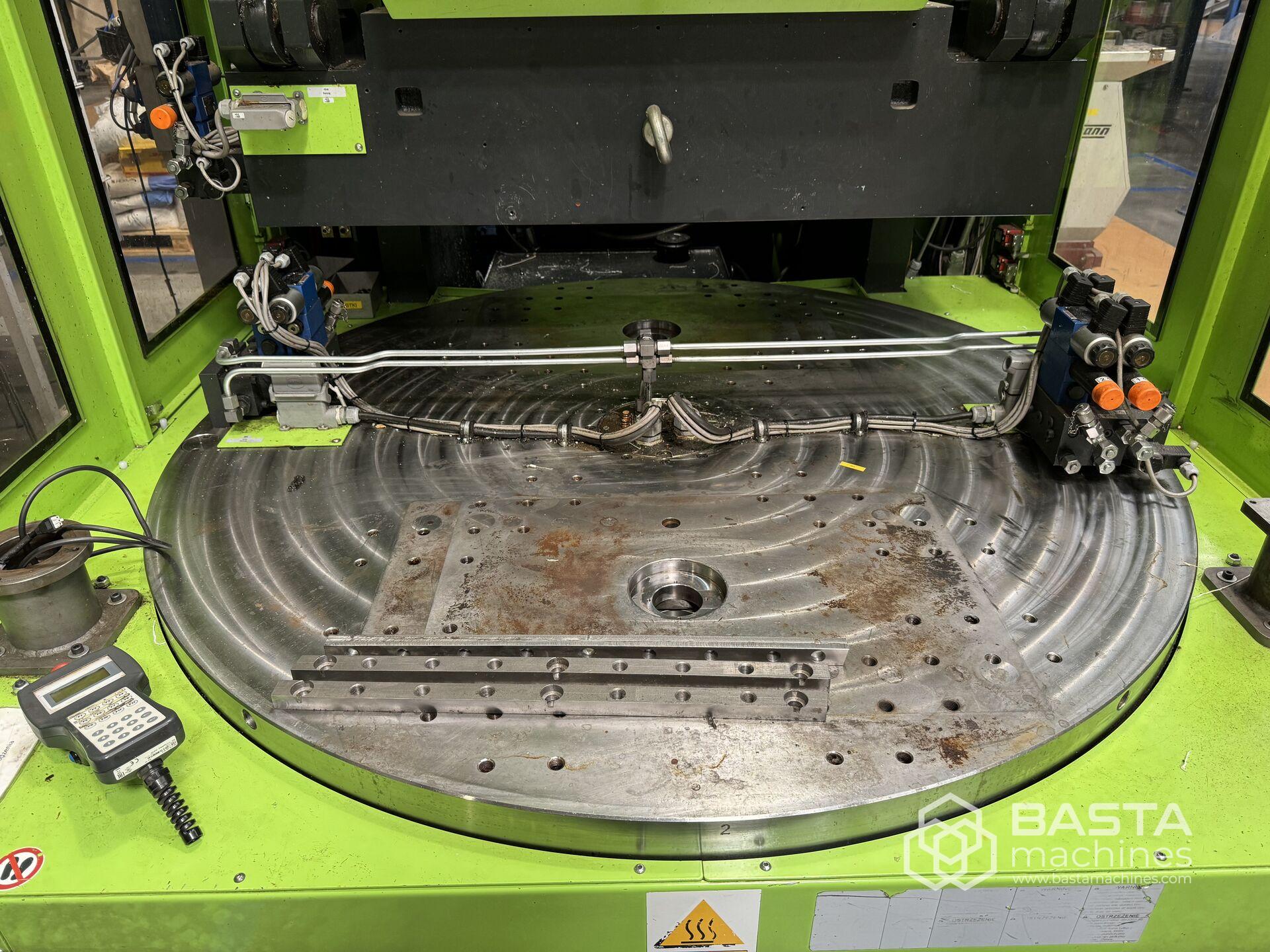

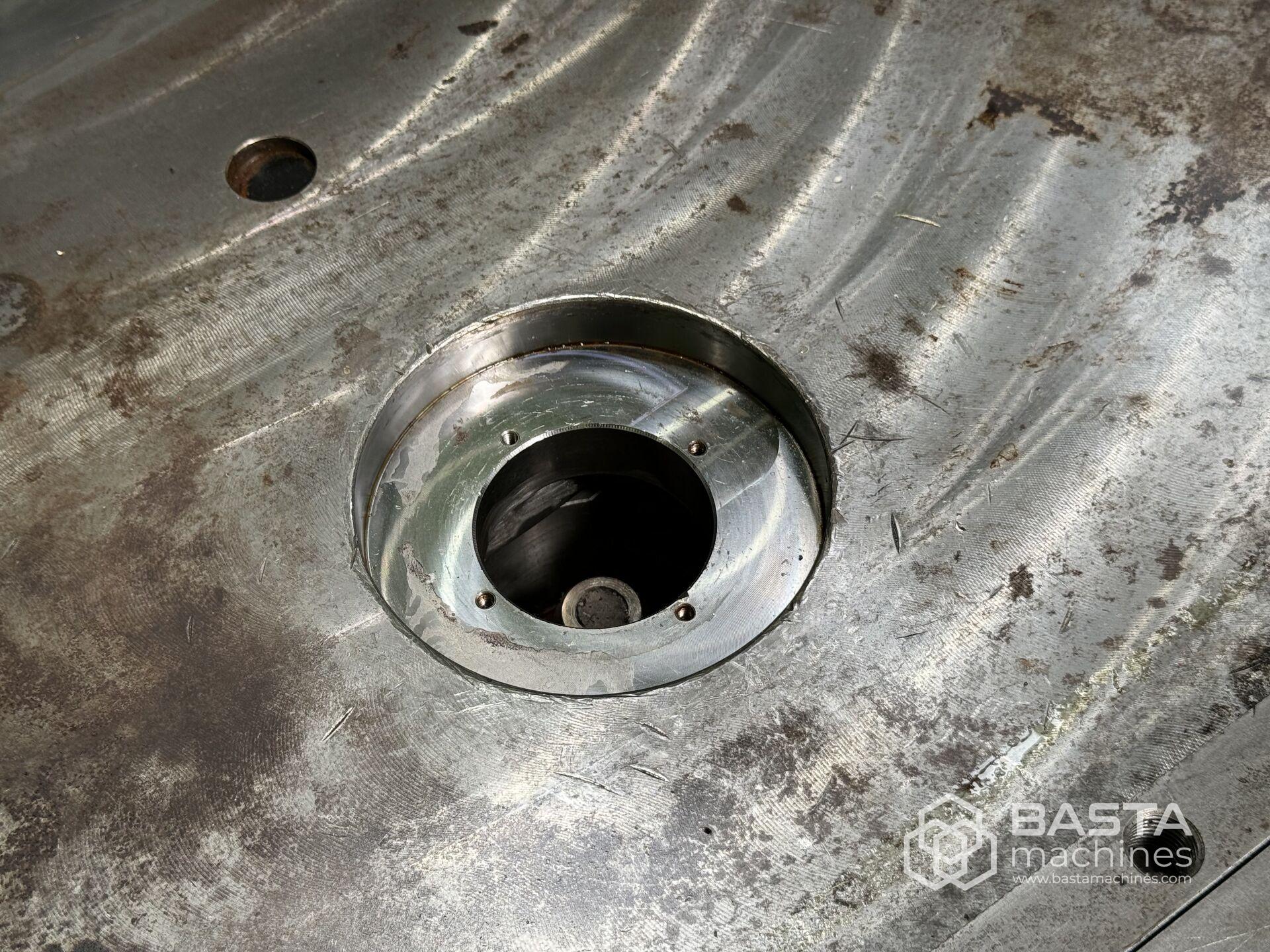

• Table diameter: approx. 1600 mm

• Year of manufacture: 2018

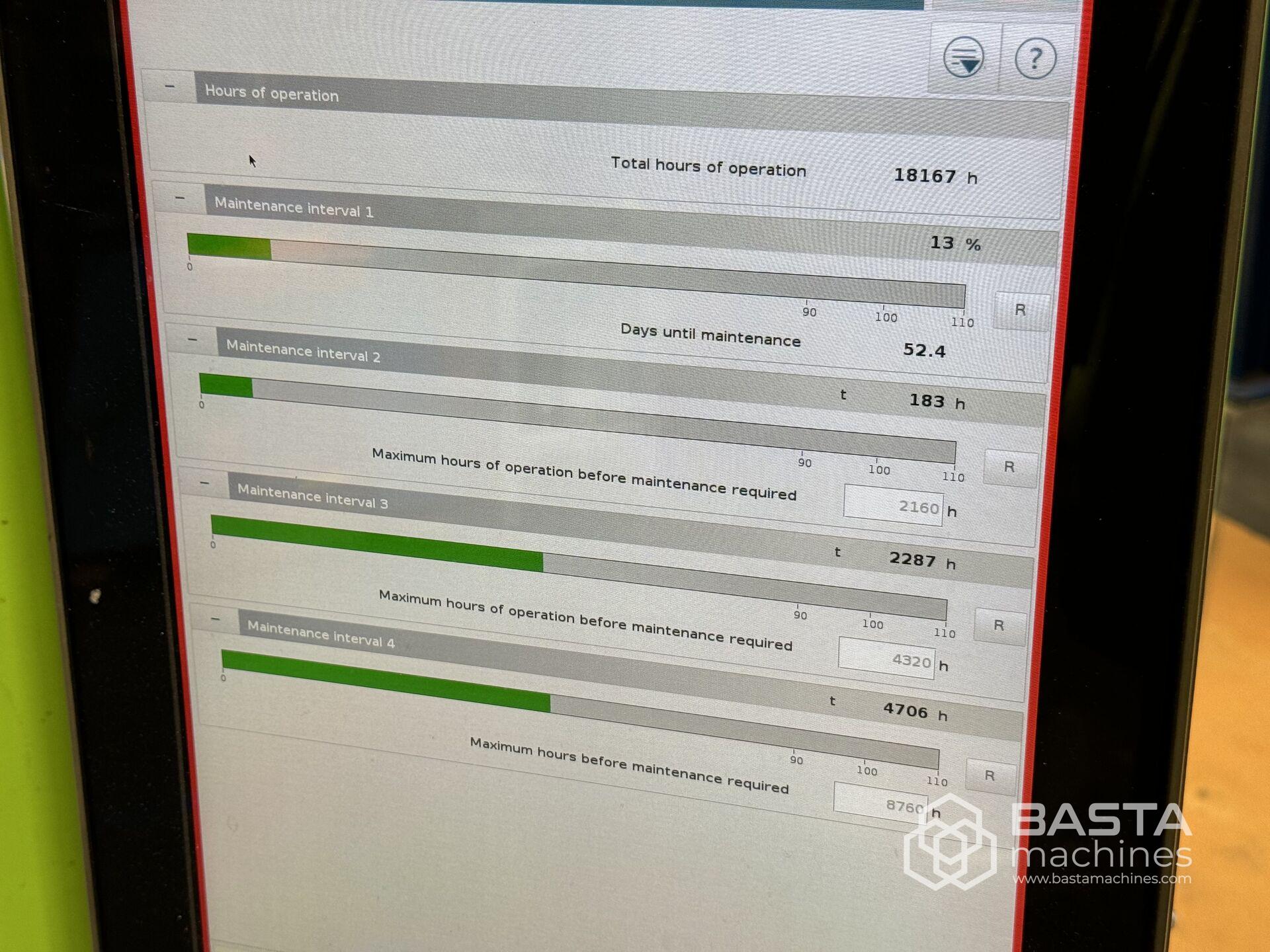

• Operating hours: approx. 18,167 hrs

Performance and Capacities:

• Hydraulic system capacity: 250 l

• Dosing stroke: 160 mm

• Screw torque: 380 Nm

• Injection flow rate: 111 cm³/s

• Specific injection pressure: 2180 bar (increased: 2390 bar)

• Nozzle stroke: 650 mm

• Nozzle contact force: 48.9 kN

Clamping System:

• Opening stroke: 450 mm

• Minimum mold height: 300 mm

• Maximum plate distance: 750 mm

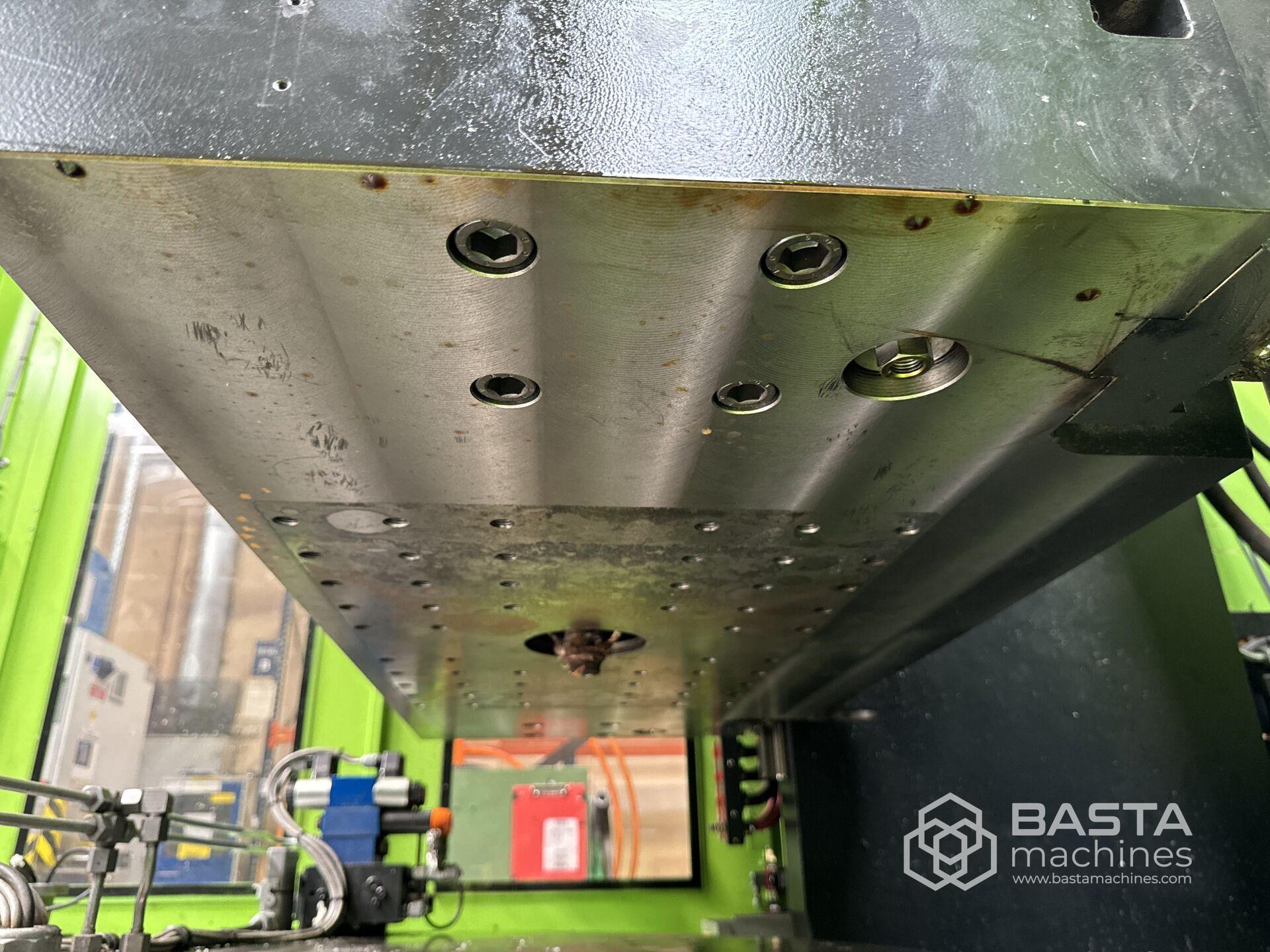

• Clamping plate dimensions: 1330 x 500 mm

• Maximum total tool weight: 2600 kg

• Ejector stroke: 105 mm

• Ejector force: 35 kN

Tool Weight Capacities:

• On moving clamping plate: max. 1100 kg

• On stationary plate: max. 1500 kg
