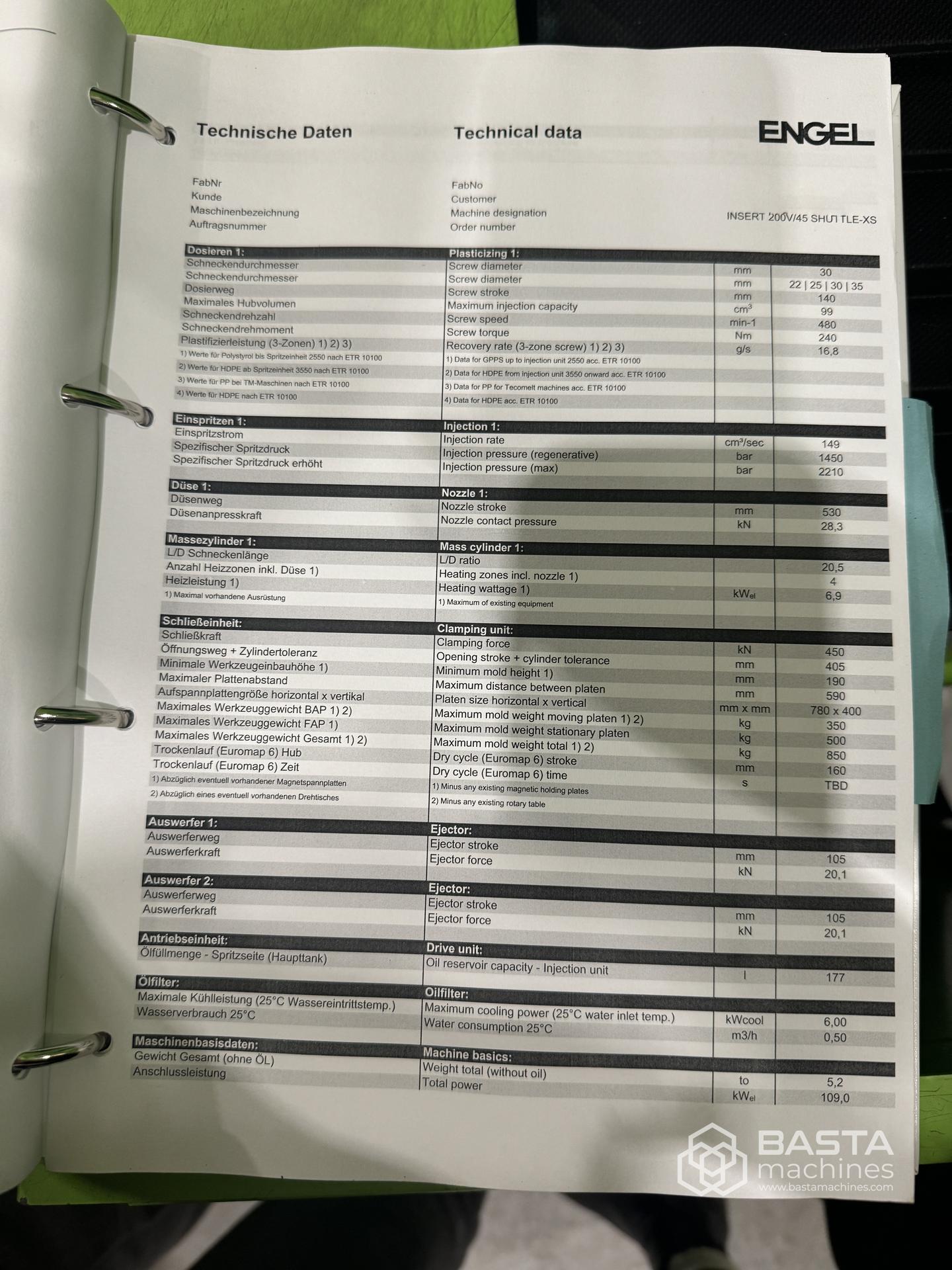

Engel insert 200V/45 shuttle -XS (2018) Vertical machine

Engel insert 200V/45 shuttle -XS (2018) Vertical machine

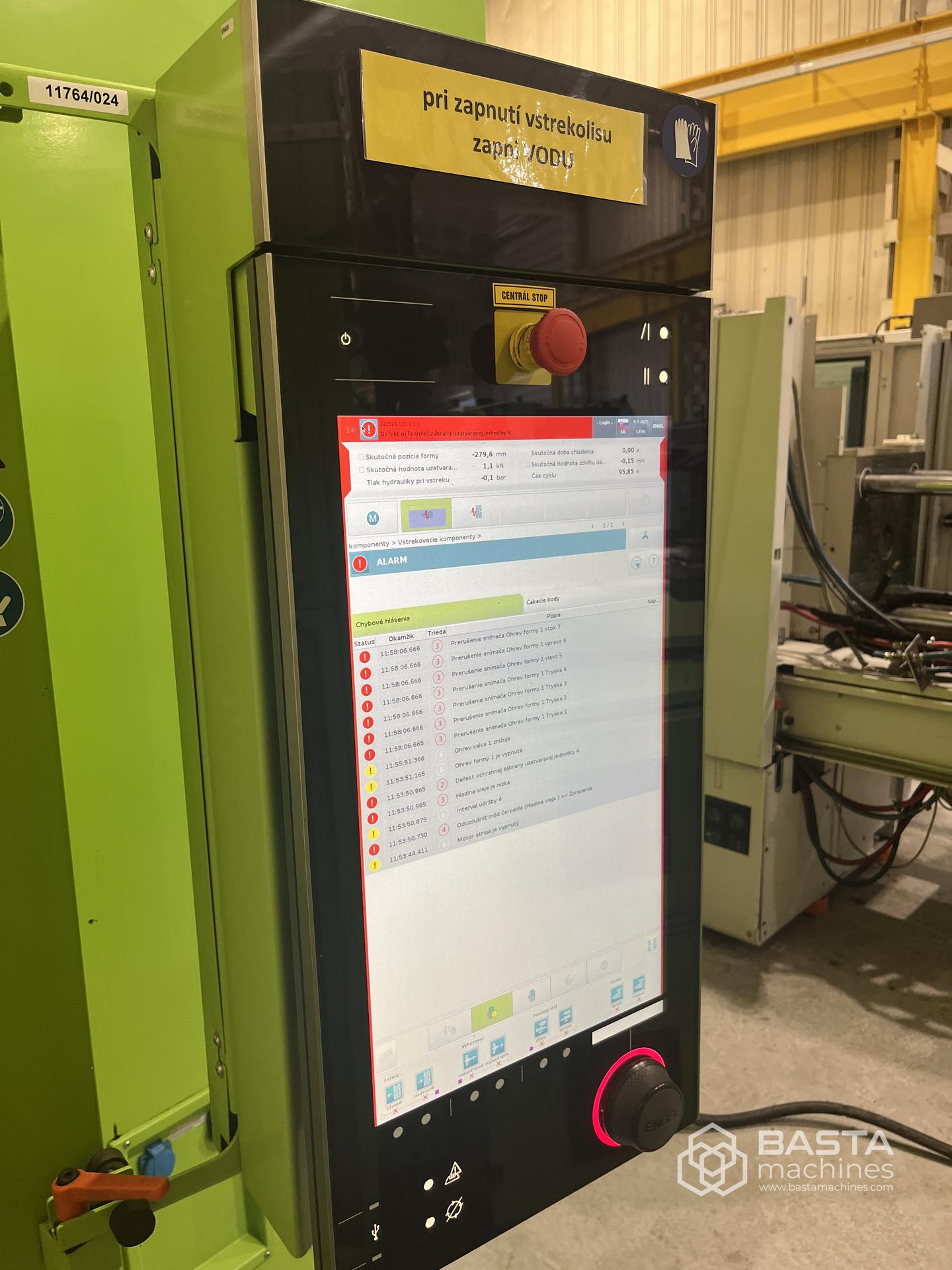

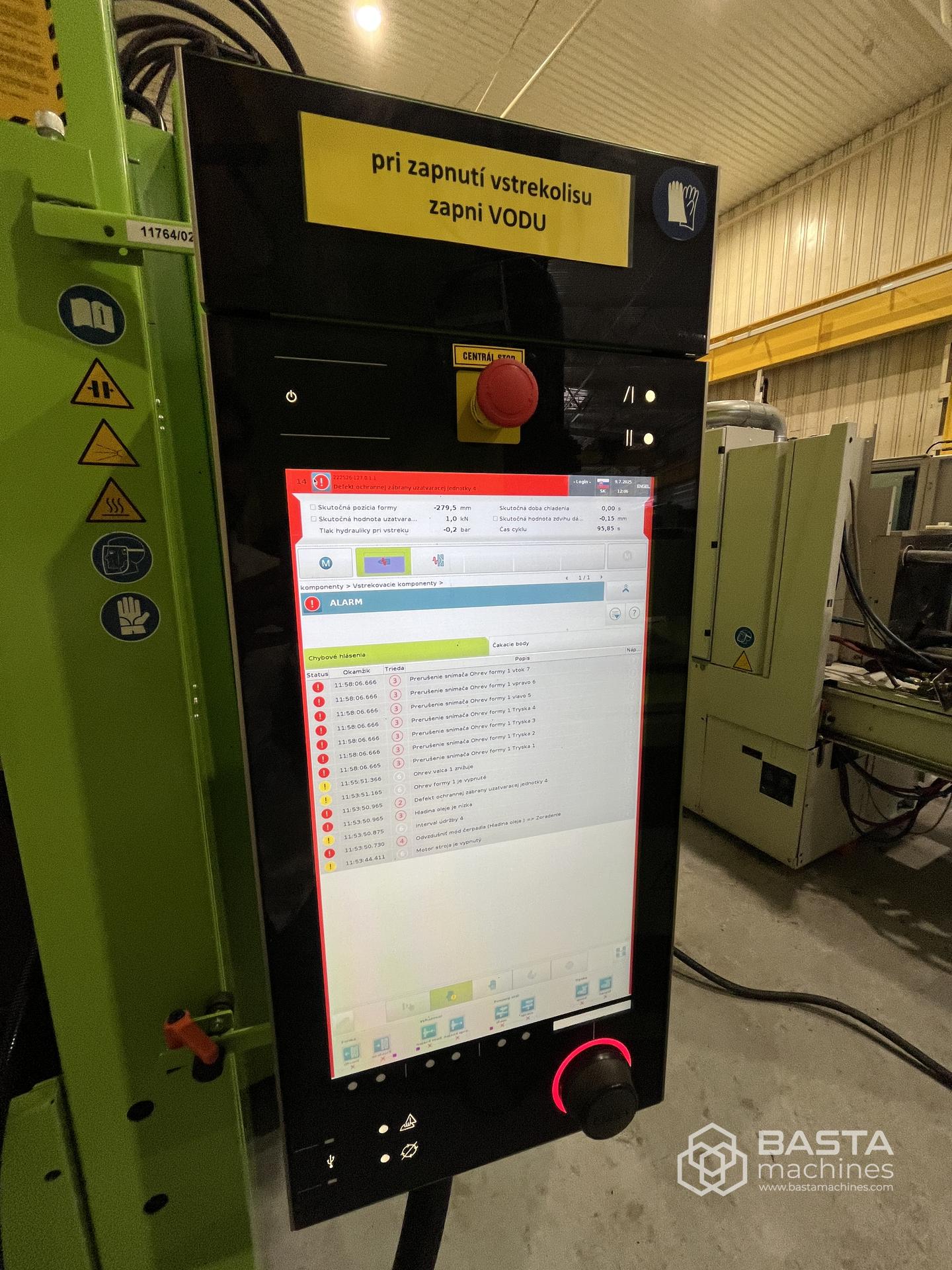

Controll : CC300

Clamping force: 45 t

Screw diameter: 30 mm

Shot volume: 99 cm3

Type: Vertical

Drive: Hydraulic

Platen size HxV : 780x400mm

Screw diameter: 30 mm

Screw stroke: 140 mm

Maximum injection capacity: 99 cm3

Injection pressure 1450 bar

Injection pressure max . 2210 bar

Nozzle stroke 530 mm

Clamping force 450 kN

Opening stroke 405 mm

Maximum distance between platen 590 mm

Platen size horizontal x vertical 780 x400

Ejector stroke 105 mm

Total weight (without oil) 5,2 tons
