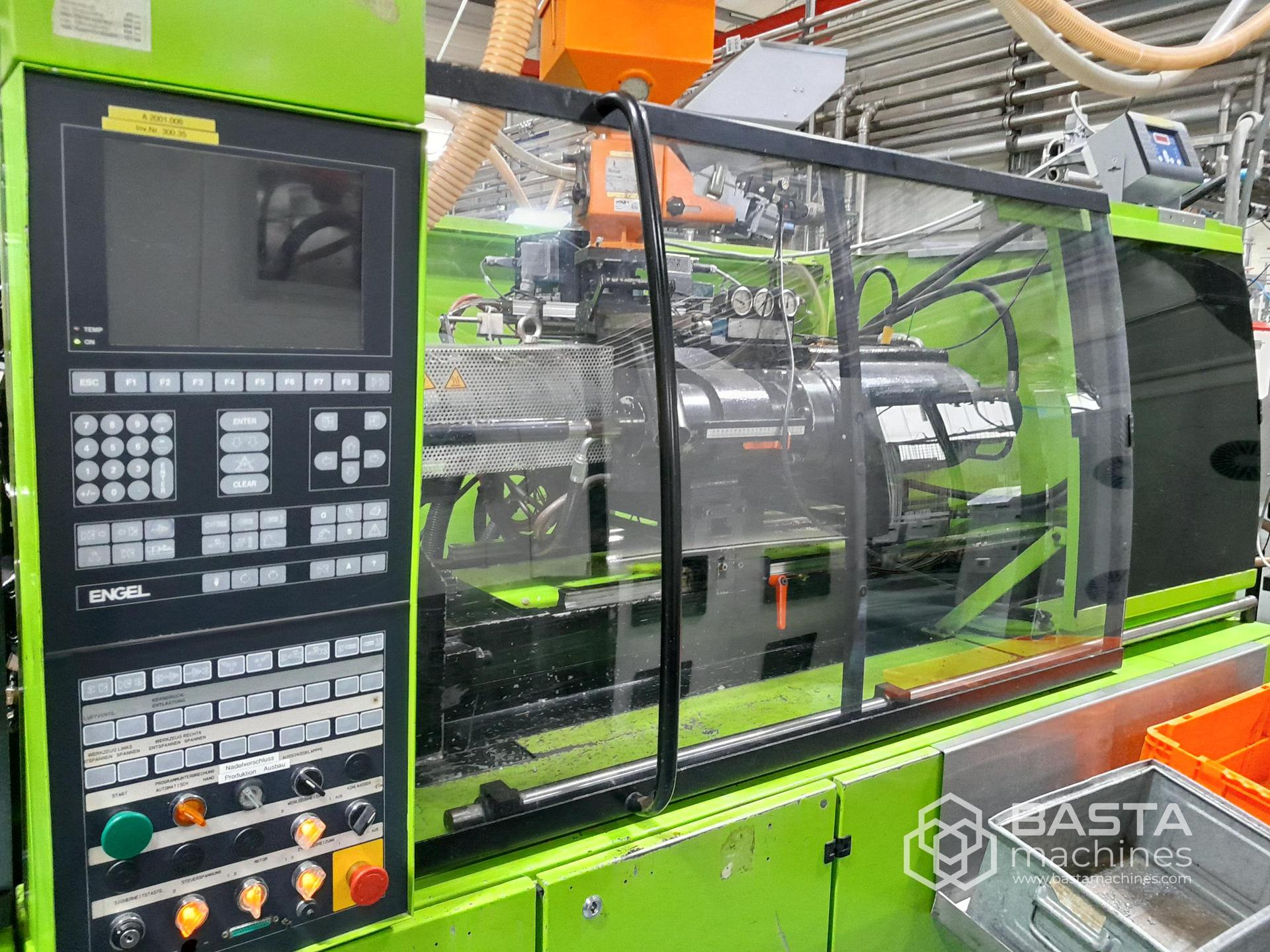

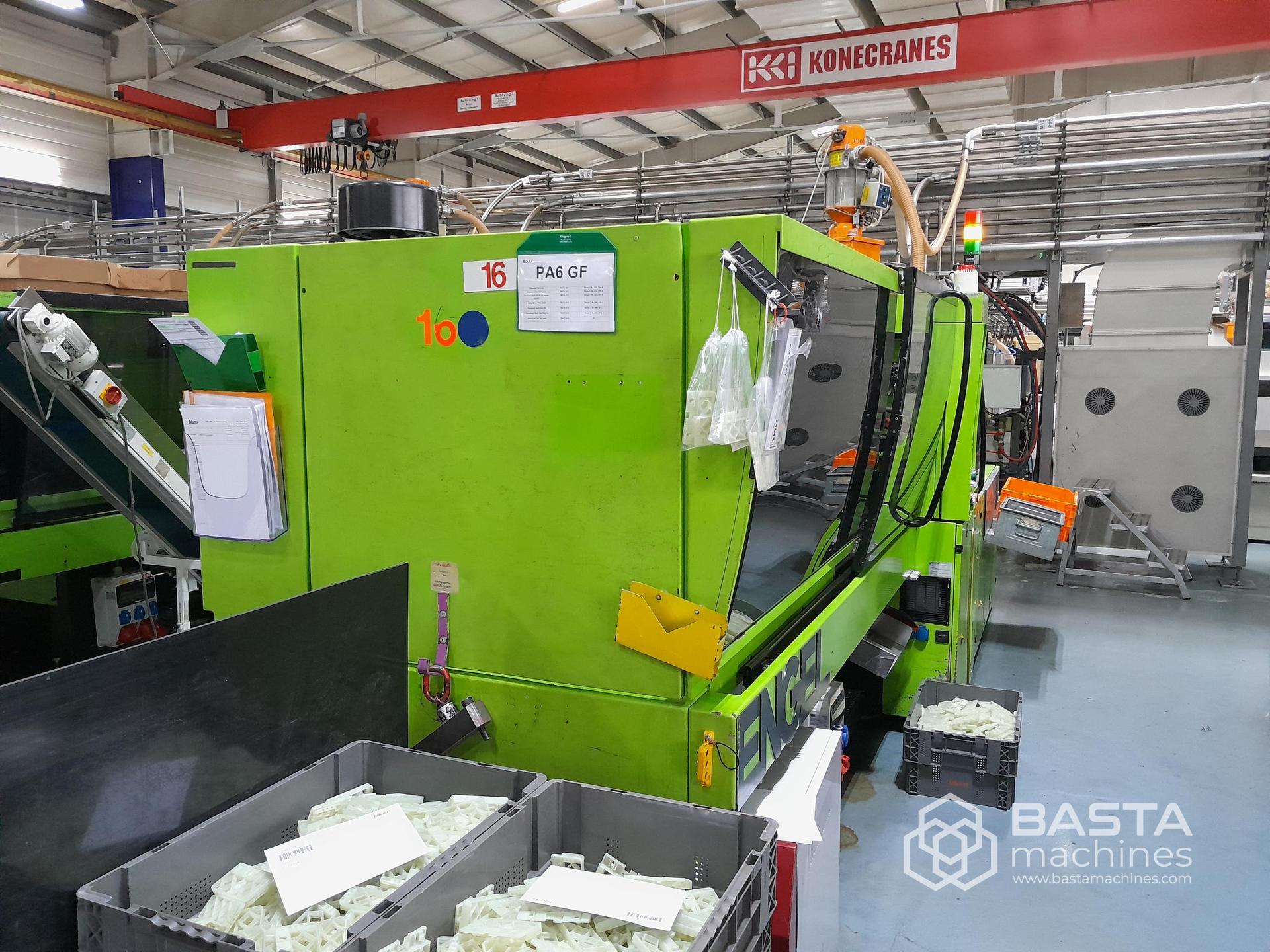

Engel ES650/125HL (2001)

Manufacturer: Engel

Type: ES 650/125 HL

Control: CC100

Year of Construction: 2001

Clamping force: 125 t

Type: Horizontal

Drive: Hydraulic

Clamping unit

Clamping force: 1250 kN

Opening stroke: 600 mm

Ejector force: 61 kN

Ejector stroke: 150 mm

Max. plate distance: 850 mm

Minimum mold height: 250 mm

Mold plates (HxV): 740 x 840 mm

Max. mold size (HxV): 740 x 700 mm

Bar clearance: 470 mm

Injection unit (45 mm screw)

Screw diameter: 45 mm

L/D ratio: 20

Metering volume: 290 cm³

Screw speed: 290 min⁻¹

Plasticizing capacity: 35 g/s

Injection flow rate: 180 cm³/s

Injection volume: 251 cm³

Injection speed (specific): 134 cm³/s

Injection pressure: 1520 bar

Injection pressure (increased): 2040 bar

Specific injection pressure: 1230 bar

Nozzle stroke: 350 mm

Nozzle force: 67 kN

Heating capacity: 13.3 kW

Number of heating zones: 5

Drive

Pump drive power: 22 kW

Oil volume - main tank: 310 l

Oil volume - additional tank: 110 l
