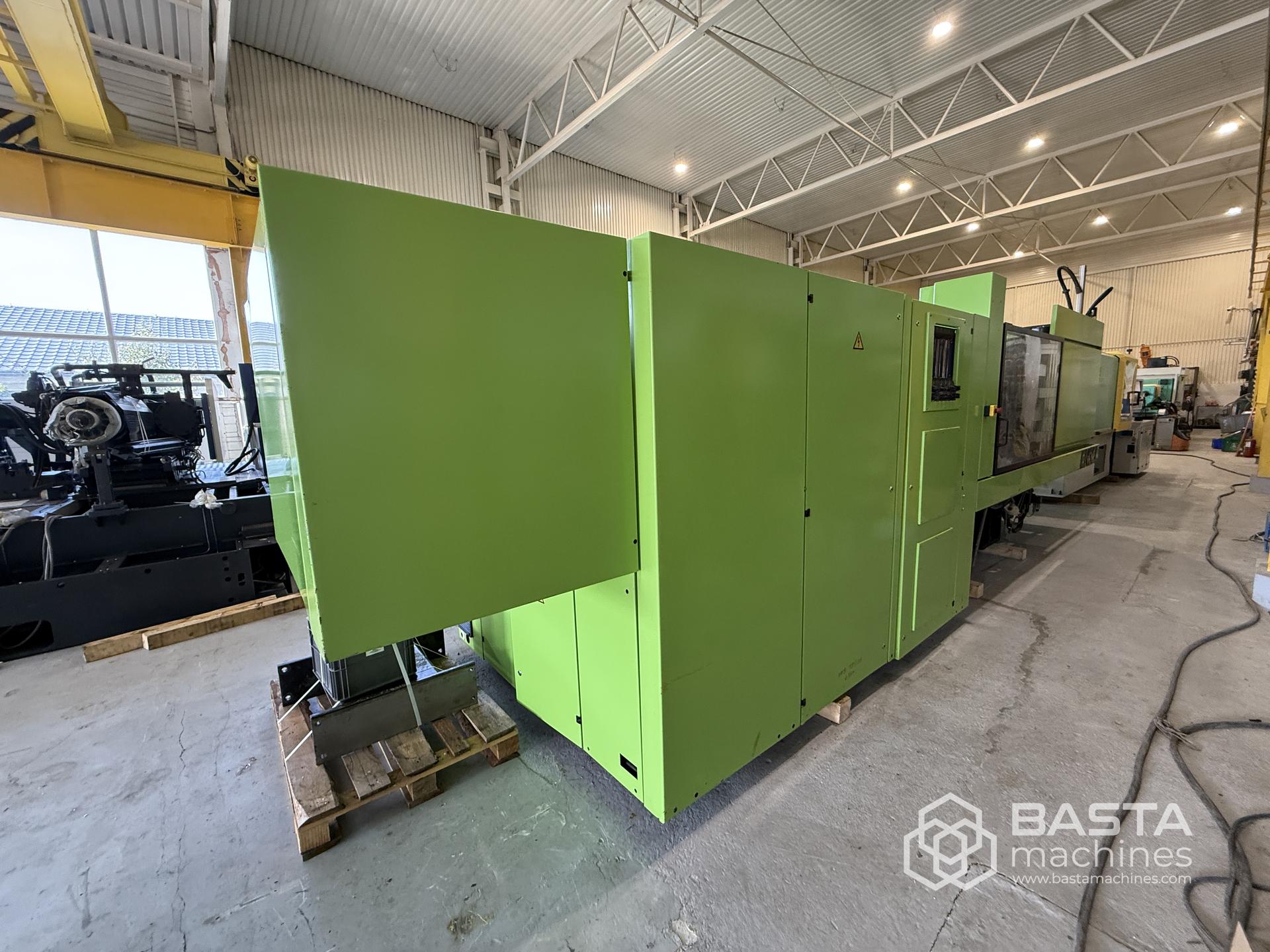

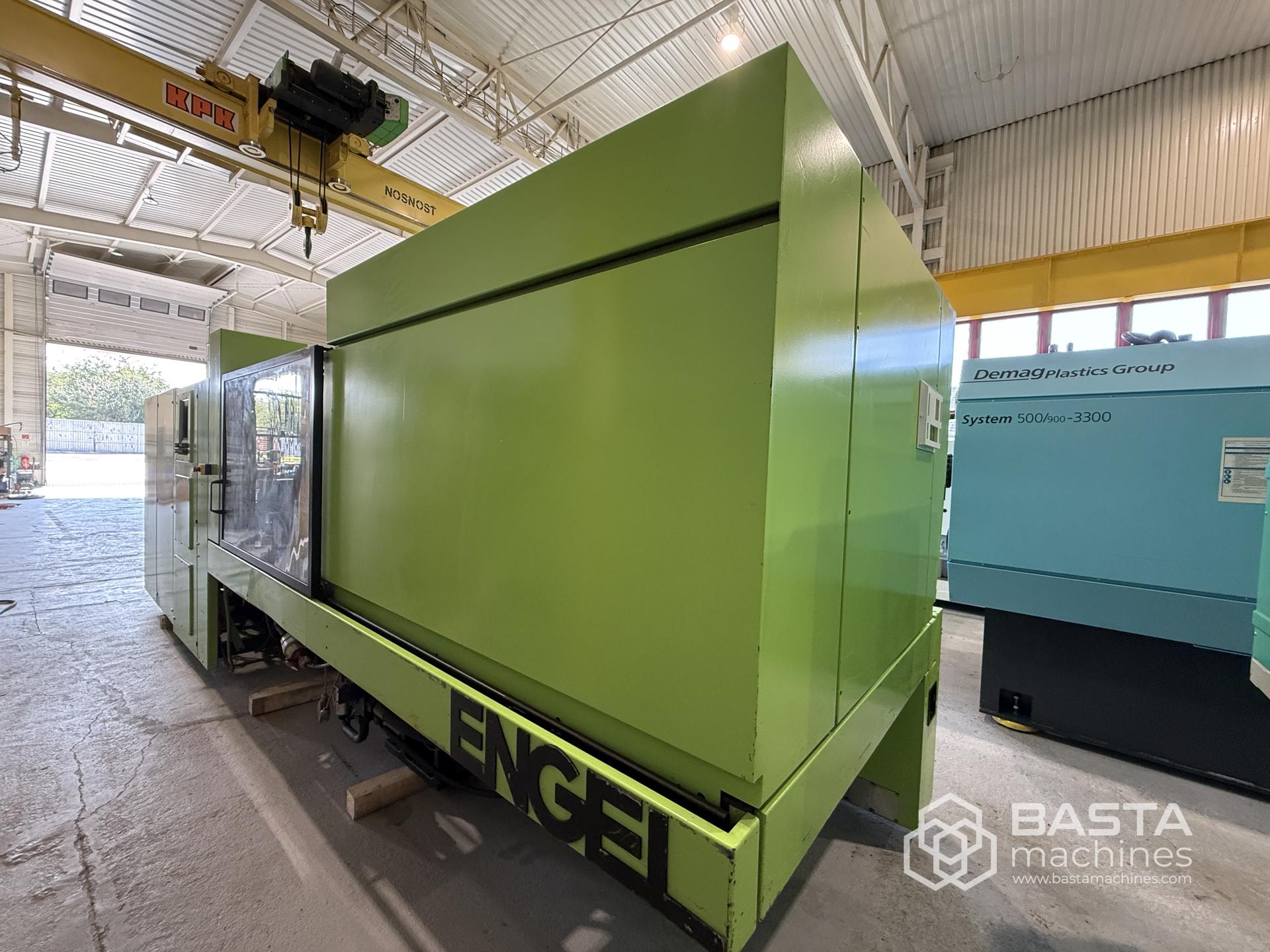

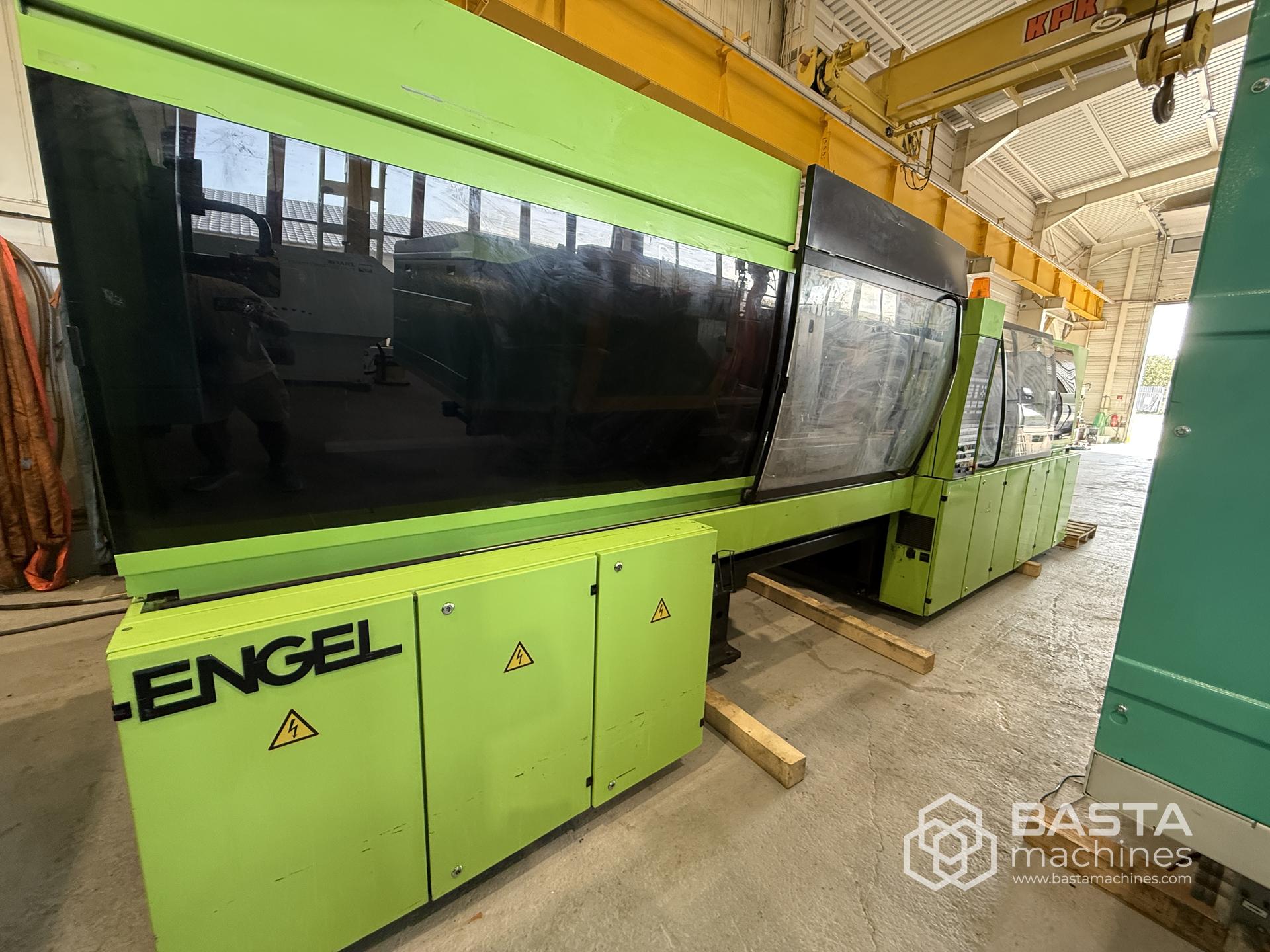

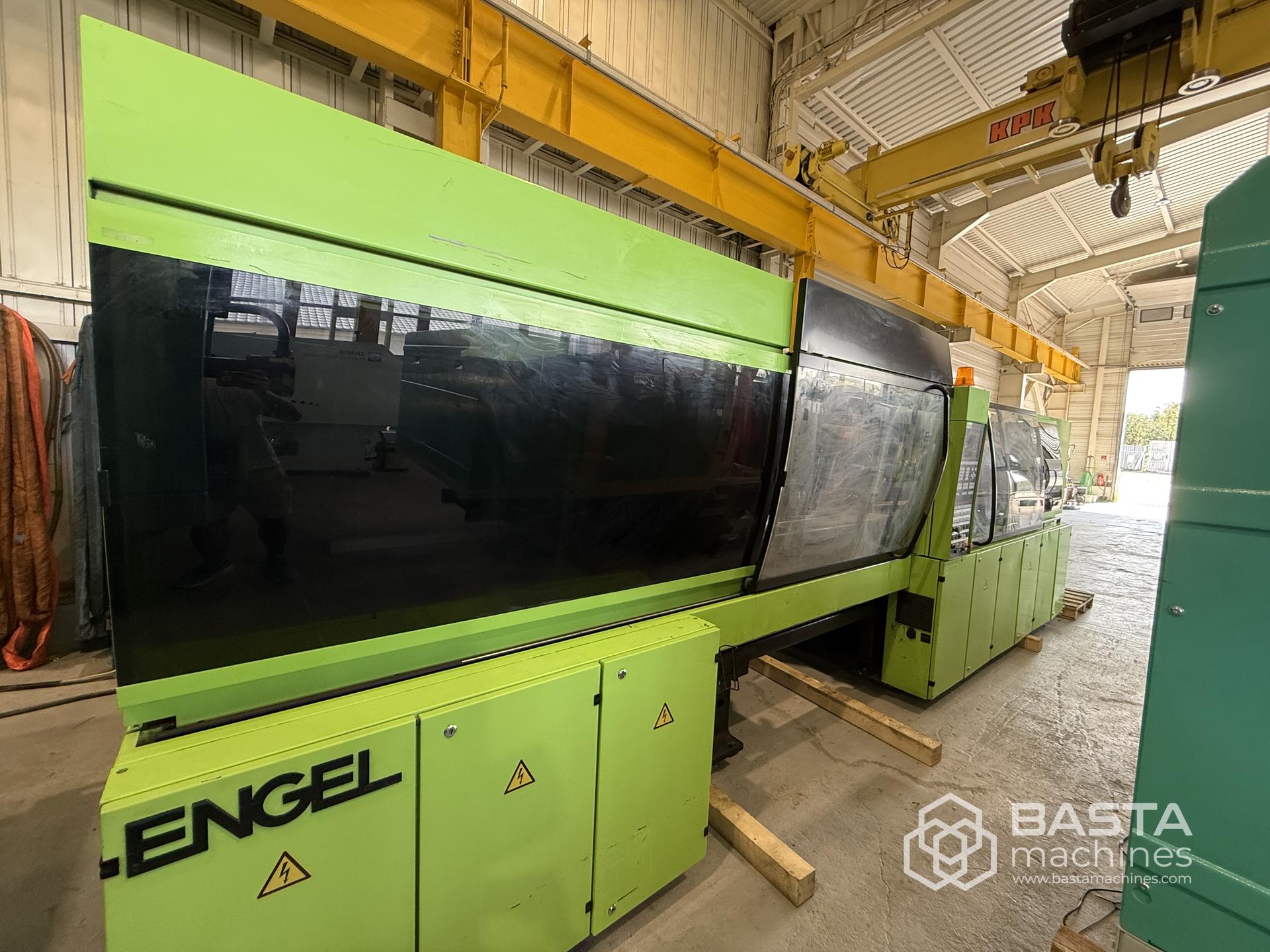

Engel ES 1800/300 HL-V (2000) Tiebarless (only 39.000 hours)

Clamping force: 300 t

Screw diameter: 70 mm

Shot weight: 935 g

Shot volume: 1039 cm3

Screw speed: 298 rpm

Injection flow rate: 349 g/sec

Injection time: 28 sec

Injection rate², injection pressure increased:  1039 cm³

Max. stroke volume¹: 983 cm³

Max. shot weight²:  1441 g

Specific injection pressure: 1734 bar

Opening stroke: 850 mm

Ejector force: 82 kN

Ejector stroke: 200 mm

Max. daylight: 1700 mm

Mould mounting plates: 1050 × 1050 mm

Enlarged mounting plate: 1050 × 950 mm

Type: Horizontal

Drive: Hydraulic

+ Robot ERC 53/3- EA
