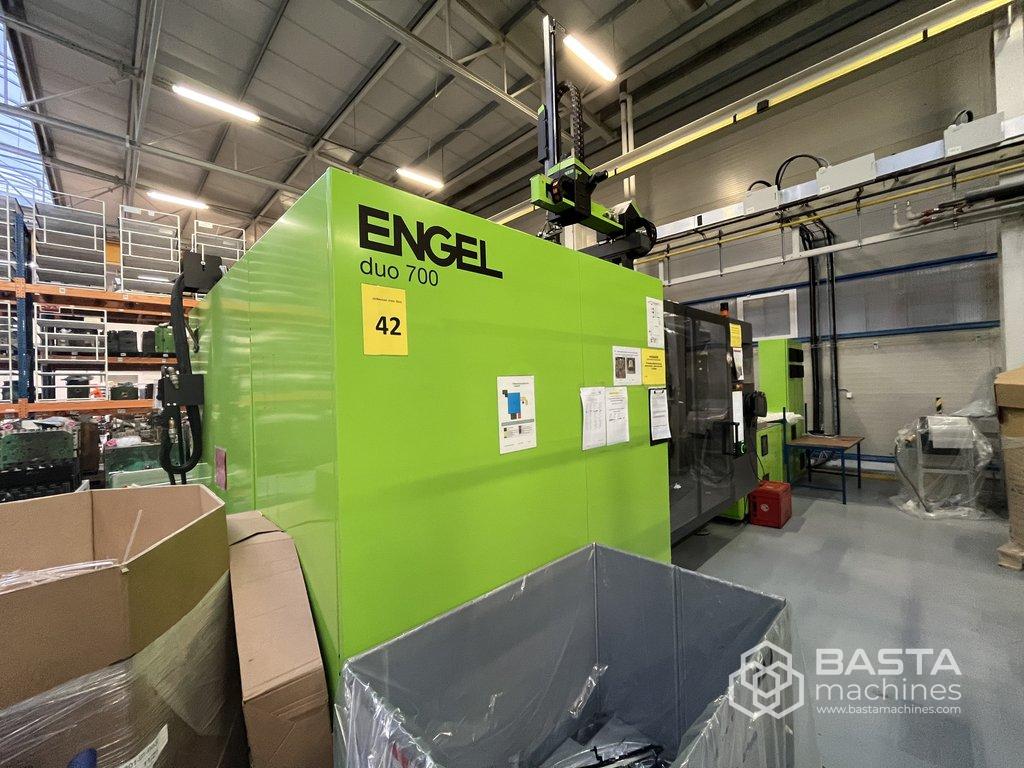

Engel DUO2550/700 Eco drive , Viper 20 robot (2017)

Engel DUO2550/700 Eco drive , Viper 20 robot (2017)

Clamping force: 700 t

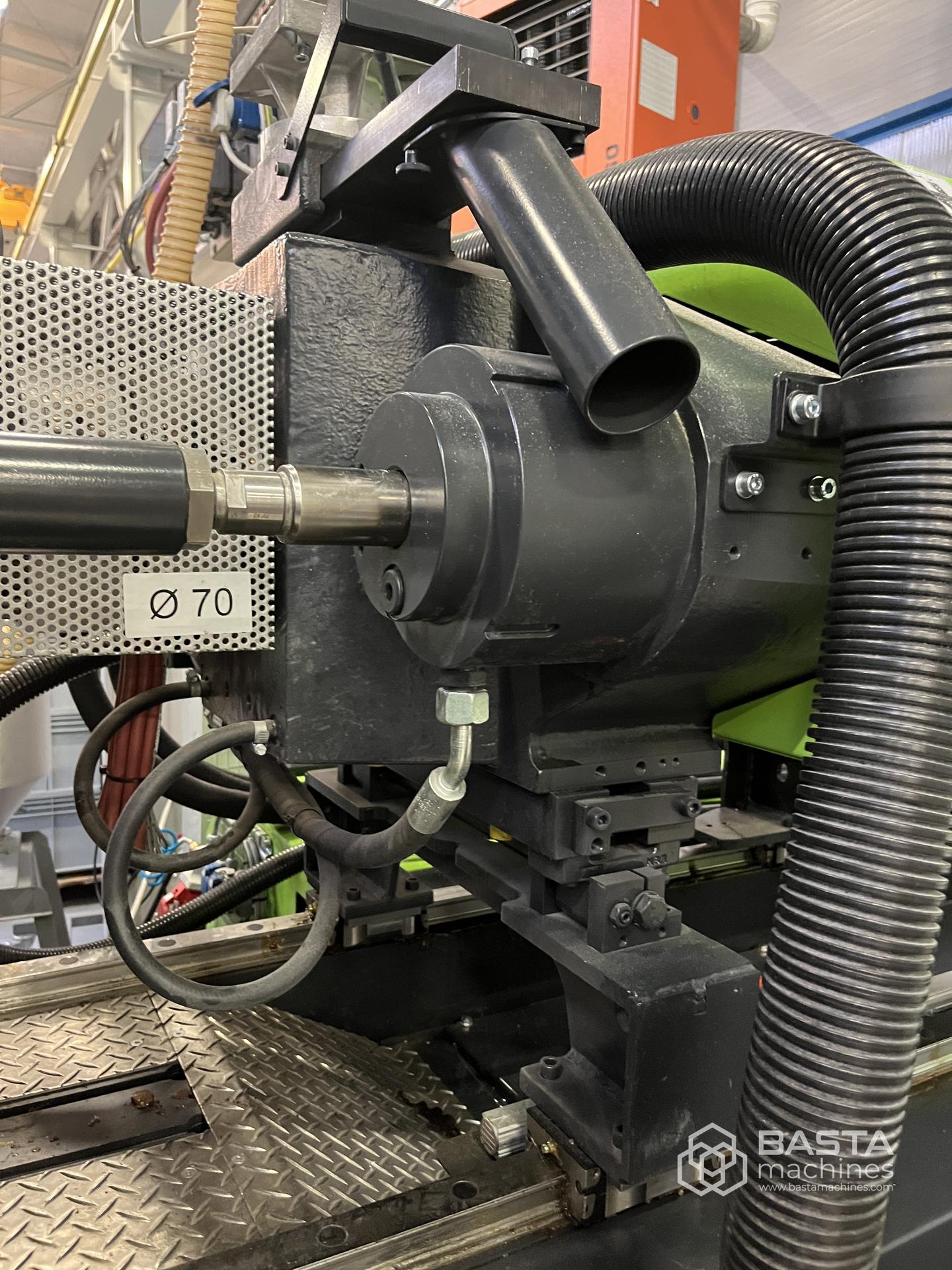

Screw diameter: 70 mm (S1)

Type: Horizontal

Drive: Hydraulic (Eco drive)

Screw diameter - 70 mm

Screw stroke - 310 mm

Max. Injection capacity - 1193 cm3

Screw speed - 244 min-1

Injection pressure (regenerative) - 1820 bar

Injection pressure (max) - 2140 bar

Nozzle stroke - 600 mm

Clamping force - 7000 kN

Opening force - 510 kN

Opening stroke - 1700 mm

Minimum mold height - 450 mm

Maximum mold height - 950 mm

Maximum distance between platen - 2150 mm

Distance between tie bars horizontal x vertical - 1100 X 960 mm

Platen size horizontal x vertical - 1510 x 1440 mm

Ejector stroke - 250 mm

Ejector force - 95 kN

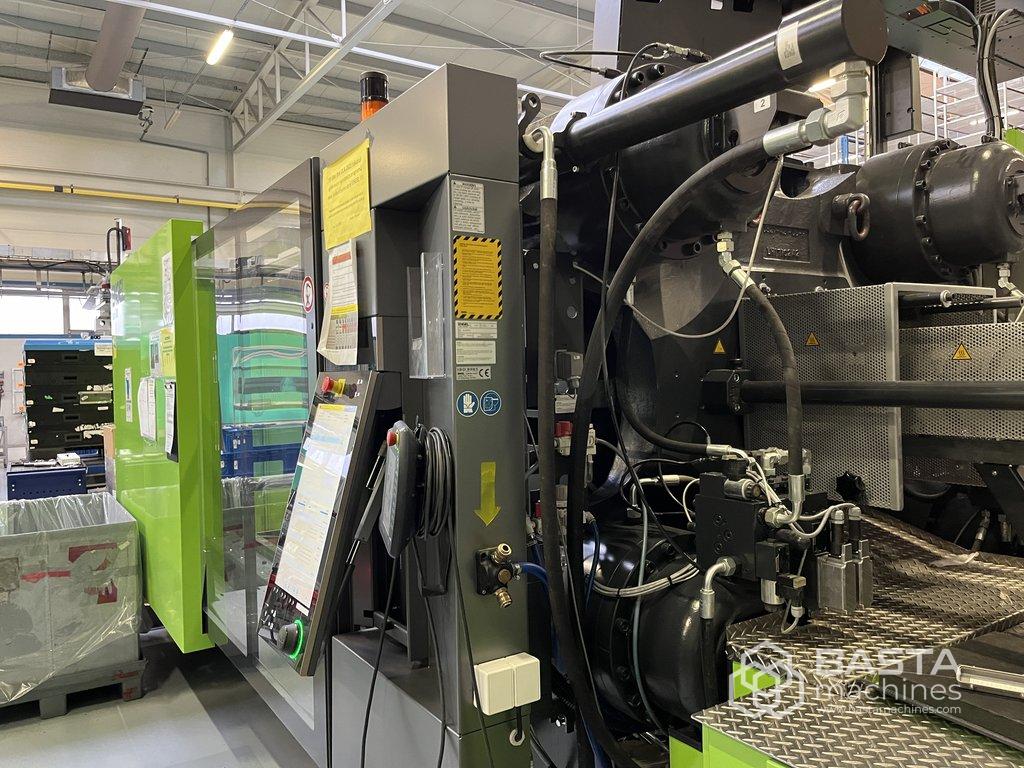

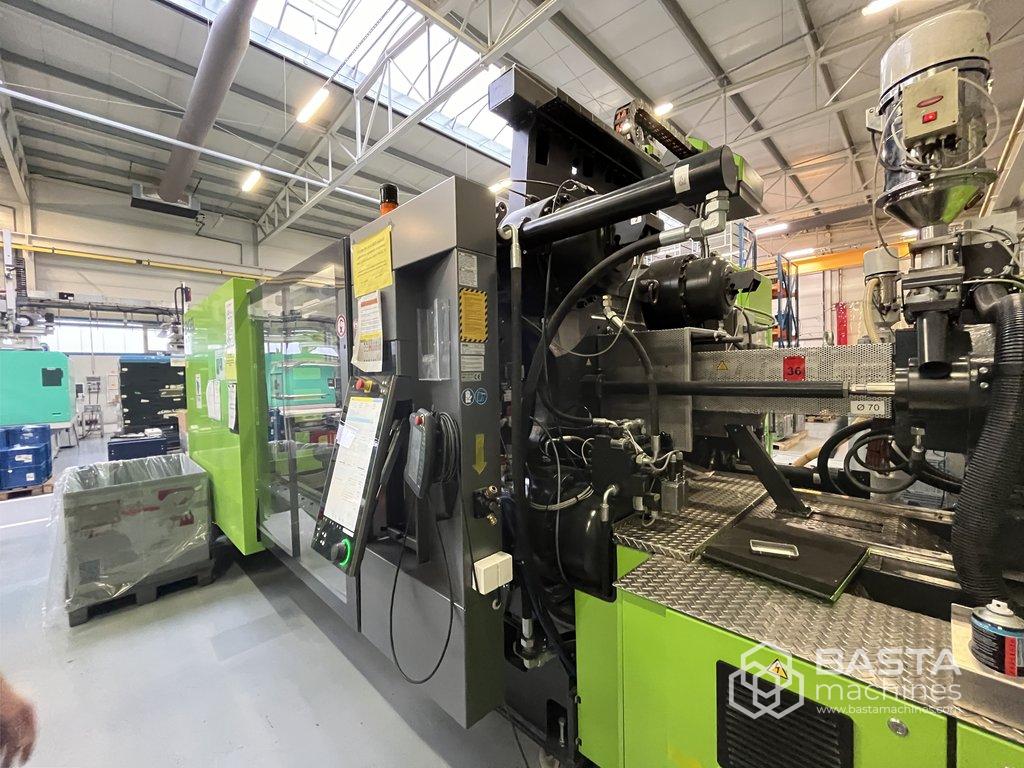

CC300 control

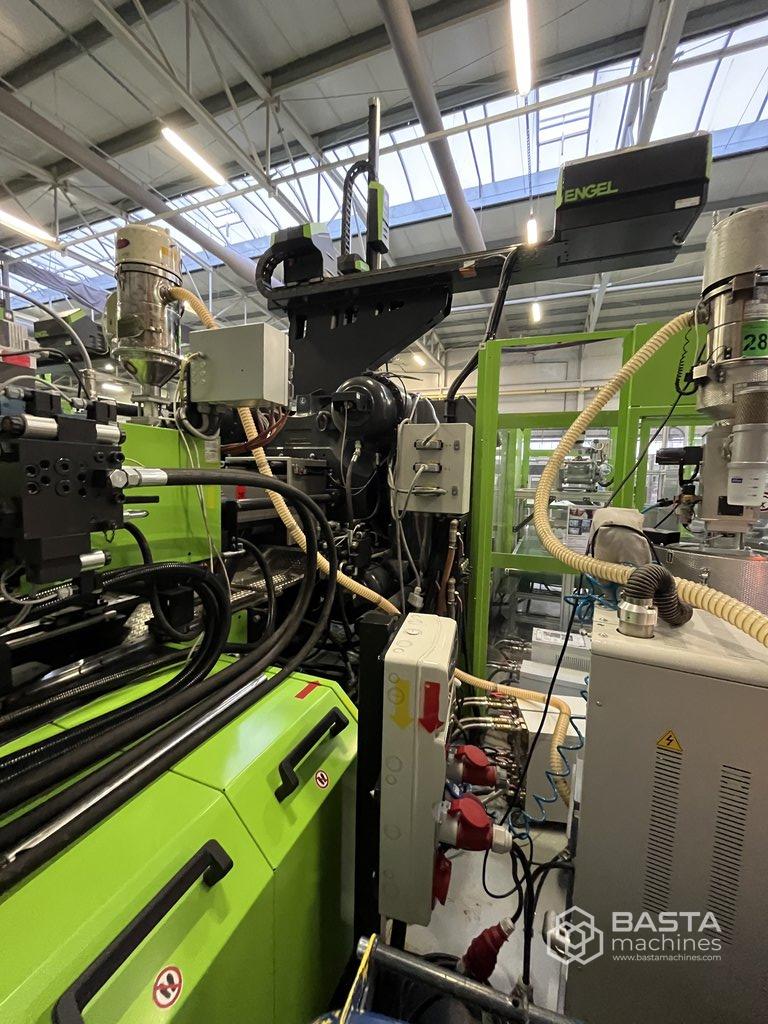

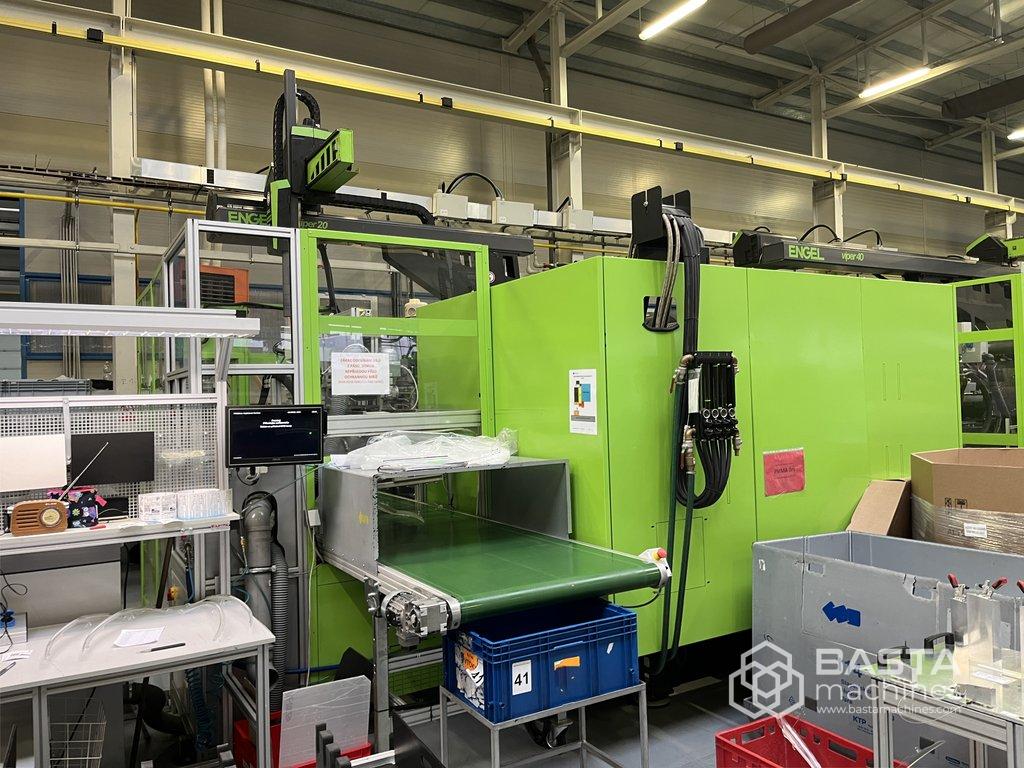

Engel Viper 20 linear robot

Material used: PMMA

Equipment:

1. 2x hydraulic core pulls
2. 2x pneumatic air valve
3. 16 hotrunner zones
4. Eco drive
