PLASTIC MACHINE

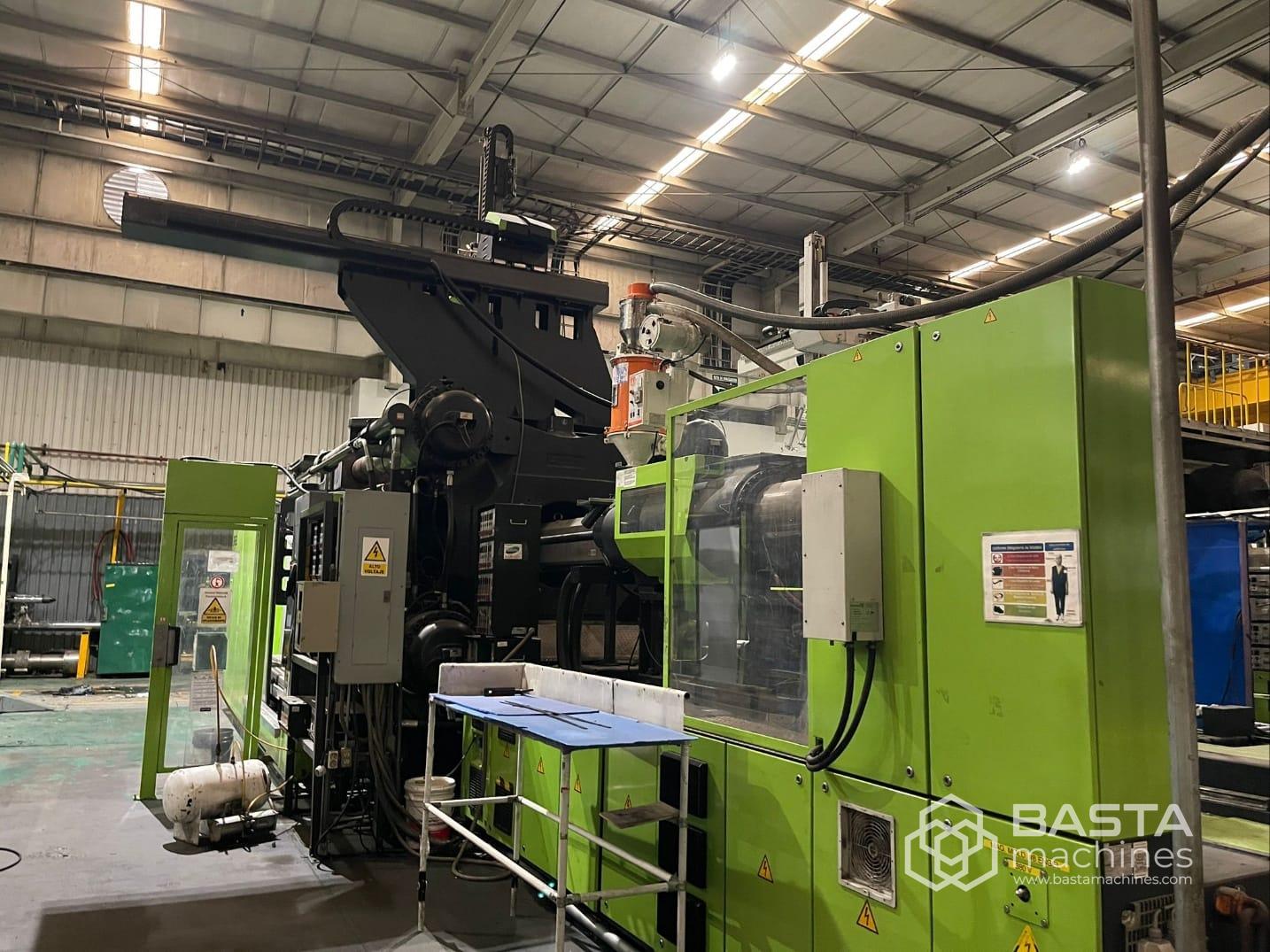

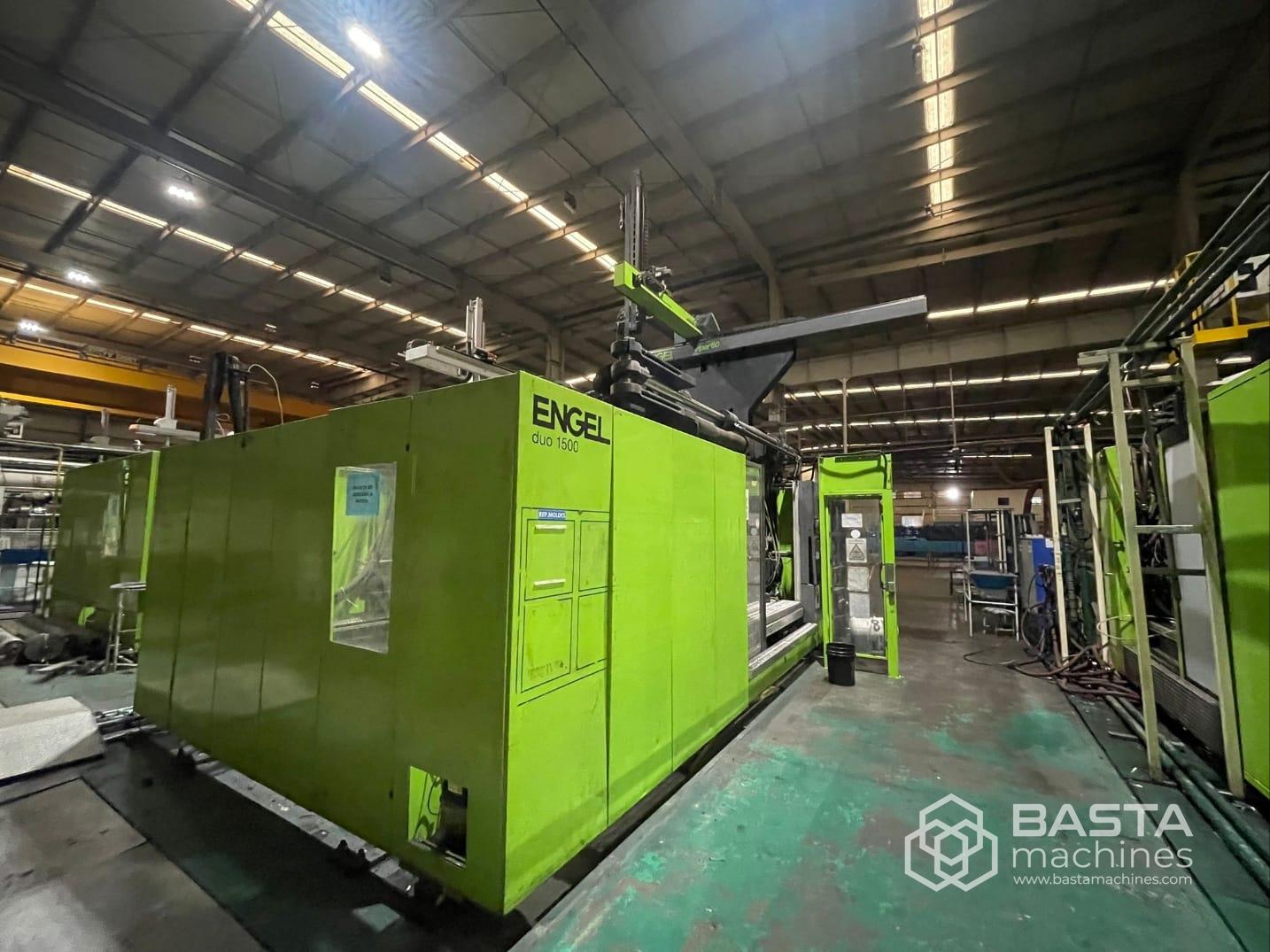

Engel duo 7050/1500 WP (2015)
Overview
Condition
Good
Manufacturer
Engel
Model
duo 7050/1500 WP
Year
2015
Stock number
250092
Description
Technical Datasheet – ENGEL DUO 7050/1500 WP
- Clamping force: 15,000 kN
- Opening force (with pressure cushion): 1,000 kN
- Opening force (without cushion): 476 kN
- Opening stroke: 2,550 mm
- Mold height (min – max): 700 – 1,360 mm
- Max. daylight (platens open): 3,250 mm
- Platen dimensions (H × V): 2,420 × 2,170 mm
- Tie bar spacing (H × V): 1,865 × 1,430 mm
- Tie bar diameter: 250 mm
- Max. mold weight: 45,000 kg (2/3 on moving platen)
- Ejector stroke: 300 mm
- Ejector force: 230 kN
- Dry cycle time (Euromap 6): 4.8 s
- Dry cycle stroke: 1,300 mm
- Screw diameter: 105 mm
- Screw stroke: 480 mm
- Injection volume: 4,160 cm³
- Screw speed (max): 130 rpm (up to 150 rpm with performance adjustment)
- L/D ratio (3-zone screw): 22
- Plasticizing rate (3-zone screw): 113 g/s (max. 130 g/s)
- Plasticizing rate (barrier screw): 148 g/s (max. 171 g/s)
- Injection speed: 800 cm³/s (630 cm³/s at higher pressure)
- Injection pressure (standard/boost): 1,650 / 2,090 bar
- Nozzle stroke: 950 mm
- Nozzle contact force: 150 kN
- Installed power (injection unit): 74 kW
- Heating zones (incl. nozzle): 7
- Pump drive power: 161 kW
- Oil tank volume: 1,800 liters
- Clamping + Injection Unit: 66 tons
- Approx. additional components: 17 tons
