Engel duo 17060/2000 (2022)

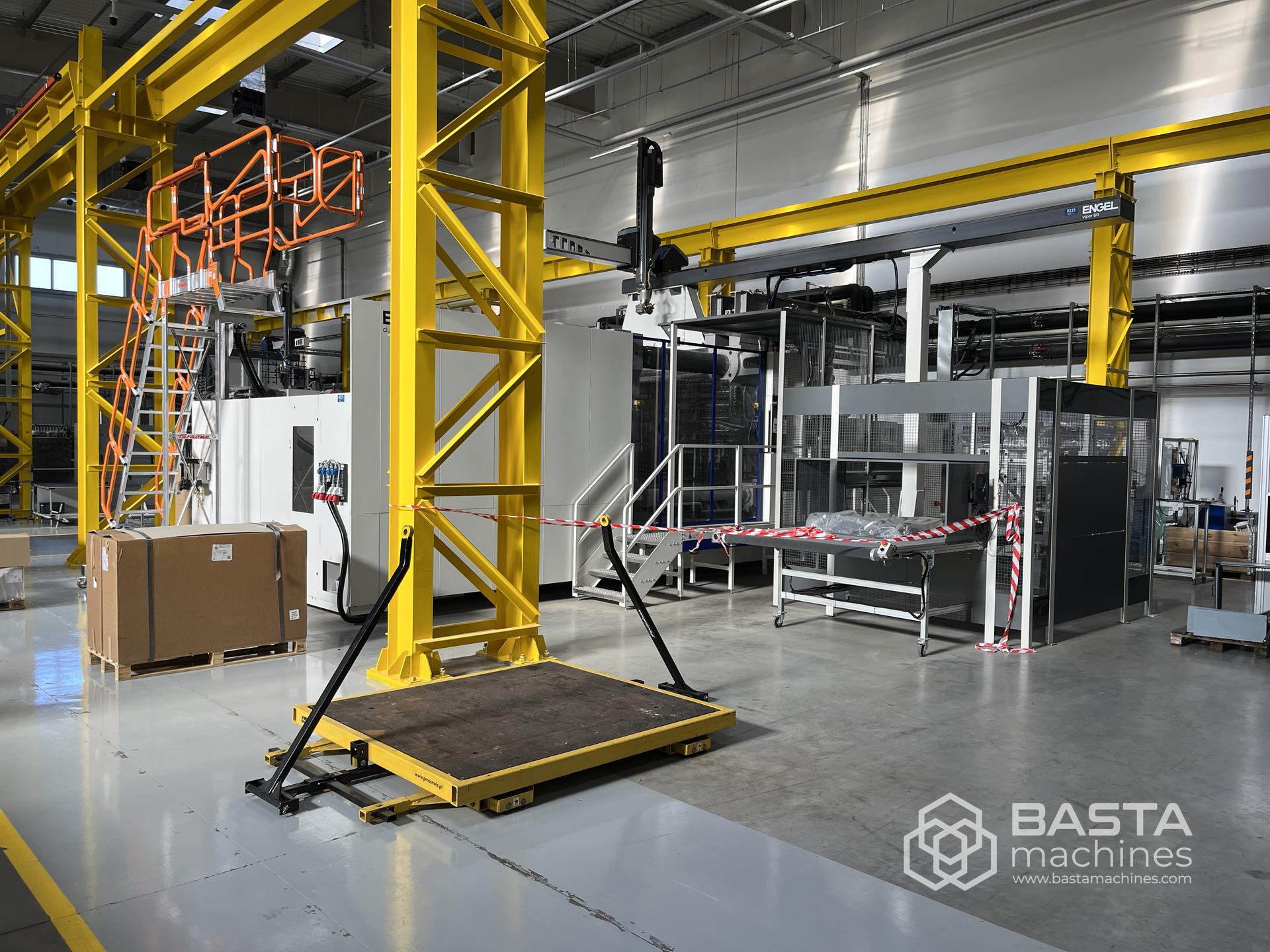

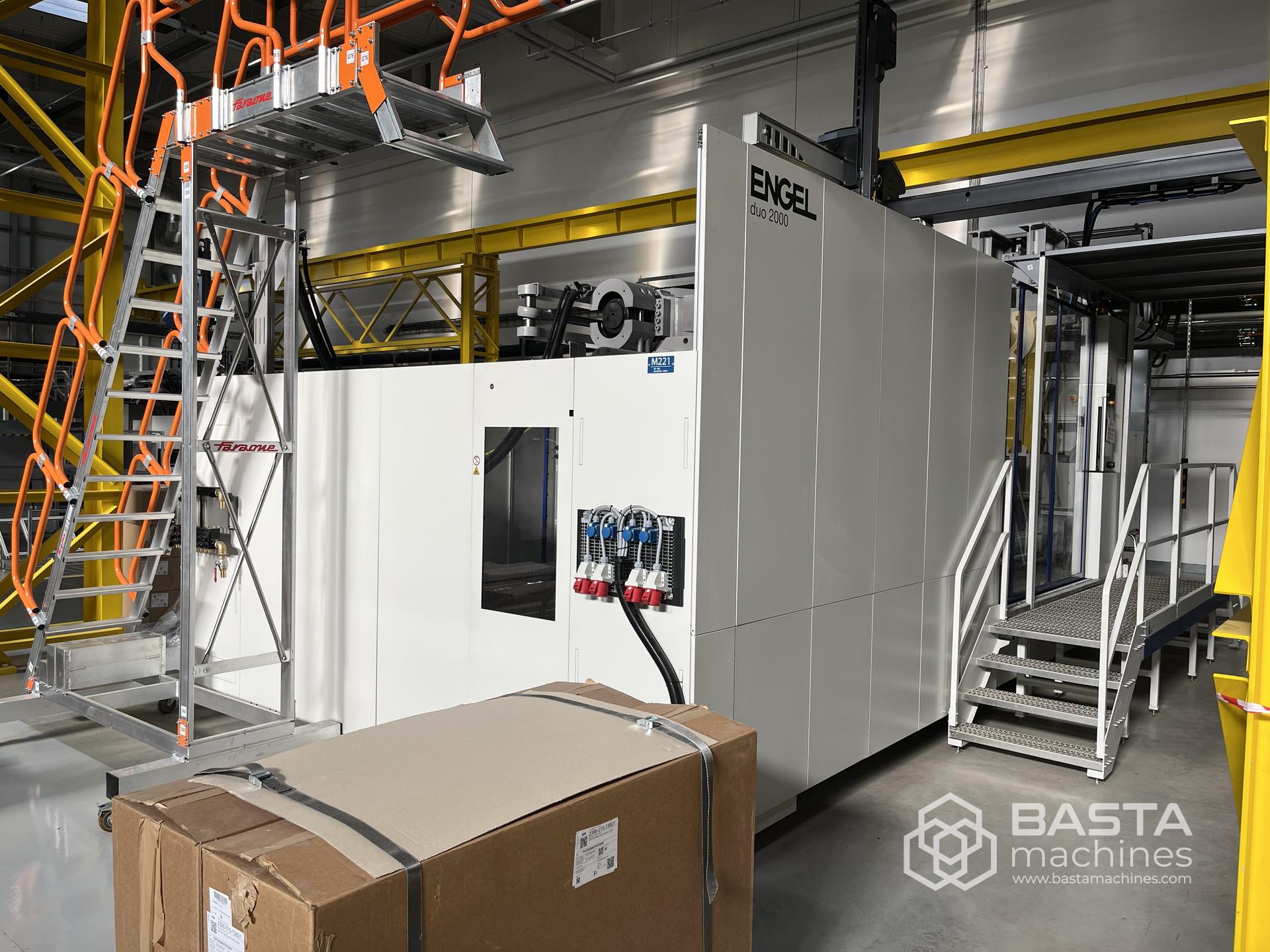

Engel duo 17060/2000 injection molding machine

Year of production -2022

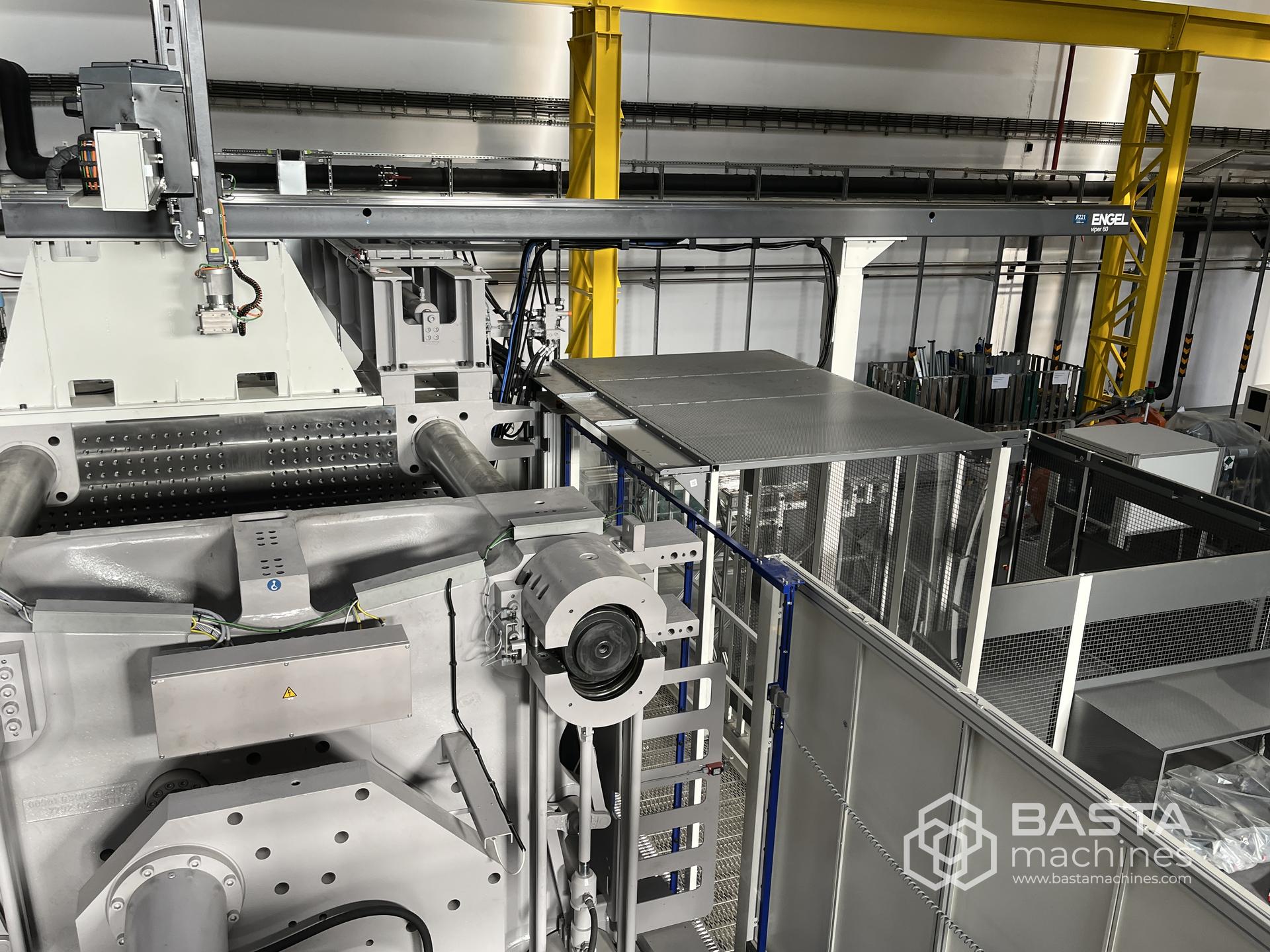

Robot viper 60 - RC300 integrated

Z= 4280 mm

X= 1800 mm

Y= 2600 mm

B9Wbl2Xapk

Injection system

Screw diameter mm 135

Screw pitch mm 610

Maximum injection capacity cm³ 8731

Screw speed min⁻¹ 125

Screw torque Nm 14000

Maximum screw speed at reduced torque min⁻¹ 135

Reduced torque at max. speed Nm 12963

Reduced screw speed at max. torque min⁻¹ 112

Maximum screw torque at reduced speed Nm 15630

Regeneration efficiency (3-zone screw) g/s 222.9

Regeneration efficiency (barrier screw) g/s 279.2

Injection Injection efficiency cm³/s 1904

Injection volume cm3 8731

Injection weight g 7860

Injection pressure (regeneration) bar 1648

Injection pressure (maximum) bar 2000

Nozzle Nozzle stroke mm 1100

Nozzle pressure force kN 210

Material cylinder L/D ratio - 25

Heating zones (including nozzle) - 8

Heating power kWel 88.5

Closing system

Closing force kN 20000

Minimum closing force kN 2000

Opening force (with pressure cushion) kN 1600

Force opening kN 614

Opening stroke mm 3000

Max. distance between platens mm 3800

Min. mould height mm 800

Max. mould height mm 1800

Spacing between tie bars (h x v) mm x mm 2000 x 1600

Size of mould plates (h x v) mm x mm 2700 x 2430

Max. mould weight (moving platen) kg 41330

Max. mould weight (stationary platen) kg 41330

Max. total mould weight kg 62000

Dry cycle stroke (Euromap 6) mm 1400

Dry cycle time (Euromap 6) s 5.5

Ejector Ejector stroke mm 400

Ejector force kN 385

Drive Installed power of main motors kW 265

Capacity oil tank (injection unit) l 1600

Oil filter Max. cooling capacity (at 25°C) kWcool 43.2

Water consumption (at 25°C) m³/h 6.3
