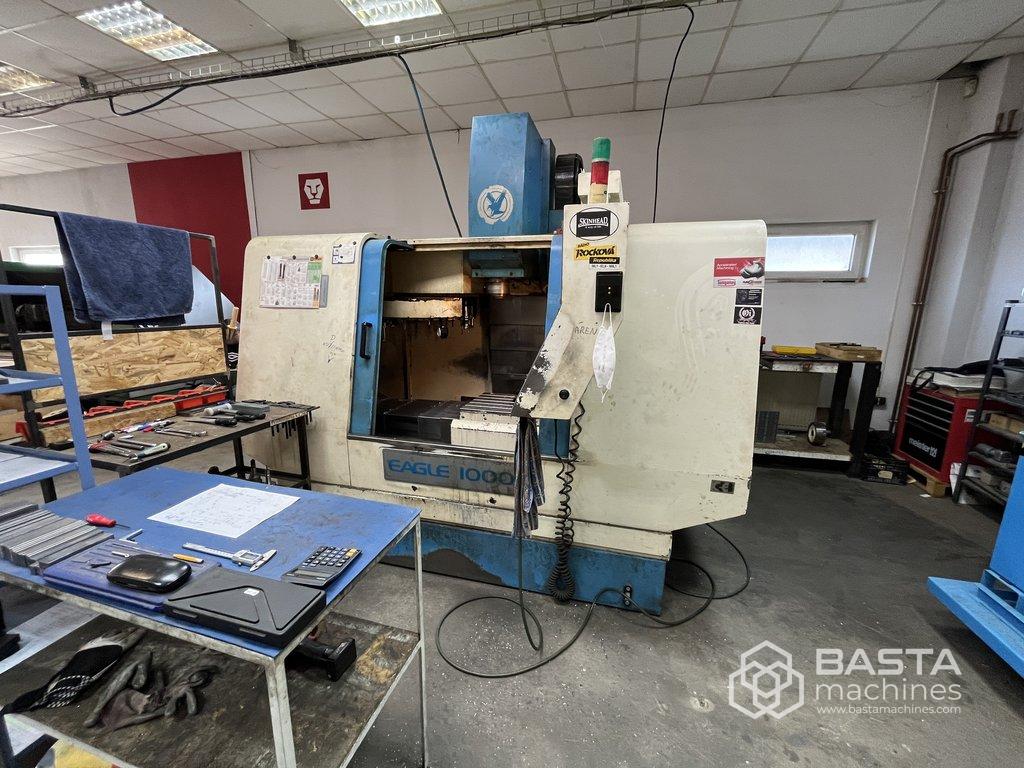

Dugard Eagle1000 VMC Machining center vertical

CNC control: Heidenhain - Table size: 1200 x 450 mm - table load: 600 kg - T-slots: 5 x 18 x 75 mm - X-axis movement: 1020 mm - Y-axis movement: 510 mm - Z-axis travel: 510 mm Spindle: - Spindle taper: 7/24, BT-40 - Spindle speed: 80-8000 rpm - Overhang, distance from spindle centre to body: 550 mm - distance from spindle face to table: 150-660 mm Information channels: - working feeds: 1 7600 mm/min. - X, Y, Z axis accelerated feeds: 30/30/18 m/min. Accuracy: - Repeatability: + -0.003 mm - positioning accuracy: + -0.005 mm Tool magazine: - Tool magazine: 20, carousel type - maximum tool diameter: 89 mm - maximum tool weight: 7 kg - Tool holder: BT-40 Motor: - Spindle motor (30 min.): 16 hp; 12 kW - Drive motor (X, Y, Z): 5.6 HP; 4.2 kW - Coolant pump: 0.38 kW Further information about the DUGARD EAGLE 1000VMC machining centre: - Required machine power: 15 kVA - voltage: 3-phase, 380/400 V - frequency: 50/60 Hz + - 1 Hz - voltage tolerance: + - 10% or less - Air required: 80 PSI, 5 kg/cm2
