PLASTIC MACHINE

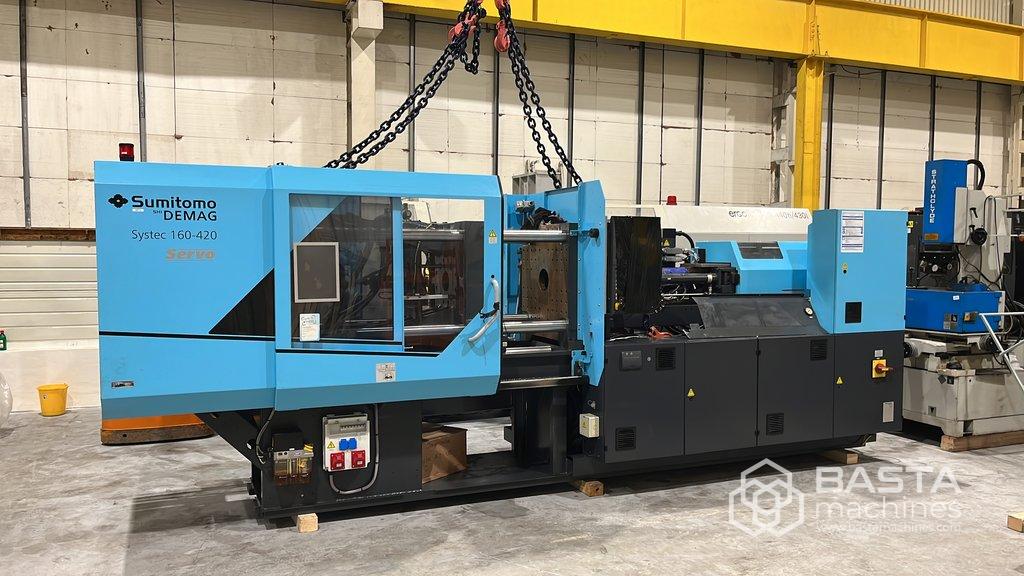

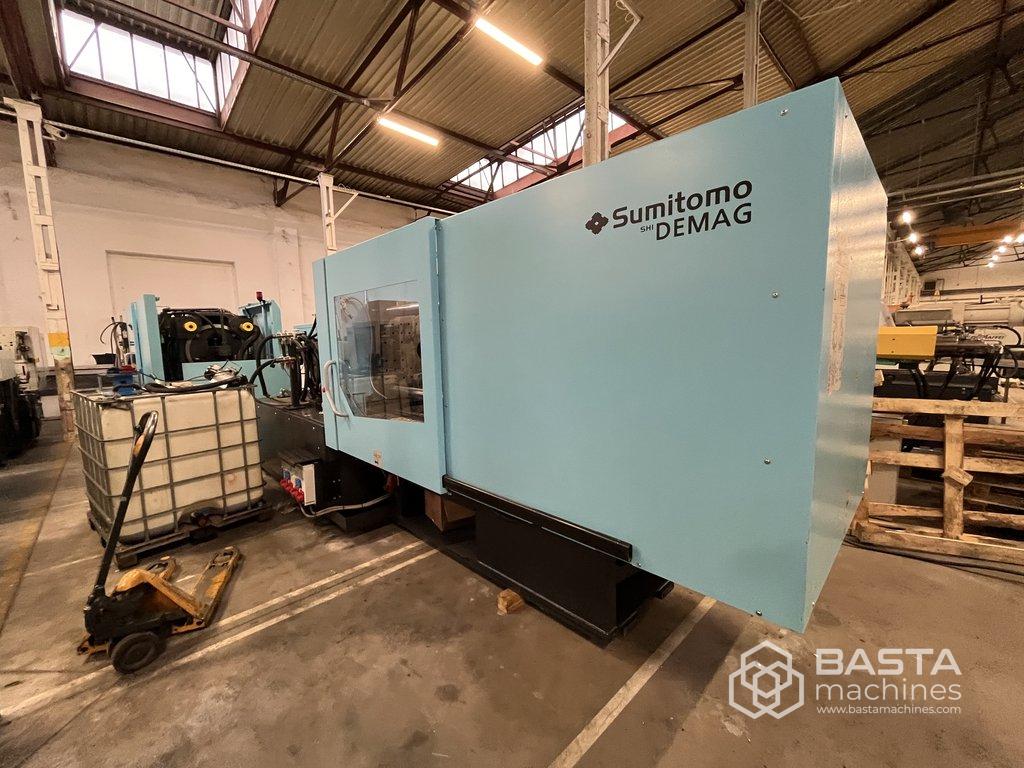

Demag Systec 160/520-430 (Servo) , year 2015

Sold
checkmarkRoundExcellent
gearGrey2015
Overview
Condition
Excellent
Manufacturer
Demag
Model
Systec 160/520-430 (Servo)
Year
2015
Stock number
00692
Description
arrowDown

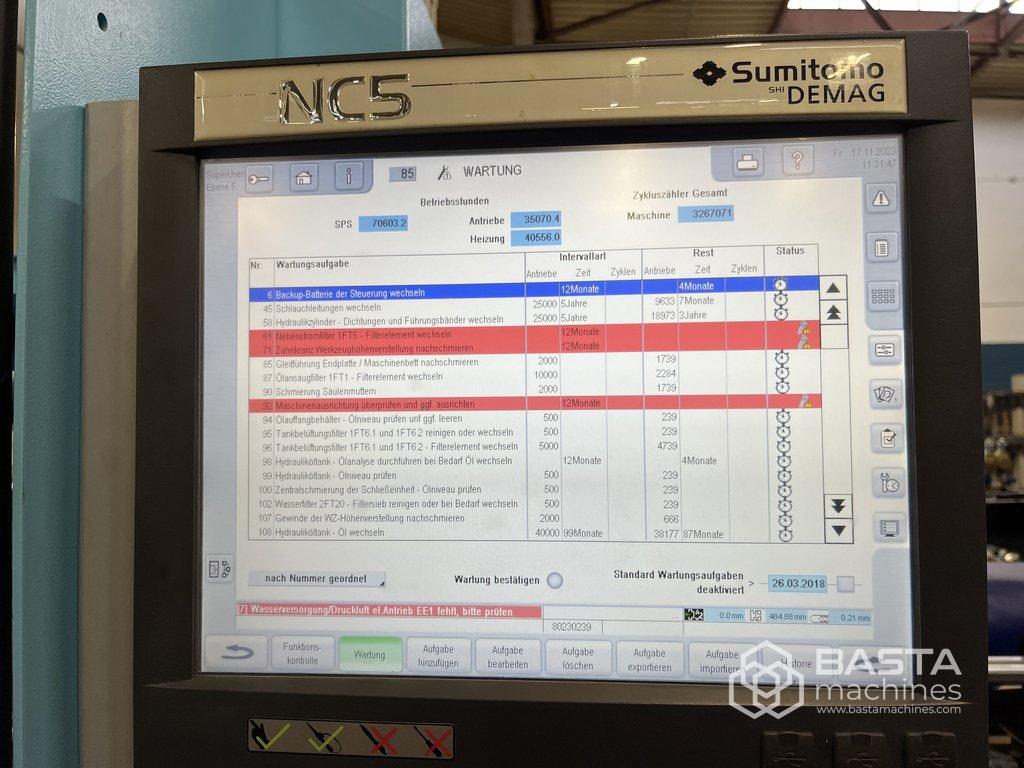

Demag Systec 160/520-430 (Servo) Year: 2015 Screw dia: 40mm 1 Technical Data 1.1 Data Sheet Systec 160/520 Type Designation Systec 160/520 - 430 International Size Specification 1600 - 430 Clamping Unit Clamping Force : 1600 kN Holding Force :1760 kN Maximum Opening Stroke: 500mm Minimum Mold Installation Height : 275mm Maximum Mold Installation Height : 585 mm (685 with WA) Max. Distance Between Mold Mounting Plates: 1085mm (1185 with WA) Mold Mounting Plates : (h x v) 770 x 770mm Clear Column Spacing: (h x v)520 x 520mm Max. Mold Weight: 2200kg Max. Weight Share on Moving Mold Mounting Plate: 1300 kg Max. Weight Share on Fixed Mold Mounting Plate: 1700 kg Ejector Ejector Stroke: 160mm Ejector Force : 59kN Ejector Retraction Force : 29kN Technical Data Sumitomo SHI DEMAG Injection Unit 430 Plasticizing Cylinder Screw Diameter: 40mm Injection Pressure (up to 400 °C) 2025 bar Max. Stroke Volume : 168 cm3 Max. Shot Weight (PS) 210 g Max. Metering Stroke: 184 mm Nozzle Stroke max. mm 400 Nozzle Immersion Depth (WA650) : 20mm Nozzle Contact Force 80 kN Total installed power: 36.1/56.1 kW Hours: 35000 Additional equipment: Pneumatic Valve 1x Air valve moving platen 2x Air valves static platen 1 Core pulers 8 circuids of cooling water Euromap 67 Servo WC5 - world connect , possible for remote control of machine Video, complete machine equipment on request.
