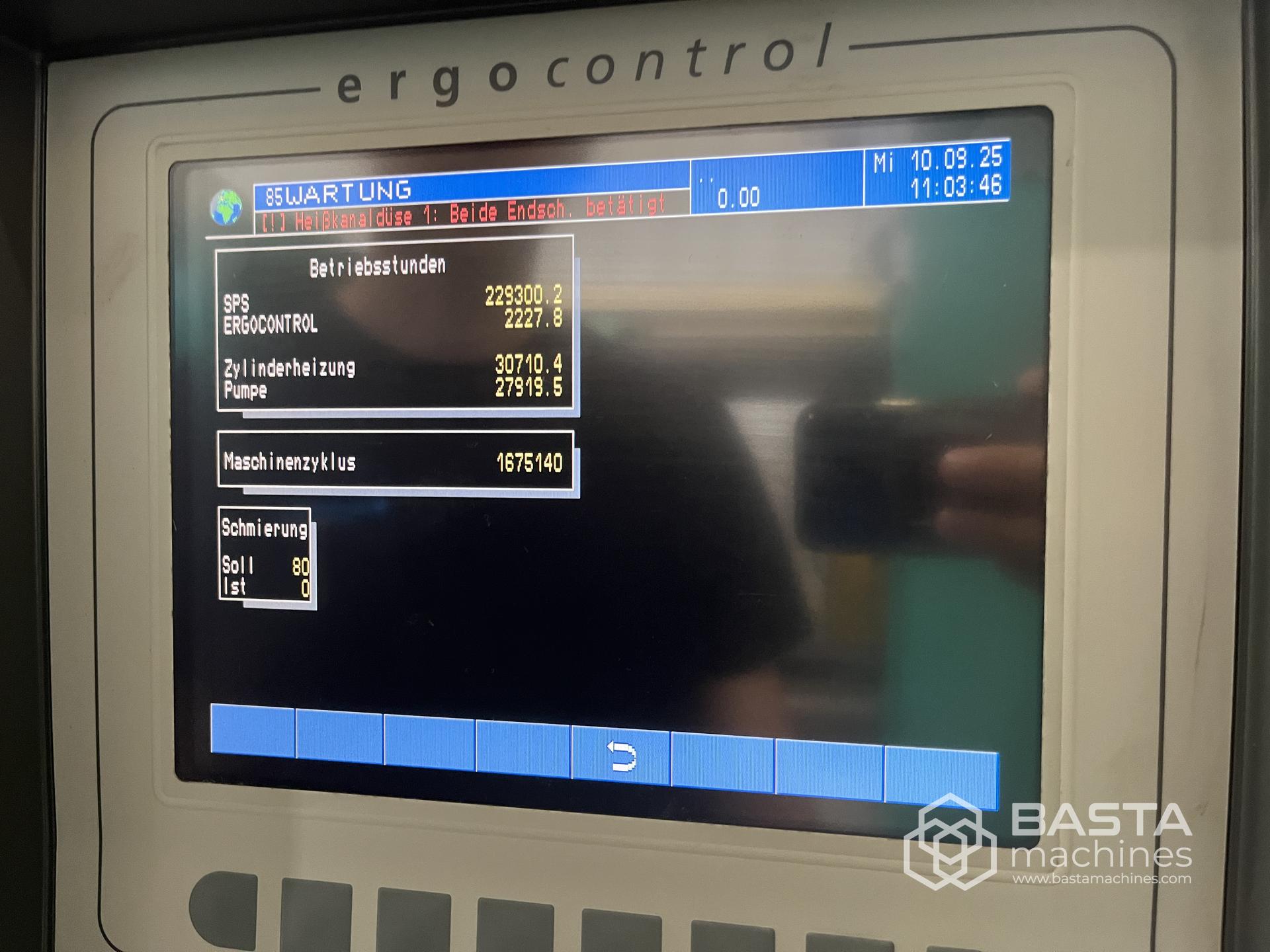

Demag 500 ton ( System 500/900-3300 year 2008) only 27919 hours!

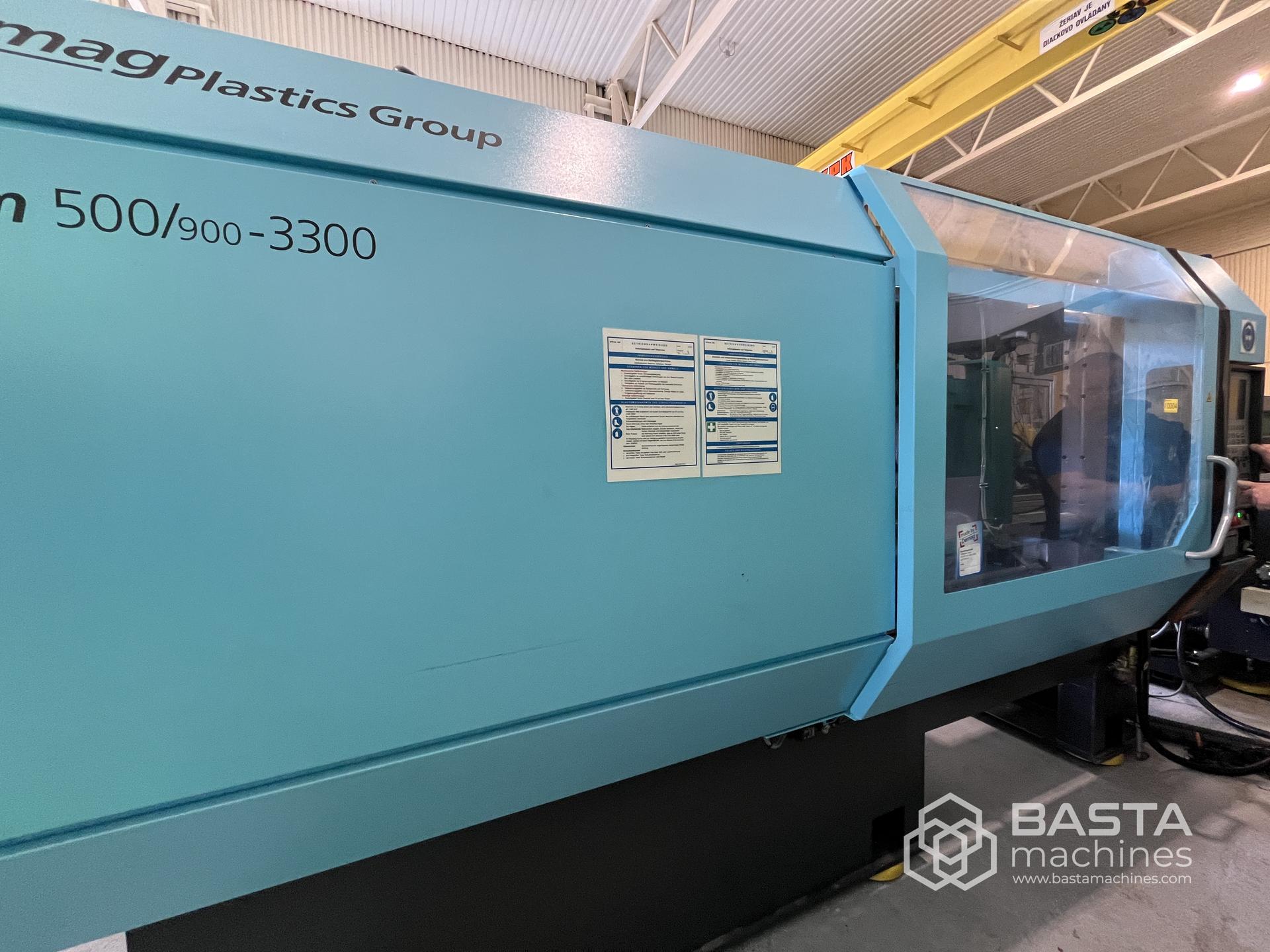

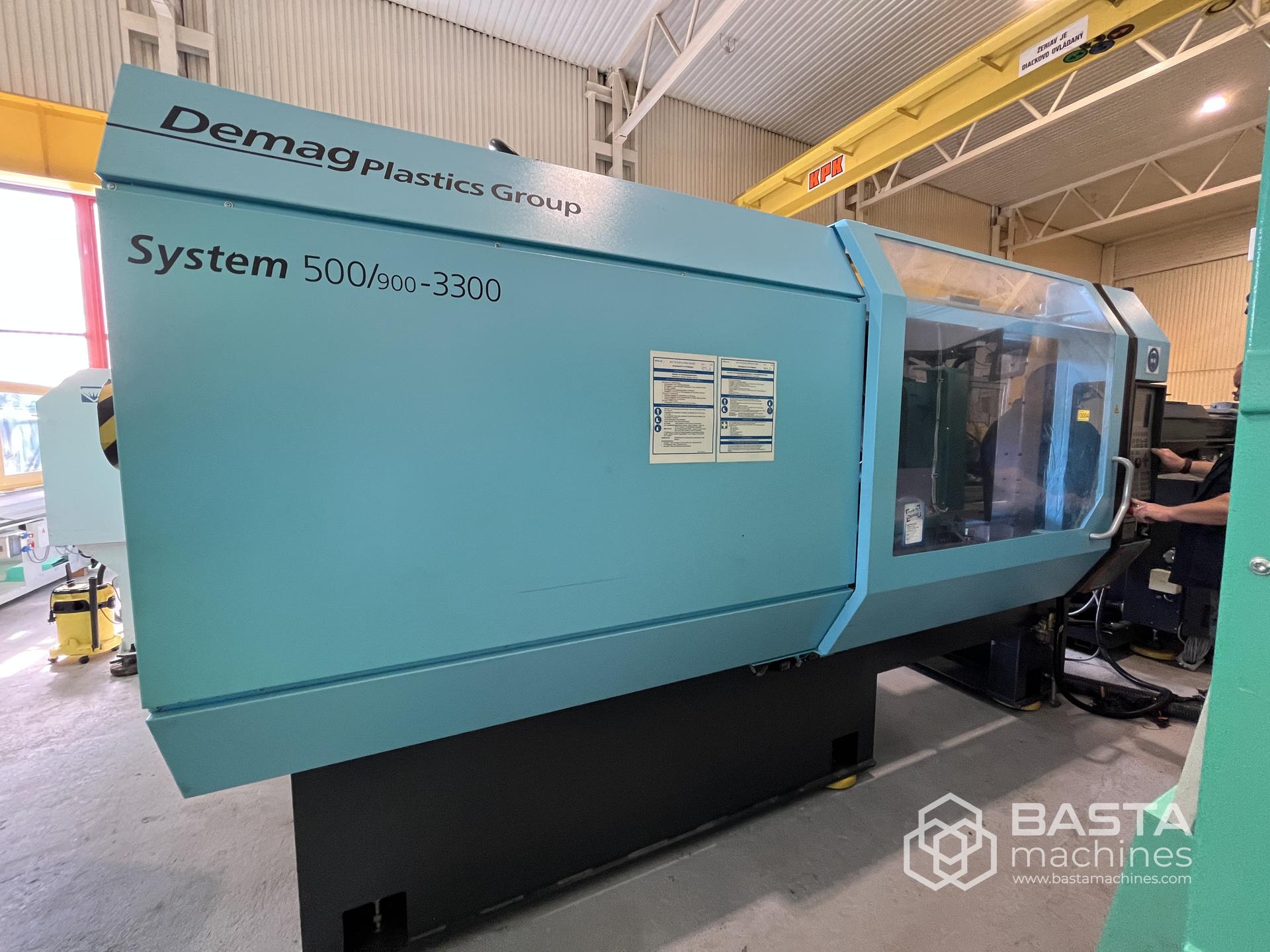

Demag System 500/900-3300 (2008)

Clamping unit

Clamping force: 500 tons

Platten dimension: 1300 x 1200 mm

Distance between tie bars: 900 x 800 mm

Mold height min. : 440 mm

Mold height max. 880 mm

Injection unit

Screw diameter: 80 mm

Injection pressure: 1855 bar

Injection volume: 1779 cm3

Shot weight: 1620 g

Transport dimensions Dimensions: 8,7 m x 2.3 m x 2,5 m

Weight (clamping unit/injection unit): 16.500/5.400 kg

4x Core pullers

Cascade control 2-way hydraulic

EUROMAP 67 interface

Additional connections for 2 core pulls on the fixed tool clamping plate

10-way cooling water flow regulator with temperature display

Additional nozzle controller; 1 circuit; PID controller
