Chiller Reglo Chill RC2E 30/C (2020)

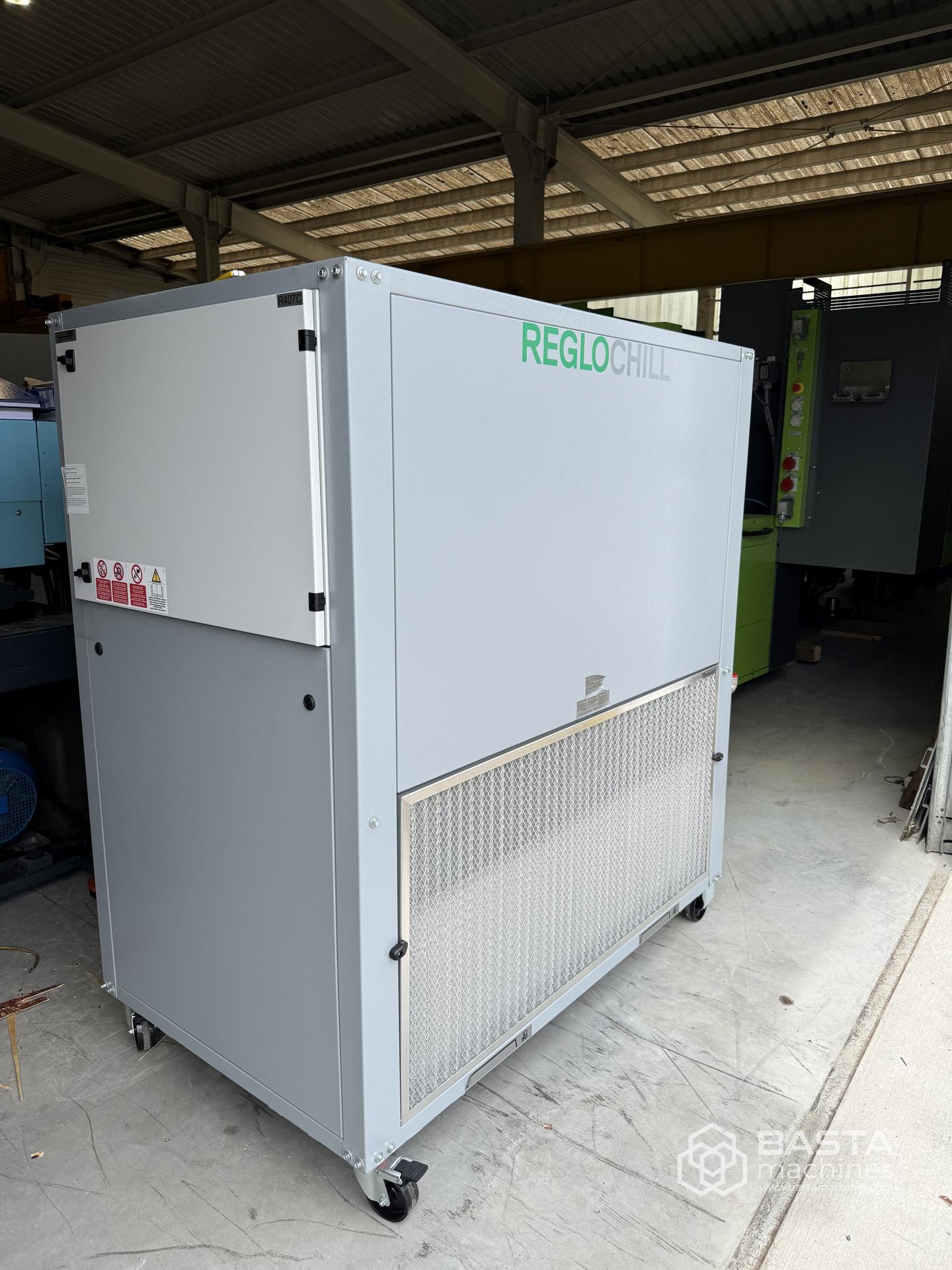

RegloChill RC2E 30/C – Air-cooled water chiller (Regloplas)

Manufacturer: RegloChill / Regloplas

Model: RC2E 30/C

Serial no.: 0710-1008-0001

Year of manufacture: 2020

Made in: Italy

Cooling capacity: approx. 28 kW (to be confirmed)

Refrigerant: R407C, 6.5 kg

Main power supply: 400 V / 3 PE / 50 Hz

Rated current: 25 A

Short circuit current: 10 kA

Auxiliary power supply: 110 V / 24 V

Water pressure: 3.5 bar (nominal)

Design pressure: 18 barg (HP) / 30 barg (LP)

PED category: II

Set point temperature: -10 °C to +25 °C

Max. ambient temperature: +40 °C

Tank volume: 200 l

Fan capacity: 15,500 m³/h

Dimensions (W x H x D): approx. 900 x 1680 x 1500 mm

Weight: 475 kg

Wiring diagram: SA 095F-00A
