PLASTIC MACHINE

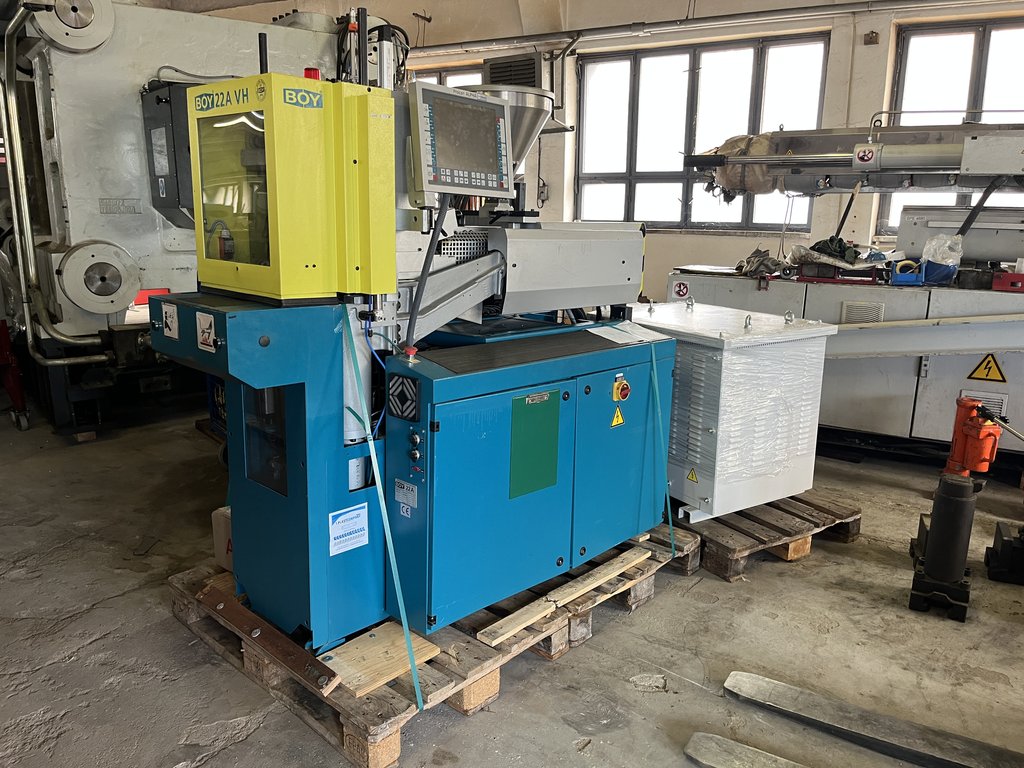

BOY 22A VH vertical (only 2000 hours) + Extra silicon injection unit

Sold
checkmarkRoundNew
gearGrey2010
Overview
Condition
New
Manufacturer
BOY
Model
22A VH
Year
2010
Stock number
00225
Description
arrowDown
Machine has only 2000 hours! New machine Brand: BOY Model: 22A (vertical) Version VH: The clamping unit is vertical. The injection unit is horizontal. Clamping unit: Clamping force: 22 Ton Opening force max KN/mm: 40/200 Distance between plates: max 400 mm, min 200 mm Mold opening max. mm: 200 Platen daylight: 254 mm Weight of tool max: 250 mm Ejector force/stroke max. kN/mm: 18,1/12 kN / 80 mm Injection unit Screw dia: 32 mm Injection volume: 64 cm3 Shot weight: 61,6 g/PS Injection pressure: 818 bar Languages: EN + 1 more Weight of machine 3500 kg Condition : Like new Machine is immediately available. Model: BOY 22A VH + Another injection unit for Silicon (new cost 20k€) - 32mm screw Price per machine is separatly and price per extra injection unit is also separatly. Agreement about price of package. On machine injection unit is thermoplastic. Extra injection unit what we offer to machine is silicone. Transport parameters: length 2 m, width 1.2 m, height 2.1 m
