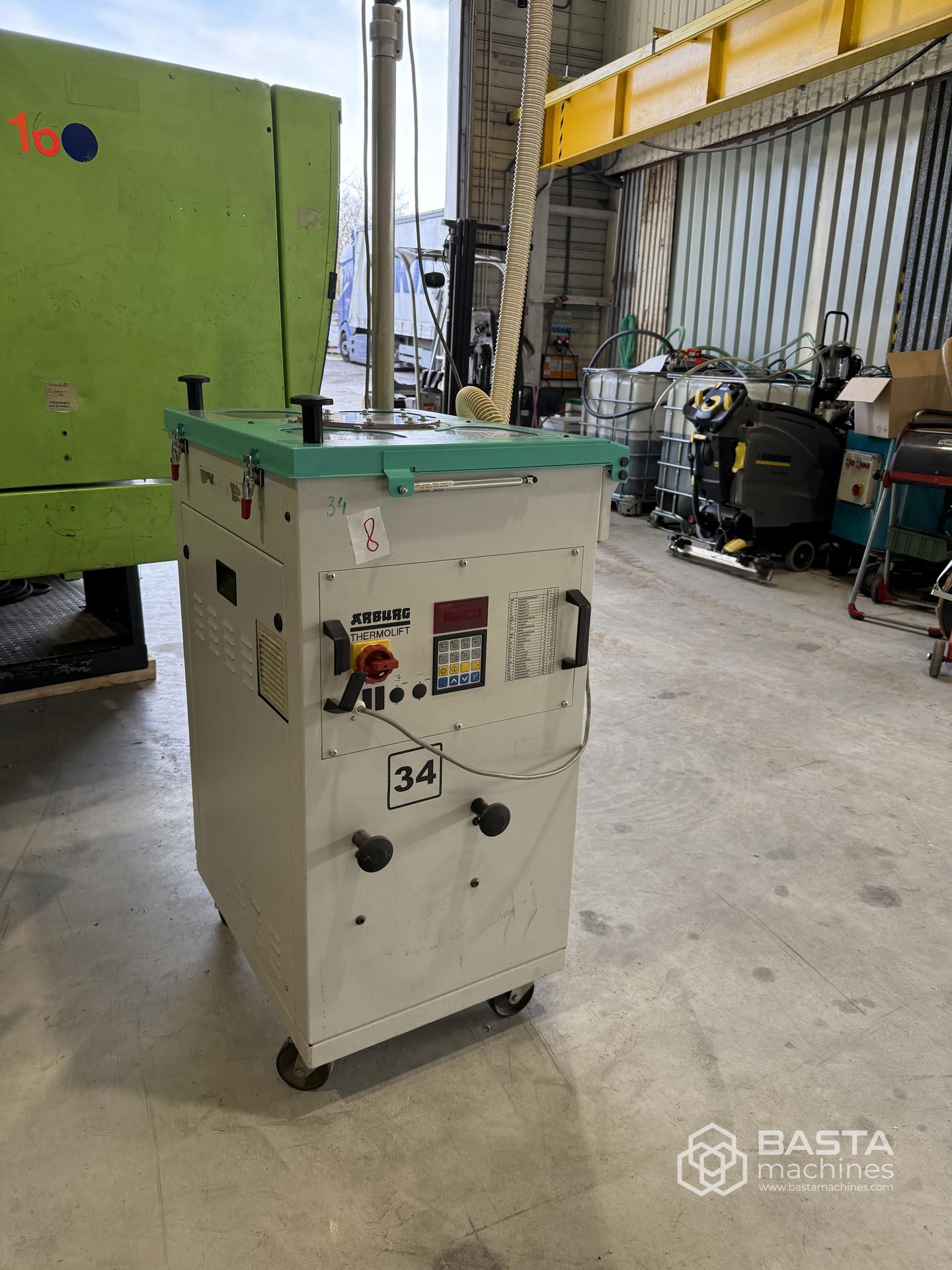

Arburg Thermolift 100-2 (2013)

Model: Arburg Thermolift 100-2

Type: Granulate drying and conveying unit

Drying hopper capacity: 100 L (optional 200 L extension)

Heating power: approx. 4.5 kW

Blower power: approx. 0.95 kW

Air volume: approx. 90 m³/h

Conveying height: up to approx. 3 m

Feed pressure: approx. 0.055 bar

Weight: approx. 150 kg

Operating modes: Fresh-air, recirculating-air, optional dry-air module

Feeding capability: Can supply up to two injection moulding machines

Options: Vacuum loading, dual material manifold, dry-air module with rotor, integration to machine control
