PLASTIC MACHINE

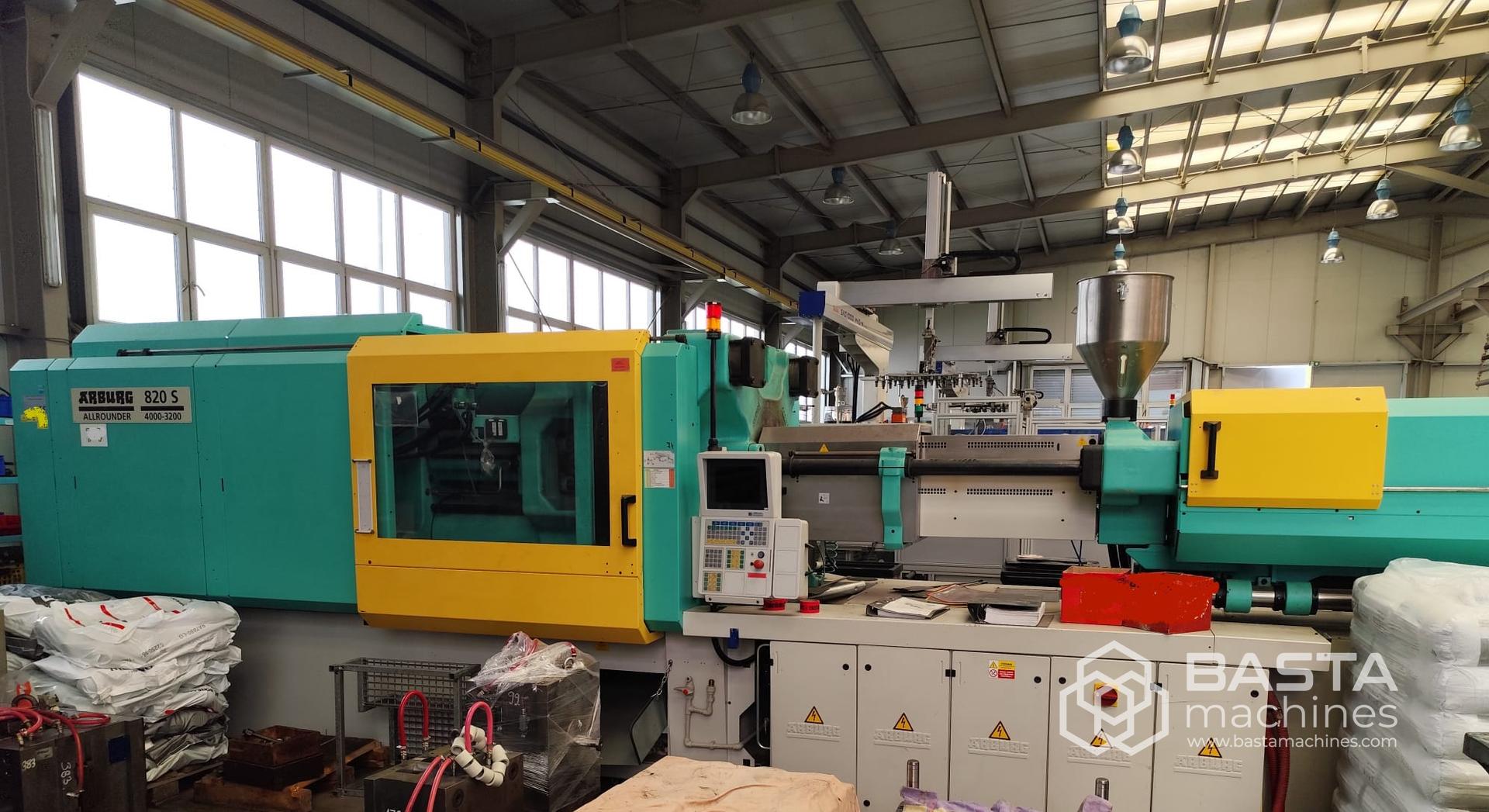

Arburg 820 S 4000-3200 (2005)

checkmarkRoundGood
gearGrey2005
Overview
Condition
Good
Manufacturer
Arburg
Model
820 S 4000-3200
Year
2005
Stock number
250244
Description
arrowDown

Arburg 820 S 4000-3200 (2005)

The machine has 2x hydraulic cores and 9 hot runners.

Clamping Force: 400 ton

Screw Diameter: 90 mm

Shot Weight: 1860 g

Injection Volume: 2036 cm³

Injection Pressure: 1580 bar

Opening Stroke: 700 mm

Distance Between Tie Bars: 820 × 820 mm

Mould Height Min/Max: 350 – 850 mm

Opening Width: 1050 – 1550 mm

Platen Size (h × v): 1171 × 1171 mm

Machine Dimensions (L × W × H): 8,3 × 2,3 × 2,4 m

Machine Weight: 22 500 kg

Working hours : 79.000
